Sida 1/36

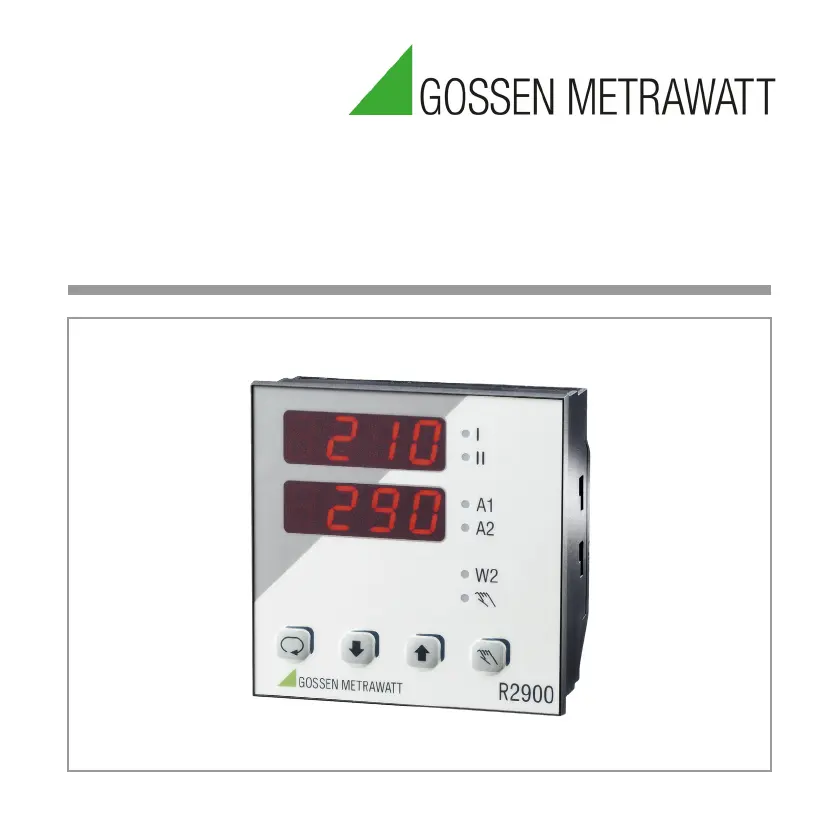

R2900

Compact Controller, 96 x 96 mm 3-349-203-15

7/4.21

Operating Instructions

Contents Page Page

2 Gossen Metrawatt GmbH

Safety Features and Precautions . . . . . . . . . . . . . . . . 3

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Repair and Replacement Parts Service . . . . . . . . . . . . 4

Product Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Device Identification . . . . . . . . . . . . . . . . . . . . . . . . . 5

Data Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Mechanical Installation / Preparation . . . . . . . . . . . . . 6

Electrical Connection . . . . . . . . . . . . . . . . . . . . . . . . . 8

Performance After Activating Auxiliary Voltage . . . . . 10

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Operating Flowchart,

“Discontinuous-Action Controller” . . . . . . . . . . . . . . 12

Operating Flowchart, “Discontinuous-Action Controller”

with Differential Control . . . . . . . . . . . . . . . . . . . . . . 13

Operating Flowchart,

“Continuous-Action and Step-Action Controllers” . . . 14

Operating Flowchart, “Cont.-Action and

Step-Action Controller” with Diff. Control . . . . . . . . . 15

Off / Manual Operation . . . . . . . . . . . . . . . . . . . . . . 16

Manual Operation with Binary Input . . . . . . . . . . . . . 17

PWR Out Offset with Binary Input . . . . . . . . . . . . . . . 17

Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Saving and Loading Device Settings: . . . . . . . . . . . . 21

Differential Controller . . . . . . . . . . . . . . . . . . . . . . . . 21

Slave Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Controller Sorts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Configuration of the Controller with Continuous

Output (desig. A7 and A8) . . . . . . . . . . . . . . . . . . . . 23

Parameters Configuration . . . . . . . . . . . . . . . . . . . . 24

Balancing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Self-Tuning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Manual Self-Tuning . . . . . . . . . . . . . . . . . . . . . . . . .28

Setpoint Ramps . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Heating Current Monitoring . . . . . . . . . . . . . . . . . . .32

Heating Circuit Monitoring . . . . . . . . . . . . . . . . . . . .32

Limit Value Monitoring . . . . . . . . . . . . . . . . . . . . . . .33

Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . .36

Meanings of symbols on the instrument

Continuous doubled or

Warning concerning a source of danger

Indicates EC conformity

reinforced insulation

Attention: observe documentation!

Functional earth terminal,

earthing for functional purposes only

(no safety function)

The device may not be disposed of with the

trash. Further information regarding the

WEEE mark can be accessed on the Internet

at www.gossenmetrawatt.com under the

search term WEEE

Gossen Metrawatt GmbH 3

Safety Features and Precautions

The R2900 controller is manufactured and tested in accordance with safety regulations IEC 61010-1 /

DIN EN 61010-1 / VDE 0411-1.

If used for its intended purpose, safety of the user and of the device is assured.

Read the operating instructions completely and carefully before using the device, and follow all instructions included

therein. The operating instructions should be made available to all users.

Observe the following safety precautions:

– The device may only be connected to electrical systems which comply with the specified nominal range of

use (see circuit diagram and serial plate), and which are protected with a fuse or circuit breaker with a

maximum nominal current rating of 16 A.

– The installation must include a switch or a circuit breaker which serves as a disconnecting device.

The controller may not be used:

– If visible damage is apparent

– If it no longer functions flawlessly

– After lengthy periods of storage under unfavorable conditions (e.g. humidity, dust, temperature)

In such cases the device must be removed from service and secured against any possible inadvertent use.

Maintenance

Housing

No special maintenance is required for the housing. Keep outside surfaces clean. Use a slightly dampened

cloth for cleaning. Avoid the use of solvents, cleansers and abrasives.

Repair and Parts Replacement

Repairs and the replacement of parts conducted at a live open instrument may only be carried out by trained

personnel who are familiar with the dangers involved.
