Sida 1/12
E40.0.01.6C-02
GR
E
D - 931
phone.: +4
9
from Version V1.5
E
ISINGER
electronic G
m
28 Regenstauf, Hans-Sachs-Str
a
9402 / 9383-0, fax: +49 9402 / 9383-33, eMail: info@gre

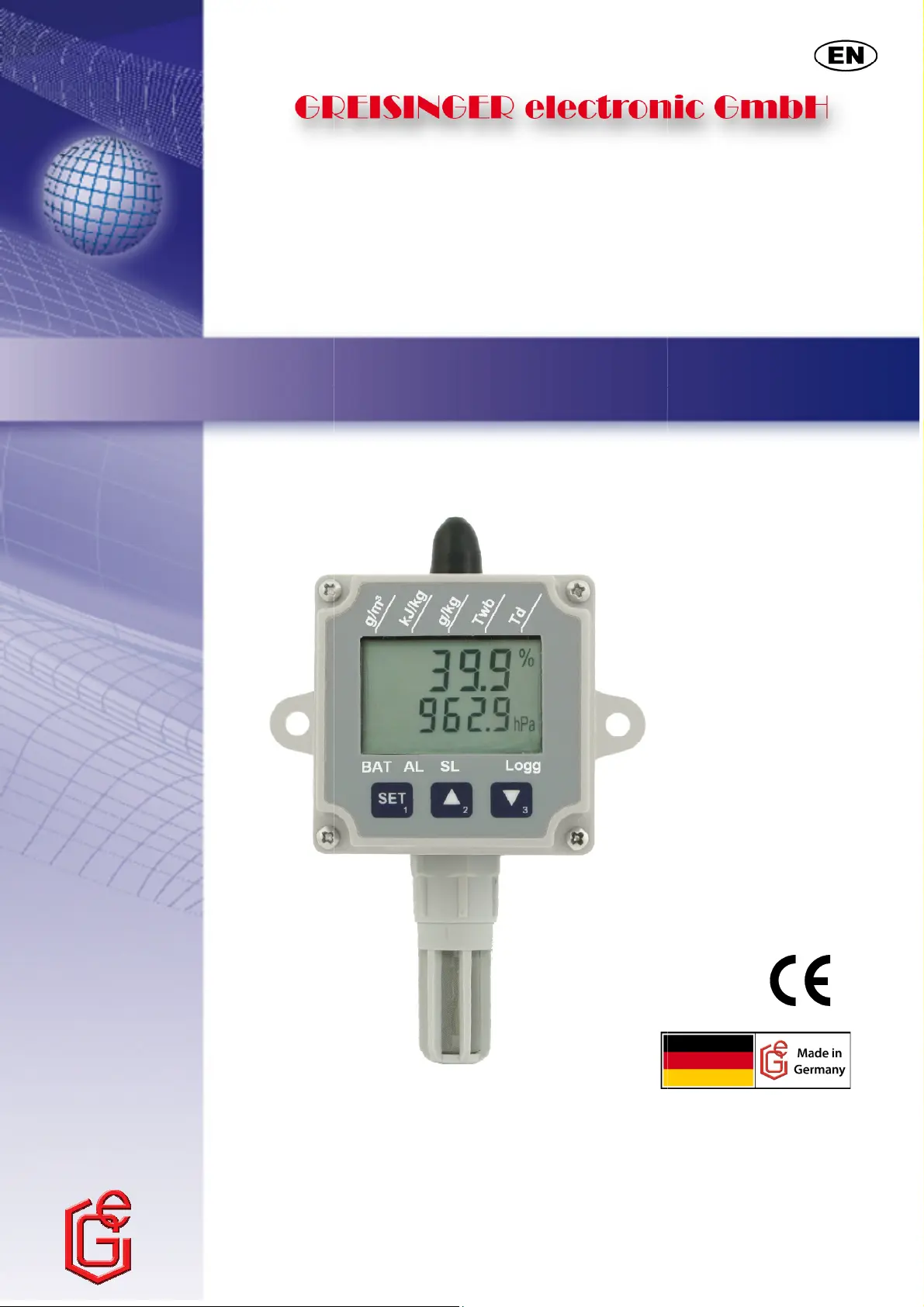

Operating Manual
EASYL
O
Data logger for
m
bH
a
ße 26
singer.de
O
G 80 CL
humidity
temperature
air pressure
E40.0.01.6C-02 Operating Manual EASY
LOG
80 CL Page 2 of 12
Content
1.
General description .................................................................................................... 2
2.
Required accessory ................................................................................................... 2
3.
Safety advice ............................................................................................................. 3
4.
Notes on the logger’s delivery status ......................................................................... 3
5.
EASYBus connector .................................................................................................. 4
6.
Display and control elemtents .................................................................................... 4
6.1
Display .................................................................................................................... 4
6.2
Function of the buttons (brief description) ............................................................... 4
7.
Operation ................................................................................................................... 5
7.1
Operating possibilities at the device - display selection .......................................... 5
7.2
Operating possibilities at the device - logger operation ........................................... 6
7.3
Operating possibilities via software GSOFT 40K .................................................... 7
7.4
Operating possibilities via software EBxKonfig or EASYBus-configurator .............. 7
8.
Battery life time and recording period ........................................................................ 7
9.
Operating displays ..................................................................................................... 8
9.1
Measured value display .......................................................................................... 8
9.2
Logger status messages ......................................................................................... 8
9.3
System messages ................................................................................................... 9
9.4
Alarm and error messages ...................................................................................... 9
10.
Specifications ........................................................................................................... 10
11.
Disposal ................................................................................................................... 11
12.
Frequently asked questions [FAQ] ........................................................................... 12
1. General description
The logger EASY
LOG
80 CL is designed for long term monitoring of climate data. Not only
relative humidity, temperature and air pressure can be displayed, but also wet-bulb tem-
perature, dew-point temperature, enthalpy and the moisture content of the air.
The combination of low power consumption with high battery capacity ensure a long re-
cording time.
The last 250.000 measuring values of each variable (that means 1.000.000 values all in all)
are stores in the memory.
The LCD-display informs about 2 different variables at the same time (i.e. temperature and
humidity) or about the operating status of the logger.
2. Required accessory
The EASY
LOG
80 CL is configurated, started and read-out via the EASYBus-interface.
Therefore the following accessories are required:
Level converter
- RS232 <> EASYBus (i.e. EBW 1, EBW 64, EBW 240)
or
- USB <> EASYBus (i.e. EBW 3)
Connecting cable: level converter to EASY
LOG
GSOFT 40K (version >7.14):
Windows software to start the logger and read out the logger-data
EASYBus-Configurator (version >2.0) or EBxKonfig (version >3.9):
for the configuration of the extended settings
E40.0.01.6C-02 Operating Manual EASY
LOG
80 CL Page 3 of 12
3. Safety advice
This device has been designed, assembled and tested in accordance with the safety regu-
lations for electronic measuring device. However, its trouble-free operation and reliability
cannot be guaranteed unless the standard safety measures and special safety advices
regarding the device will be adhered to when using the device.
1. Trouble-free operation and reliability of the device can only be guaranteed if the
device is not subjected to any other climatic conditions than those stated under
”Specification”.
To protect the battery, the maximum permissible storage and transport
temperature of the device is 70 °C
2. Standard regulations for operation and safety for electrical, light and heavy current
equipment have to be observed, with particular attention having to be paid to
national safety regulations.
3. When connecting the logger to other devices (e.g. PC) the interconnection has to
be designed most thoroughly as internal connections in third-party devices (e.g.
connection GND with protective earth) may lead to undesired voltage potentials.
4. If there is any risk whatsoever involved in running it, the device has to be switched
off immediately and to be marked accordingly to avoid re-starting.
Operator safety may be at risk if:
• there is visible damage done to the device
• the device is not working as specified
• the device has been stored under unsuitable conditions for a longer time.
In case of doubt, please return device to manufacturer for repair and maintenance.
5. Warning:
Do not use these product as safety or emergency stop devices, or in any other
application where failure of the product could result in personal injury or material
damage.
Failure to comply with these instructions could result in death or serious
injury and material damage.
4. Notes on the logger’s delivery status
The delivered logger is in a “sleep mode”, that means nothing is displayed and the
power consumption is at its minimum. When there is a communication with the software
for the first time, the EASYLOG leaves the sleep mode and ›Stop‹ is displayed. Then the
device is ready for operation.
Note: That sleep mode (nothing is displayed) cannot be restored again.
“Stop“ or “Halt“ are similar to the sleep mode. Both of that operation
modes ensure minimum consumption.
Note: Logger start over keypad:
before logger start over keypad, logger time must be adjust with
GSOFT 40K.
