Sida 1/146
4/8/16 CHANNEL DVR
User Manual SRD-1684/893/493
Copyright
©2015 Hanwha Techwin Co., Ltd. All rights reserved.
Trademark
Each of trademarks herein is registered. The name of this product and other trademarks mentioned in this manual are
the registered trademark of their respective company.
Restriction
Copyright of this document is reserved. Under no circumstances, this document shall be reproduced, distributed or
changed, partially or wholly, without formal authorization.
Disclaimer
Samsung makes the best to verify the integrity and correctness of the contents in this document, but no formal guarantee shall be provided.
Use of this document and the subsequent results shall be entirely on the user's own responsibility. Samsung reserves the right to change the
contents of this document without prior notice.
Design and specifications are subject to change without prior notice.
The initial administrator ID is “admin” and the password should be set when logging in for the first time.
Set password for your wireless network if you use the product with a wireless router. Being not protected with password or
using the default wireless router password may expose your video data to potential threat.
Please change your password every three months to safely protect personal information and to prevent the damage of the
information theft.
Please, take note that it’s a user’s responsibility for the security and any other problems caused by mismanaging a password.
4/8/16 Channel DVR
User Manual
English _3
! overview
ImporTAnT SAfeTy InSTruCTIonS
Read these operating instructions carefully before using the unit.
Follow all the safety instructions listed below.
Keep these operating instructions handy for future reference.
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings, Install in accordance with the manufacturer’s instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding- type plug. A polarized plug has two
blades with one wider than the other. A grounding type plug has two blades and a third grounding
prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit
into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.

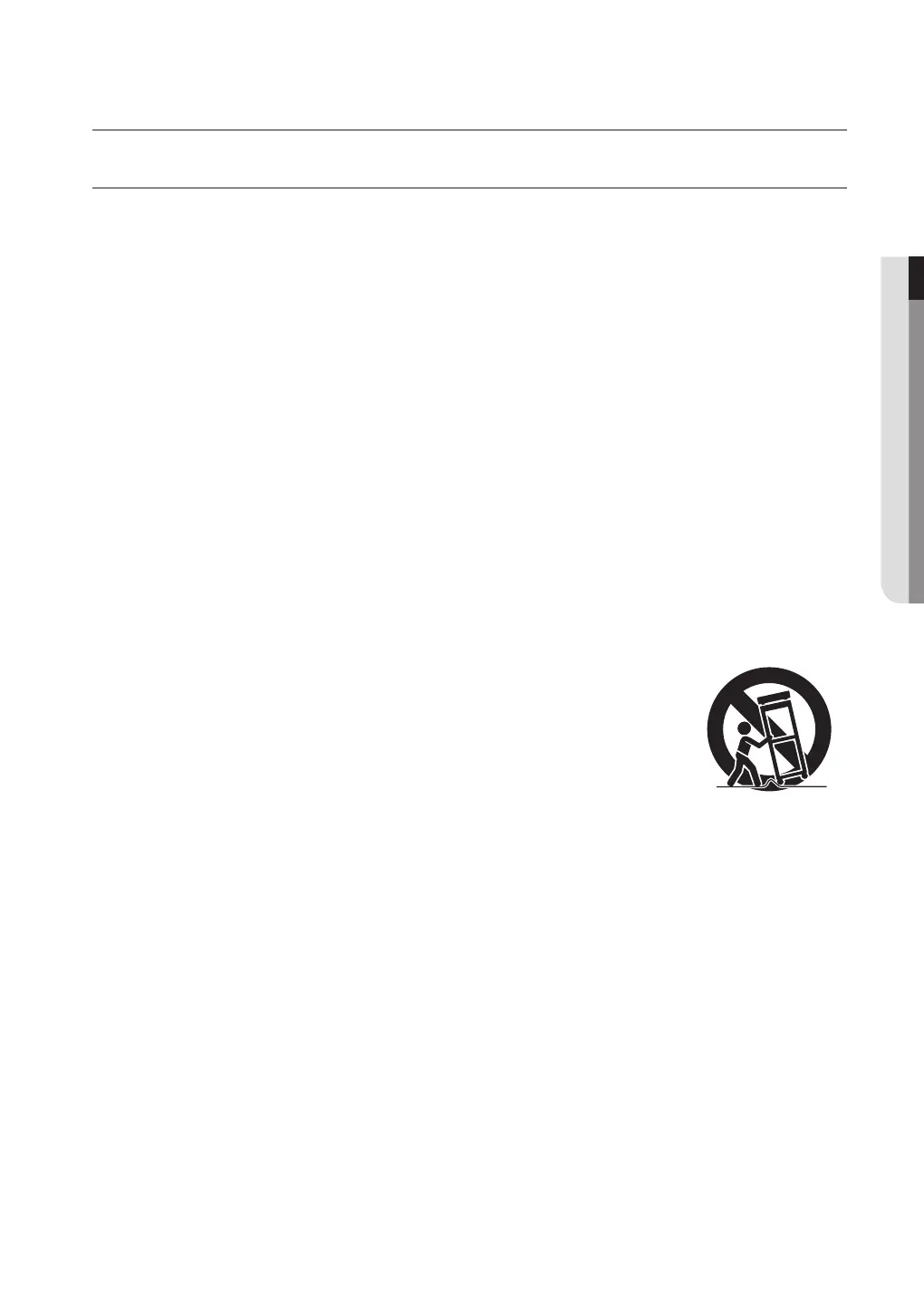

12) Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods
of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been dropped.
overview
4_ overview
overview
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAuTIon : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol indicates that dangerous voltage consisting a risk of electric shock is present within
this unit.
This exclamation point symbol is intended to alert the user to the presence of important operating
and maintenance (servicing) instructions in the literature accompanying the appliance.
WArnInG
• To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
• To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation
instructions.
WArnInG
1. Be sure to use only the standard adapter that is specified in the specification sheet.
Using any other adapter could cause fire, electrical shock, or damage to the product.
2. Incorrectly connecting the power supply or replacing battery may cause explosion, fire, electric shock, or
damage to the product.
3. Securely plug the power cord into the power receptacle. Insecure connection may cause fire.
4. When installing the camera, fasten it securely and firmly. The fall of camera may cause personal injury.
5. Do not place conductive objects (e.g. screwdrivers, coins, metal parts, etc.) or containers filled with water on
top of the camera. Doing so may cause personal injury due to fire, electric shock, or falling objects.
6. Do not install the unit in humid, dusty, or sooty locations. Doing so may cause fire or electric shock.
7. If any unusual smells or smoke come from the unit, stop using the product. In such case, immediately
disconnect the power source and contact the service center. Continued use in such a condition may cause fire
or electric shock.
8. If this product fails to operate normally, contact the nearest service center. Never disassemble or modify this
product in any way. (SAMSUNG is not liable for problems caused by unauthorized modifications or attempted
repair.)
9. When cleaning, do not spray water directly onto parts of the product. Doing so may cause fire or electric shock.
10. Do not expose the product to the direct airflow from an air conditioner.
Otherwise, it may cause moisture condensation inside the Clear Dome due to temperature difference between
internal and external of the dome camera.
11. If you install this product in a low-temp area such as inside a cold store, you must seal up the wiring pipe with
silicon, so that the external air can not flow inside the housing.
Otherwise, external high, humid air may flow inside the housing, pooling moisture or vapor inside the product
due to a difference between internal and external temperature.
English _5
! overview
BEFORE START
This user manual provides Information for using the DVR such as brief introduction, part names, functions, connection
to other equipment, menu setup, etc.
You have to keep in mind the following notices :
• SAMSUNG retains the copyright on this manual.
• This manual cannot be copied without SAMSUNG’s prior written approval.
• We are not liable for any or all losses to the product incurred by your use of non-standard product or violation
of instructions mentioned in this manual.
• Prior to opening the case, please consult a qualified technician first. Whenever this is needed power must be
removed from the unit.
Warning
Battery
It is essential that when changing the battery in the unit, the replacement battery must be of the same type
otherwise there may be a possibility of an explosion.
The following are the specifications of the battery you are using now.
• Normal voltage : 3V
• Normal capacity : 170mAh
• Continuous standard load : 0.2mA
• Operating temperature : -20°C ~ +85°C
(-4°F ~ +185°F)
Caution
• Connect the power cord into a grounded outlet.
• The Mains plug is used as a disconnect device and shall stay readily operable at any time.
• Batteries shall not be exposed to excessive heat such as sunshine, fire or the like
• Risk of Explosion if Battery is replaced by an Incorrect Type. Dispose of Used Batteries According to the
Instructions.
System Shutdown
Turning off the power while the product is in operation, or undertaking improper actions may cause damage
or malfunction to the hard drive or the product.
Please turn off the power, please right-click to display the context sensitive menu and select <Shutdown>.
After selecting < > in the pop-up menu, you can pull off the power cord.OK
You may want to install a UPS system for safe operation in order to prevent damage caused by an
unexpected power stoppage. (Any questions concerning UPS, consult your UPS retailer.)
Operating Temperature
The guaranteed operating temperature range of this product is 0°C ~ 40°C (32°F ~ 104°F).
This product may not work properly if you run right after a long period of storage at a temperature below the
guaranteed one.
Prior to using a device that has been stored for a long period in low temperatures, allow the product to stand
at room temperature for a period.
Especially for the built-in HDD in the product, its guaranteed temperature range is 5°C ~ 55°C (41°F ~ 131°F).
Likewise, the hard drive may not work at a temperature below the guaranteed one.
Ethernet Port
DVR is designed for indoor use only and all the communication wirings are limited to inside of the building.
CALIFORNIA USA ONLY
This Perchlorate warning applies only to primary CR (Manganese Dioxide)
Lithium coin cells in the product sold or distributed ONLY in California USA.
“Perchlorate Material - special handling may apply, See www.dtsc.ca.gov/
hazardouswaste/perchlorate.”
6_ overview
overview
ConTenTS
overvIeW
3
3 Important Safety Instructions
5 Before Start
6 Contents
8 Features
10 Part Names and Functions (Front)
11 Part Names and Functions (Rear)
13 Remote Control
ConneCTInG WITH oTHer devICe
15
15 installation
15 Checking the Installation Environment
16 Rack Installation
16 Installing the HDD
18 Connecting External Devices
18 Connecting the USB
19 Connecting the RS-485 Device
19 Connecting the Network
LIve
21
21 Getting Started
23 Live Screen Configuration
28 Live Mode
31 Zoom
31 Audio On/Off
31 Freeze
32 Event Monitoring
mAIn menu
33
33 System Setup
45 Setting the Device
54 Setting the Recording
57 Setting the Event
59 Backup
61 Network Configuration
74 Controlling a PTZ Device
English _7
! overview
SeArCH & pLAy
77
77 Search
80 Playback
WeB vIeWer
82
82 Introducing Web Viewer
83 Connecting Web Viewer (Windows)
85 Using Live Viewer (Windows)
90 Controlling a Connected PTZ Camera
93 Using Search Viewer
96 Viewer Setup
107 Information
108 Connecting Web Viewer (Mac)
110 Using Live Viewer (Mac)
111 Mobile Viewer
BACKup vIeWer
112
112 SEC Backup Viewer
AppendIx
114
114 Product Specification(SRD-893,SRD-1684)
117 Product Specification(SRD-493)
120 Product Overview
123 Default Setting
126 Troubleshooting
129 Open Source License Report on the Product
8_ overview
overview
FEATURES
The DVR employs H.264 video encoding for 4/8/16 channel inputs and G.711 audio encoding for 4/8/16 channels
while simultaneously supports hard disc recording and playback.
These DVRs also supports network connectivity, providing remote monitoring from a remote PC transferring video
and audio data.
• Provides a convenient User Interface
• 4/8/16 CH Composite Input Connectors
• Supports 1080p/720p/WD1/4CIF/2CIF/CIF recording formats
• With the network specific codec, network transfer enabled regardless of the recording conditions
• De-interlacing processor for better picture quality
• Display of HDD information and status by using HDD SMART
• Hard Disk overwrite function
• Mass storage hard disk backup through high-speed USB 2.0
• Simultaneous Record and Playback of 4/8/16-channel video data
• Various Search Modes (Search by Time, Event, Backup and Motion Detection)
• Various Recording Modes (Manual, Event, Scheduled Recording)
• Remote Monitoring function by Network Viewer, Smart Viewer and Mobile Viewer
Standards Approvals
M `This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user will be required to correct the interference at
his own expense.
18_ connecting with other device
connecting with other device
5. Attach the cover and fasten the screws..
CONNECTING EXTERNAL DEVICES
`
The following figures are based on Model SRD-1684.
CONNECTING THE USB
1. By factory default, a USB port is provided for external connection.
2. You can connect a USB HDD, USB memory or mouse to the USB port.
3. If a USB HDD is connected to the system, recognition and settings are available in “ > Main Menu Device >
Storage Device”. (Page 48)
4. This product supports hot-plugging, which connects/removes the USB device during the system operation.
J ` If you use the USB device for Backup purposes, format it with FAT32 on PC if it is not formatted on the DVR.
LAN
AUDIO IN
AUDIO OUT
VGA
VIDEO IN
HDMI
DC 12 V
POWER
USB LAN
CONSOLE
+ -
RS485
English _19
! CONNECTING WITH OTHER DEVICE
CONNECTING THE RS-485 DEVICE
Connect the rear [ ] port to the PTZ camera.RS-485 +, –
J ` You can connect and control the PTZ camera which supports the RS-485 communication.
` Check if the RS-485 device is compatible with the product first.
` Pay attention not to change the polarity (+/-) of the RS-485 device when connecting it.
` Depending on camera’s type, connection polarity can be different. For further information,
refer to the respective PTZ Camera’s documentation.
CONNECTING THE NETWORK
` The following figures are based on Model SRD-1684.
Connecting to network through Ethernet (10/100BaseT)
+ -
RS485
AUDIO IN
AUDIO OUT
VGA
VIDEO IN
HDMI
DC 12 V
POWER
USB LAN
CONSOLE
+ -
RS485
RJ-45 Ethernet Cable
(Direct Cable)
Back Bone
Hub/Switcher
Hub/Switcher
Windows
Network Viewer
NETWORK
Produktspecifikationer
| Varumärke: | Hanwha |
| Kategori: | Röstinspelning |
| Modell: | SRD-1684 |
Behöver du hjälp?
Om du behöver hjälp med Hanwha SRD-1684 ställ en fråga nedan och andra användare kommer att svara dig
Röstinspelning Hanwha Manualer
15 September 2024
15 September 2024
15 September 2024
15 September 2024
15 September 2024
15 September 2024
15 September 2024
15 September 2024
15 September 2024
15 September 2024
Röstinspelning Manualer
- Röstinspelning Sony
- Röstinspelning Philips
- Röstinspelning Panasonic
- Röstinspelning Grundig
- Röstinspelning Motorola
- Röstinspelning Olympus
- Röstinspelning Toshiba
- Röstinspelning Yamaha
- Röstinspelning Abus
- Röstinspelning Airlive
- Röstinspelning Hikvision
- Röstinspelning GPO
- Röstinspelning Kodak
- Röstinspelning RCA
- Röstinspelning Salora
- Röstinspelning Roland
- Röstinspelning DataVideo
- Röstinspelning Axis
- Röstinspelning Marquant
- Röstinspelning AVerMedia
- Röstinspelning AJA
- Röstinspelning Digitus
- Röstinspelning Olympia
- Röstinspelning Audioline
- Röstinspelning Dahua Technology
- Röstinspelning Audiovox
- Röstinspelning GeoVision
- Röstinspelning Goclever
- Röstinspelning Profoon
- Röstinspelning Boss
- Röstinspelning Tascam
- Röstinspelning Planet
- Röstinspelning Konig
- Röstinspelning Reloop
- Röstinspelning Mpman
- Röstinspelning Trevi
- Röstinspelning D-Link
- Röstinspelning Swann
- Röstinspelning Lorex
- Röstinspelning Zoom
- Röstinspelning Humax
- Röstinspelning Sangean
- Röstinspelning Saramonic
- Röstinspelning Line 6
- Röstinspelning Irradio
- Röstinspelning EverFocus
- Röstinspelning Gefen
- Röstinspelning Vivotek
- Röstinspelning Atomos
- Röstinspelning M-Audio
- Röstinspelning Lervia
- Röstinspelning Provision ISR
- Röstinspelning Livescribe
- Röstinspelning Oregon Scientific
- Röstinspelning Speco Technologies
- Röstinspelning Kguard
- Röstinspelning Neo
- Röstinspelning Epcom
- Röstinspelning LifeGood
- Röstinspelning Syscom
- Röstinspelning Lectrosonics
- Röstinspelning Pixel Maker
- Röstinspelning Sound Devices
- Röstinspelning AVTech
- Röstinspelning Feelworld
- Röstinspelning Majestic
- Röstinspelning HiLook
- Röstinspelning Jammin Pro
- Röstinspelning Mach Power
- Röstinspelning Qian
Nyaste Röstinspelning Manualer
5 Mars 2025
16 Februari 2025
31 December 2025
30 December 2025
27 December 2024
22 December 2024
16 December 2024
15 December 2024
24 Oktober 2024
24 Oktober 2024
