Sida 1/40

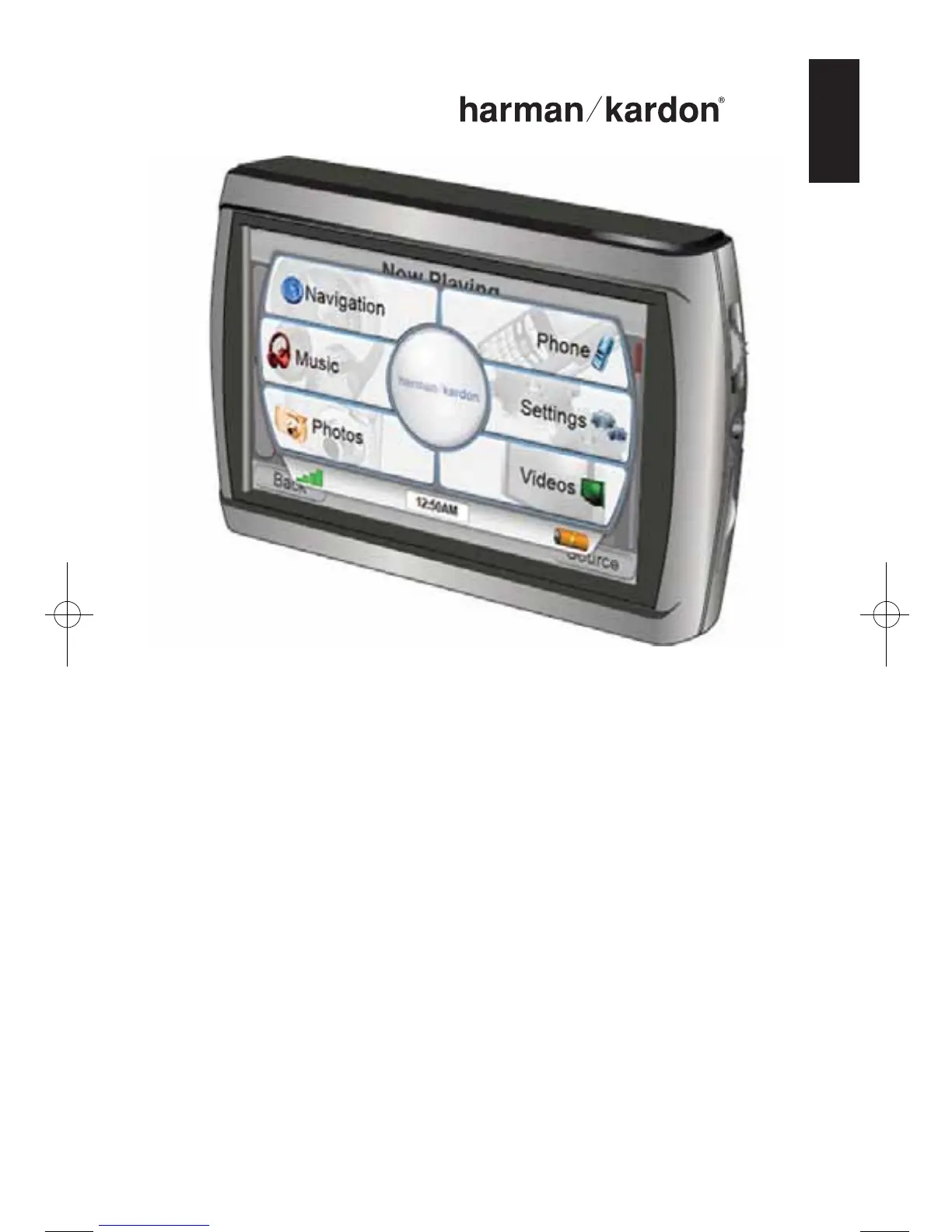

Portable Touchscreen Navigation System and A/V Media Player

User Manual

ENGLISH

ediug + yalp

™

GPS-910/810

For the latest software updates and other information, visit

www.guideandplay.com.

Downloaded from manuals search enginewww.Manualslib.com

Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Controls and Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 – 6

Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 – 7

Initial Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 – 18

Planning a Trip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Navigating to Your Destination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Navigation Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Traffic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 – 17

Changing Navigation Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

- The Source Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Playing Music, Video and Photo Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 – 25

Compatible A/V File Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Loading Media on Your SD Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Listening to Music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Watching Videos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Looking at Photos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Using With a Bluetooth Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-27

To Connect to a New Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Placing and Receiving Phone Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Changing Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 – 30

Installation and Use in a Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 – 33

Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34 – 36

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 – 38

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Battery Notes:

The Harman Kardon® GPS-910/810 uses a lithium-polymer battery. To protect

the performance of your GPS-910/810 and its battery, please observe the fol-

lowing guidelines:

• Do not operate the GPS-910/810 in ambient temperatures outside of the

following range: 14° F (–10° C) to 131° F (55° C).

• Do not store the GPS-910/810 even for short periods in ambient

temperatures outside of the following range: –4° F (–20° C) to 140° F (60° C).

• Do not store the GPS-910/810 for long periods in ambient temperatures

outside of the following range: 32° F (0° C) to 77° F (25° C).

The GPS-910/810 will not charge the battery at temperatures above 122° F

(50° C).

NOTE: Although the GPS-910/GPS-810’s battery will charge while the unit is connected

to a computer’s USB hub, we recommend connecting the unit to the included wall or car

charger to charge the battery.

User Manual 2

ediug + yalp

™

GPS-910/810

Downloaded from manuals search enginewww.Manualslib.com

Introduction

Your new GPS-910/810 is a powerful portable touchscreen navigation system

and audio/video media player. The GPS-910/810’s GPS-powered navigation

features will make it easy for you to travel to almost anywhere in Europe with

remarkable accuracy. Its A/V media player lets you listen to your favorite

music, and you can even watch videos and look at photos on its high-resolu-

tion 4.8" (GPS 910) or 4.3" (GPS 810) 480 x 272 pixel WQVGA screen. You can

also connect a Bluetooth-enabled phone and place or receive calls via your

GPS-910/GPS-810.

We know you’re eager to start using your GPS-910/810, so we’ve included a

Quick-Start Guide that will help you use its basic features right away.

This User Manual contains detailed information about all of the GPS-910/810’s

features and functions. To get the most out of your GPS-910/810, please read

it thoroughly.

Unpacking

Your GPS-910/810 box should contain these items:

• GPS-910/810 Unit

• Wall Charger

• Car Charger

• USB Cable

• Fold-Flat Mounting Bracket

• Mounting Base Disc and Adhesive Pad for Dash-Mounting

• Alcohol Cleaning Pad for Dash Surface

• Wireless Remote Control with Battery and Adhesive Pad for Mounting

• Carrying Case

• Quick-Start Guide

If anything is missing, notify the dealer where you purchased your GPS-910/810

right away.

Unpack your GPS-910/810 carefully and save the box and packing materials

so you can safely ship the unit in the future.

User Manual

ediug + yalp

™

GPS-910/810

WARNING: Operation of any feature of this device while driving

is dangerous. Do not operate this device while driving. Do not

view or operate audio or video modes while driving.

For safety reasons, this device will cease navigation functions

when the video mode is enabled. Do not attempt to disable any

safety function incorporated in this device. Any alteration of this

device may cause serious injury and shall void the warranty.

ENGLISH

Downloaded from manuals search enginewww.Manualslib.com
