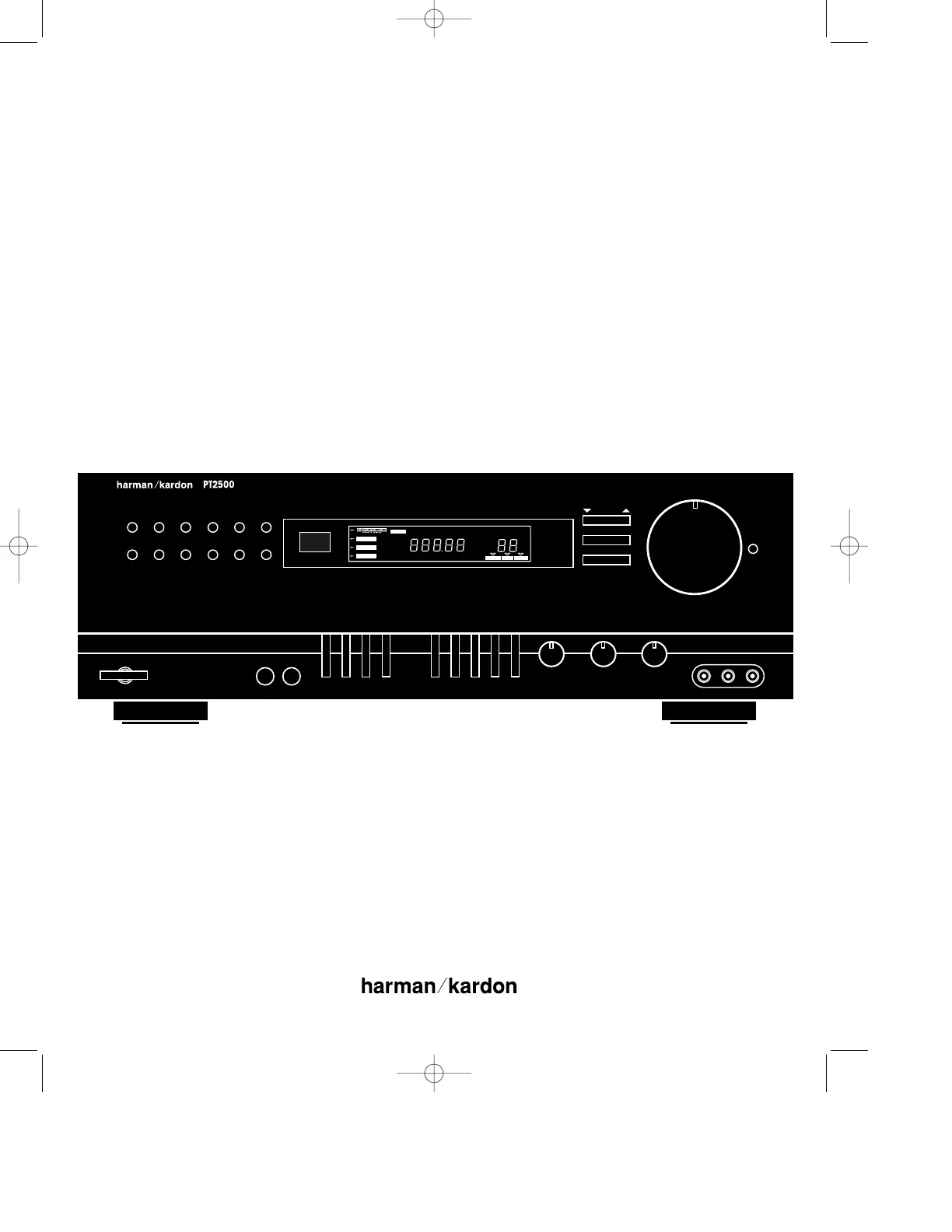

Owner’s Manual

•PT2500(g).qx 10/23/96 7:36 AM Page 16

Table of Contents

PT2500 rev (G) 10/23/96

Introduction & Safety Information. . . . . . . . . . . . . . . . . 1

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Unpacking and Installation . . . . . . . . . . . . . . . . 3

Using this manual . . . . . . . . . . . . . . . . . . . . . . . 3

Front Panel Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Rear Panel Connections . . . . . . . . . . . . . . . . . . . . . . . . . 5

System Remote Control. . . . . . . . . . . . . . . . . . . . . . . . . . 6

Installation and Configuration . . . . . . . . . . . . . . . . 7–10

Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11–12

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Technical Specifications . . . . . . . . . . . . . . . . . Back Cover

80 Crossways Park West

Woodbury, NY 11797

•PT2500(g).qx 10/23/96 7:36 AM Page 1

PT2500 rev (G) 10/23/96

Introduction and Safety Information

Congratulations! With the purchase

of a Harman Kardon PT2500 you are

about to begin many years of listening

enjoyment. The PT2500 has been custom

designed to provide all the excitement

and detail of movie soundtracks and

every subtle nuance of musical selections.

While complex processing systems are

hard at work within the PT2500, hook-

up and operation are simple. Color keyed

connections, a comprehensive remote

control and on screen menus make the

PT2500 easy to use. To obtain the maxi-

mum enjoyment from your new receiver

we urge you to take a few minutes to read

through this manual. This will ensure

that connections to speakers, source

playback units and other external devices

are made properly. A few minutes spent

learning the functions of the various

controls will enable you to take advan-

tage of all the power the PT2500 is able

to deliver.

If you have any questions about this

product, its installation or operation,

please contact your dealer. They are your

best local source of local information.

You may also contact Harman Kardon

directly via the Internet at

http://www.harmankardon.com.

Description and Features

The PT2500 is a full featured A/V sur-

round tuner controller, incorporating

a wide variety of listening options.

Through the use of an Analog Devices

decoder, surround encoded programs are

played back with stunning accuracy,

while the direct mode enables stereo

recordings to be played back in their

purest form. The open architecture of a

surround tuner controller allows for easy

expansion to full discrete surround

decoding with external adapters.

Five audio inputs, three audio/video

inputs and the PT2500’s 30 preset tuner

enable it to serve as the control center for

a complete audio/video system. A system

remote control operates the PT2500 and

compatible Harman Kardon source

equipment, while an on board trigger

jack provides control capability to auto-

matically turn on the companion

PA5800 amplifier.

Features

■Analog Devices decoding circuit for

precise surround decoding

■Dolby* ProLogic*, Dolby 3 Stereo,

Theater and Stadium surround modes

■Direct Mode for pure stereo playback

■System remote control

■Remote Trigger Control for PA5800

Important Safety Information

Verify Line Voltage Before Use

Your PT2500 has been designed for use

in North America with 120 volt AC cur-

rent. Connection to a line voltage other

than that for which it is intended can

create a safety and fire hazard, and may

damage the amplifier.

If you have any questions about the volt-

age requirements for your specific model,

or about the line voltage in your area,

contact your dealer before plugging the

unit into a wall outlet.

Do Not Use Extension Cords

To avoid safety hazards, use only the

power cord supplied with your unit. If a

replacement cord is used, make certain

that it is of similar gauge. We do not rec-

ommend that extension cords be used

with this product. As with all electrical

devices, do not run power cords under

rugs or carpets or place heavy objects on

them. Damaged power cords should be

replaced immediately with cords meeting

factory specifications.

Handle the AC Power Cord Gently

When disconnecting the power cord from

an AC outlet, always pull the plug, never

pull the cord. If you do not intend to use

the amplifier for any considerable length

of time, disconnect the plug from the AC

outlet.

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE

COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER

SERVICING TO QUALIFIED SERVICE PERSONNEL.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, 

DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION:

TO PREVENT ELECTRIC SHOCK, DO NOT REMOVE THE

GROUNDING PLUG ON THE POWER CORD, OR USE ANY PLUG OR

EXTENSION CORD THAT DOES NOT HAVE A GROUNDING PLUG PROVIDED.

MAKE CERTAIN THAT THE AC OUTLET IS PROPERLY GROUNDED. 

DO NOT USE AN ADAPTER PLUG WITH THIS PRODUCT.

The lightning ﬂash with arrowhead

symbol, within an equilateral triangle, is

intended to alert the user to the

presence of uninsulated “dangerous voltage”

within the product’s enclosure that may be of

suﬃcient magnitude to constitute a risk of

electric shock to persons.

The exclamation point within an

equilateral triangle is intended to

alert the user to the presence of

important operating and maintenance

(servicing) instructions in the literature

accompanying the appliance.

C A U T I O N

RISK OF ELECTRICAL SHOCK

DO NOT OPEN

*Trademarks of Dolby Laboratories

•PT2500(g).qx 10/23/96 7:36 AM Page 2
