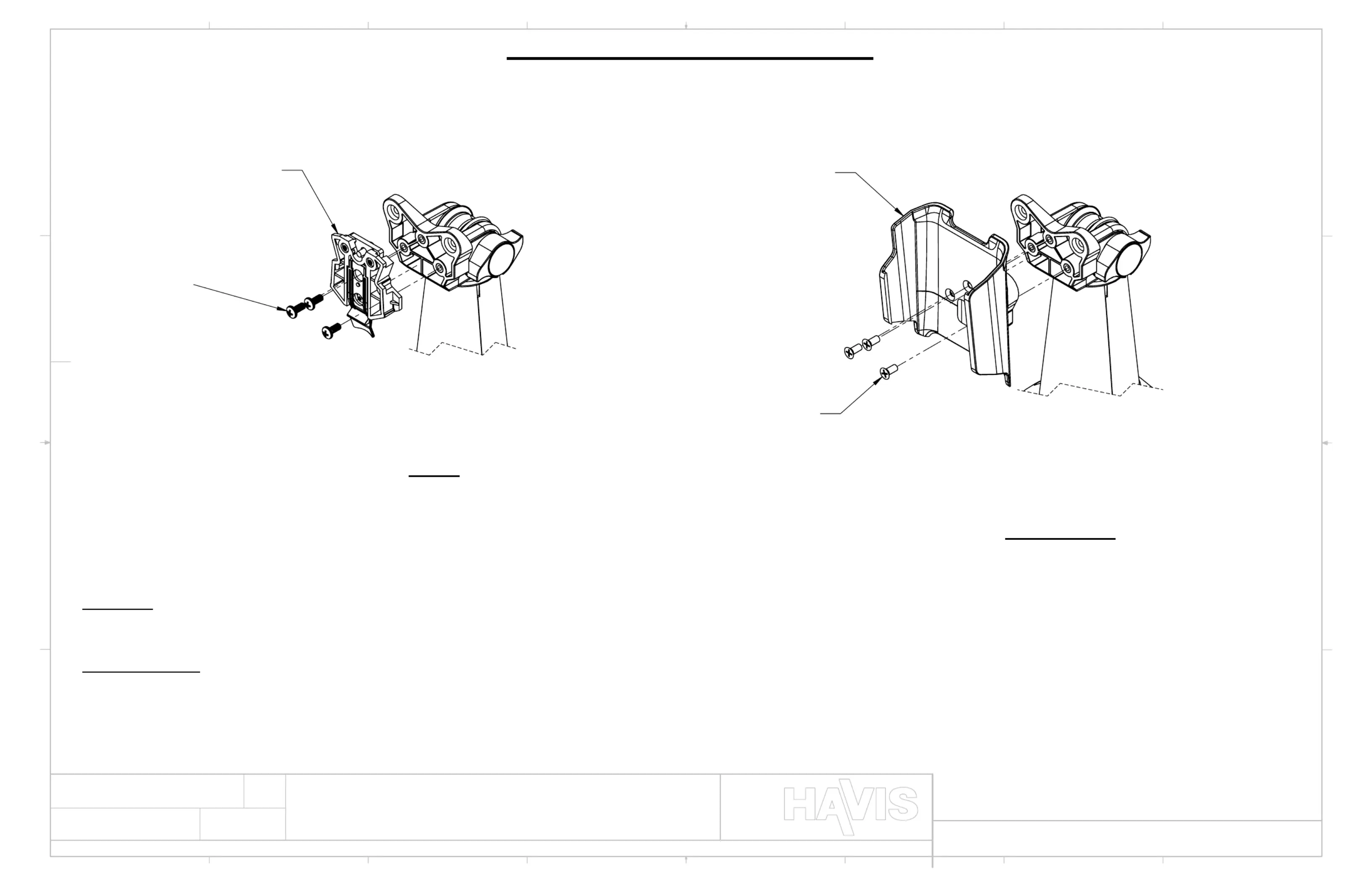

EXISTING

ATTACHMENT

SCREWS

EXISTING UPM MOUNT

STEP 1

NEW DX4000 BACKPLATE

NEW FLAT HEAD SCREWS

STEP 2 AND 3

TOOL LIST:

#2 PHILLIPS SCREW OR DRILL DRIVER.

ASSEMBLY STEPS:

REMOVE THE UPM FROM THE STAND OR PLATE BY REMOVING THE 3 ATTACHMENT SCREWS

ALIGN HOLES ON THE DX4000 BACKPLATE WITH THE MOUNTING HOLES IN THE STAND OR PLATE

ATTACH DX4000 BACKPLATE USING THE CORRECT LENGTH FLAT HEAD SCREWS (.375" LONG SCREWS FOR STANDS AND .75" FOR PLATES)

NOTE: FLEXIPOLE PLUS STAND SHOWN, BUT SAME STEPS WOULD BE USED FOR FLEXIPOLE OR A METAL STAND WITH UPM

INSTALLATION INSTRUCTIONS

THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF HAVIS, INC. AND REPRODUCTION IN PART OR IN WHOLE WITHOUT THE WRITTEN PERMISSION OF HAVIS, INC. IS PROHIBITED.

DRAWN

DATE

TITLE

DWG. NO.

REV.

SHEET 1 OF 1

CUSTOMER INSTRUCTIONS

9/6/24

RSW

CST00216

DX4000 UPGRADE KIT
