1. INTRODUCTION
Heatit Z-Water2 is a DIN-rail regulator for controlling
waterbased heating systems. The module clips right onto a
DIN-rail and allows you to control your waterbased heating
through your Z-Wave™ network.
Heatit Z-Water2 is equipped with 9 potential free relays for
actuators. It also has 2 analog inputs for temperature sensors.
The Heatit Z-Water2 relays may be controlled by associations
with other Z-Wave thermostats e.g Heatit. Each relay can
control one or several actuators in your underfloor heating
system.
2. STATEMENT REGARDING PRODUCTS FROM MULTIPLE
MANUFACTURERS
Please read this before installation
This device may be used with all devices certified with the
Z-Wave Plus™ certificate and should be compatible with
such devices produced by any manufacturer. Every primary
controller is dierent depending on the manufacturer, their
target audience and intended use/application. Please review
the functionalities implemented by the primary controller you
intend to use with our Z-Wave Plus certified device to ensure
that it provides the necessary controls to take full advantage of
our product’s capabilities.
3. BEHAVIOR WITHIN THE Z-WAVE NETWORK
This device may be operated within any Z-Wave™ network
with Z-Wave-certified devices from other manufacturers. All
non-battery-operated nodes within the network will act as
repeaters regardless of manufacturer to increase the reliability
of the network. On delivery, the device does not belong to any
Z-Wave network. The device needs to be added to an existing
network to communicate with the other devices within it.
Devices may also be removed from a network. The add/
remove processes are initiated by the primary controller of the
Z-Wave network.
4. INSTALLATION GUIDELINES
Installation must be done by a qualified electrician in
accordance with national building codes. Before installation,
disconnect the power to the device from the mains. During
installation of the device, power to the device must be
disconnected AT ALL TIMES!
Max tightening torque for terminal screws: 2Nm
Use the following procedure to install Heatit Z-Water2:
1. Place the top part of the DIN rail mounting on the Heatit
Z-Water2 over the top of the DIN rail so it hooks onto the
rail.
2. Use a flathead screwdriver to push the DIN rail mounting tab
downward.
3. Tilt the bottom of the Heatit Z-Water2 until it touches the
DIN rail. Now let go of the DIN rail mounting tab so it locks
into place.
4. Make all the necessary connections to the device (max
tightening torque for all screw terminals is 2Nm). Apply
power to the device after all connections have been made.
TABLE OF CONTENTS
1. Introduction
2. Statement regarding products from multiple
manufacturers
3. Behaviour within the Z-Wave network
4. Installation guidelines
5. Connections
6. Quick Start
7. Add/Remove
7.1 Method 1: Standard (Manual)
7.2 Method 2: SmartStart (Automatic)
8. Factory Reset
9. Startup
10. LED blinking patterns description
11. QR-Code Placement (DSK)
12. Security
13. Node Information Frame
14. Associations
14.1 Setting and Removing Associations
15. Association Groups
16. Configuration Parameters
17. Calibration
18. Command Classes
18.1 Basic Command CLass
18.2 Binary Switch Command Class
18.3. Multilevel Sensor Command Class
18.4. Indicator Command Class
19. Supported Command Classes
20. Other features
21. Dimensions
22. External antenna connector
Product info
HEATIT
Z-WATER2
Installers manual
Firmware version Document version
FW 1.0 2023-A
Article no. Document date
45 124 95 01.05.2023
Org. doc. date 01.05.2023
TO PRODUCT
DOCUMENTS
5. CONNECTIONS
6. QUICK START
1. Switch o the mains supply (disable the fuse).
2. Fasten the device onto the DIN rail.
3. Connect wires according to the labeling described in
Chapter5.
4. After verifying the connections, switch the mains voltage on.
5. Set the primary controller in add mode (security/non-
security).
6. Press the reset button on the product 3 times in a rapid
sequence. Heatit Z-Water2 is now included in your Z-Wave
network.
7. ADD/REMOVE
Please read this before installation
The primary controller/gateway has a mode for adding or
removing devices. Please refer to your primary controller
manual on how to set the primary controller in add/remove
mode.
The device may only be added or removed from the network
if the primary controller is in add/remove mode. When the
device is removed from the network, it will NOT revert to
factory settings.
An always listening node must be powered continuously
and reside in a fixed position in the installation to secure the
routing table. Adding the device within a 2 meter range from
the gateway can minimize faults during the Interview process.
There are two ways to add the device to a Z-Wave network.
7.1 Method 1: Standard (Manual)
Add/remove mode is indicated on the device by a blinking
green LED. It indicates this for 90 seconds until a timeout
occurs, or until the device has been added to/removed from
the network. Configuration mode can also be cancelled
by performing the same procedure used for starting
Configuration mode.
To start the configuration process, press the reset button 3
times in rapid succession. The LED will light solid green for 3
seconds if add/remove is successful. The device is now ready
for use with default settings.
NB! When the device is removed from the gateway, the
parameters are not reset. To reset the parameters, see Chapter
”Factory reset”.
If inclusion fails, please perform a ”remove device” process and
try again. If inclusion fails again, please see “Factory reset”.
7.2 Method 2: SmartStart (Automatic)
SmartStart enabled products may be added to a Z-Wave
network by scanning the Z-Wave QR-Code on the product
if your primary controller supports SmartStart inclusion. No
further action is required and the SmartStart product will be
added automatically after being powered on within range of
the primary controller.
8. FACTORY RESET
Press and hold the reset button. After 3 seconds the LED will
start to blink green. After 20 seconds the LED will start blinking
green rapidly. You may now release the button. If reset was
successful the LED will light solid green for 3 seconds.
Please use this procedure only when the network primary
controller is missing or otherwise inoperable.
9. STARTUP
After powering up the device for the first time, all the parameters will
have default settings.

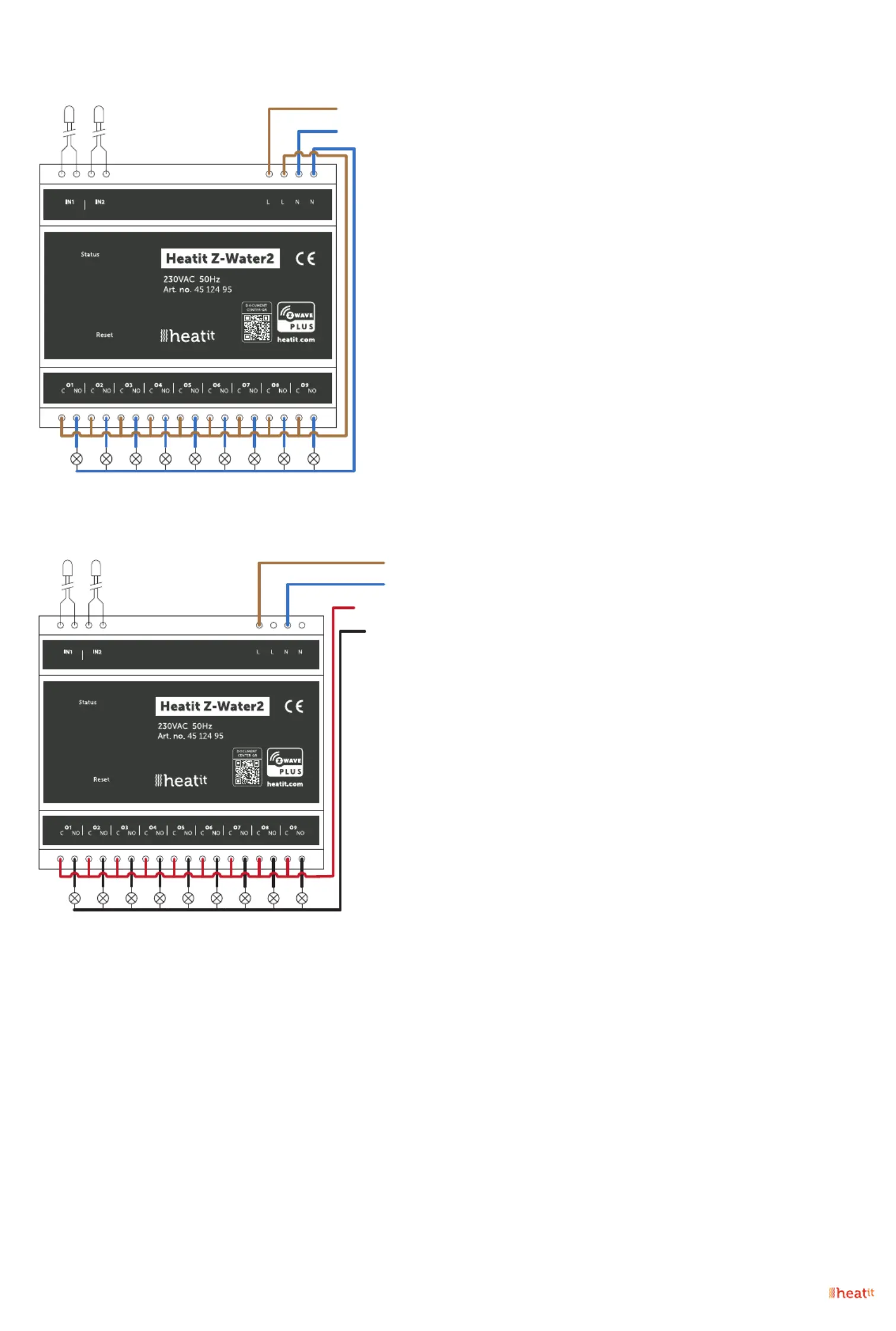

SCHEMATIC FOR USE WITH 230VAC ACTUATORS
NTC
NTC
N
L
NTC
NTC
N
+24VDC
0VDC
L
SCHEMATIC FOR USE WITH 24VDC ACTUATORS
14. ASSOCIATIONS
Z-Wave devices interact with other Z-Wave devices. The
relationship between one device controlling another device is
called an association. In order to control a subordinate device,
the controlling device needs to maintain a list of devices that
will receive controlling commands. These lists are called
”Association Groups”. They are always related to the specific
event triggered (e.g., sensor reports). In case the event is
triggered, all devices stored in the respective association group
will receive a joint wireless command.
14.1 Setting and Removing Associations
Associations may be assigned and removed via Z-Wave
commands. Please refer to your primary controller/Z-Wave
gateway for more information.
15. ASSOCIATION GROUPS
With Multi Channel support:
DEVICE 1 (ENDPOINT 1) RELAY OUTPUT 1
Group 1
Lifeline.
Lifeline Group to be used by primary controller, sends:
- Device Reset Notification
- Indicator Report
- Binary report
Sends Binary report On / O when relay output 1 is activated.
Max. nodes in group: 1
DEVICE 2 (ENDPOINT 2) RELAY OUTPUT 2
Group 1
Lifeline.
Sends Binary report On / O when relay output 2 is activated.
Max. nodes in group: 0
DEVICE 3 (ENDPOINT 3) RELAY OUTPUT 3
Group 1
Lifeline.
Sends Binary report On / O when relay output 3 is activated.
Max. nodes in group: 0
DEVICE 4 (ENDPOINT 4) RELAY OUTPUT 4
Group 1
Lifeline.
Sends Binary report On / O when relay output 4 is activated.
Max. nodes in group: 0
DEVICE 5 (ENDPOINT 5) RELAY OUTPUT 5
Group 1
Lifeline.
Sends Binary report On / O when relay output 5 is activated.
Max. nodes in group: 0
DEVICE 6 (ENDPOINT 6) RELAY OUTPUT 6
Group 1
Lifeline.
Sends Binary report On / O when relay output 6 is activated.
Max. nodes in group: 0
DEVICE 7 (ENDPOINT 7) RELAY OUTPUT 7
Group 1
Lifeline.
Sends Binary report On / O when relay output 7 is activated.
Max. nodes in group: 0
DEVICE 8 (ENDPOINT 8) RELAY OUTPUT 8
Group 1
Lifeline.
Sends Binary report On / O when relay output 8 is activated.
Max. nodes in group: 0
DEVICE 9 (ENDPOINT 9) RELAY OUTPUT 9
Group 1
Lifeline.
Sends Binary report On / O when relay output 9 is activated.
Max. nodes in group: 0
DEVICE 10 (ENDPOINT 10) ANALOGUE INPUT 1
Group 1
Lifeline.
Sends Multilevel Sensor Reports for input 1.
Max. nodes in group: 0
DEVICE 11 (ENDPOINT 11) ANALOGUE INPUT 2
Group 1
Lifeline.
Sends Multilevel Sensor Reports for input 2
Max. nodes in group: 0
16. CONFIGURATION PARAMETERS
Z-Wave products are supposed to work out of the box after
inclusion. Some device configuration may, however, alter
the functionality to better serve user needs or unlock further
enhanced features. All the parameters below do not feature
altering capabilities, advanced or read only flags.
10. LED BLINKING PATTERNS DESCRIPTION
The device supports numerous LED blinking patterns to make
it as easy as possible to identify what the device is doing.
Device Not in Network
The LED will blink red when the device is
not added to a Z-Wave network.
0s 1s
0,5s 2s 3s 4s 5s
Add/Remove
When device enters add/remove mode
the LED will blink green.
If successful, the LED will light up in solid
green for 3 seconds.
If unsuccessful, the LED will light up in
solid red for 3 seconds.
0s 1s
0,5s 2s 3s xs x+3s
Successful
Unsuccessful
Factory Reset
If the button is held for more than 3 seconds, the GREEN LED will start blinking with 0.5s intervals.
When the button has been held for 20 seconds, the GREEN LED will blink rapidly with 0.1s intervals for 3 seconds.
Figure 1 (success)
Within the 3 second period the button must be released.
If the button is released within this period, the device will indicate that it has been successfully reset by lighting up in
solid GREEN for 3 seconds.
Then the device will start blinking RED because it is not included in a gateway.
0s 1s
0,5s 2s 3s 4s 5s 19s 20s 0,5s 1,5s 2,5s
1s 2s 3s 1s 2s 3s
Figure 2 (fail)
If the button is released before the 3
seconds period, the device will indicate
fail by turning RED LED on for 3 seconds.
Figure 3 (fail)
The button MUST be released between
20 and 23 seconds for local reset to take
place. If held longer, the device will ignore
the command.
11. QR-CODE PLACEMENT (DSK)
The QR-Code is needed when including a device using S2
security or SmartStart. The DSK can be found in the QR-Code
and is located;
• On the product.
• In the Quick Guide.
• On the packaging box/gift box.
12. SECURITY
S2 security enhances Z-Wave Plus with an additional layer of
AES 128-bit encryption of the wireless Z-Wave communication
to prevent hacking and man-in-middle attacks on the home
network.
This device supports S2 and has a Z-Wave DSK QR-Code label
that may be used when the device is added to the Z-Wave
home network. The primary controller will ask for a 5-digit
code. They are the first underlined 5 digits located on the
QR code sticker. The primary controller will then ask you to
confirm the rest of the code that is contained in the QR-Code.
13. NODE INFORMATION FRAME
The node information frame is the ”business card” of a Z-Wave
device. It contains information about the device type and
its technical features. The add and remove procedure of
the device is confirmed by sending out a node information
frame. Besides this, it may be necessary for certain network
operations to send out a node information frame.
0s 1s
0,5s 2s 3s 4s 5s
3<x<20s
Released @ x seconds
6<x+3<23s
0s 1s
0,5s 2s 3s 4s 5s 19s 20s 21s 22s 23s 24s20,5s 21,5s 22,5s

Produktspecifikationer

Varumärke: Heatit
Kategori: Inte kategoriserad
Modell: Z-WATER2

Behöver du hjälp?

Om du behöver hjälp med Heatit Z-WATER2 ställ en fråga nedan och andra användare kommer att svara dig


Inte kategoriserad Heatit Manualer

Heatit

Heatit Z-WATER2 Bruksanvisning

24 September 2024
Heatit

Heatit Transformer Bruksanvisning

24 September 2024
Heatit

Heatit Zig Dim Bruksanvisning

16 September 2024
Heatit

Heatit Z-Dim2 Bruksanvisning

16 September 2024
Heatit

Heatit ZM Bruksanvisning

16 September 2024

Inte kategoriserad Manualer

Nyaste Inte kategoriserad Manualer

Philips

Philips 43PUL7672 Bruksanvisning

27 Oktober 2024
Manhattan

Manhattan 461504 Bruksanvisning

27 Oktober 2024
Sungrow

Sungrow SG125HV Bruksanvisning

27 Oktober 2024
Schneider

Schneider CCT724319 Bruksanvisning

27 Oktober 2024
Technoline

Technoline WS 250 Bruksanvisning

27 Oktober 2024
Livarno

Livarno IAN 354423 Bruksanvisning

27 Oktober 2024
Kupper

Kupper 12152 Bruksanvisning

27 Oktober 2024
JennAir

JennAir CARBON24L Bruksanvisning

27 Oktober 2024
Medion

Medion Life E74001 (MD 81035) Bruksanvisning

27 Oktober 2024
POLARIS

POLARIS Sportsman Touring 850 SP (2015) Bruksanvisning

27 Oktober 2024
