Heinner HVC-MLED700BL Bruksanvisning

Heinner dammsugare HVC-MLED700BL

Läs nedan 📖 manual på svenska för Heinner HVC-MLED700BL (20 sidor) i kategorin dammsugare. Denna guide var användbar för 2 personer och betygsatt med 4.5 stjärnor i genomsnitt av 2 användare

Ladda ner PDF
Sida 1/20
• LED display
• Power: 700W
• Capacity: 3.5 L

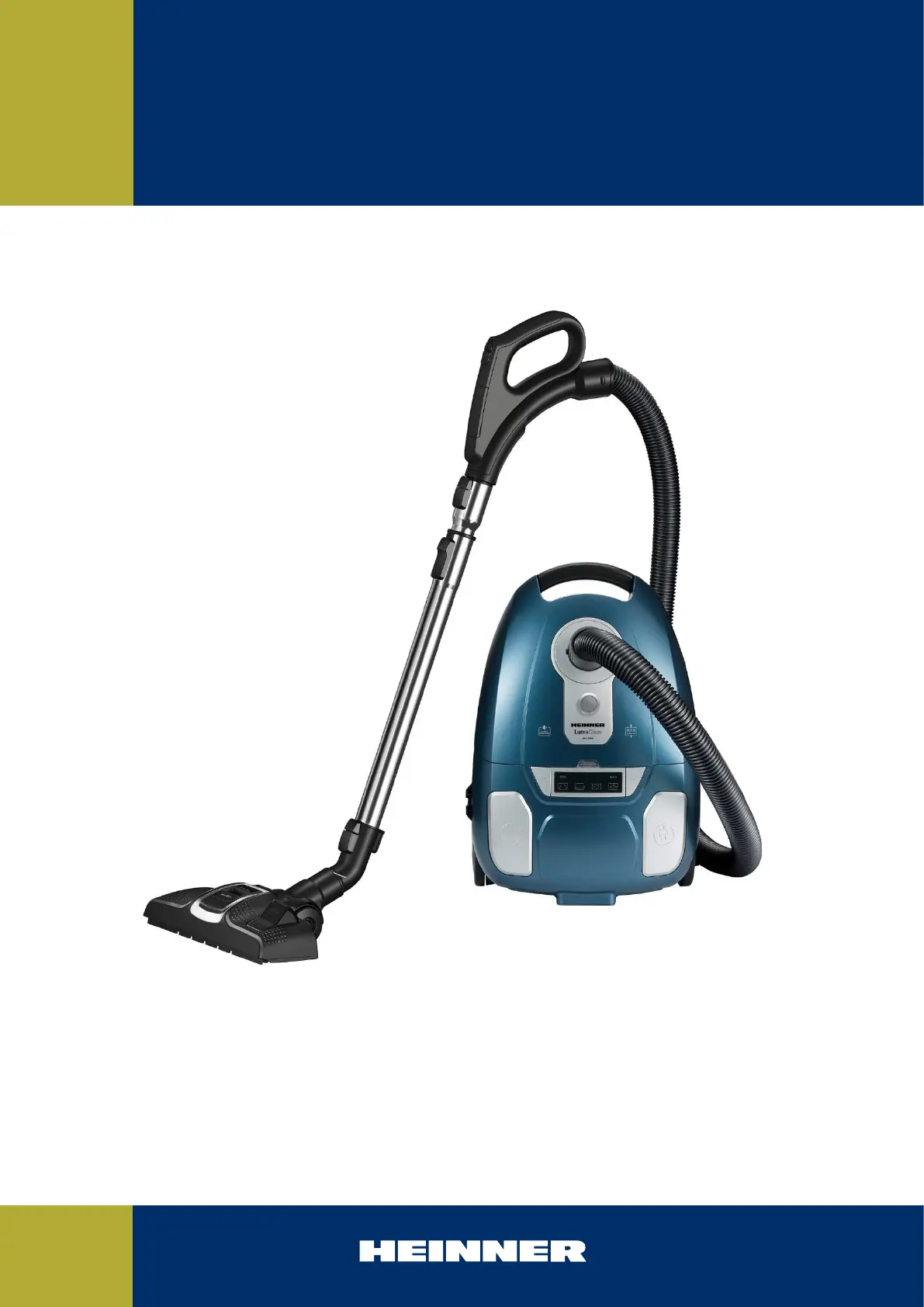

VACUUM CLEANER
Model: LumaClean
HVC-MLED700BL
www.heinner.com
1
1. INTRODUCTION
Please read the instructions carefully and keep the manual for future information.
This manual is designed to give all necessary instructions concerning installation, use and maintenance of the
unit. In order to operate the unit correctly and safely, please read this instruction manual carefully before
installation and use.
2. CONTENT OF YOUR PACKAGE
➔
➔
➔
➔➔ Vacuum cleaner
➔
➔
➔
➔➔ User manual
➔
➔
➔
➔➔ Certificate of warranty
➔
➔
➔
➔➔ Declaration of conformity
3. SAFETY MEASURES
Keep the manual in a safe place for future reference, along with the completed warranty card, purchase
receipt and carton. If applicable, pass these instructions on to the next owner of the appliance.
Always follow basic safety precautions and accident prevention measures when using an electrical
appliance, including the following:
1 Read all instructions carefully before using the appliance and keep them for future reference. .
2 Make sure the dust bag is properly installed before use. .
3 Check that the voltage marked on the rating label matches your main voltage. .
4 Never vacuum up water or any other liquids. Never . vacuum up flammable substances and do not vacuum
up ashes until they are cold.
5 Unplug the appliance from the mains socket when it is not in use and before replacing the filter . .
6. Store and use the appliance well away from heat sources such as radiators or gas/electric powered heaters.
7 Do not continue to operate the appliance if you are in any doubt about it working normally (e.g. abnormal .
noise, smell, smoke), or if it is damaged in any way- switch off, withdraw the main plug and consult your
dealer.
8. If the main cable is damaged, it must be replaced by the manufacturer, its service agent, or similarly
qualified persons in order to avoid a hazard.
9 This appliance is not intended for use by persons (including children) with reduced physical, sensory or .
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
10. Children should be supervised to ensure that they do not play with the appliance.
11. The plug must be removed from the power socket before any maintenance or replacement.
www.heinner.com
2
4. USING THE PRODUCT
Assembly
Operation methods
A set of hose accessories are included: one extendible tube, one floor brush, one integrated brush & a nozzle.
1 Connecting the hose: insert the hose end into the hose connecti opening at the front cover and then . on
lock it (Fig. 1).
2 Removing the hose: press the adaptors at both sides of the hose end and then pull the hose (Fig. 2). .
3 Connect the metal telescopic tube to the curved end of the hose (Fig 3). .
4. Connect different nozzles tools to the tube for different cleaning purposes: floor brush (adjusts to the type
of ground, for carpet or floor) (Fig. 4, 5).
5. Turn on the unit: insert the plug of the cable into the power socket which conforms to the voltage marked
on the rating label and press the ON/OFF button. The unit will start working (Fig. 6).
6. Cable rewinding: hold the plug and pull out the table, press the cable rewind button and the power cable
will be drawn in (Fig. 7).
1. Handle
2. Hose connection opening
3. Front cover
4. Speed control button
5. Cable rewind button
6. Back cover
7. ON/OFF button
8. Big wheel
9. Brush holder
10. Base body
11. Parquet nozzle
12. Crevice tool
13. Round brush
14. Small brush
15. Suction hose
16. Metal tube
17. Floor nozzle
18. Remote control

Produktspecifikationer

Varumärke: Heinner
Kategori: dammsugare
Modell: HVC-MLED700BL
