Sida 1/36

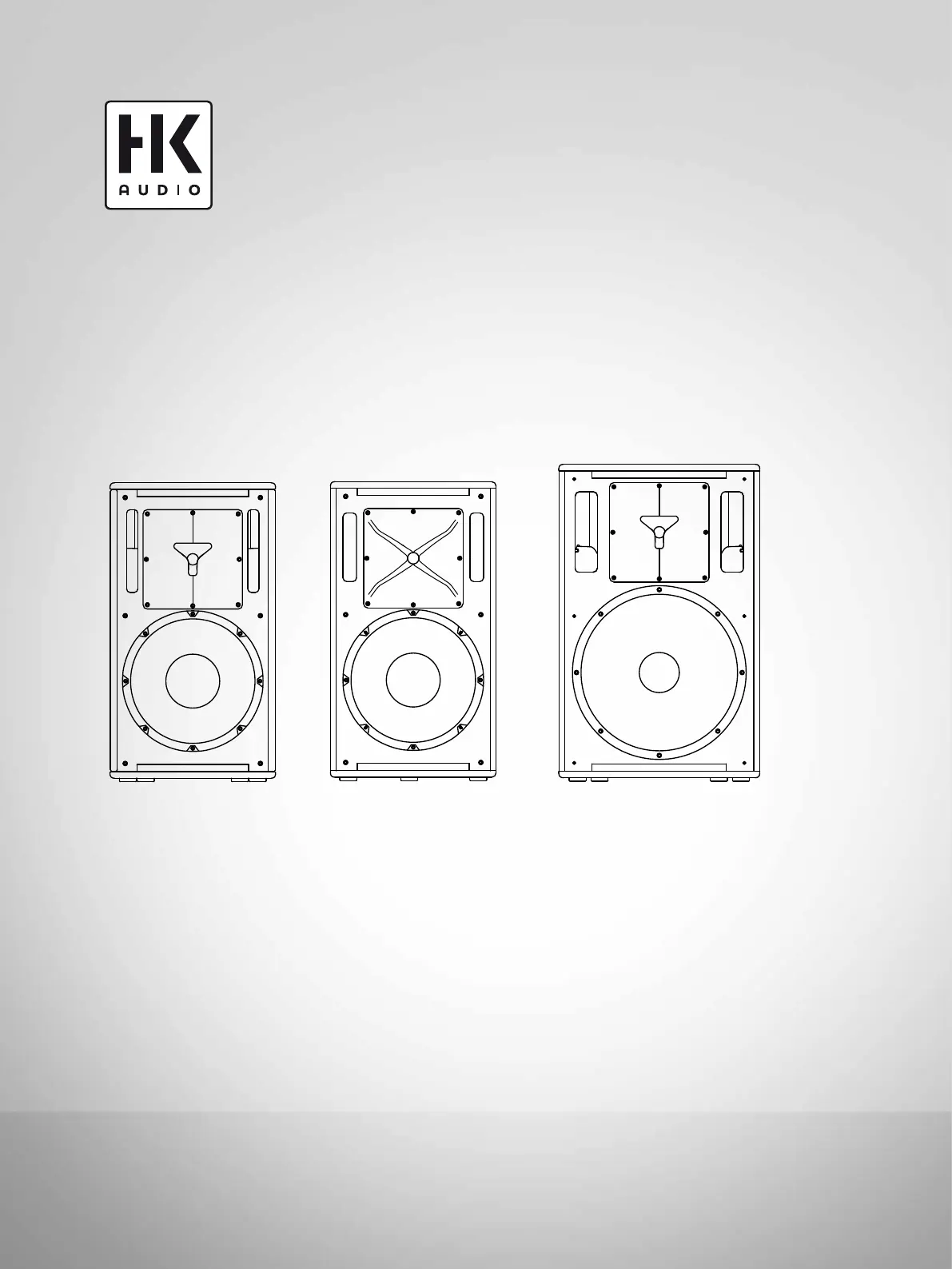

LINEAR 5
L5 112 FA • L5 112 XA • L5 115 FA
Manual 2.0
• English • Français• Deutsch • Italiano • Español
Version 2.4 07/2015
Important Safety Instructions!
Read before connecting!
This product has been built by the manufacturer in accordance with
IEC 60065 and left the factory in safe working order. To maintain
this condition and ensure non-risk operation, the user must
follow the advice and warning comments found in the operating
instructions. If this product shall be used in vehicles, ships or
aircraft or at altitudes exceeding 2000 m above sea level, take care
of the relevant safety regulations which may exceed the IEC 60065
requirements.
WARNING: To prevent the risk of fire and shock hazard, do not ex-
pose this appliance to moisture or rain. Do not open case no user
serviceable parts inside. Refer service to qualified service personnel.
This symbol, wherever it appears, alerts you to the presence
of uninsulated dangerous voltage inside the enclosure voltage that
may be sufficient to constitute a risk of shock.
This symbol, wherever it appears, alerts you to the presence
of externally accessible hazardous voltage. External wiring
connected to any terminal marked with this symbol must be a ready
made cable complying with the manufacturers recommendations, or
must be a wiring installed by instructed persons only.
This symbol, wherever it appears, alerts you to important
operating and maintenance instructions in the accompanying
literature. Read the manual.
This symbol, wherever it appears, tells you: Take care! Hot
surface! To prevent burns you must not touch.
Read these instructions.
Keep these instructions.
Follow all warnings and instructions marked on the product and
in this manual.
Do not use this product near water. Do not place the product near
water, baths, wash basins, kitchen sinks, wet areas, swimming
pools or damp rooms.
Do not place objects containing liquid on the product vases,
glasses, bottles etc.
Clean only with dry cloth.
Do not remove any covers or sections of the housing.
The set operating voltage of the product must match the local
mains supply voltage. If you are not sure of the type of power
available consult your dealer or local power company.
Before connecting the device, please ensure that the mains supply
you are using is equipped with adequate protection against short
circuiting and grounding faults when the device is plugged in.
To reduce the risk of electrical shock, the grounding of this product
must be maintained. Use only the power supply cord provided with
this product, and maintain the function of the center (grounding)
pin of the mains connection at any time. Make sure the mains
outlet used provides a proper protective ground connection.
Do not defeat the safety purpose of the polarized or grounding-
type plug. A polarized plug has two blades with one wider than the
other. A grounding type plug has two blades and a third grounding
prong. The wide blade or the third prong are provided for your
safety. If the provided plug does not fit into your outlet, consult an
electrician for replacement of the obolete outlet.
Protect the power cord from being walked on or pinched particu-
larly at plugs, convenience receptacles, and the point where they
exit from the device! Power supply cords should always be handled
carefully. Periodically check cords for cuts or sign of stress, espe-
cially at the plug and the point where the cord exits the device.
Never use a damaged power cord.
Unplug this product during lightning storms or when unused for
long periods of time.
This product can be fully disconnected from mains only by pulling
the mains plug at the unit or the wall socket. The product must be
placed in such a way at any time, that disconnecting from mains
is easily possible.
Fuses: Replace with IEC127 (5x20mm) type and rated fuse for best
performance only! It is prohibited to use patched fuses or to
short the fuse-holder. Replacing any kind of fuses must only be
carried out by qualified service personal.
Refer all servicing to qualified service personnel. Servicing is requi-
red when the unit has been damaged in any way, such as:
- When the power cord or plug is damaged or frayed.
- If liquid has been spilled or objects have fallen into the product.
- If the product has been exposed to rain or moisture.
- If the product does not operate normally when the operating
instructions are followed.
- If the product has been dropped or the cabinet has been damaged.
Do not connect external speakers to this product with an impe-
dance lower than the rated impedance given on the product or in
this manual. Use only cables with sufficient cross section according
to the local safety regulations.
Keep away from direct sunlight.
Do not install near heat sources such as radiators, heat registers,
stoves or other devices that produce heat.
Do not block any ventilation openings. Install in accordance with
manufacturers instructions. This product must not be placed in
a built-in installation such as a rack unless proper ventilation is
provided.
Always allow a cold device to warm up to ambient temperature,
when being moved into a room. Condensation can form inside it
and damage the product, when being used without warming up.
Do not place naked flame sources, such as lighted candles on the
product.
The device must be positioned at least 20 cm/8 away from walls.
Use only with the cart, stand, tripod, bracket or table specified by
the manufacturer or sold with the product. When a cart is used,
use caution when moving the cart/product combination to avoid
injury from tip-over.
Use only accessories recommended by the manufacturer, this
applies for all kind of accessories, for example protective covers,
transport bags, stands, wall or ceiling mounting equipment. In
case of attaching any kind of accessories to the product, always
follow the instructions for use, provided by the manufacturer.
Never use fixing points on the product other than specified by the
manufacturer.
This appliance is NOT suitable to be used by any person or persons
(including children) with limited physical, sensorical or mental abi-
lity, or by persons with insufficient experience and/or knowledge
to operate such an appliance. Children under 4 years of age must
be kept away from this appliance at all times.
Never push objects of any kind into this product through cabinet
slots as they may touch dangerous voltage points or short out
parts that could result in risk of fire or electric shock.
This product is capable of delivering sound pressure levels in
excess of 90 dB, which may cause permanent hearing damage!
Exposure to extremely high noise levels may cause a permanent
hearing loss. Wear hearing protection if continously exposed to
such high levels.
The manufacturer only guarantees the safety, reliability and
efficiency of this product if:
- Assembly, extension, re-adjustment, modifications or repairs are
carried out by the manufacturer or by persons authorized to do so.
- The electrical installation of the relevant area complies with the
requirements of IEC (ANSI) specifications.
- The unit is used in accordance with the operating instructions.
This product is optimized for use with music and speech signals.
Using this product with sine wave, square wave or other kind of
measuring signals at higher level may lead to severe damage of
the product.
General Notes on Safety for Loudspeaker
Systems
Mounting systems may only be used for those loudspeaker
systems authorized by the manufacturer and only with the mounting
accessories specified by the manufacturer in the installation
instructions. Read and heed the manufacturers installation
instructions. The indicated load-bearing capacity cannot be
guaranteed and the manufacturer will not be liable for damages in
the event of improper installation or the use of unauthorized
mounting accessories.
The systems load-bearing capacity cannot be guaranteed and
the manufacturer will not be liable for damages in the event that
loudspeakers, mounting accessories, and connecting and attaching
components are modified in any way.
Components affecting safety may only be repaired by the manufac-
turer or authorized agents, otherwise the operating permit will be
voided.
Installation may be performed qualified personnel only, and
then only at pick-points with sufficient load-carrying capacity and in
compliance with local building regulations. Use only the mounting
hardware specified by the manufacturer in the installation
instructions (screws, anchors, etc.). Take all the precautions
necessary to ensure bolted connections and other threaded locking
devices will not loosen.
Fixed and portable installations (in this case, speakers and
mounting accessories) must be secured by two independent safeties
to prevent them from falling. Safeties must be able to catch
accessories or parts that are loose or may become loose. Ensure
compliance with the given national regulations when using
connecting, attaching, and rigging devices. Factor potential dynamic
forces (jerk) into the equation when determining the proper size and
load-bearing capacity of safeties.
Be sure to observe speaker stands maximum load-bearing
capacity. Note that for reasons of design and construction, most
speaker stands are approved to bear centric loads only; that is, the
speakers’ mass has to be precisely centered and balanced. Ensure
speaker stands are set up stably and securely. Take appropriate
added measures to secure speaker stands, for example when:
- the floor or ground surface does not provide a stable, secure base.
- they are extended to heights that impede stability.
- high wind pressure may be expected.
- there is the risk that they may be knocked over by people.
Special measures may become necessary as precautions against
unsafe audience behavior. Do not set up speaker stands in evacua-
tion routes and emergency exits. Ensure corridors are wide enough
and put proper barriers and markings in place when setting speaker
stands up in passageways. Mounting and dismounting are especially
hazardous tasks. Use aids suitable for this purpose. Observe the
given national regulations when doing so.
Wear proper protection (in particular, a helmet, gloves, and
safety shoes) and use only suitable means of ascent (ladders,
scaffolds, etc.) during installation. Compliance with this requirement
is the sole responsibility of the company performing the installation.
WARNING!
After installation, inspect the system comprised of the mounting
fixtures and loudspeakers to ensure it is properly secured.
The operator of loudspeaker systems (fixed or portable) must
regularly inspect or task a third party to regularly inspect all system
components in accordance with the given countrys regulations and
have possible defects repaired immediately.
We also strongly recommend maintaining a logbook or the like to
document all inspections.
When installing speakers for longer lasting or permanent outdoor
operation, be sure to take into account the stability and load-
bearing capacity of platforms and surfaces; loads and forces exerted
by wind, snow, and ice; as well as thermal influences. Also be sure
to provide sufficient safety margins for the rigging points used for
flown systems. Observe the given national regulations when doing
so.
Ask the manufacturer if your product is allowed for outdoor usage !
Professional loudspeaker systems can produce harmful
volume levels. Even prolonged exposure to seemingly harmless levels
(starting at about 95 dBA SPL) can cause permanent hearing
damage! Therefore we recommend that everyone who is exposed to
high volume levels produced by loudspeaker systems wears
professional hearing protection (earplugs or earmuffs).
Manufacturer: Stamer Musikanlagen GmbH, Magdeburger Str. 8,
66606 St. Wendel, Germany
LINEAR 5 2.0
3
L5 112 FA L5 112 XA L5 115 FA
LINEAR 5
Welcome to the HK Audio family!
Thank you for choosing a brand-name product made by our company. Rest
assured, we engineered and built it with the greatest care so it will serve
you well for many tomorrows to come.
Even if your experience with sound systems runs deep, some things about
this product are sure to be new to you. This is why we ask that you do not
set this manual aside without reading it fi rst. Be sure to keep it in a safe
place for later reference.
Here’s wishing you the best sound at every occasion!
Your HK Audio team
Warranty
Register each powered LINEAR 5 speaker separately to extend your warran-
ty to fi ve years free of charge! Use the convenient online registration option
at www.hkaudio.com.
If you are unable to register online, please ll out the enclosed warranty
card, ensuring all information is legible and complete, and mail or fax it to
us.
The registration is only valid if the warranty registration card is lled out
and returned to HK Audio or the device is registered via Internet within
30 days of the date of purchase.
We are also interested in learning where and by whom our devices are used.
This information will help us design future products. Your data are of course
protected by German privacy laws.
Thank you!
HK AUDIO
Technischer Service
Postfach 1509
66959 St. Wendel, Germany
Fax: +49 6851 905 100
• English • Français• Deutsch • Italiano • Español

Produktspecifikationer

Varumärke: HK Audio
Kategori: högtalare
Modell: L5-112X

Behöver du hjälp?

Om du behöver hjälp med HK Audio L5-112X ställ en fråga nedan och andra användare kommer att svara dig




högtalare HK Audio Manualer

högtalare Manualer

Nyaste högtalare Manualer
