ASSEMBLY INSTRUCTION

Item#: 75007 1618- - DKW Trestle Dining Table Base

1618 75- 008- DKW Trestle Dining Table Top

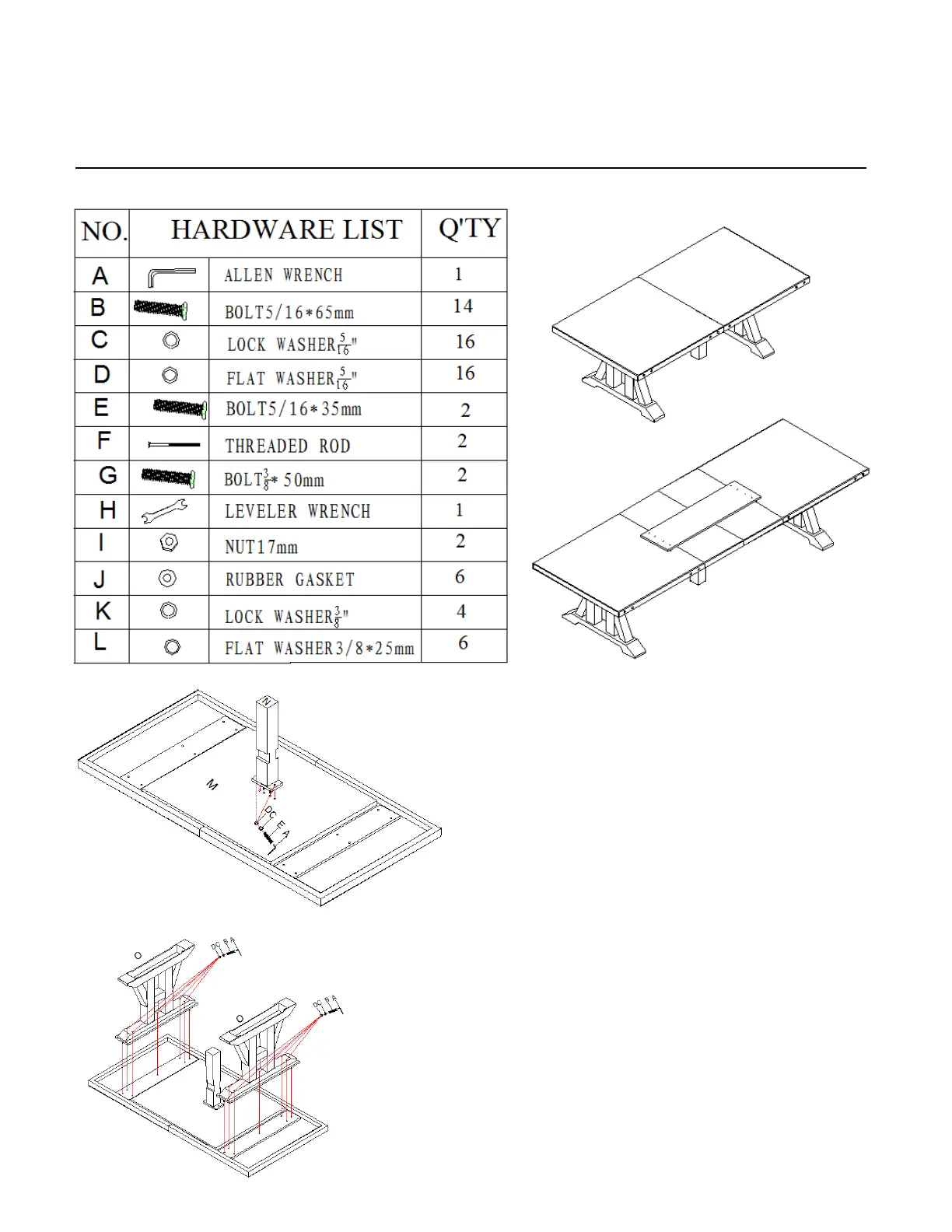

** Please make sure you have all prior to assembly.parts indicated below

Assembly Steps：

：

：：

1. Put table top (M) upside

down on a soft place to

prevent it from being

scratched.

2. center Attach leg (N) to table

top (M) as labeled by using

bolt (E), lock washer (C) and

flat washer (D). Tighten them

securely with allen wrench

(A). (See diagram 1)

3. Attach base leg (O) to table

top (M)by using bolt (B), lock

washer (C) and flat washer

(D). Tighten them securely

with allen wrench (A). (See

diagram 2)

Diagram1

Diagram2

4. nsert the I stretcher

（

）

into

center hole of table base leg

(O) fix it by using bolt (B), lock

washer (C) and flat washer

(D). Tighten them securely

with allen wrench (A). (See

diagram 3)

5. Repeat step 4 to install

another side stretcher(p) into

table legs. Tighten them on

stretcher(P) left side securely

with threaded rod(F),lock

washer(K),flat washer(L) and

rubber gasket(J).Securely

them on the stretcher (P) right

side with leveler wrench (H),

nut ( washer (I), flat L) and

rubber gasket (J). Securely

them on center leg with

leveler wrench (H),bolt

(G) ,lock washer(K),flat

washer(L) and rubber gasket

（）J . (See diagram 4)

6. Turn the table top upright. If

you want to place the leaf on

the table, please turn the

switch to “ ” off position

underneath top panel. Then

pull out two ends of top panel,

place it on top and push them

together, turn the switch to

“ ” ON position.

(See iagram d 5&6).

7. When you adjust the table

top, please be sure to

unstrengthen bolt (G) on

center leg first.

Diagram3

agram4

Diagram5&6

Instruction for table leaves:

1. There are latches at the bottom of table top, turn on the latch ,pull out table top as the arrow direction

shown in diagram 7.

2. Place table leaves (Q) between and push table tops together. Turn off latches. thePut server (R)on

table top(see diagram 8)

3. Take opposite actions to remove table leaves.

Cleaning Instruction: Clean finished parts with a damp cloth using a mild dishwashing liquid and water solution.

Polish the finish with soft cloth and an industry recognized furniture polish.

Diagram7

Diagram8
