ASSEMBLY INSTRUCTION
ITEM LTBR# - 1 -1620 90 51 5/0 Upholstered Shelter Headboard
1620 90 52- 1 - LTBR 5/0 Upholstered Shelter Footboard
1620 90 53- 1 - -LTBR 5/0 6/6 Rails
Caution: indicated Please make sure you have all parts below prior to assembly.
This bed is heavy and can best be assembled with the help of two or more people.
Please note the hardware bag to assemble side rails to HB&FB is in the box of side rails.

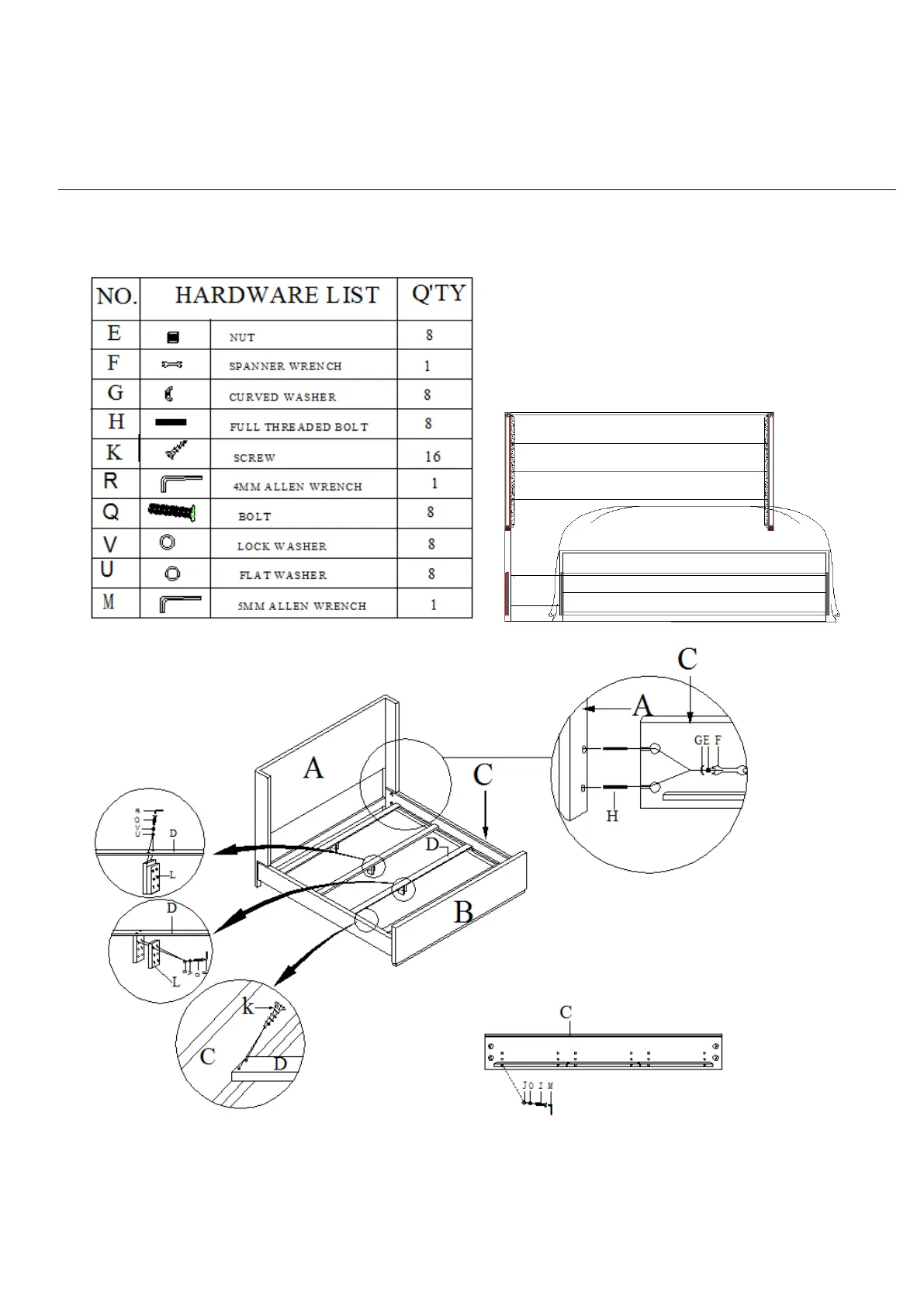

Diagram 1
Diagram 2
Diagram 3
Diagram 5
Diagram 4
2/3
Assembly steps:
1. Insert 2 bolts (H) into holes of each side post on Headboard (A) and Footboard (B), attach the
ends s of side rail (C) to bolts (H) on posts by using 2 curved washers (G) and 2 nuts (E), tighten
nuts (E) securely with spanner wrench (F). (See diagram 1)
Diagram 1
2. Take out center supports (L) from the rail box, attach center supports (L) to slats by using 2 (D)
bolts (Q), 2 lock washers (V) and 2 flat washers (U). Secure bolts (Q) by using allen wrench (R).
(See diagram 2)
Diagram 2
3. sAttach lats (D) to side rails (C), align pre drilled holes on the slat- s to holes on the cleats of side
r s s s (K ail (C), using crew ) to tighten both. (See diagram 3)
Diagram 3
3/3
Note: You can change the height of slat by adjusting the height of cleat on side rail as shown in s s
diagram 4. Remove bolt (I), lock washer at washers s (O) and fl s (J) from the cleats by turning
the bolts (I) with allen wrench (M) in anti clockwise direction. Adjust the cleat- s to a desired
Position, and then secure lock washers, flat washers, bolt clockwise direction by turning s in
with a llen wrench.
Diagram 4
You can adjust the heigh pports (L) as shown in diagram 5 to meet your need by the t of center su
following steps.
1. Unscrew bolts on center supports (L) with allen wrench (R).
2. Adjust the height of center supports, align holes on 2pcs of woods and tighten them together with
2 bolts (Q), 2 lock washers (V) and 2 flat washer (U) by turning with wrench (R) in clockwise
direction.
Diagram 5
Cleaning Instruction: Clean finished parts with a mild dishwashing liquid and water solution on a damp
cloth. Polish the finish with soft cloth and an industry recognized furniture polish.
