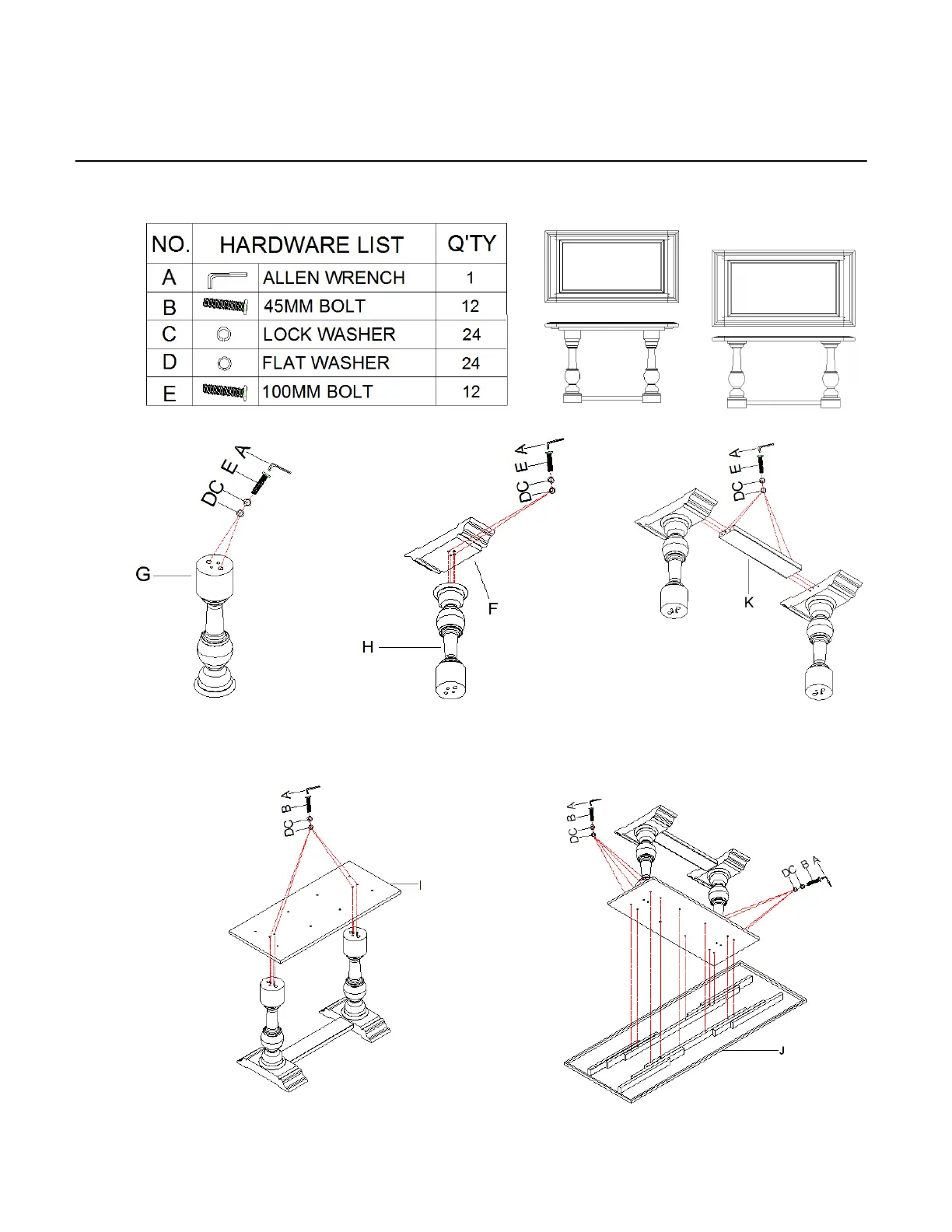

ASSEMBLY INSTRUCTION
ITEM# - - 5960 75206B BLK Balcones 60in Friendship Table Base
5960 75206T- - BRN Balcones 60in Table Top w/2- 12in Leaves
** Please make sure you have all parts indicated below prior to assembly.
This unit is heav people y and can best be assembled with the help of two or more .
Diagram 1
Diagram 2
Diagram 4
Diagram 5
Diagram 3
1/3
Note:
1. Leaves cannot be switchable. Follow numbers on leaves and top when assemble.
2. Height of this table can be adjusted with or without the extension blocks.
Assembly steps with extension blocks:
1. on posts by inserting bolts (E), lock washers (C) and flat Tighten extension blocks (G)
washers (D), sure bolts with allen wrench (A) in clockwise direction. (See Diagram 1)
2. posts (H) Screw to bases (F) by using bolts (E), lock washers (C) and flat washers (D),
secure with allen wrench (A) in clockwise direction. ) (See Diagram 2
3. Attach stretcher (K) to bases with bolts (E), lock washers (C) and flat washers (D), sure
all by allen wrench (See Diagram 3)
4. Attach mounting plate (I) to post by using bolts (B), lock washers (C) and flat washers
(D), tighten all with allen wrench (A). (See Diagram 4)
5. Place table top (J) upside down on a soft surface to prevent it from being scratched.
Put whole base onto top to make sure all pre , well insert-drilled holes are in alignment
bolts (B), and flat washers (D), tighten bolts by turninglock washers (C) with allen
wrench (A) in clockwise direction. (See Diagram 5)
6. Turn table upright.
Assembly steps without extension blocks:
1. Remove extension blocks from posts directly, then assemble table as the above steps.
(See Diagram 6 & 7 & ) 8 & 9
Diagram 6
Diagram 7
Diagram 8
Diagram 9
2/3
Instruction for table leaves:
1. 10There are latches at the bottom of table top, turn o the latches as shown in Diagram ff .
2. Pull out table top as the arrow direction shown in Diagram 11.
3. Follow number top, ps on table leaves and lace table leaves between and push table tops
together.
4. iagram 10Turn on latches. (see D )
5. Take opposite actions to remove table leaves.
Cleaning Instruction: Clean finished parts with a damp cloth using a mild dishwashing liquid and water
solution. Polish the finish with soft cloth and an industry recognized furniture polish.
3/3
Diagram 10
Diagram 11
