2A8388-010

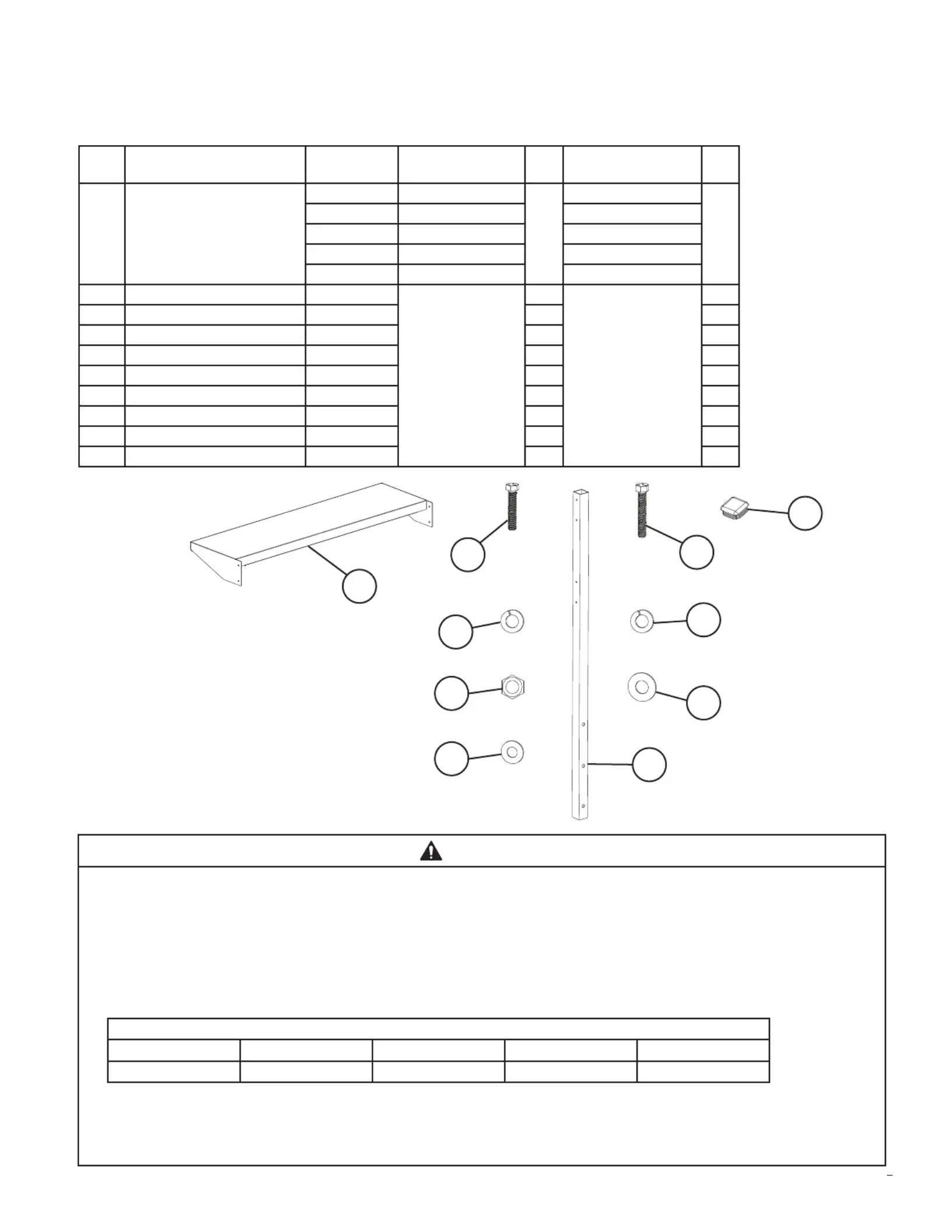

Commercial Undercounter, Worktop, and Prep Table Overshelf Kit

HS-5163, HS-5164, HS-5165, HS-5166, HS-5172, HS-5173, HS-5174, HS-5175, HS-5236, HS-5237

For Use with Hoshizaki Commercial Series Undercounter/Worktop/Prep Table Models

Check to ensure that all parts are included:

Index

No. Description Part Number

Single Shelf

HS Kit Qty

Double Shelf

HS Kit Qty

1 Overshelf 2A7365-01 HS-5172 (27)

HS-5163 (27)

2A7365-07 HS-5237 (36) HS-5236 (36)

2A7365-02 HS-5173 (48) HS-5164 (48)

2A7365-03 HS-5174 (60) HS-5165 (60)

2A7365-04 HS-5175 (72) HS-5166 (72)

1a Hex Head Bolt - (6x50 mm) 7B02-0650

All

1b Lock Washer 7L22-0600 4 8

1c Hex Nut 7N12-0600 4 8

1d Flat Washer 7W22-0600 4 8

2 Square Tube 4A5733-01 2 2

2a Hex Head Bolt - (6x60 mm) 7B02-0660 6 6

2b Lock Washer 7L22-0600 6 6

2c Flat Washer 4A0198-03 18 18

3 Square Tube Cap 4A5862-01 2 2

WARNING

• This appliance should be repaired only by qualied service personnel to reduce the risk of death, electric shock, serious

injury, or re.

• No installation or service should be undertaken until the technician has thoroughly read these instructions. Failure to

install this kit in accordance with these instructions will adversely affect safety, performance, component life, and warranty

coverage.

• To reduce the risk of electric shock, do not touch the plug with damp hands. Unplug the appliance before servicing.

• Maximum load per shelf:

Total Maximum Weight Per Shelf

27 36 48 60 72

75 lb. (34 kg) 97 lb (44 kg) 130 lb. (58 kg) 165 lb. (74 kg) 200 lb. (90 kg)

• Use care when stacking product on the shelves to prevent items from falling.

• Do not climb, stand, or hang on the appliance, drawers, or shelves. Death or serious injury could occur or the appliance

could be damaged.

2A8388-010

Flat Washer

Installation Instructions

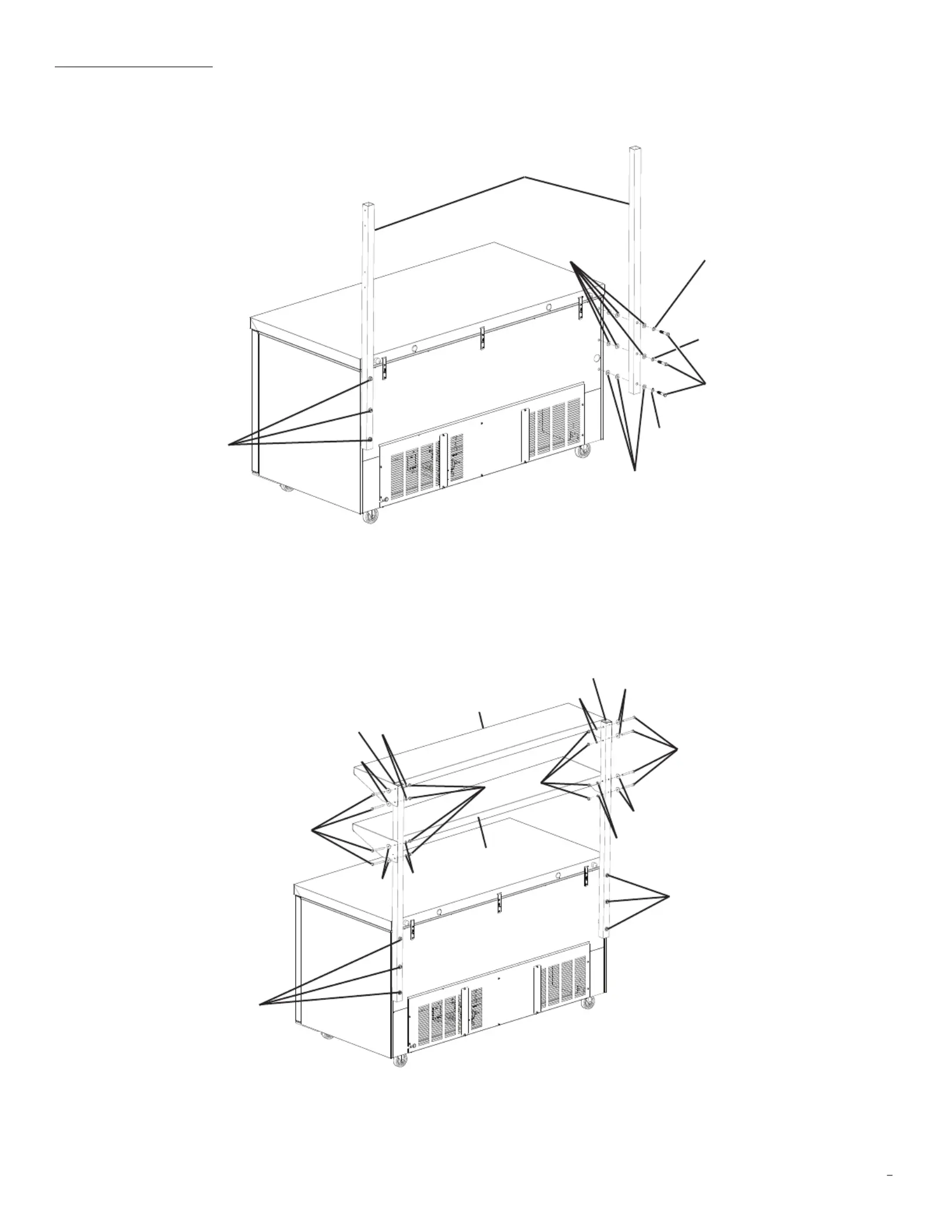

1) Unplug the appliance from the electrical outlet, then access the rear of the appliance.

2) Using the hex head bolts (2a), at washers (2c), and lock washers (2b) provided, secure the square tube to the rear panel.

See Fig. 1. Snug, but do not tighten, the hardware.

Upper Overshelf

Hex Head Bolts

(6x50 mm)

Fig. 2

Lower Overshelf

Square Tube Cap

3) WARNING! Tip hazard. Shelves must face forward. With the help of an assistant, place a single overshelf in position onto the

square tube. Using the hex head bolts (1a), at washers (1d), hex nuts (1c), and lock washers (1b) provided, secure and tighten the

overshelf to the outside of the square tube. See Fig. 2. For double shelf kits, repeat step 3 to install the second overshelf.

4) Insert the square tube caps into place.

5) Tighten the hex head bolts securing the square tube to the rear panel.

6) Place the appliance back in its original position, then plug the appliance back into the electrical outlet.

7) Allow the appliance to cool down prior to loading it with food products.

Square Tube

Fig. 1

Model Shown: CRMR60

Hex Head Bolts

(6x60 mm)

Flat Washer

Lock Washer

Hex Head Bolts

(6x50 mm)

Hex Head Bolts

(6x60 mm)

Hex Head Bolts

(6x60 mm)

Lock Washer

Flat Washer

Model Shown: CRMR60

Hex Nut

Lock Washer

Hex Head Bolts

(6x60 mm)

Flat Washer
