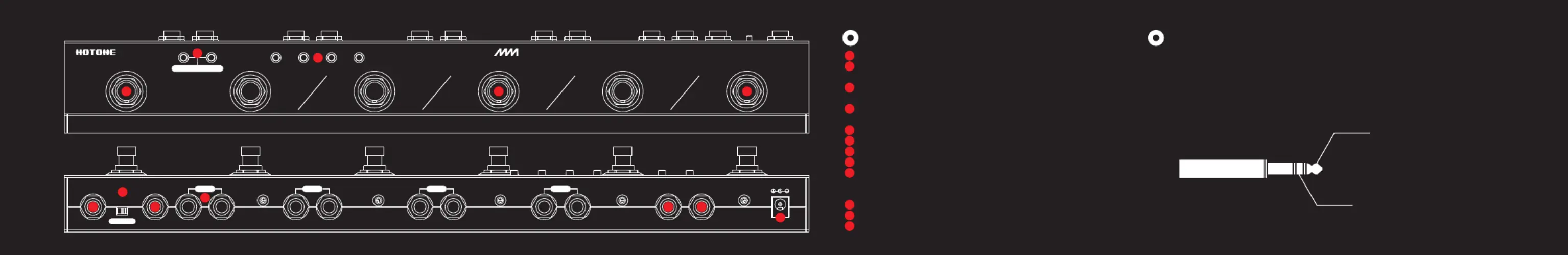

Panel Introduction
Enga ge M ute/Tuner function (all outpu t goes to TUNER jack)
Direct mode: Directly switches loops 1-4 on/off
Preset mode: Selects presets 1-4 (indicated by LEDs)
Direct mode: For switching A/B channels on your amp head
Preset mode: For switching 3 different banks
Direct mode: Not available
Preset mode: For editing loop on/off status in each preset
Select between Direct and Preset modes
Guitar connection jack
Switches internal buffer on/off
Connect your tuner
4 True Bypass loops:
SEND: Connect to your effects input
RETURN: Connect to your effects output
Connect to your amp footswitch jack
Connect to amp or oth er pedal input
Plug in 9V DC adapter (cente r nega tive)
DIRECT PRE SET
BANK
SW A/B
MUTE/TUN ER
4 Channe l Programm able Loop Switcher
L1L2L3L4
4
MODE SE LECT
123
Patch Ko an der The SW A/B function is for switching between A/B channels on your amp head.
When you're using the SW A/B function, connect the SW A/B jack to your amp
footswitch jack with a cable featuring 1/4" (6.35m m) TRS jacks on both ends.
The TRS cable works with the amp as shown below:
SW A/B
Ring=Green LED
Tip=Red LED
123
4
51
2
3
4
5
6
7
8
9
12
11
10
SE ND RE TURN SE ND RE TURN SE ND RE TURN SE ND RE TURN
OUTPUTSW A/BTUNERINP UT L1
BUFFER
OFF/ON
L4L3L2 DC 9V
6
7
8 10 11
12
9
Presets can save and recall multiple loop on/off statuses. A set of 4 presets is called a bank.
Patch Kommander features 12 presets (4 presets 3 banks).×
In Preset mode:
Tap footswitch 1-4 to select preset 1-4.
Tap the BANK (SW A/B) footswitch to select a bank. When switching banks, the preset you selected
won't be changed (and all LEDs under L1-L4 buttons will keep flashing) until you tap footswitch 1-4 again to confirm your selection.
To program a preset:
(1) Select a preset.
(2) The L1-L4 button LEDs will indicate loop on/off status.
All changes will be automatically saved.
Bank & Presets
If you're suffering from signal loss caused by a long signal chain, turning on the buffer will help.
Turn it off if you want to keep your signal pristine and when using pedals that don't work well with buffers.
Buffer
L1L2L3L4
SE ND RE TURN SE ND RE TURN SE ND RE TURN SE ND RE TURN
OUTPU TSW A/B
TUNE RINPUT L1
BUFF E R
OF F/ON
L4L3L2 DC 9V
FOOTSWITCH JACK

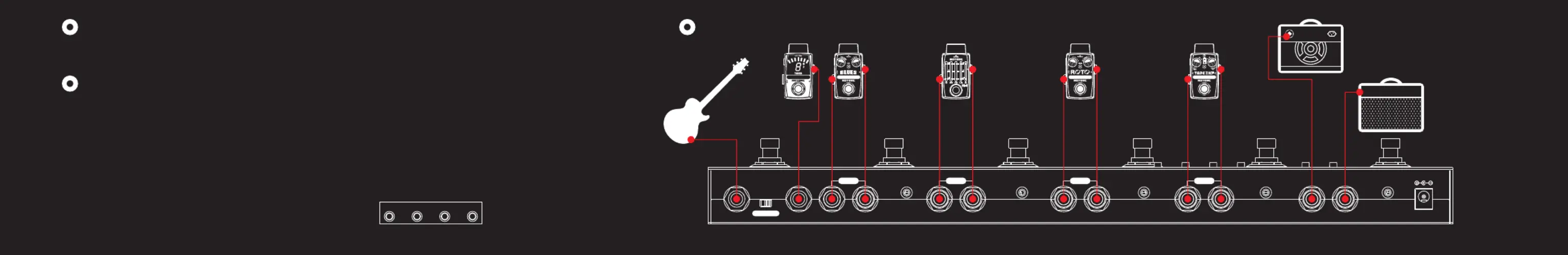

Connections
