Instructions for use

WASHER DRYER

! This symbol reminds you to read this instruc-

tion manual.

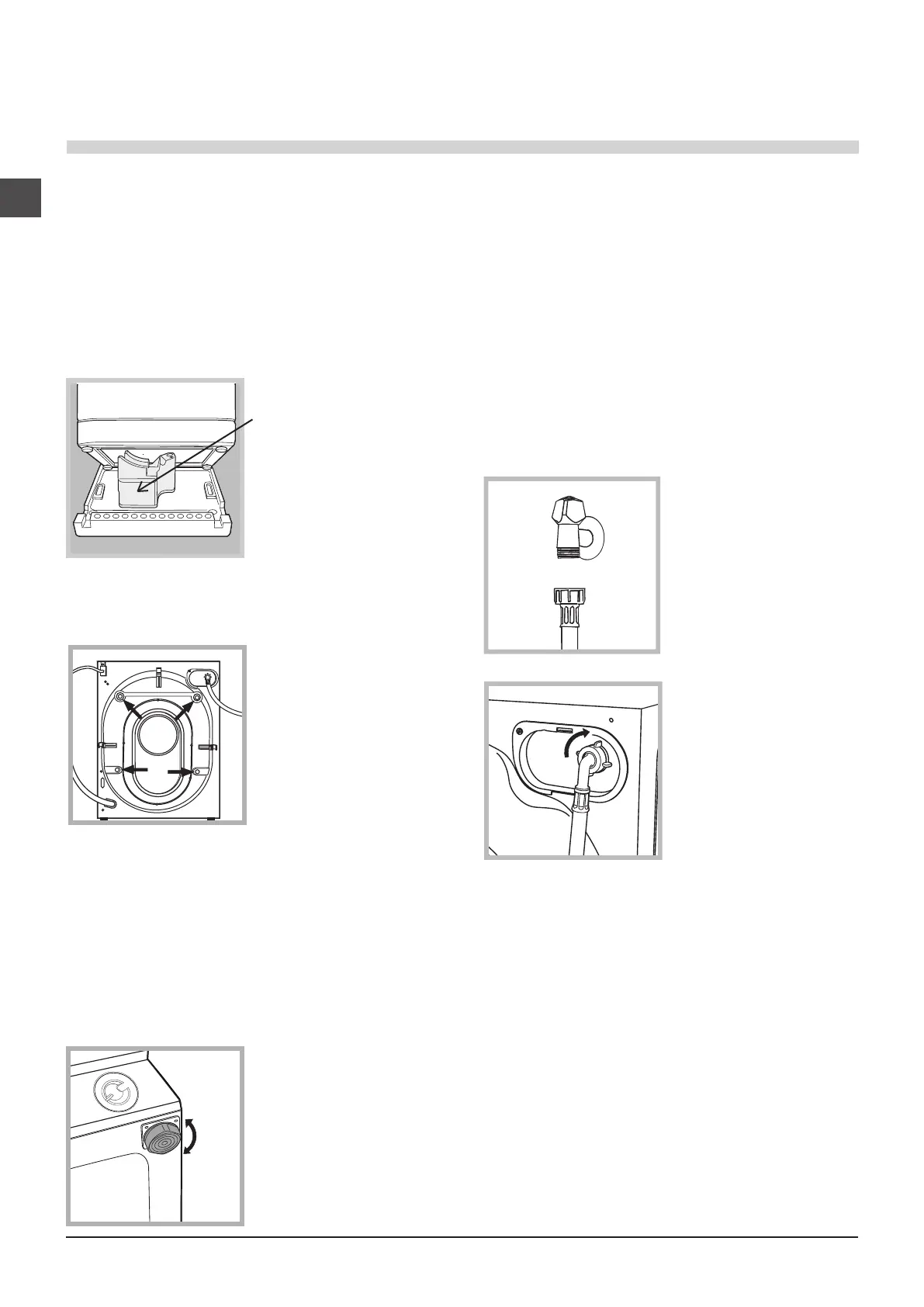

Installation

Levelling your appliance correctly will provide

it with stability and avoid any vibrations, noise

and shifting during operation. If it is placed on

a fitted or loose carpet, adjust the feet in such

a way as to allow enough room for ventilation

beneath the washing machine.

Electric and water connections

Connecting the water inlet hose

1. Connect the supply

pipe by screwing it to

a cold water tap using

a 3/4 gas threaded

connection (see figu-

re).

Before performing the

connection, allow the

water to run freely un-

til it is perfectly clear.

2. Connect the other

end of the water inlet

hose to the washing

machine,

screwing it onto the

appliance’s cold water

inlet, situated on the

top right-hand side on

the rear of the ap-

pliance (see figure).

3. Make sure there are no kinks or bends in the

hose.

! The water pressure at the tap must be within

the values indicated in the Technical details

table (on the page 5).

! If the water inlet hose is not long enough,

contact a specialist store or an authorised

serviceman.

! Ensure that the supply taps are allowing wa-

ter through. Old taps may seize in the closed

position and thus prevent water reaching the

machine.

! Keep this instruction manual in a safe place for

future reference. Should the appliance be sold, tran-

sferred or moved, make sure the instruction manual

accompanies the washing machine to inform the

new owner as to its operation and features.

! Read these instructions carefully: they contain

vital information on installation, use and safety.

Unpacking and levelling

Unpacking

! This is a separate part

of the polystyrene base

and should be remo-

ved with the base.

! IMPORTANT check

when unpacking your

machine.

1. Unpack the washing machine.

2. Check whether the washing machine has

been damaged during transport. If this is the

case, do not install it and contact your retailer.

3. Remove the 4 pro-

tective screws and the

rubber bush with the

respective spacer, si-

tuated on the rear of the

appliance (see also the

installation leaflet).

4. Seal the gaps using the plastic plugs provided.

5. Keep all the parts: you will need them again

if the washing machine needs to be moved to

another location.

! Packaging materials are not children’s toys.

Levelling

Your machine may make a considerable amount

of noise if the two front feet have not been adju-

sted correctly.

1. Install the washing

machine on a flat sturdy

floor, without resting it up

against walls, furniture

cabinets or other.

2. If the floor is not perfectly level, compensate

for any unevenness by tightening or loosening

the adjustable front feet ; the an- (see figure)

gle of inclination, measured according to the

worktop, must not exceed 2°.

Connecting the drain hose

Connect the drain

hose, without bending

it, to a draining duct or

a wall drain situated

between 65 and 100

cm from the floor;

The drain hose may

be connected to an

under-sink trap. Be-

fore connecting the

drain hose from the

machine ensure that

any blanks or remo-

vable ends have been

taken off the spigot.

If it is placed over the

edge of a basin or sink

be sure the free end of

the hose should not

be underwater.

! We advise against the use of hose extensions; in

case of absolute need, the extension must have

the same diameter as the original hose and must

not exceed 150 cm in length.

Ensure that if the drain hose is pushed into a stan-

dpipe, that the end does not go down more than

15cms (6 inches). If the hose is pushed down too

far, this may cause the machine to self -syphon

ie. continuously empty as it is filling.

Electric connection

Before plugging the appliance into the mains

socket, make sure that:

• the socket is earthed and in compliance with

the applicable law;

• the socket is able to sustain the appliance’s

maximum power load indicated in the Technical

details table;

• the supply voltage is included within the values

indicated on the Technical Data Plate fixed on

the machine.

• the socket is compatible with the washing

machine’s plug. If this is not the case, replace

the socket or the plug.

Your appliance is now supplied with a 13 amp fu-

sed plug it can be plugged into a 13 amp socket

for immediate use. Before using the appliance

please read the instructions below.

WARNING - THIS APPLIANCE MUST BE EAR-

THED.

THE FOLLOWING OPERATIONS SHOULD BE

CARRIED OUT BY A QUALIFIED ELECTRICIAN.

Replacing the fuse:

When replacing a faulty fuse, a 13 amp ASTA

approved fuse to BS 1362 should always be

used, and the fuse cover re-fitted. If the fuse

cover is lost, the plug must not be used until a

replacement is obtained.

Replacement fuse covers:

If a replacement fuse cover is fitted, it must be of

the correct colour as indicated by the coloured

marking or the colour that is embossed in words

on the base of the plug. Replacements can be

obtained directly from your nearest Service Depot.

Removing the plug:

If your appliance has a non-rewireable moulded

plug and you should wish to re-route the mains

cable through partitions, units etc., please en-

sure that either:

the plug is replaced by a fused 13 ampere rewi-

reable plug bearing the BSI mark of approval.

or:

the mains cable is wired directly into a 13 amp

cable outlet, controlled by a switch, (in complian-

ce with BS 5733) which is accessible without

moving the appliance.

Disposing of the plug:

Ensure that before disposing of the plug itself,

you make the pins unusable so that it cannot be

accidentally inserted into a socket.

Instructions for connecting cable to an alterna-

tive plug:

Important: the wires in the mains lead are co-

loured in accordance with the following code:

Green & Yellow Earth

Blue Neutral

Brown Live

65 - 100 cm

Where it connects to

the waste water pipe

cut end off spigot or

remove the blanking cap
