HOB

G640N

G640T

G640W

G640X

Contents

Installation, 2-5

Positioning

Gas connection

Data plate

Burner and nozzle specifications

Electrical connection, 6

Description of the appliance, 7

Overall view

Start-up and use, 8

Practical advice on using the burners

Precautions and tips, 9

General safety

Disposal

Recycling & Disposal Information

Maintenance and care, 10

Switching the appliance off

Cleaning the appliance

Gas tap maintenance

Troubleshooting, 11

After Sales Service, 12

Guarantee, 13

Operating Instructions

English,1

! Before operating your new appliance please read this

instruction booklet carefully. It contains important information

for safe use, installation and care of the appliance.

! Please keep these operating instructions for future

reference. Pass them on to possible new owners of the

appliance.

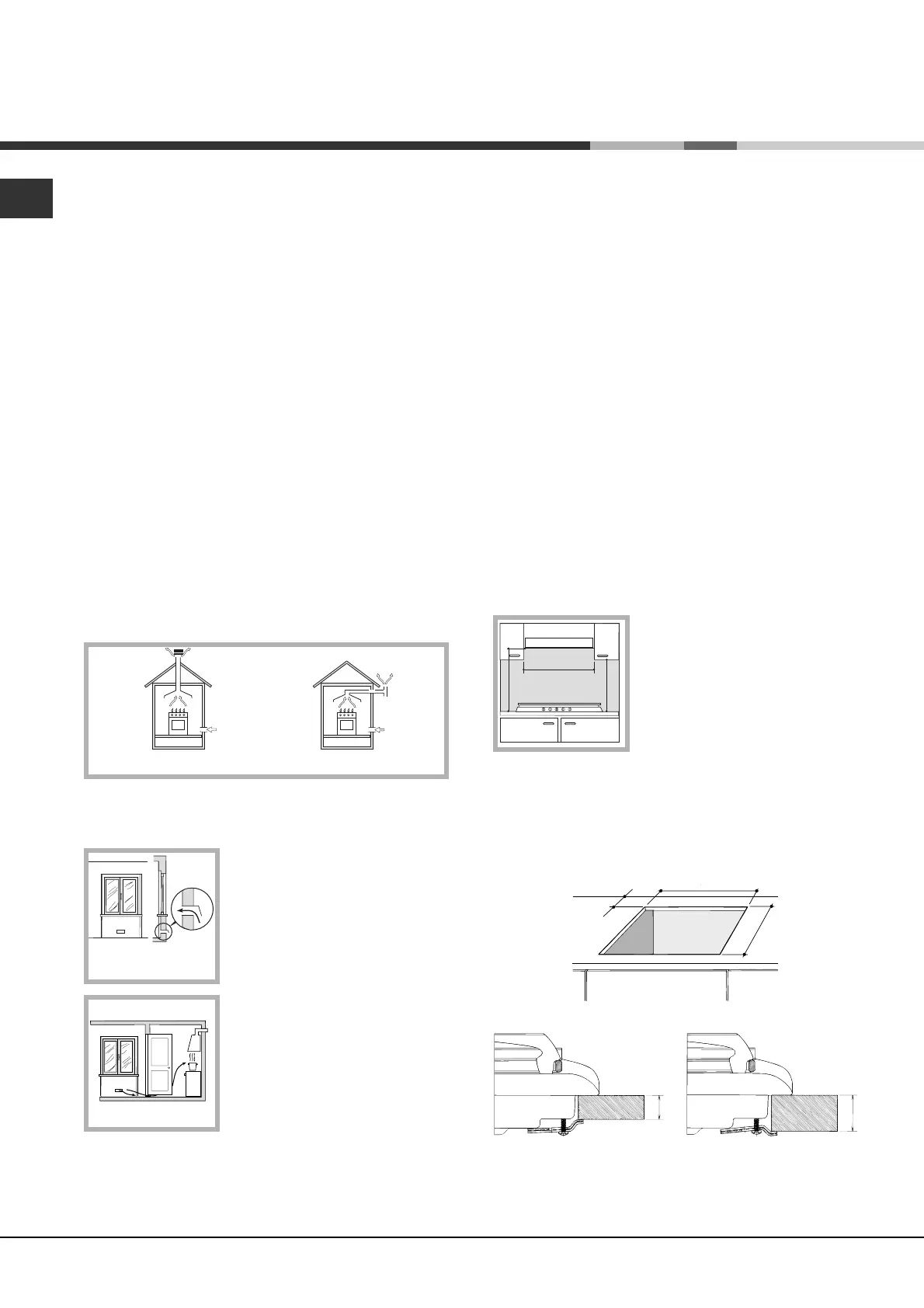

Positioning

! Keep packaging material out of the reach of children. It

can become a choking or suffocation hazard (see

Precautions and tips).

! The appliance must be installed by a qualified professional

according to the instructions provided. Incorrect installation

may cause harm to people and animals or may damage

property.

! This unit may be installed and used only in permanently

ventilated rooms in accordance with British Standard Codes

Of Practice: B.S. 6172 / B.S. 5440, Par. 2 and B.S. 6891

Current Editions. The following requirements must be

observed:

 The room must be equipped with an air extraction system

that expels any combustion fumes. This may consist of a

hood or an electric fan that automatically starts each time

the appliance is switched on.

 The room must also allow proper air circulation, as air is

needed for combustion to occur normally. The flow of air

must not be less than 2 m3/h per kW of installed power.

The air circulation system may

take air directly from the outside

by means of a pipe with an inner

cross section of at least 100 cm2;

the opening must not be

vulnerable to any type of

blockages.

The system can also provide the

air needed for combustion

indirectly, i.e. from adjacent rooms

fitted with air circulation tubes as

described above. However, these

rooms must not be communal

rooms, bedrooms or rooms that

may present a fire hazard.

 Liquid petroleum gas sinks to the floor as it is heavier

than air. Therefore, rooms containing LPG cylinders must

also be equipped with vents to allow gas to escape in the

event of a leak. As a result LPG cylinders, whether

partially or completely full, must not be installed or stored

in rooms or storage areas that are below ground level

(cellars, etc.). It is advisable to keep only the cylinder

being used in the room, positioned so that it is not

subject to heat produced by external sources (ovens,

fireplaces, stoves, etc. ) which could raise the

temperature of the cylinder above 50°C.

Fitting the appliance

Gas and mixed hobs are manufactured with type X degree

protection against overheating. The following precautions

must be taken when installing the hob:

 Kitchen cabinets adjacent to the appliance and taller

than the top of the hob must be at least 600 mm from the

edge of the hob.

 Hoods must be installed according to their relative

installation instruction manuals and at a minimum

distance of 650 mm from the hob.

 Place the wall cabinets adjacent to the hood at a

minimum height of 420 mm from the hob (see figure).

If the hob is installed beneath a

wall cabinet, the latter must be

situated at a minimum of 700 mm

above the hob (see figure).

 The installation cavity should have the dimensions

indicated in the figure.

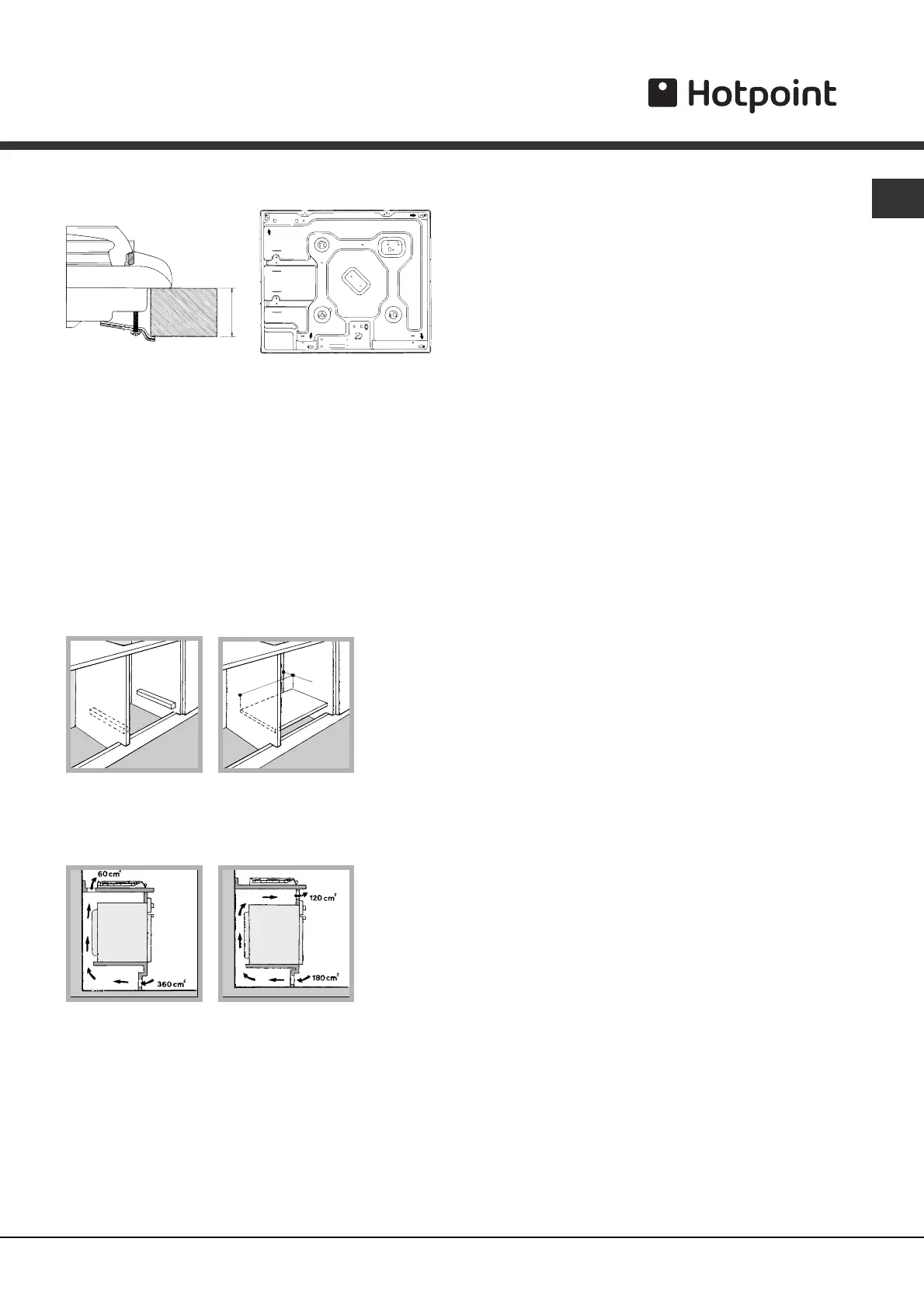

Fastening hooks are provided, allowing you to fasten the

hob to tops that are between 20 and 40 mm thick. To

ensure the hob is securely fastened to the top, we

recommend you use all the hooks provided.

555 mm

55 mm

475 mm

Hook fastening diagram

Hooking position Hooking position

for top H=20 mm for top H=30 mm

Installation

Enlarging the ventilation slot

between window and ﬂoor.

A j cd a ent

R moo

R moo to be

Vented

Examples of ventilation holes

for comburant air.

In a chimney stack or branched ﬂue.

(exclusively for cooking appliances)

Directly to

the utsideO

600mm min.

540mm min.

700mm min.

Front

Hooking position Back

for top H=40 mm

! Use the hooks contained in the accessory pack

 Where the hob is not installed over a built-in oven, a

wooden panel must be installed as insulation. This must

be placed at a minimum distance of 20 mm from the

lower part of the hob.

Ventilation

To ensure adequate ventilation, the back panel of the

cabinet must be removed. It is advisable to install the oven

so that it rests on two strips of wood, or on a completely flat

surface with an opening of at least 45 x 560 mm (see

diagrams).

Where a hob is installed above an oven without a

forced ventilation cooling system, adequate ventilation

must be provided inside the cabinet by means of air

holes through which air can pass (see figure).

Gas connection

The appliance should be connected to the main gas supply

or to a gas cylinder in compliance with current national

regulations. Before carrying out the connection, make sure

the cooker is compatible with the gas supply you wish to

use. If this is not the case, follow the instructions indicated in

the paragraph Adapting to different types of gas.

When using liquid gas from a cylinder, install a pressure

regulator which complies with current national regulations.

! Check that the pressure of the gas supply is consistent

with the values indicated in Table 1 (Burner and nozzle

specifications). This will ensure the safe operation and

longevity of your appliance while maintaining efficient

energy consumption.

Connection with a rigid pipe (copper or steel)

! Connection to the gas system must be carried out in such

a way as not to place any strain of any kind on the

appliance.

There is an adjustable -shaped pipe fitting on theL

appliance supply ramp and this is fitted with a seal in order

to prevent leaks. The seal must always be replaced after

rotating the pipe fitting (seal provided with appliance). The

gas supply pipe fitting is a threaded 1/2 gas cylindrical male

attachment.

Connecting a flexible jointless stainless steel pipe to a

threaded attachment

The gas supply pipe fitting is a threaded 1/2 gas cylindrical

male attachment.

These pipes must be installed so that they are never longer

than 2000 mm when fully extended. Once connection has

been carried out, make sure that the flexible metal pipe

does not touch any moving parts and is not compressed.

! Only use pipes and seals that comply with current national

regulations.

Checking the tightness of the connection

! When the installation process is complete, check the pipe

fittings for leaks using a soapy solution. Never use a flame.

Adapting to different types of gas

To adapt the hob to a different type of gas other than default

type (indicated on the rating plate at the base of the hob or

on the packaging), the burner nozzles should be replaced

as follows:

1. Remove the hob grids and slide the burners off their

seats.

2. Unscrew the nozzles using a 7 mm socket spanner, and

replace them with nozzles for the new type of gas (see

table 1 Burner and nozzle characteristics).

3. Reassemble the parts following the above procedure in

the reverse order.

4. Once this procedure is finished, replace the old rating

sticker with one indicating the new type of gas used.

Sticker are available from any of our Service Centres.

 Adjusting the burners primary air :

Does not require adjusting.

560 mm.

45 mm.
