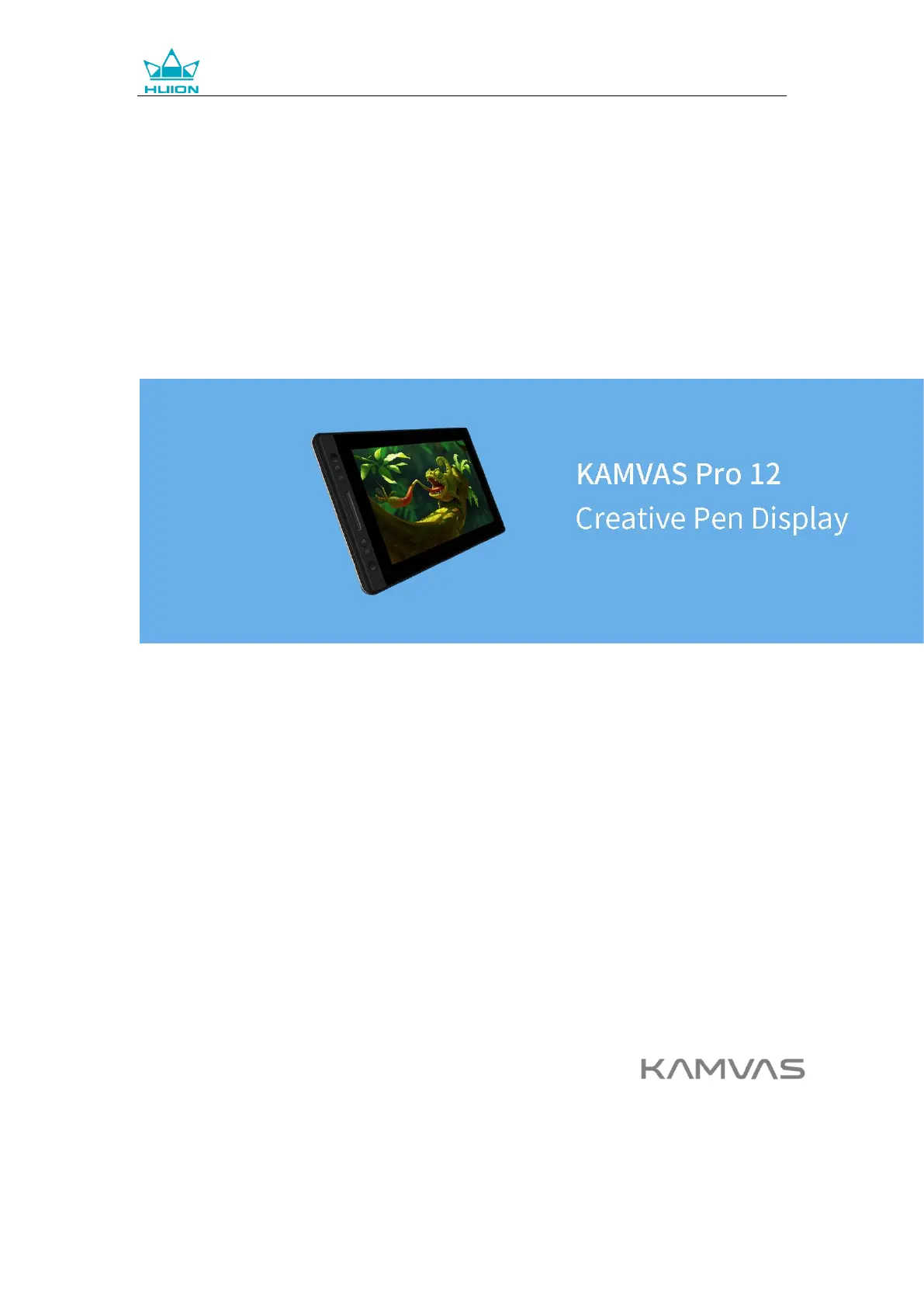

Kamvas Pro 12

User Manual

For Windows and Macintosh OS

Model: GT-116

Kamvas Pro 12

1 / 19 www.huion.com

Precautions

1. Please read this manual carefully before using, and keep it well for future reference.

2. Before cleaning the display please unplug the USB cable and wipe with a soft damp cloth, do

not use any kind of detergents.

3. Please don t place the display near water sources such as bathtub, washbasin, sinks, washing ’

machine, damp basement, swimming pool, etc.

4. Do not place the display on where is unstable or a height for children reaching in order easily

to avoid danger.

5. Do not place the display and digital pen close to the magnetic field.

6. The grooves and holes on the back case is designed for ventilation to prevent the monitor from

overheating. Please don t place the display on beds, sofas, carpets or in embedded device. ’

7. Only power supplies shown on the nameplate can be used for the display. If you have questions

about the power supply which you are using, please consult the distributor of your display.

8. To protect your display, please switch off the power when it is not in use. During blackouts or

not using for long time, please unplug the display from the socket.

9. Don t overload the socket or lengthen the power wire, which may lead to electric shocks. ’

10. Make sure no foreign bodies get inside the monitor through grooves and prevent liquid from

splashing on the display as to prevent short-circuit or fire.

11. If the display has a breakdown, do not open the main case and try to repair it by yourself.

Please ask for a service for proper repair and maintenance.

12. When the following situations occur, please unplug the power adapter and you may need a

service for full repair and maintenance:

A. The power wire or plug is damaged or worn out;

B. There is liquid splashed inside of the display;

C. The display has fallen or the LCD is broken;

D. When obvious abnormalities occur to the display.

13. While getting the components replaced, you are supposed to guarantee that the repairman is

using the substitute components specified by the manufacturer. Unauthorized component

replacement might cause fire, electric shocks or other dangers.

Kamvas Pro 12

2 / 19 www.huion.com

Contents

1. Product Overview .......................................................................................................................... 3

1.1 Display Introducon ............................................................................................................ 3

1.2 Product and Accessories ..................................................................................................... 3

1.3 Display Connecon .............................................................................................................. 6

1.4 Driver Installaon ................................................................................................................ 6

1.5 Pen Nib Replacement .......................................................................................................... 6

2. Product Basic Operaon ................................................................................................................7

2.1 Using The Pen ...................................................................................................................... 7

2.2 Using the Display ................................................................................................................. 9

2.3 OSD Function ..................................................................................................................... 10

3. Funcon Seng .......................................................................................................................... 11

3.1 Device Connecon Prompt ...............................................................................................11

3.2 Working Area Seng ........................................................................................................11

3.3 Press Keys Funcon Seng ............................................................................................... 13

3.4 Pen Buon Seing ............................................................................................................13

3.5 Pressure Sensitivity Setng ............................................................................................... 14

3.6 Pen Pressure Tesng ..........................................................................................................14

3.7 Calibraon ......................................................................................................................... 15

3.8 Enable the Windows Ink feature ....................................................................................... 15

3.9 Data Export and Import ..................................................................................................... 16

4. Specicaons .............................................................................................................................. 17

5. Trouble Shoong ......................................................................................................................... 18

5.1 Possible Breakdowns Related to DISPLAY .......................................................................... 18

5.2 Possible Breakdowns Related to FUNCTIONS ...................................................................18
