Sida 1/4

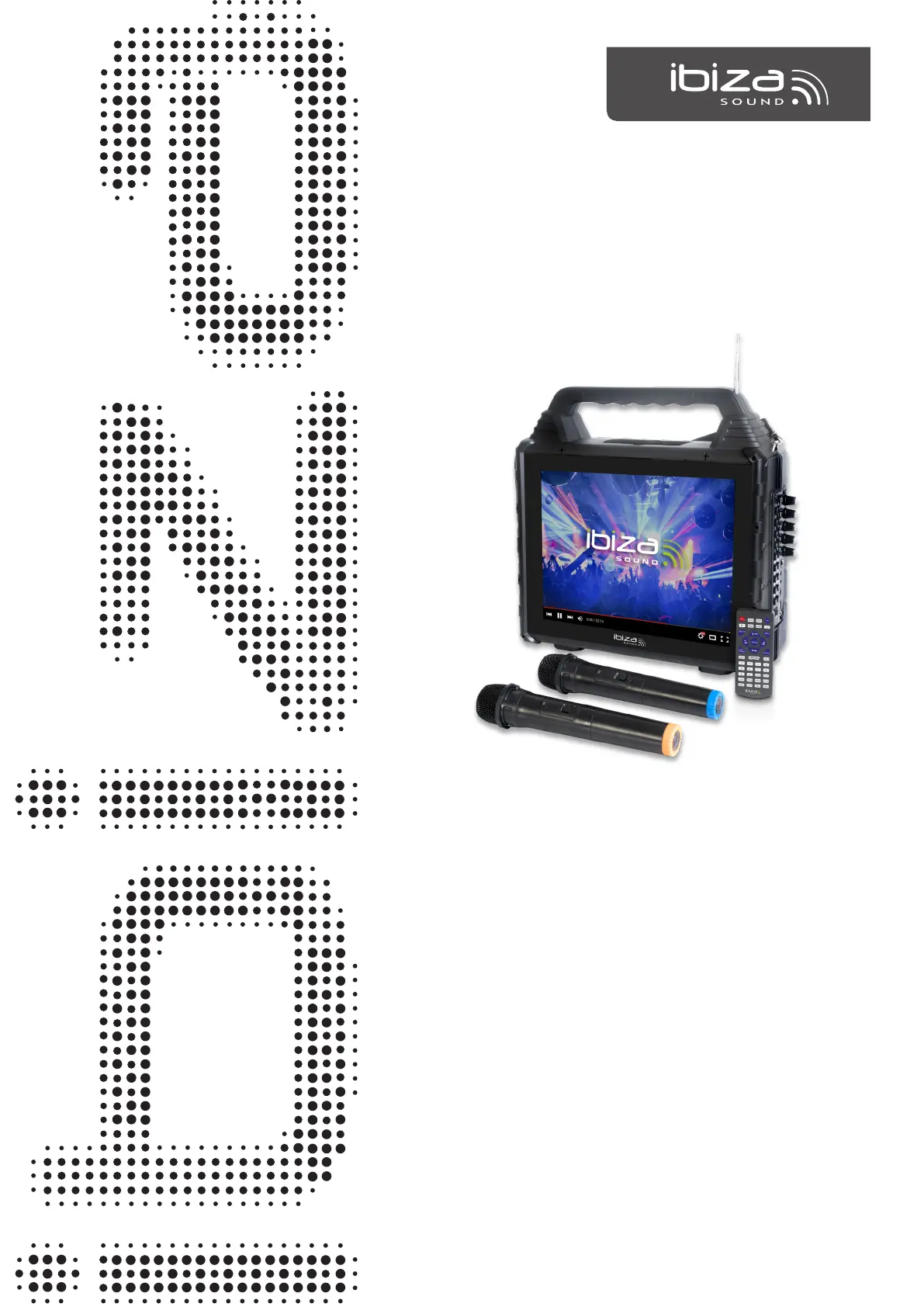

MANUAL
EN- Instruction Manual - p. 2
FR - Manuel d'Utilisation - p. 7
DE - Bedienungsanleitung - S. 13
NL - Handleiding - p. 19
ES - Manual de Uso - p. 25
IT - Manuale di istruzioni - p. 31
PT - Manual de Instruções - pág. 37
RO - Manual de instructiuni - p. 42
SI - Navodila za uporabo - s. 47
SV - Bruksanvisning - sid. 52
PL - Instrukcja obsługi - str. 57
TR - Kullanım Kılavuzu - s. 63
Ref.: KARAVISION
Code: 10-9011
PORTABLE KARAOKE SPEAKER
WITH 14.1" TFT SCREEN & 2 VHF MICS
MANUAL - KARAVISION
2
©Copyright LOTRONIC 2024
PORTABLE KARAOKE SPEAKER 5"/13cm 150W
WITH 14.1" TFT SCREEN & 2 VHF MICS
Please read the manual carefully and keep it for future reference.
Explanation of signs
Accordance with the requirements of CE standard
The product is for indoor use only
To avoid hearing loss, do not expose yourself to high volume levels for long periods of time.
Restrictions of Use
As the product contains a transmission/reception system of VHF signals, it is exclusively meant for professional use and
allowed for use only in some countries of the European Community (FR – BE – PT – D – NL – LU – GR – SP – RO - GB - IT - PL).
CAUTION:
• The unit shall be connected to a power supply only of the type described.
• To reduce the risk of 󰊟re or electrical shock, do not expose this unit to rain or moisture.
• Adequate care shall be taken so that foreign objects do not fall, or liquids are not spilled into the enclosure
through openings.
• Do not remove the cover or back, as there are no user-serviceable parts inside.
• For indoor use only
• Do not place on the apparatus a naked 󰊠ame source, such as lighted candles.
• The unit should only be used in moderate climates
• A minimum distance of 0.5m around the unit must be kept to ensure su󰊡cient ventilation and avoid overheat-
ing.
• The appliance may not be exposed to extreme temperatures (< +5°C / > +35°C) in operation.
• The appliance may not be subject to strong vibrations or heavy mechanical strain.
• Due to strong magnetic 󰊟elds, do not put credit cards and other magnetic items close to the speaker.
IMPORTANT NOTE on LITHIUM-ION Batteries
1. PRIOR to using the unit for the 󰊟rst time, please charge fully the battery
2. Charge the battery regularly after each use. Don’t wait until it is discharged!
3. DON’T allow the battery to discharge completely, otherwise it will lose 20% of its capacity or even be
totally damaged! If the voltage becomes too low, the internal circuits are not powered anymore and it will
become impossible to recharge the battery!
4. If you don’t use the unit for a longer period of time, it is recommended to charge it at 40% of its capacity
and check/charge it once per month.
** BATTERIES ARE NOT COVERED BY THE WARRANTY **
We cannot be held responsible for damaged batteries further to the non-observance of these basic rules.
RECOMMENDATIONS FOR BATTERIES
This symbol indicates that used batteries should not be disposed of with household waste but deposited in separate
collection points for recycling.
WARNING
Danger of explosion if battery is incorrectly placed. Only replace by the same or equivalent type.
Do not swallow the battery. Danger of chemical burns.
Keep new and old batteries out of the reach of children.
If the battery compartment doesn't close properly, stop using the remote control and keep it out of the reach of children.
If you are in doubt whether the batteries have been swallowed or introduced into any other part of the body, contact imme-
diately a doctor.
Charging the battery
Prior to using the unit for the 󰊟rst time, fully charge the built-in battery. Plug de DC connector of the supplied
mains adaptor into the 12V󰐆 2A input socket (12 on the side panel of the unit and the other end into an appr-
priate mains outlet.
The charging LED (11 lights up in red during charge and goes o󰊞 when the battery is fully charged.
The charging level of the battery appears on the 3-segment indicator in the upper right corner of the screen.
Code: 10-9011
3
https://ibizashop.eu/
Description of the side panel
MODE
1
2
3
4
5
6
7
8
9
10
12
11
13
14
15
16
17
18
19
20
21
22
1. MASTER VOLUME Rotate to adjust the overall volume.
2. TREBLE +/-: Rotate to adjust the high frequencies
3. BASS+/-: Rotate to adjust the low frequencies
4. ECHO +/-: Rotate to adjust the echo e󰊞ect of the microphones
5. MIC VOL +/-: Rotate to adjust the mic volume
6. MIC INPUT: Connect a wired mic
7. A/V input: Connect an external audio and/or video device to this 3.5mm jack
socket
8. A/V output: Connect this 3.5mm jack socket to an external audio and/or
video device
9. TF /microSD card input (supports 32Gb)
10. USB input: supports USB devices up to 32Gb
11. Charging LED: lights up in red during charge and goes o󰊞 when the battery
is fully charged.
12. 12V󰐆 2A input to power the unit and charge the built-in battery. Connect the
supplied mains adaptor to this socket
13. Number buttons: press the number if you want to select directly a track
14. RETURN: Go back to the previous menu or the main interface
15. MENU: Press this button to enter into a submenu. Press the up and down
buttons to select a menu item. Press the play/pause button to con󰊟rm
16. PREVIOUS SONG : Press this button to move to the previous track.
17. EQ: Press to cycle through various equalization settings: Rock, pop, jazz,
classic, 󰊠at
18. PLAY/PAUSE MUSIC ▶ : Press this button to pause or play. Con󰊟rm the set-
ting in the menu
19. BT: Press to select Bluetooth mode. You can now pair the speaker with your mobile phone, tablet or any
other Bluetooth-enabled equipment to play music.
20. NEXT SONG : Press this button to move to the next track.
21. MODE: Press this button to select an input source.
22. ON/OFF switch
SETUP
IN R-TE
RU PT
ENTER
OSD
MIC
Pr r it yi o MUTE TRK
BT M IE SICOV MU
FM
PLAY
/P SEAU
VOL+VOL-
KARAOKE
R URNET
SELE C T
DEL ETE R EATEP
AV IN REC ORD E- OK CTUREBO PI
LCD
ON FF/O AV OUT
MODE
Remote Control
MIC PRIORITY: Press to reduce the volume of all other input sources when you talk into
the microphone
MUTE: Press to mute the sound output. Press again to switch sound on again
MODE: : Press to select movie / music / radio / Bluetooth / etc mode, USB or TF card
TRK: Display the karaoke tracks
BT: Press to switch directly into Bluetooth mode
MOVIE: Press to switch directly into video mode
MUSIC: Press to switch directly into music mode
FM: Press to switch directly into FM mode
SET UP: Press to enter into the settings menu to set language, product information, re-
store factory settings, set volume, brightness, VCM and other settings
OSD: Press to display the menu on the screen
▲: Upwards . Keep pressed to select the previous song
◀: Left. Keep pressed to rewind
ENTER: Confirm the selection
▶: Right. Keep pressed to fast forward
