Sida 1/47
MANUAL
FR - Manuel d'Utilisation - p. 4
DE - Bedienungsanleitung - S. 5
NL - Handleiding - p. 6
ES - Manual de Uso - p. 7
PT - Manual de instruções - p. 8
RO - Manual de Utilizare - p. 9
IT - Manuale di istruzioni - p. 10
SI - Navodila za uporabo - p. 11
REF:
XTK15 / XTK12 / XTK10 / XTK8
15"/38CM - 600W / 12"/30CM - 500W / 10"/25CM - 300W / 8"/20CM - 200W
CODE:
15-2413 / 15-2412 / 15-2411 / 15-2410
PASSIVE 2-WAY BASS REFLEX BOXES
ENCEINTES PASSIVES BASS REFLEX
A 2 VOIES
XTK series
2
© Lotronic 2019
8’’ 2-WAY SPEAKER BOX
OutputInput
Model : XTK8
Magnet : 20 oz
Voice coil : 1’’ KSV
Frequency Response : 50Hz - 18kHz
Sensitivity : 87dB
Impedance : 8 Ohm
RMS Power : 100W
Max Power : 200W
Designed in Belgium by LOTRONIC S.A.
Av. Z. Gramme 9 - B - 1480 Saintes
Assembled in PRC
OutputInput
Designed in Belgium by LOTRONIC S.A.
Av. Z. Gramme 9 - B - 1480 Saintes
Assembled in PRC
15’’ 2-WAY SPEAKER BOX
Model : XTK15
Magnet : 50 oz
Voice coil : 2.5’’ KSV
Frequency Response : 45Hz - 18kHz
Sensitivity : 95dB
Impedance : 8 Ohm
RMS Power : 300W
Max Power : 600W

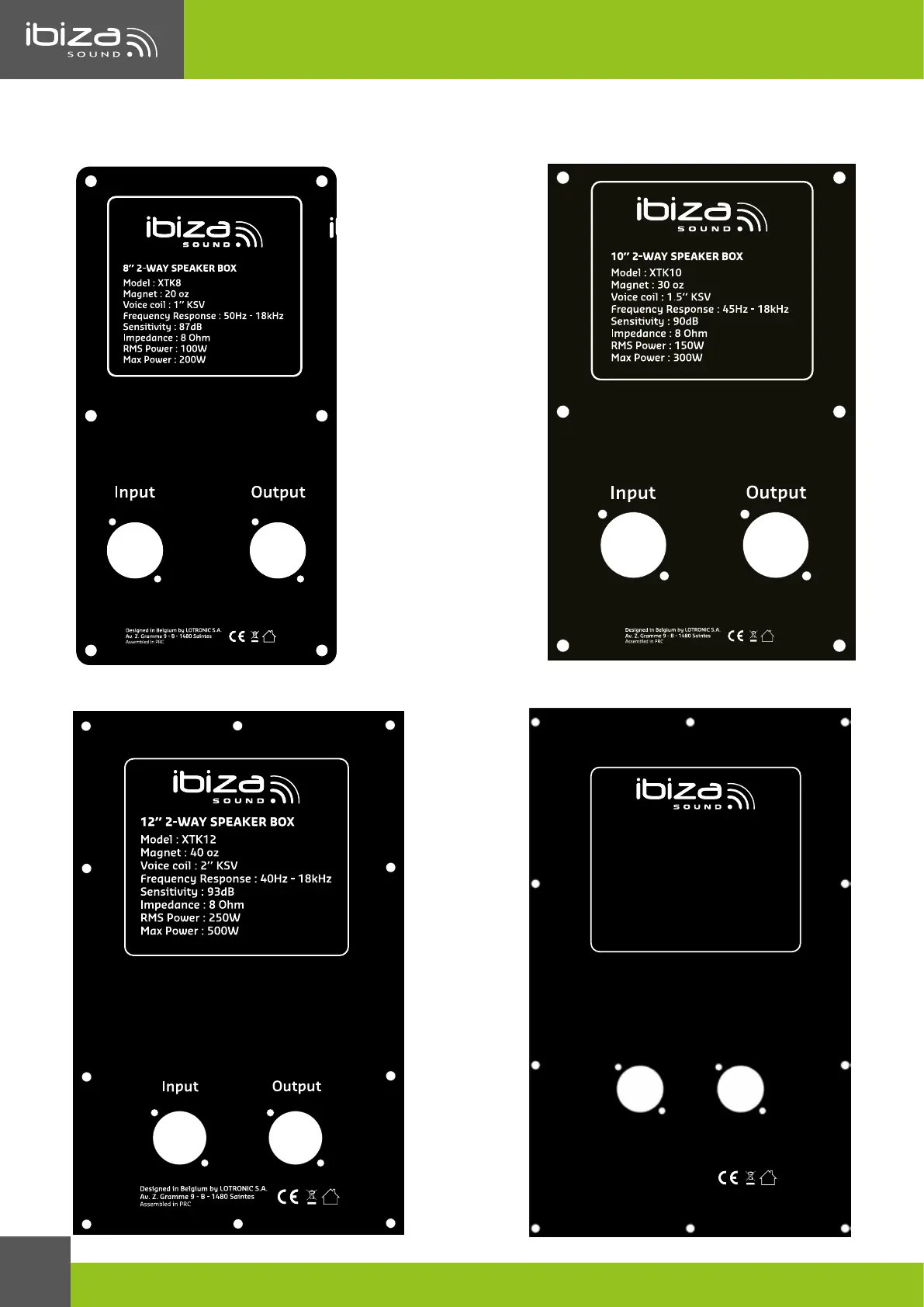

REAR PANEL / ARRIERE / RÜCKANSICHT / ACHTERKANT / PANEL POSTERIOR / PAINEL TRASEIRO
XTK series
3
EN
www.ibiza-light.com
PASSIVE MOULDED PA BOXES
INSTRUCTION MANUAL
Accordance with the requirements of CE standard
The product is for indoor use only
This marking indicates that this product should not be disposed with other household wastes throughout the EU. To
prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to
promote the sustainable reuse of material resources. To return your used device, please use the return and collection
systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.
IMPORTANT SAFETY INSTRUCTIONS AND DANGER WARNINGS
• Please read the manual carefully and keep it for future reference.
• The appliance is approved for operation in dry, closed rooms only . Do not operate the device nearby
water, such as in bathrooms or nearby swimming pools. Do not expose to excessive moisture.
• Do not expose to extreme temperatures (< +5°C / > +35°C), strong vibrations or heavy mechanical strain.
• Do not place any recipients lled with liquids, such as glasses or vases, on top of or directly next to the
appliance. Do not place any small objects, such as coins or paper clips, on the appliance since they could fall
inside the appliance. Do not place any naked ames such as burning candles on or next to the appliance
• Never place the appliance on an unstable or movable surface. Persons could be injured or the appliance
damaged by it falling down.
• Only use the appliance in a moderate climate, not in tropical environments.
STAND MOUNTING
If you use a stand, be sure to observe the following precautions:
• Check the stand specication to be certain it is designed to support the weight of the speaker.
• Place the stand on a at, level, and stable surface.
• Remove the speaker from the stand before moving the stand or adjusting its height.
• Before moving the box, remove all connected cables.
• Do not use the speaker’s handles for suspended installation. Doing so can result in damage and injury.
OPERATION
1. Connect a SPEAKON lead from an active box or an amplifier to the INPUT connector on the rear panel.
2. If the INPUT connector is connected to an amplifier, you can connect another passive box to the OUTPUT
connector .
CARE
The product should be cleaned only with a polishing cloth or a soft dry cloth. Never clean with furniture wax,
benzene, insecticides or other volatile liquids since they may corrode the cabinet.
SPECIFICATIONS
XTK8 XTK10 XTK12 XTK15
System Passive 2-way full range
Woofer 8” 10” 12” 15”
Magnet 20oz 30oz 40oz 50oz
Voice coil 1" 1.5" 2" 2.5”
RMS power 100W 150W 250W 300W
Impedance 8 Ohm
Freq. Range 50Hz – 18kHz 45Hz – 18kHz 40Hz – 18kHz 45Hz – 18kHz
Sensitivity 87dB 90dB 93dB 95dB
Connectors 2 x Speakon
Dimensions (mm) 245 x 210 x 390 305 x 235 x 470 370 x 310 x 570 400 x 370 x 680
Weight 4.34kg 6.92kg 9.78kg 13.59kg
