User Guide

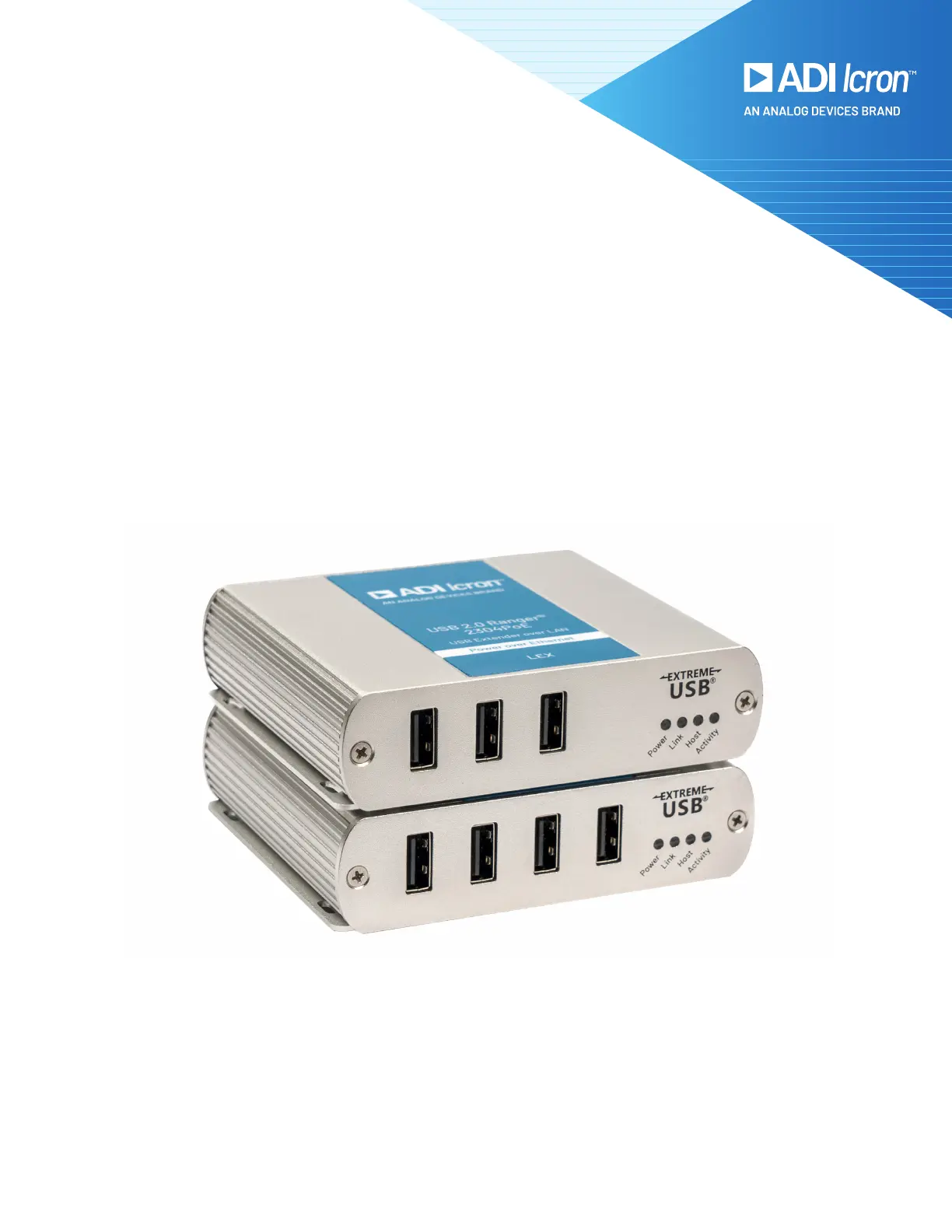

USB 2.0 Ranger 2304PoE®
4-Port USB 2.0 Power over Ethernet
LAN Extender System
Thank you for purchasing the Icron Ranger 2304PoE.
Please read this user guide thoroughly.
This document applies to the following part number:
Model 2304PoE System
Icron Ranger 2304PoE 00-00465
FCC Radio Frequency Interference Statement Warning
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device
may not cause harmful interference, and (2) this device must accept any interference received including interference
that may cause undesired operation.
CE Statement
We, Icron, an Analog Devices brand, declare under our sole responsibility that the USB 2.0 Ranger® 2304PoE, to which
this declaration relates, is in conformity with European Standards EN 55032, EN 55035, EN 61000, EN 62368-1 and
RoHS Directive 2011/65/EU + 2015/863/EU.
Industry Canada Statement
This Class A digital apparatus complies with Canadian ICES-003.
CAN ICES-3 (A) / NMB-3 (A)
WEEE Statement
The European Union has established regulations for the collection and recycling of all waste electrical and electronic
equipment (WEEE). Implementation of WEEE regulations may vary slightly by individual EU member states. Please
check with your local and state government guidelines for safe disposal and recycling or contact your national WEEE
recycling agency for more information.
Product Operation and Storage
Please read and follow all instructions provided with this product and operate for intended use only. Do not attempt
to open the product casing as this may cause damage and will void the warranty. Use only the power supply provided
with this product. When not in use, this product should be stored in a dry location between -20°C and 70°C.
Copyright © 2024 Analog Devices, Inc. All Rights Reserved.
Trademarks and registered trademarks are the property of their respective holders.
ADI/Icron assumes no responsibility for errors that may appear in this document.
Information contained herein is subject to change without notice.
Document #90-01949-A01
Contents
4 Introduction
Product Contents 4
Features 4
5 The LEX Unit
7 The REX Unit
8 Installation Guide
Installing the Ranger 2304PoE System on a Local Area Network 8
Requirements 8
Preparing Your Network 9
Preparing Your Site 9
Installing the LEX Unit 10
Installing the REX Unit 10
Installing the Ranger 2304PoE System as Direct Connect 11
Requirements 11
Preparing Your Site 11
Installing the LEX Unit 12
Connecting the LEX to the REX Unit 12
Installing the REX Unit 12
Checking the Installation 12
Connecting a USB Device 13
Pairing the LEX and REX Units 13
Unpairing an Extender 13
Compatibility 13
14 USB Extender Mounting Options
Option 1: USB Extender Mounting Kit 14
Option 2: USB Extender Direct Surface Mounting 15
Direct Surface Mounting Measurement Stencil 15
Option 3: USB Extender Cable-Tie Mounting 15
16 Troubleshooting
18  Specications
19 Warranty Information
Obtaining Warranty Service 19
20 Contacting Technical Support
