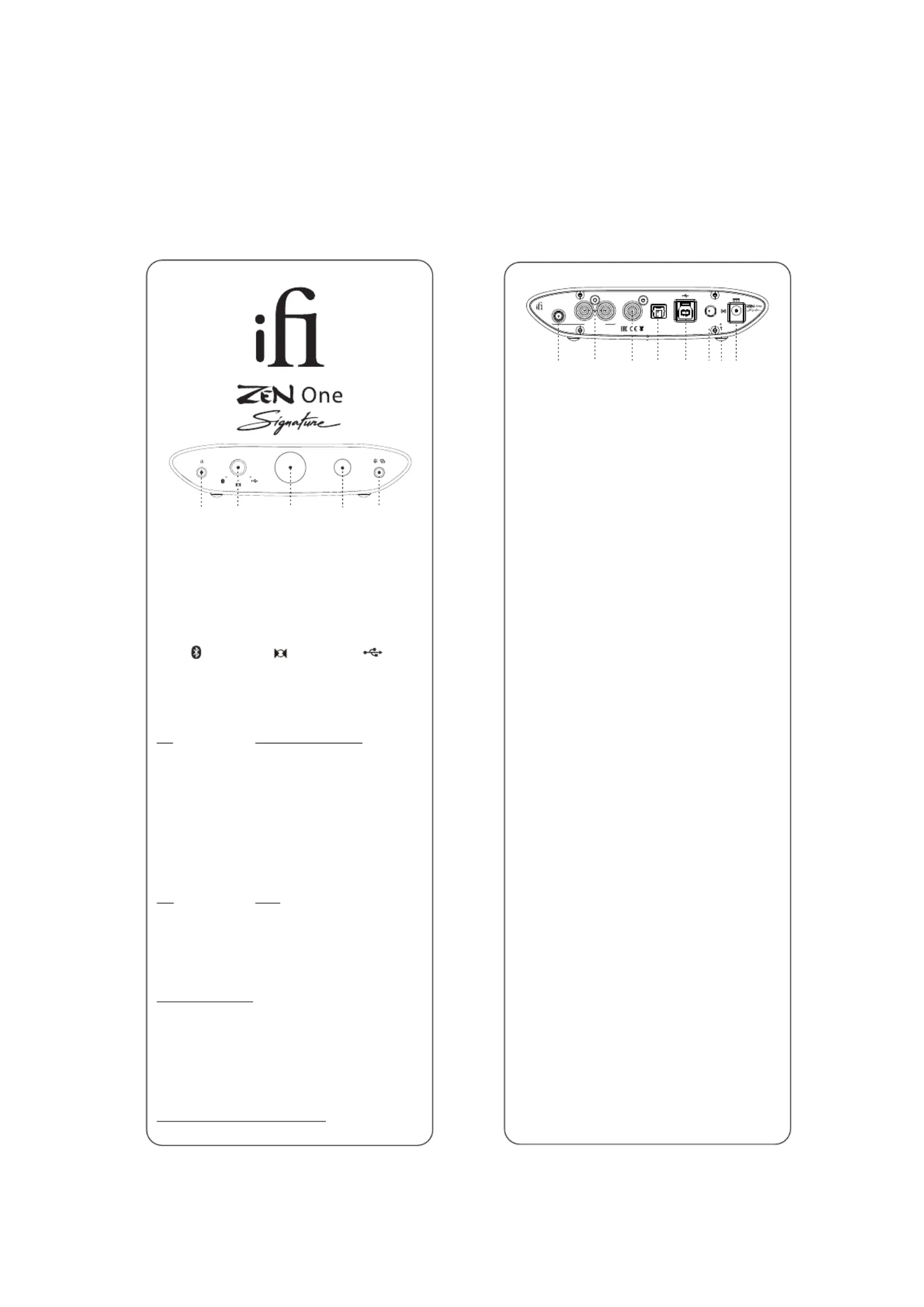

Sida 1/1
BAL ANCED
LR
EXTERNAL
POWER
DC 5V
Technolo gy lic ensed f rom AMR- Audio, UK As sem bled i n C hina
SPD IF
IN/ OUT
OPT ICAL
INP UT
Out puts
6. Balanced 4.4mm fixed analogue output
For connection of 4.4mm to XLR or similarly balanced interconnects.
Warning: Do not insert 4.4mm headphones to this source as the full volume is
likely to damage your headphones or your hearing.
7. Single-Ended RCA output
Connect analogue RCA interconnects to an amplifier.
8. Digital coaxial input/output
Input channel selector (item 2) determines the function of
digital coaxial connector, which is:
a) an output when item 2 is on Bluetooth or USB
b) an input when item 2 is on S/PDIF
9. Digital optical input
To connect an optical cable to a digital audio source.
10. USB-audio and power input
This is a USB input. It connects the Z EN One Signature to a
computer audio source.
Tip: For firmware and driver downloads, please visit: www.ifi-audio.com/download-hub/
Note: For use with a PC, it is necessary to install drivers.
11. Antenna
Please attach the enclosed antenna for highest signal quality.
12. Power supply LED
When connected to an external power supply, the light will turn
green.
13. DC 5V power
Please connect the ZEN One Signature to the included power
supply, the super-silent iPower2. The ZEN One Signature must
ONLY be powered by 5 volts.
6 7 8 9 11 13
Thank you for purchasing the ZEN One Signature. The ZE N One
Signature is a wireless Bluetooth, U SB, S/PDI F DAC with digital
and analogue outputs.
1. Power switch
Short press to turn on. Long press to turn off.
2. Input selector
This button cycles through 3 inputs, see item 5 for LED colours.
3. Display
The colour of the ‘iFi’ logo in the centre of the front display
represents the file format received:
LED Format (Wired/Wireless)
White PCM/HWA(LHDC)
Cyan DSD/LDAC
Green MQA/aptX Adaptive
Blue MQA Studio/aptX
Magenta Original Sample Rate*/aptX HD
Yellow AAC
OFF SBC
*MQB
4. Audio format and INPUT LED (kHz)
The LED colour scheme indicates the sampling frequency that
the ZEN One Signature receives from the music source.
LED Mode
Yellow PCM 44.1/48kHz
White PCM 88.2/96/176/192/352/384kHz
Cyan DSD 64/128
Red DSD 256
Flashing LED See item 5 below
5. Bluetooth pairing and display ON/OFF
1) Pairing (long press)
After power-on, the ZEN One Signature searches for a previously paired device
and flashes blue. If a stored device is not found, it automatically enters pairing
mode and flashes between blue and red. The LED is switches to blue flashing,
and the device cannot be connected automatically after a timeout of 5 minutes.
To enter pairing mode, press the button for 3 seconds until the light flashes
between blue and red. To pair it with your phone or another device, look for
’iFi Hi-Res audio‘ on the list of available Bluetooth devices.
The ZEN One Signature is able to store up to 8 paired Bluetooth devices.
When the 9th device is paired, the oldest device in memory will be deleted.
2) Display screen ON/OFF (short press)
Turns the display on or off. Ver1.0
ifi-audio.com
kHz
/
1 2 43 5
10 12
SPECIFICATIONS:
Power: DC 5V (centre pin +ve)
Digital inputs: USB3.0 Type B (USB2.0 compatible)
S/PDIF (coaxial, TOSLINK optical)
TM
Bluetooth 5.1 (aptX, aptX HD, aptX Adaptive,
aptX LL, LDAC, LHDC/HWA, AAC and SBC codec)
Formats:
PCM 44.1/48/88.2/96/176.4/192kHz
DSD 2.8/3.1/5.6/6.1/11.3/12.3MHz
DXD 352.8/384kHz
MQA Decoder
Bluetooth 96kHz
Chipset: Bit-Perfect DSD & DXD DAC by Burr Brown
Qualcomm QCC 5100 Series
Analogue outputs: Coaxial, Audio RCA L/R
4.4mm Balanced line out
Frequency Resp onse: 5Hz - 80kHz ±3dB
Outputs: 4V / 2V max. (BAL/UnBAL)
Output Impedance: ≤72 36 (BAL/UnBAL)Ω/ Ω
SNR: -105dB(A) @ 0dBFS (BAL/UnB AL)
THD + N: <0.002% @ 0dB FS(BAL/UnBAL)
Power consumption: No Signal ~0.7W / Max Signal ~1.0W
Dimensions: 158 x 100 x 35 mm (6.2" x 3.9" x 1.4")
Net weight: 485g (1.1 lbs)
Warranty period: 12 months
Specications are subject to change without notice.
Bluetooth
(Blue/Red)
S/PDIF
(Green)
USB
(Green)
