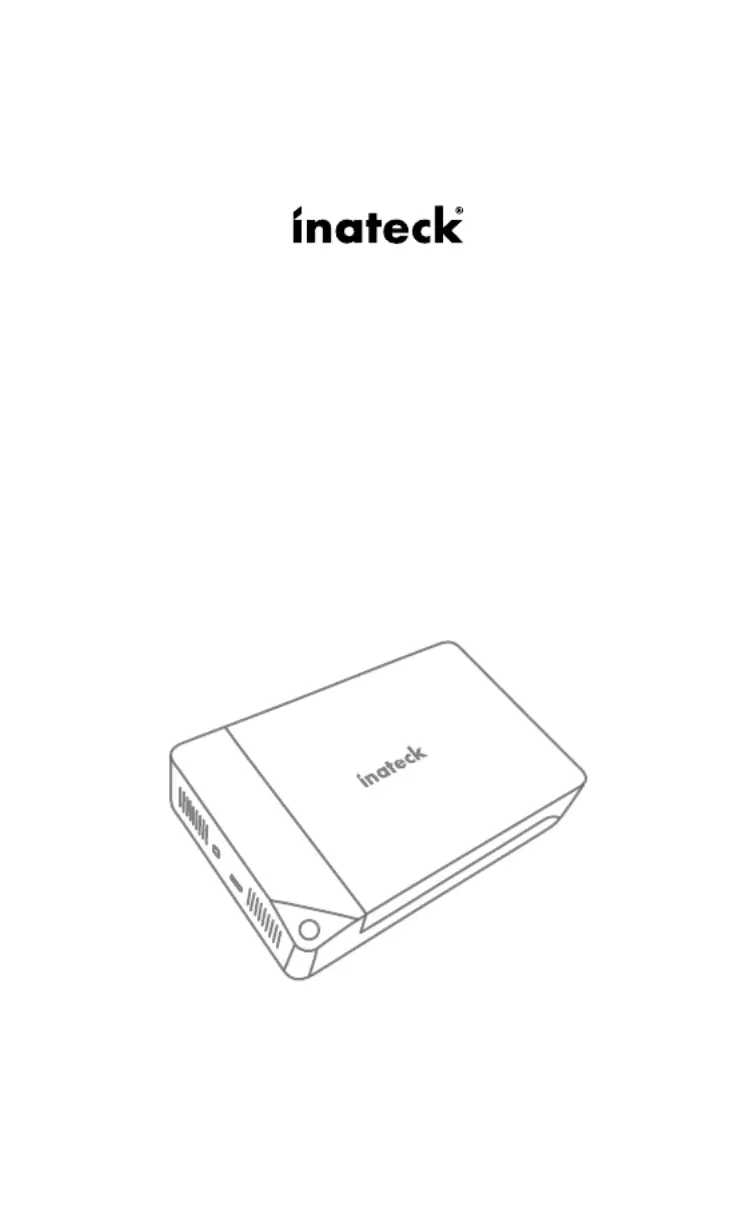

Instruction Manual
FE3002 2.5/3.5”Slide Cover HDD Enclosure
English · Deutsch · 日本語 · Français · Italiano · Español
1
Product schematic
English
No. Name
AUSB3.0
BPower Switch with LED indicator
CDC-IN Jack
DSATA Interface
A
B
C
D
How to USE
1. Insert HDD into slot of FE3002 correctly.
2. Connect FE3002 with computer by USB cable
3. Connect DC power adapter with FE3002
4. Switch on the enclosure and corresponding drive will appear in le manager.
Note
a. Make sure data access and transfer are stopped when remove the hard drive enclosure
from computer, otherwise data loss might happen.
b. Hard drive will automatically start sleep mode if idle state lasts 30 minutes, when LED
comes into breathing light state. Data access to the drive will restore operational mode.
2
Product specications
Product name 2.5/3.5” Slide Cover HDD Enclosure
Product type Inateck FE3002
material ABS plastic
Weight 213g
Color black
Supported drives interface SATA III，II，I
Supported of drives 2.5”SSD/HDD or 3.5”HDD
Hot plug，plug&play Supported
UASP Supported
Licenses CE，FCC
Measurements 180x115x35mm
Supported OS Windows XP/7/8/10；Mac9.0 or above；Linux
Packing list
Inateck FE3002 × 1
USB 3.0 data cable × 1
Power adaptor × 1
Instuction manual × 1
F&Q
a. Why cannot the hard drive with capacity over 2TB be identied?
When use a new hard drive, you must partition it. MBR(Master Boot Record) and
GPT(GUID Partition Table) are two di󱐯erent ways saving partition information. The
maximum hard drive capacity supported by MBR is 2TB. It cannot process the disk with
capacity larger than 2TB. GPT does not have such limit. Therefore, you will need replace
MBR with GPT on the computer.
b. Hard drive does not show up in “File Manager”.
Disconnect the enclosure from your computer. Try another USB port on the computer.
If the problem still exists, the hard drive might need to reformat. You can use the
partition and formatting program that comes with system to do it（Right click
“Computer”>Management>Disk Management）
