Sida 1/68

OVEN

HI 150.B

HI 150.B IX

HI 20.B

HI 20.A IX

HIN 150

HIN 150 IX

HI 20.A

Contents

Installation, 2-4

Positioning

Electrical connections

Data plate

Description of the appliance, 5

Overall view

Control panel

Start-up and use, 6

Starting the oven

Using the cooking timer

Cooking modes, 7-8

Cooking modes

Practical cooking advice

Cooking advice table

Hob, 9

Type of hob

Switching on the glass ceramic hob

Practical advice on using the glass ceramic hob

Precautions and tips, 10

General safety

Disposal

Respecting and conserving the environment

Maintenance and care, 11

Switching the appliance off

Cleaning the appliance

Cleaning the oven door

Replacing the light bulb

Assistance

Operating Instructions

Nederlands, 23English,1

Deutsch, 34 ÅëëçíéêÜ, 45

Français, 12

DE GR

Espanol, 56

 Before placing your new appliance into operation

please read these operating instructions carefully.

They contain important information for safe use, for

installation and for care of the appliance.

 Please keep these operating instructions for future

reference. Pass them on to possible new owners of

the appliance.

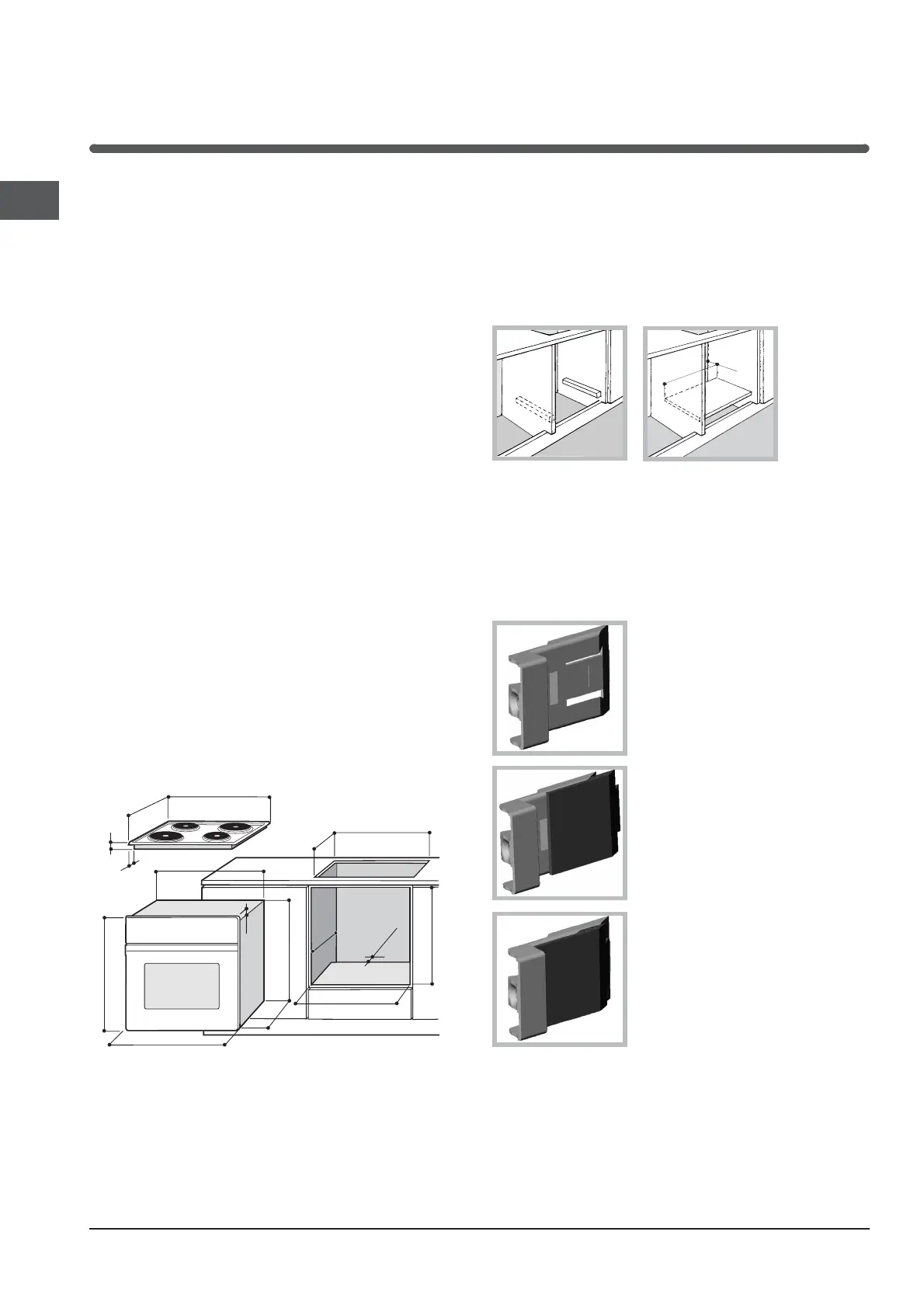

Positioning

 Keep packaging material out of the reach of

children.It can become a choking or suffocation

hazard (see Precautions and tips).

 The appliance must be installed by a qualified

person in compliance with the instructions provided.

Incorrect installation may cause harm to persons,

animals or may damage property.

Fitting the appliance

Use the appropriate cabinet to ensure that the

appliance functions properly.

 The panels adjacent to the oven must be made of

heat-resistant material.

 Cabinets with a veneer exterior must be assembled

with glues which can withstand temperatures of up

to 100°C.

 To install the oven under the counter (see

diagram) and in a kitchen unit, the cabinet must

have the following dimensions:

 The appliance must not come into contact with

electrical parts once it has been installed.

The consumption indications on the data plate have

been calculated for this type of installation.

Ventilation

To ensure good ventilation, the back panel of the

cabinet must be removed. It is advisable to install the

oven so that it rests on two strips of wood, or on a

completely flat surface with an opening of at least 45 x

560 mm (see diagrams).

Centring and fastening

Position the 4 tabs on the side of the oven according

to the 4 holes of the outer frame. Adjust the tabs

according to the thickness of the cabinet side panel,

as shown below:

thickness of 20 mm: take off

the removable part of the tab

(see diagram)

thickness of 18 mm: use the

first groove, which has already

been set in the factory (see

diagram)

thickness of 16 mm: use the

second groove (see diagram)

Secure the appliance to the cabinet by opening the

oven door and putting 4 screws into the 4 holes of the

outer frame.

 All parts which ensure the safe operation of the

appliance must not be removable without the aid of a

tool.

595

558 min

min

575-585 min

560

+4 -0

480

+4 -0

547 min

555

580

500

595

572

543

545

560 mm.

45 mm.

Installation

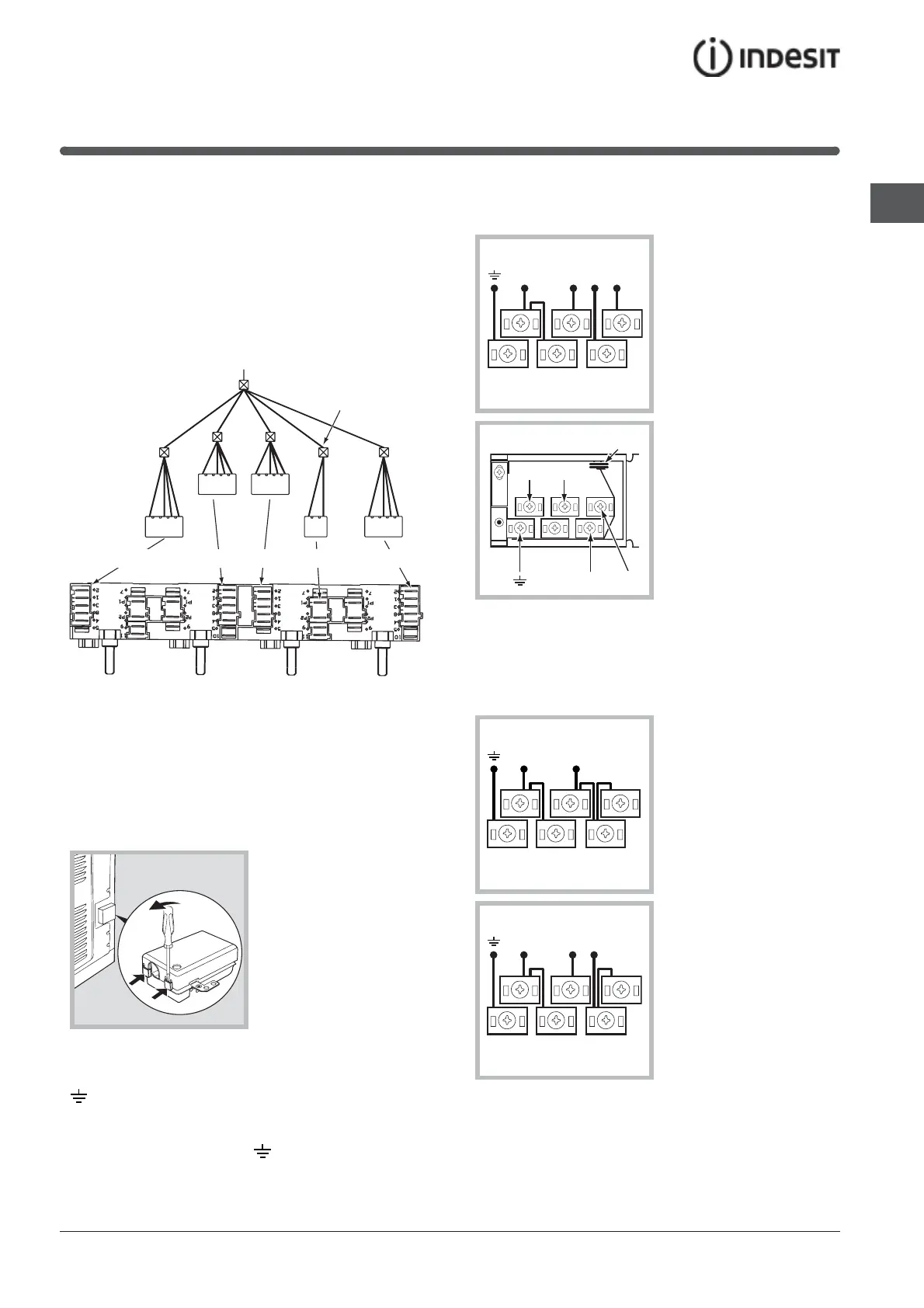

Electrical connections

The cooker must be connected to the mains electricity

supply. It is designed to operate with alternating

current at the voltage and frequency indicated on the

data plate (see the following page).

The hob is connected to the cooker using a special

connector.

BUILT-IN HOB

BUILT-IN COOKER

WHITE RED

YELLOW

BLUE GREEN

Only on

certain models

Replace the metal protection after performing all the

necessary hob connections. If the hob is removed

from its position, the red cap which was originally

protecting the red connector must be replaced.

Fitting the power supply cable

1. Open the terminal

board by inserting a

screwdriver into the side

tabs of the cover. Use

the screwdriver as a

lever by pushing it down

to open the cover (see

diagram).

2. Install the power supply cable by loosening the

cable clamp screw and the wire contact screws L-N-

. Connect the wires to the corresponding terminals:

the Blue wire to the terminal marked (N), the Brown

wire to the terminal marked (L) and the Yellow Green

wire to the terminal marked .

The terminal board is designed for a 400 V three-

phase connection (see diagrams below).

400V 3N~H05RR-F

5x2.5 CEI-UNEL 35363

If the electrical system has other characteristics (see

diagrams below), carry out the electrical connection

using the connection supports provided in the box P.

230V ~H05RR-F 3x4

CEI-UNEL 35363

400V 2N~H05RR-F 4x4

CEI-UNEL 35363

3. Secure the power supply cable by fastening the

clamp screw.

4. Close the cover of the terminal board.

NL1L3L2

NL1L2
