Sida 1/12

COOKER AND OVEN

Operating Instructions

GB Contents

Installation, 2

Positioning and levelling

Electrical connection

Table of characteristics

Description of the appliance, 4

Overall view

Control panel

Start-up and use, 5

Using the oven

Cooking modes

Practical cooking advice

Oven cooking advice table

Using the electric hob, 7

Switching the cooking zones on and off

Cooking zones

Precautions and tips, 9

General safety

Disposal

Respecting and conserving the environment

Maintenance and care, 10

Switching the appliance off

Cleaning the appliance

Replacing the oven light bulb

Cleaning the hob

Assistance

English, 1 WARNING,2

I5ESH/UK

I5ESH1/UK

! Before operating your new appliance please read

this instruction booklet carefully. It contains

important information concerning the safe installation

and operation of the appliance.

! Please keep these operating instructions for future

reference. Make sure that the instructions are kept

with the appliance if it is sold, given away or moved.

! The appliance must be installed by a qualified

professional according to the instructions provided.

! Any necessary adjustment or maintenance must be

performed after the cooker has been disconnected

from the electricity supply.

Positioning and levelling

! It is possible to install the appliance alongside

cupboards whose height does not exceed that of the

hob surface.

! Make sure that the wall in contact with the beck of

the appliance is made from a non-flammable, heat-

resistant material (T 90°C).

To install the appliance correctly:

• Place it in the kitchen, dining room or the bed-sit

(not in the bathroom).

• If the top of the hob is higher than the cupboards,

the appliance must be installed at least 200 mm

away from them.

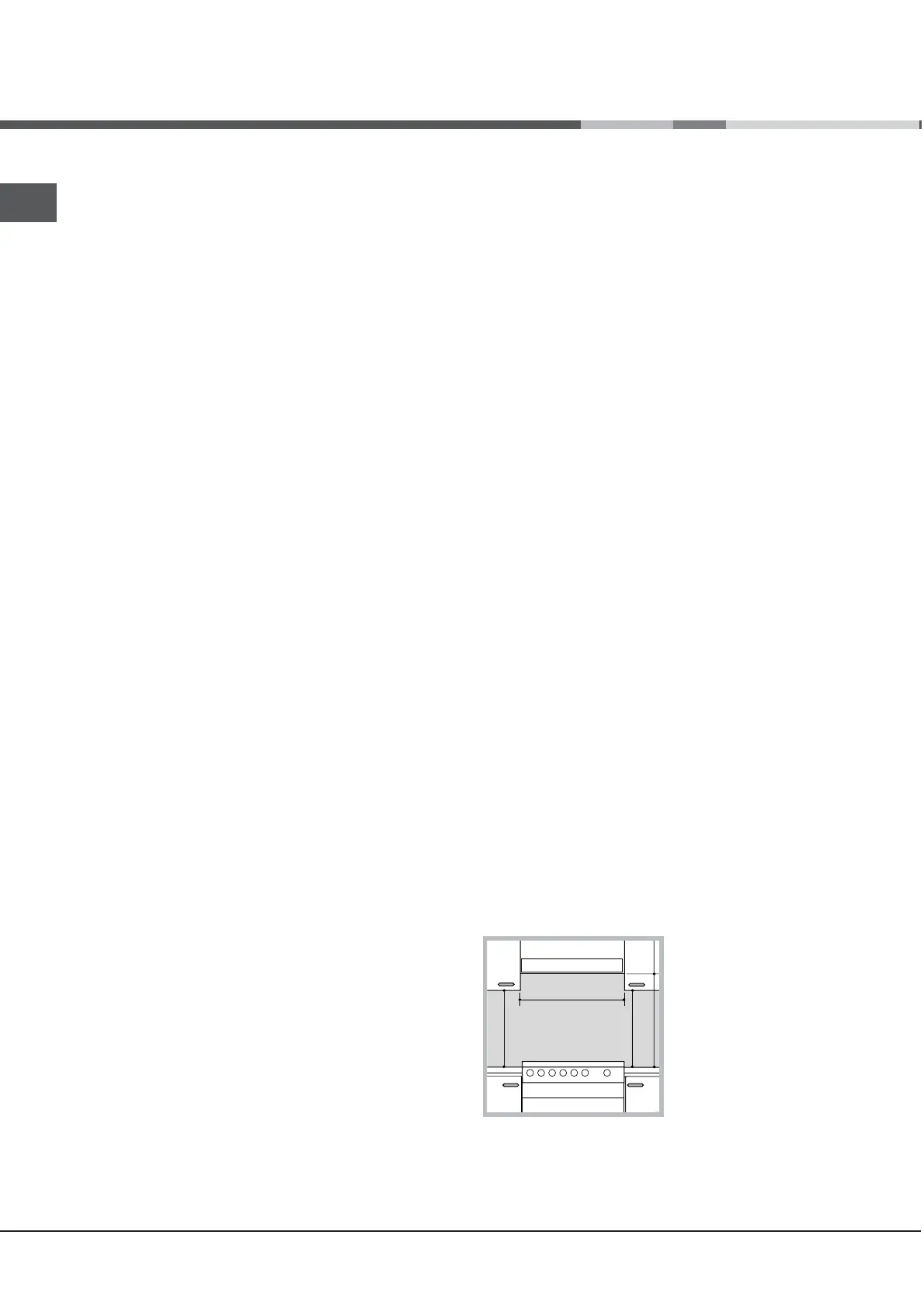

• If the cooker is

installed underneath a

wall cabinet, there must

be a minimum distance

of 420 mm between this

cabinet and the top of

the hob.

This distance should be

increased to 700 mm if

the wall cabinets are

flammable (

see figure

• Do not position blinds behind the cooker or less

than 200 mm away from its sides.

• Any hoods must be installed according to the

instructions listed in the relevant operating manual.

Installation

HOOD

420

Min.

min.

650

mm. with hood

min.

700

mm. without hood

mm.

600

Min. mm.

420

Min. mm.

WARNING: The appliance and its

accessible parts become hot

during use.

Care should be taken to avoid

touching heating elements.

Children less than 8 years of age

shall be kept away unless

continuously supervised.

This appliance can be used by

children aged from 8 years and

above and persons with reduced

physical, sensory or mental

capabilities or lack of experience

and knowledge if they have been

given supervision or instruction

concerning use of the appliance in

a safe way and understand the

hazards involved. Children shall not

play with the appliance. Cleaning

and user maintenance shall not be

made by children without

supervision.

WARNING: Unattended cooking on

a hob with fat or oil can be

dangerous and may result in fire.

NEVER try to extinguish a fire with

water, but switch off the appliance

and then cover flame e.g. with a lid

or a fire blanket.

Do not use harsh abrasive cleaners

or sharp metal scrapers to clean the

oven door glass since they can

scratch the surface, which may

result in shattering of the glass.

The internal surfaces of the

compartment (where present) may

become hot.

Never use steam cleaners or

pressure cleaners on the appliance.

Remove any liquid from the lid

before opening it.

Do not close the glass cover (if

present) when the gas burners or

electric hotplates are still hot.

WARNING: Ensure that the

appliance is switched off before

replacing the lamp to avoid the

possibility of electric shock.

CAUTION: the use of inappropriate

hob guards can cause accidents.

ARNING

! When you place the rack inside,

make sure that the stop is directed

upwards and in the back of the cavity.

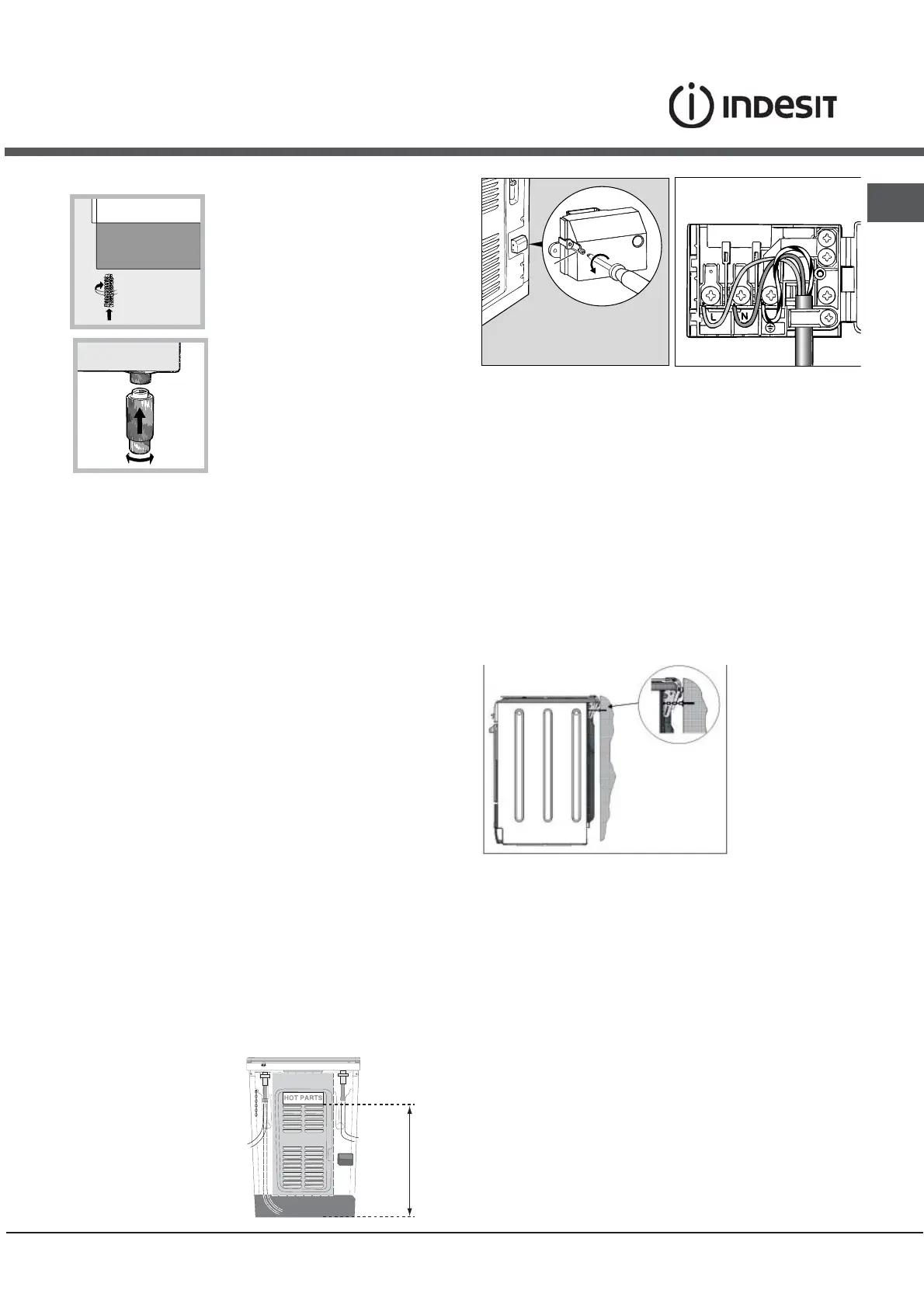

Fig. A Fig. B

Connecting the supply cable to the mains

WARNINGS: THIS APPLIANCE MUST BE EARTHED.

Important: The cooker must be connected to the mains by a

switched (double pole) cooker outlet correctly fused with a

capacity appropriate to that shown on the cooker Rating Plate.

All electrical wiring from the consumer unit to the cooker, via the

switched double pole cooker outlet, must be of an acceptable

type and current rating as above.

Note: the supply cable must be positioned so that it never

reaches at any point a temperature 50°C higher than the room

temperature. The cable must be routed away from the rear vents.

700 mm

HOT PARTS

Electrical connection

Electric cookers come without a power supply cable. The

cooker is designed to operate on an electricity supply which

conforms to the electrical data shown on the Rating Plate.

The cooker can be connected to the mains only after removing

the back panel of the cooker itself with a screwdriver.

N.B.: the following installation procedure must be carried out

by a qualified electrician. The electrical installation must

comply with the IEE Regulations, Building & local By-Lays.

For the installation of the feeding cable carry out the following

operations:

zUnscrew screw “V” (see fig. A)

zPull and open the junction blok lid

Important: the wires in the mains lead are coloured in

accordance with the following code:

Green & Yellow Earth

Blue Neutral

Brown Live

As the colours of the wires in the mains lead may not

correspond with the coloured markings identifying the terminals

in your plug, proceed as follows:

Green & Yellow wire to terminal marked “E” or

666

or coloured

Green or Green & Yellow.

Brown wire to terminal marked “L” or coloured Red.

Blue wire to terminal marked “N” or coloured Black (see fig.

B).

zfix the feeding cable in the special cable stop and close

the cover.

N.B.: the power supply cable must have these minimum

requirements:

Type: H05RR-F

H05VV-F

Section: 3x4 mm2

Levelling

If it is necessary to level the

appliance, screw the

adjustable feet into the

places provided on each

corner of the base of the

cooker (

see figure

The legs* fit into the slots on

the underside of the base of

the cooker.

Safety Chain

! In order

to prevent

accidental

tipping of the

appliance, for

example by

a child clim-

bing onto the

oven door, the

supplied safety

chain MUST be

installed!

The cooker is fitted with a safety chain to be fixed by

means of a screw (not supplied with the cooker) to

the wall behind the appliance, at the same height as

the chain is attached to the appliance.

Choose the screw and the screw anchor according

to the type of material of the wall behind the applian-

ce. If the head of the screw has a diameter smaller

than 9mm, a washer should be used. Concrete wall

requires the screw of at least 8mm of diameter, and

60mm of length.

Ensure that the chain is fixed to the rear wall of the

cooker and to the wall, as shown in figure, so that

after installation it is tensioned and parallel to the

ground level.
