Contents
Installation, 2-6
Positioning and levelling
Electrical connections
Gas connection
Adapting to different types of gas
Technical data
Table of burner and nozzle specifications
Description of the appliance, 7
Overall view
Control panel
Start-up and use, 8-10
Using the hob
Using the oven
Analogue timer
Oven cooking advice table
Precautions and tips, 11
General safety
Disposal
Respecting and conserving the environment
Maintenance and care, 12
Switching the appliance off
Cleaning the appliance
Gas tap maintenance
Replacing the oven light bulb
Assistance
Operating Instructions
C K ROO E
GB
E g n lish, 1
GB
2
GB
Before operating your new appliance please read
this instruction booklet carefully. It contains
important information concerning the safe installation
and operation of the appliance.
Please keep these operating instructions for future
reference. Make sure that the instructions are kept
with the appliance if it is sold, given away or moved.
The appliance must be installed by a qualified
professional according to the instructions provided.
Any necessary adjustment or maintenance must be
performed after the cooker has been disconnected
from the electricity supply.
Positioning
! This unit may be installed and used only in
permanently ventilated rooms according to the
British Standards Codes Of Practice: B.S. 6172/B.S.
5440, Par. 2 and B.S. 6891 Current Editions. The
following requirements must be observed:
a )The cooker should not be installed in a bed sitting
room with a volume of less than 20m3. If it is
installed in a room of volume less than 5m3 an air
vent of effective area of 110cm2 is required, if it is
installed in a room of volume between 5m3
and
10m3 a supplementary airvent area of 50cm2 is
required, if the volume exceeds 11m3 no airvent is
required. However, if the room has a door or a
window which opens directly to the outside no air
vent is required even when the volume is between
5m3 and 11m3.
b )During prolonged use of the appliance you may
consider it necessary to open a window to the
outside to improve ventilation.
c )If there are other fuel burning appliances in the
same room, B.S.5440 Part 2 Current Edition,
should, be consulted to determine the requisite air
vent requirements.
L ve elling

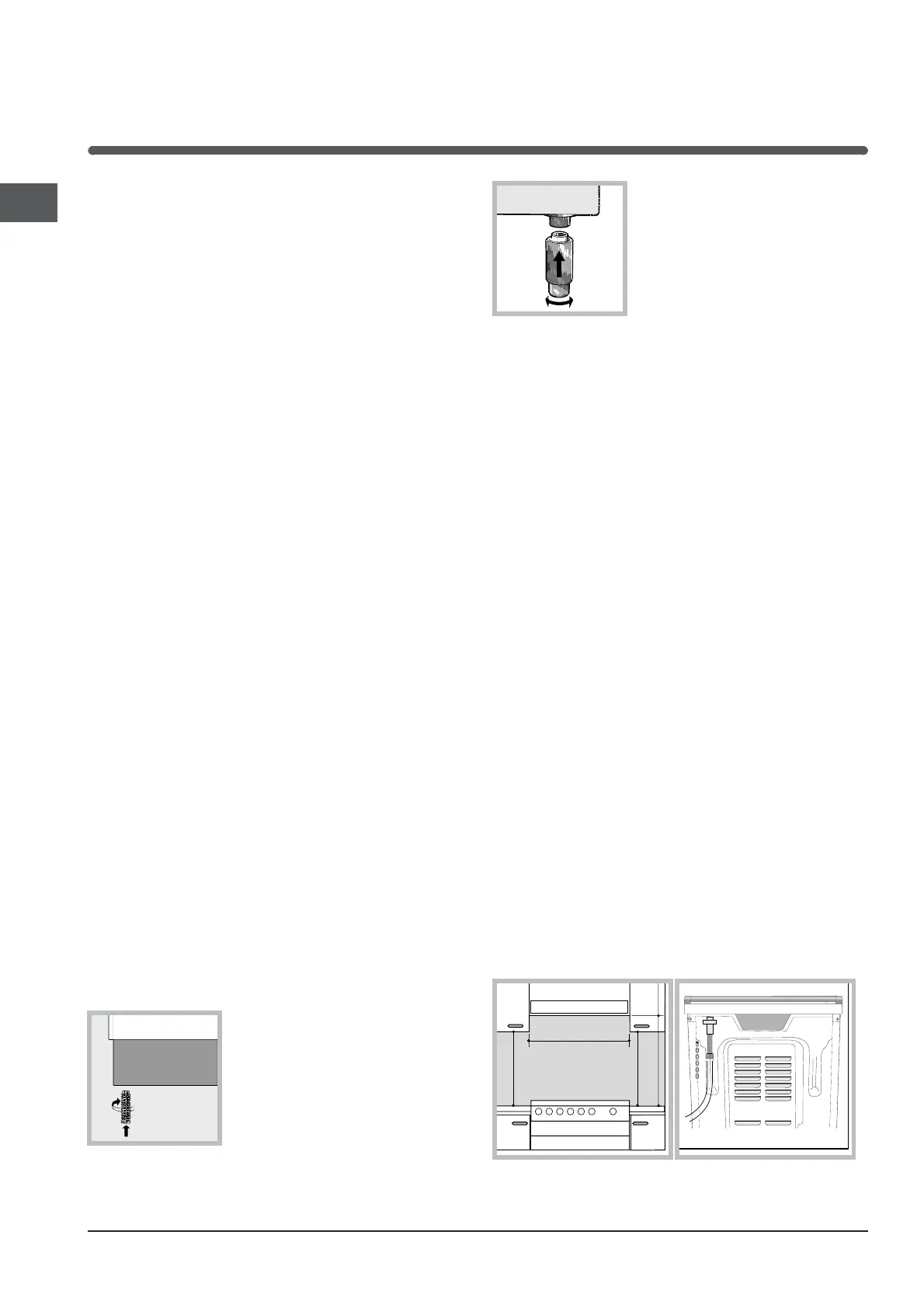

If it is necessary to level the
appliance, screw the
adjustable feet into the places
provided on each corner of the
base of the cooker (see
figure).
The legs* fit into the slots on
the underside of the base of
the cooker.
Installation the of coo erk
The appliance can be installed next to furniture units
which are no taller than the top of the cooker hob.
The wall in direct contact with the back panel of the
cooker must be made of non-flammable material.
During operation the back panel of the cooker could
reach a temperature of 50°C above room
temperature. For proper installation of the cooker,
the following precautions must be taken:
a )The appliance can be placed in a kitchen, dining
room or bedsit, but not in a bathroom.
b )All furniture around the appliance must be placed
at least 200 mm from the top of the cooker,
should the surface of the appliance be higher than
the worktop of this furniture. Curtains should not
be placed behind the cooker or less than 200 mm
away from the sides of the appliance.
c )Any hoods must be installed according to the
requirements in the installation manual for the
hoods themselves.
d )If the cooker is installed beneath a wall cabinet,
the latter must be situated at a minimum of 420
mm above the hob. The minimum distance
between the worktop and kitchen units made of
combustible material is 700 mm (Fig. A).
e )The wall in direct contact with the back panel of
the cooker must be made of non-flammable
materials.
f ) The cooker is fitted with a safety chain that must
be attached to a hook, secured to the wall behind
the appliance.
Some models can have their gas connection
inverted. It is important to make sure the safety
chain is always situated on the side which
corresponds to the hose holder (Fig. B).
Fig. A Fig. B
Installation
HOOD
420
Min.
min.
650
mm. with hood
min.
700
mm. without hood
mm.
600
Min. mm.
420
Min. mm.
GB
3
Gas connection
T he cooker should be connected to the gas-supply
by a corgi registered installer. During installation of
this product it is essential to fit an approved gas tap
to isolate the supply from the appliance for the
convenience of any subsequent removal or
servicing. Connection of the appliance to the gas
mains or liquid gas must be carried out according to
the prescribed regulation in force, and only after it is
ascertained that it is adaptable to the type of gas to
be used. If not, follow the instructions indicated in
the paragraph headed Adaptation to different gas

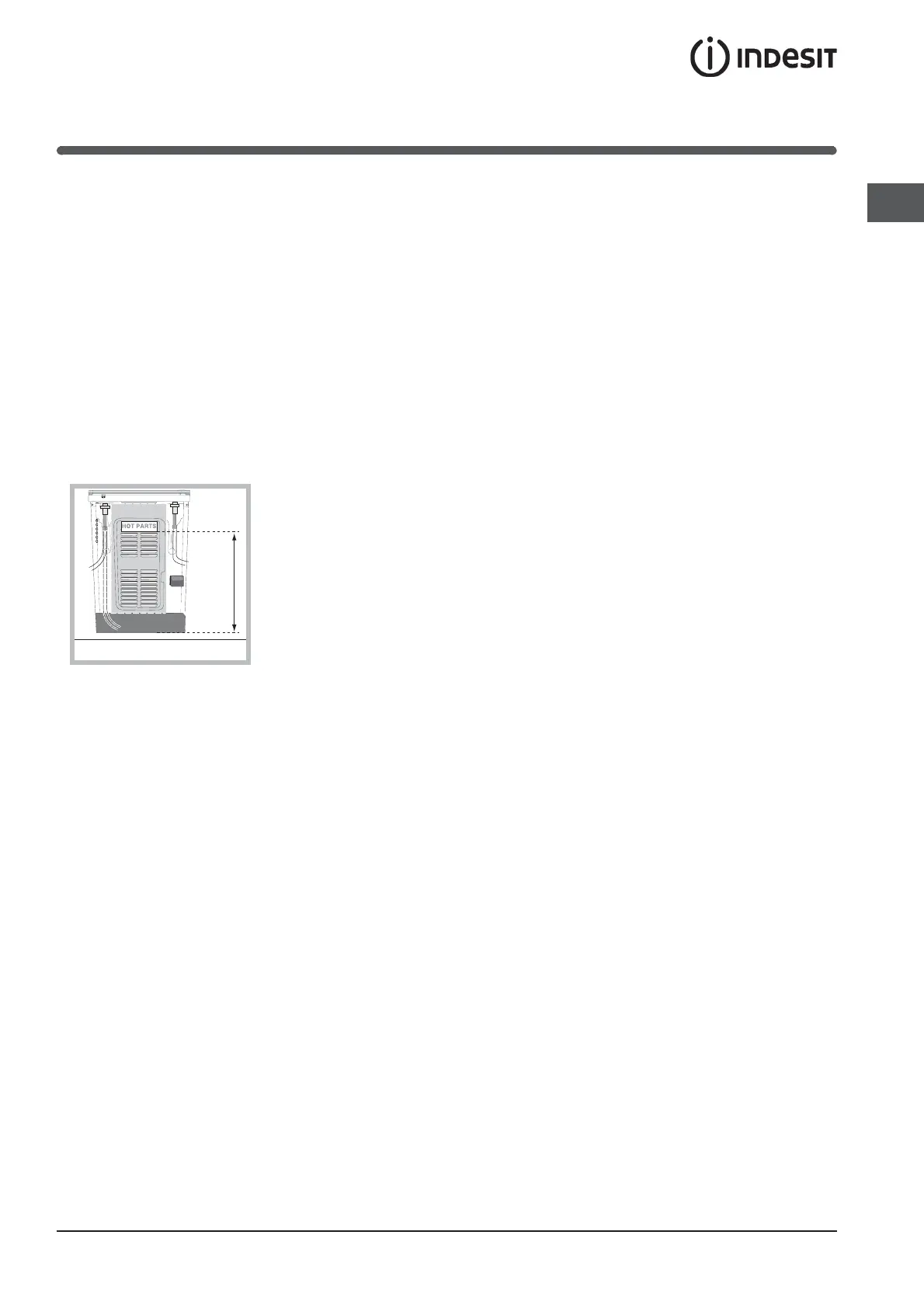

types. On some models the gas supply can be
connected on the left or on the right, as necessary;
to change the
connection, reverse the
position of the hose
holder with that of the
cap and replace the
gasket (supplied with
the appliance). In the
case of connection to
liquid gas, by tank, use
pressure regulators that
conform to the
regulation in force. The gas supply must be
connected to the left of the appliance. Be sure that
the hose does not pass through the rear of the
cooker touching hot parts.
Make sure the supply pressure conforms with the
values shown in the table entitled Caracteristics of
the burners and nozzles. When the cooker is
installed between cabinets (recessed), the
gas connection must be effected by an
approved flexible hose with bayonet fitting
(BS 669 Current Edition). The gas inlet for
the cookers is a threaded G 1/2 gas female
f i t ti n g .
C g h gonnectin t e as supply
To make the connection, a flexible hose should be
used corresponding to the current gas regulations
which are:
the hose must never be at any point in its lenght
in contact with the hot parts of the cooker;
the hose must never be longer than 1,5 metre;
the hose must not be subject to any tension or
torsional stress and it must not have any
excessively narrow curves or bottlenecks;
the hose must be easy to inspect along its entire
length to check its condition;
* Only available in certain models
the hose must always be in good condition, never
attempt to repair.
The installation must comply with gas safety
(installation and use) regulations 1984. In all cases
for the above, by low, a qualified, corgi approved
engineer must be called for installation.
Electrial connection
Power supply voltage and frequency: 230-240V a.c.
50/60 Hz.
! The supply cable must be positioned so that it
never reaches at any point a temperature 50°C
higher than the room temperature. The cable must
be routed away from the rear vents. Should you
require it, you may use a longer cable, however, you
must ensure that the cable supplied with the
appliance is replaced by one of the same
specifications in accordance with current standards
and legislation.
Your appliance is supplied with a 13 amp fused plug
that can be plugged into a 13 amp socket for
immediate use. Before using the appliance please
read the instructions below.
WAR I G - N N THIS APPL UIANCEM ST BE
E EARTH D.
THE FO O I G R S S O D BLL W N OPEATION H UL E
C D O B I I D CARRIE UT Y A QUAL F E LE E TRICIAN.
Replacing h t e fuse:
When replacing a faulty fuse, a 13 amp ASTA
approved fuse to BS 1362 should always be used,
and the fuse cover re-fitted. If the fuse cover is lost,
the plug must not be used until a replacement is
obtained.
R replacem ent fuse vco e s:
If a replacement fuse cover is fitted, it must be of
the correct colour as indicated by the coloured
marking or the colour that is embossed in words on
the base of the plug. Replacements can be obtained
directly from your nearest Service Depot.
R g he o m vin t e plug:
If your appliance has a non-rewireable moulded plug
and you should wish to remove it to add a cable
extension or to re-route the mains cable through
partitions, units etc., please ensure that either:
the plug is replaced by a fused 13 amp re-
wireable plug bearing the BSI mark of approval.
or:
700 mm
