Installation

! Before operating your new appliance please read

this instruction booklet carefully. It contains important

information concerning the safe operation, installation

and maintenance of the appliance.

! Please keep these operating instructions for future

reference. Pass them on to any new owners of the

appliance.

Positioning

! Keep all packaging material out of the reach of

children. It may present a choking or suffocation

hazard ( ).see Precautions and tips

! The appliance must be installed by a qualified

professional in accordance with the instructions

provided. Incorrect installation may cause harm to

people and animals or may damage property.

Built-in appliance

Use a suitable cabinet to ensure that the appliance

functions properly.

• The supporting surface must be heat-resistant up to

a temperature of approximately 100°C.

• If the appliance is to be installed above an oven,

the oven must be equipped with a forced ventilation

cooling system.

• Avoid installing the hob above a dishwasher: if this

cannot be avoided, place a waterproof separation

device between the two appliances.

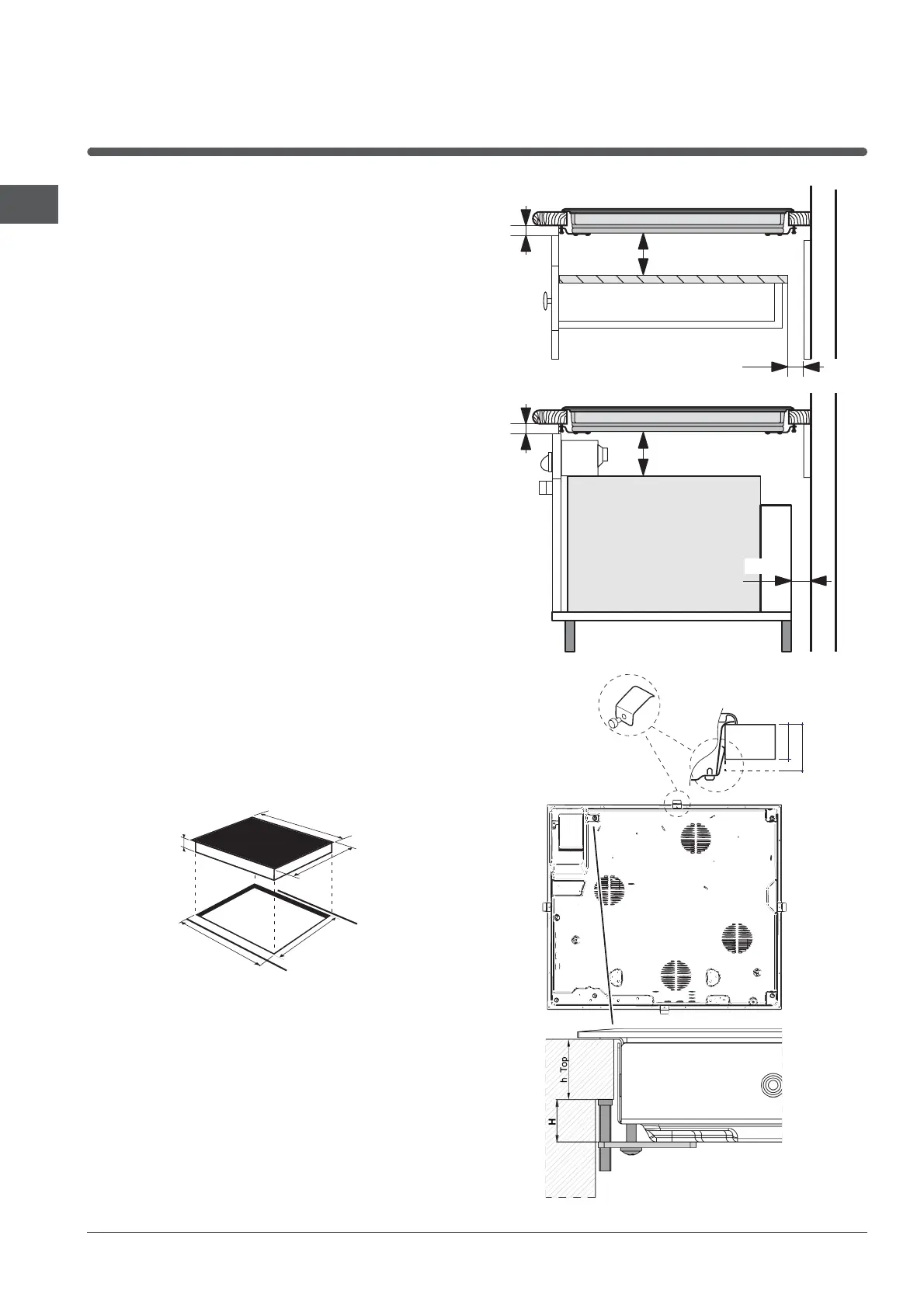

• Depending on the hob you want to install, the

cabinet must have the following dimensions (see

 gure):

560 +/- 1

490 +/- 1

590

520

560 +/- 1

490 +/- 1

574

504

Ventilation

To allow adequate ventilation and to avoid overheating of

the surrounding surfaces the hob should be positioned as

follows:

• At a minimum distance of 40 mm from the back

panel.

• So that a minimum distance of 20 mm is maintained

between the installation cavity and the cabinet

underneath.

• Kitchen cabinets adjacent to the appliance and taller

than the top of the hob must be at least 600 mm

from the edge of the hob.

FRONT SIDE

OF HOB

SUPPORTI NG

SURFACE

UNDERSIDE

OF HOB

5 mm

min. 20 mm

min. 40 mm

COMPARTMENT

5 mm

min. 40 mm

FAN-ASSISTED

OVEN

Fixing

The appliance must be installed on a perfectly level

supporting surface.

Any deformities caused by improper fixing could affect

the features and operation of the hob.

The thickness of the supporting surface should be taken

into account when choosing the length of the screws for

the fixing hooks:

• 30 mm thick: 17.5 mm screws

• 40 mm thick: 7.5 mm screws

Fix the hob as follows:

1. Use short flat-bottomed screws to fix the 4 alignment

springs in the holes provided at the central point of

each side of the hob.

2. Place the hob in the cavity, make sure it is in a

central position and push down on the whole perimeter

until the hob is stuck to the supporting surface.

3. For hobs with raised sides: After inserting the hob

into its cavity, insert the 4 fixing hooks (each has its

own pin) into the lower edges of the hob, using the

long pointed screws to fix them in place, until the glass

is stuck to the supporting surface.

! The screws for the alignment springs must remain

accessible.

! In order to adhere to safety standards, the appliance

must not come into contact with electrical parts once it

has been installed.

! All parts which ensure the safe operation of the

appliance must not be removable without the aid of a

tool.

Electrical connection

! The electrical connection for the hob and for any built-

in oven must be carried out separately, both for safety

purposes and to make extracting the oven easier.

Terminal board

On the lower part of the appliance there is a

connection box for the different types of electricity

supply (the picture is only

an indication and is not an

exact representation of the

purchased model).

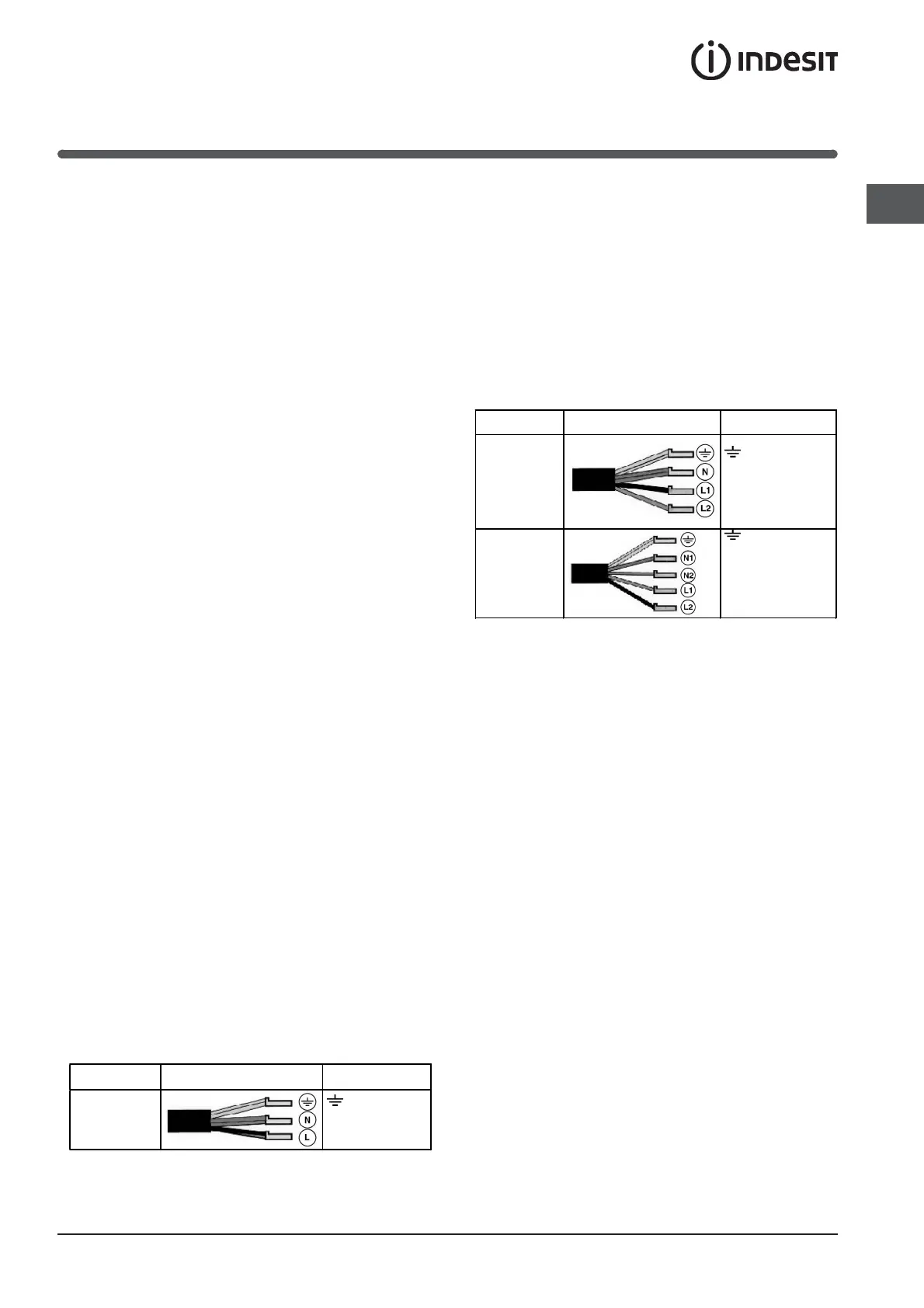

Single-phase connection

The hob is equipped with a pre-connected electricity

supply cable, which is designed for single-phase

connection. Connect the wires in accordance with the

instructions given in the following table and diagrams:

Other types of connection

If the mains supply corresponds with one of the

following:

Voltage and mains frequency

• 400V - 2+N ~ 50/60 Hz

• 220-240V 3 ~ 50/60 Hz

• 400V - 2+2N ~ 50/60 Hz

Separate the wires and connect them in accordance

with the instructions given in the following table and

diagrams:

If the mains supply corresponds with one of the

following:

Voltage and mains frequency

• 400V 3 - N ~ 50/60 Hz

proceed as follows:

! The cable provided is not suitable for the following

types of installation.

1. Use a suitable supply cable, H05RR-F or higher, with

the right dimensions (cable cross section: 25 mm).

2. To open the terminal board, use a screwdriver as

a lever under the side tabs of the cover (see Terminal

board picture).

3. Loosen the cable clamp screw and the terminal

board screws in accordance with the type of

connection required and position the connection

supports as shown in the following table and diagrams.

4. Position the wires in accordance with the information

given in the following table and diagrams and connect

the appliance by tightening all the screws for the

springs as much as possible.

UNDERSIDE OF HOB
