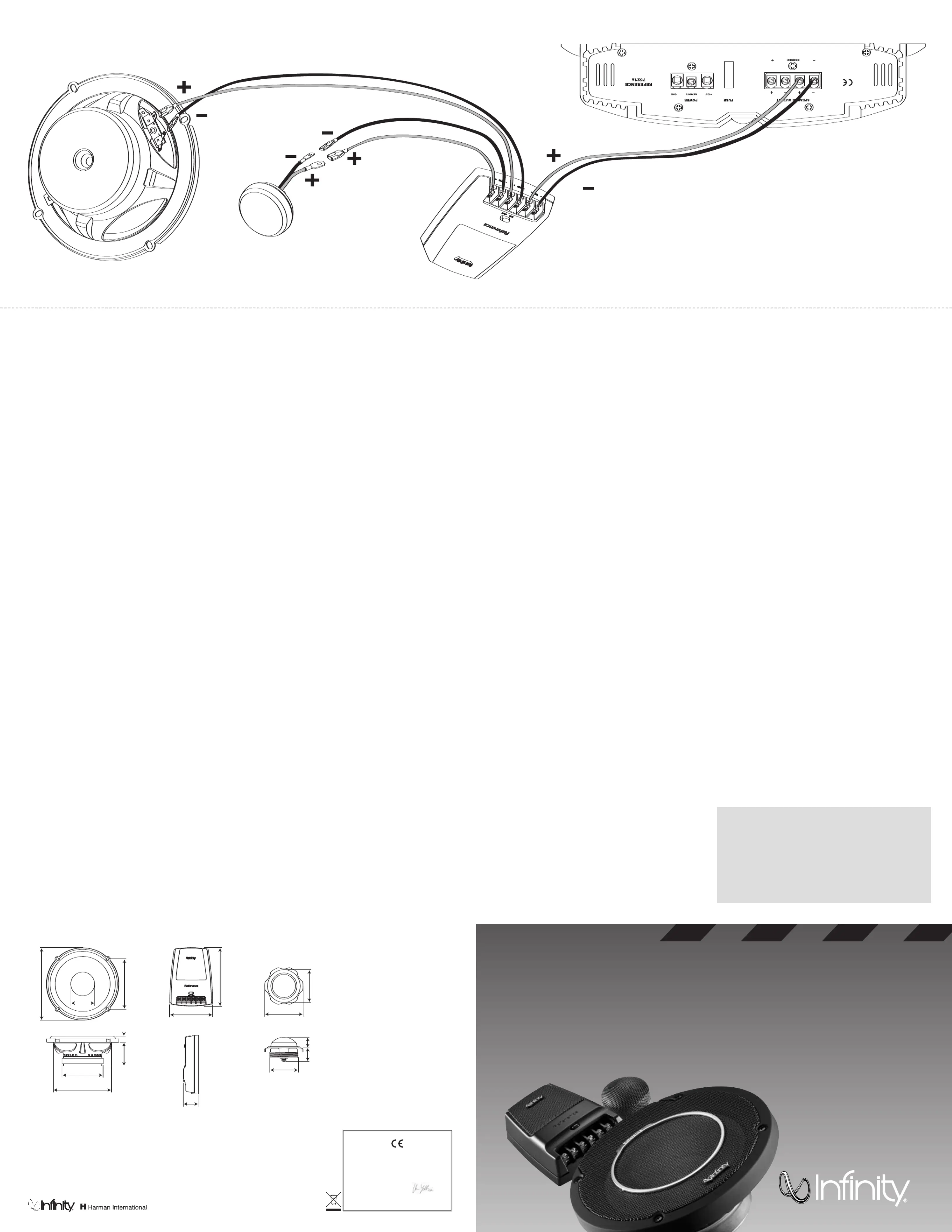

4-1/4"

110mm 2-1/16"

51mm

4-1/2"

115mm

6-5/16"

159mm

3-9/16"

90mm

1-13/16"

45mm

3-1/4"

84mm

127mm

2-3/8"

60mm

2-1/16"

52mm

1/2"

19mm

7/8"

22mm

11/16"

17mm

1-3/4"

44mm

1-1/8"

30mm

R E F E R E N C E

6030cs

Declaration of Conformity

We,Harman Consumer Group,Inc.

2, route de Tours

72500 Château du Loir

France

declare in own responsibility that the product described in this owner’s

manual is in compliance with technical standards:

EN 61000-6-3:2001

EN 61000-6-1:2001

Klaus Lebherz

Harman Consumer Group, Inc.

Château du Loir, France 4/09

6030cs

BL (T-m) 4.70

DCR (ohms) 2.30

Mms (g) 15.10

Sd (sq cm) 132.7

Cms (µm/N) 236

Vas (l) 5.84

Fs (Hz) 84.3

Qes 0.83

Qms 6.61

Qt 0.74

SPECIFICATIONS

6030cs

Type: 6-1/2" (160mm)

2-Way Component

Impedance: 2 Ohms

Power Handling,RMS: 90W

Power Handling,Peak: 270W

Frequency Response: 53Hz – 21kHz

Sensitivity (2.83V, 1m): 93dB

WARRANTY:

Reference Series speakers are warranted against defects.

The duration of the speaker’s warranty depends on the laws in the country in which it

was purchased.Your local Infinity®car audio retailer can help you determine the length

of your warranty.To register your product, please visit www.infinitysystems.com.

SPECIFICATIONS

6030cs

Type: 6-1/2" (160mm)

2-Way Component

Impedance: 2 Ohms

Power Handling,RMS: 90W

Power Handling,Peak: 270W

Frequency Response: 53Hz – 21kHz

Sensitivity (2.83V, 1m): 93dB

WARRANTY:

Reference Series speakers are warranted against defects.

The duration of the speaker’s warranty depends on the laws in the country in which it

was purchased.Your local Infinity®car audio retailer can help you determine the length

of your warranty.To register your product, please visit www.infinitysystems.com.

SPECIFICATIONS

6030cs

Type: 6-1/2" (160mm)

2-Way Component

Impedance: 2 Ohms

Power Handling,RMS: 90W

Power Handling,Peak: 270W

Frequency Response: 53Hz – 21kHz

Sensitivity (2.83V, 1m): 93dB

WARRANTY:

Reference Series speakers are warranted against defects.

The duration of the speaker’s warranty depends on the laws in the country in which it

was purchased.Your local Infinity®car audio retailer can help you determine the length

of your warranty.To register your product, please visit www.infinitysystems.com.

SPECIFICATIONS

6030cs

Type: 6-1/2" (160mm)

2-Way Component

Impedance: 2 Ohms

Power Handling,RMS: 90W

Power Handling,Peak: 270W

Frequency Response: 53Hz – 21kHz

Sensitivity (2.83V, 1m): 93dB

WARRANTY:

Reference Series speakers are warranted against defects.

The duration of the speaker’s warranty depends on the laws in the country in which it

was purchased.Your local Infinity®car audio retailer can help you determine the length

of your warranty.To register your product, please visit www.infinitysystems.com.

SPECIFICATIONS

6030cs

Type: 6-1/2" (160mm)

2-Way Component

Impedance: 2 Ohms

Power Handling,RMS: 90W

Power Handling,Peak: 270W

Frequency Response: 53Hz – 21kHz

Sensitivity (2.83V, 1m): 93dB

WARRANTY:

Reference Series speakers are warranted against defects.

The duration of the speaker’s warranty depends on the laws in the country in which it

was purchased.Your local Infinity®car audio retailer can help you determine the length

of your warranty.To register your product, please visit www.infinitysystems.com.

SPECIFICATIONS

6030cs

Type: 6-1/2" (160mm)

2-Way Component

Impedance: 2 Ohms

Power Handling,RMS: 90W

Power Handling,Peak: 270W

Frequency Response: 53Hz – 21kHz

Sensitivity (2.83V, 1m): 93dB

WARRANTY:

Reference Series speakers are warranted against defects.

The duration of the speaker’s warranty depends on the laws in the country in which it

was purchased.Your local Infinity®car audio retailer can help you determine the length

of your warranty.To register your product,please visit www.infinitysystems.com.

SPECIFICATIONS

6030cs

Type: 6-1/2" (160mm)

2-Way Component

Impedance: 2 Ohms

Power Handling,RMS: 90W

Power Handling,Peak: 270W

Frequency Response: 53Hz – 21kHz

Sensitivity (2.83V, 1m): 93dB

WARRANTY:

Reference Series speakers are warranted against defects.

The duration of the speaker’s warranty depends on the laws in the country in which it

was purchased.Your local Infinity®car audio retailer can help you determine the length

of your warranty.To register your product, please visit www.infinitysystems.com.

SPECIFICATIONS

6030cs

Type: 6-1/2" (160mm)

2-Way Component

Impedance: 2 Ohms

Power Handling,RMS: 90W

Power Handling,Peak: 270W

Frequency Response: 53Hz – 21kHz

Sensitivity (2.83V, 1m): 93dB

WARRANTY:

Reference Series speakers are warranted against defects.

The duration of the speaker’s warranty depends on the laws in the country in which it

was purchased.Your local Infinity®car audio retailer can help you determine the length

of your warranty.To register your product, please visit www.infinitysystems.com.

SPECIFICATIONS

6030cs

Type: 6-1/2" (160mm)

2-Way Component

Impedance: 2 Ohms

Power Handling,RMS: 90W

Power Handling,Peak: 270W

Frequency Response: 53Hz – 21kHz

Sensitivity (2.83V, 1m): 93dB

WARRANTY:

Reference Series speakers are warranted against defects.

The duration of the speaker’s warranty depends on the laws in the country in which it

was purchased.Your local Infinity®car audio retailer can help you determine the length

of your warranty.To register your product, please visit www.infinitysystems.com.

SPECIFICATIONS

6030cs

Type: 6-1/2" (160mm)

2-Way Component

Impedance: 2 Ohms

Power Handling,RMS: 90W

Power Handling,Peak: 270W

Frequency Response: 53Hz – 21kHz

Sensitivity (2.83V, 1m): 93dB

WARRANTY:

Reference Series speakers are warranted against defects.

The duration of the speaker’s warranty depends on the laws in the country in which it

was purchased.Your local Infinity®car audio retailer can help you determine the length

of your warranty.To register your product,please visit www.infinitysystems.com.

SPECIFICATIONS

6030cs

Type: 6-1/2" (160mm)

2-Way Component

Impedance: 2 Ohms

Power Handling,RMS: 90W

Power Handling,Peak: 270W

Frequency Response: 53Hz – 21kHz

Sensitivity (2.83V, 1m): 93dB

WARRANTY:

Reference Series speakers are warranted against defects.

The duration of the speaker’s warranty depends on the laws in the country in which it

was purchased.Your local Infinity®car audio retailer can help you determine the length

of your warranty.To register your product, please visit www.infinitysystems.com.

SPECIFICATIONS

6030cs

Type: 6-1/2" (160mm)

2-Way Component

Impedance: 2 Ohms

Power Handling,RMS: 90W

Power Handling,Peak: 270W

Frequency Response: 53Hz – 21kHz

Sensitivity (2.83V, 1m): 93dB

WARRANTY:

Reference Series speakers are warranted against defects.

The duration of the speaker’s warranty depends on the laws in the country in which it

was purchased.Your local Infinity®car audio retailer can help you determine the length

of your warranty.To register your product, please visit www.infinitysystems.com.

SPECIFICATIONS

6030cs

Type: 6-1/2" (160mm)

2-Way Component

Impedance: 2 Ohms

Power Handling,RMS: 90W

Power Handling,Peak: 270W

Frequency Response: 53Hz – 21kHz

Sensitivity (2.83V, 1m): 93dB

WARRANTY:

Reference Series speakers are warranted against defects.

The duration of the speaker’s warranty depends on the laws in the country in which it

was purchased.Your local Infinity®car audio retailer can help you determine the length

of your warranty.To register your product, please visit www.infinitysystems.com.

SPECIFICATIONS

6030cs

Type: 6-1/2" (160mm)

2-Way Component

Impedance: 2 Ohms

Power Handling,RMS: 90W

Power Handling,Peak: 270W

Frequency Response: 53Hz – 21kHz

Sensitivity (2.83V, 1m): 93dB

WARRANTY:

Reference Series speakers are warranted against defects.

The duration of the speaker’s warranty depends on the laws in the country in which it

was purchased.Your local Infinity®car audio retailer can help you determine the length

of your warranty.To register your product,please visit www.infinitysystems.com.

Designed and engineered in the USA.Conception et design aux É.U.A.

A valid serial number is required for warranty coverage.Un numéro de série valable est exigé pour la couverture de la garantie.

Features,specifications and appearance are subject to change without notice.

Les dispositifs, les caractéristiques et l’aspect sont sujets au changement sans communication préalable.

Harman Consumer Group, Inc., 8500 Balboa Blvd.,Northridge, CA 91329 11797 USA

www.infinitysystems.com

Infinity is a trademark of Harman International Industries,Incorporated,registered in the United States and/or other countries.

I-Mount is a trademark of Harman International Industries,Incorporated.

Infinity est une marque commerciale de Harman International Industries,Incorporated,déposée aux États-Unis et/ou dans d’autres pays.

I-Mount est une marque commerciale de Harman International Industries,Incorporated.

1x 12x 4x 4x 4x 2x 2x 8x

2x2x 2x 2x 2x

2x2x2x 2x2x2x

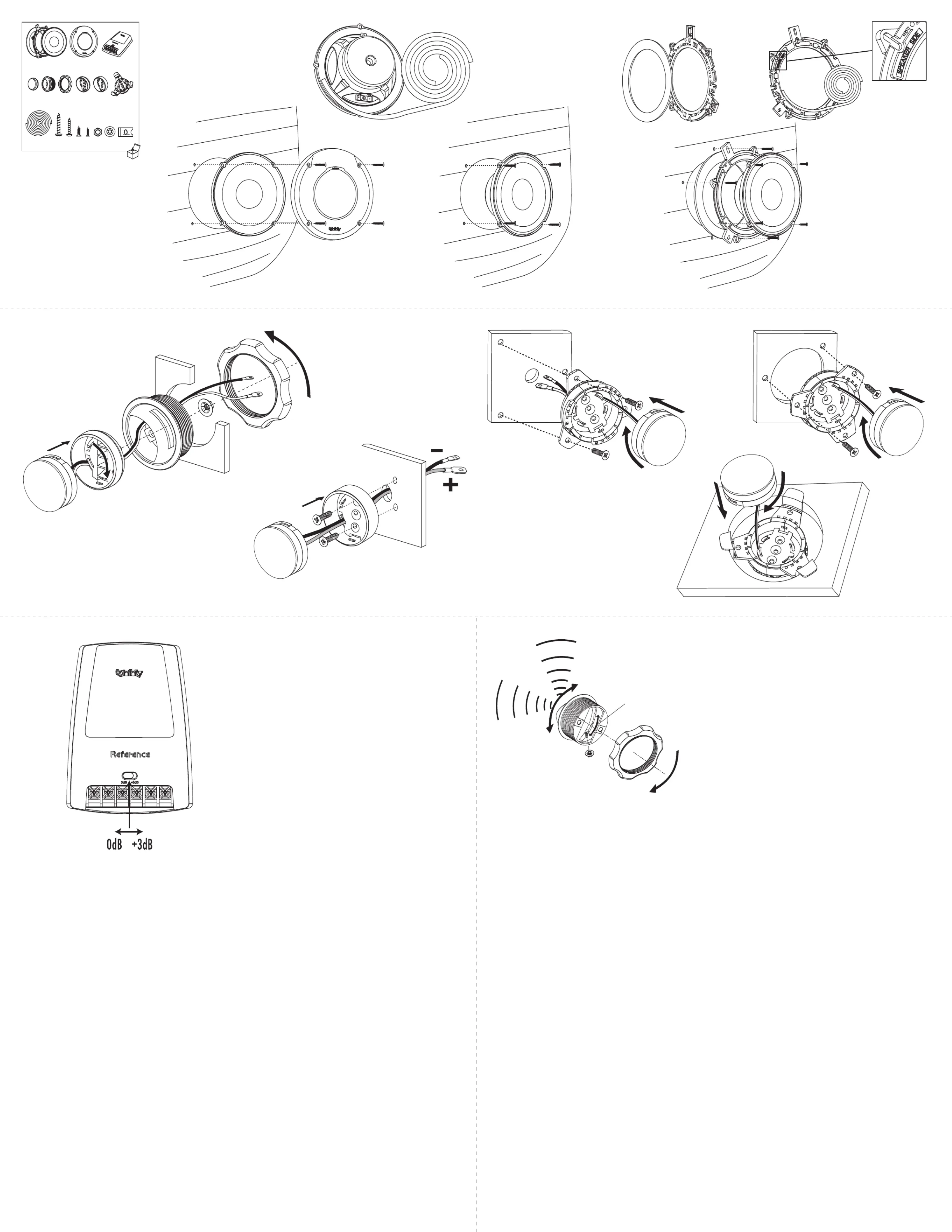

ROTATING TWEETER

This component system includes the

I-Mount™feature, an extremely versatile

tweeter-mounting system, which is designed

to allow the tweeter to be aimed toward the

listening position. Since the tweeter’s output

becomes directional at extremely high

frequencies, aiming the tweeter toward the

listening position will improve high-frequency

response and stereo imaging. Refer to

the mounting diagrams.With the tweeter

mounted in the proper location, rock the

tweeter element in the slot and rotate the

entire assembly to aim the tweeter toward

the listening position. Secure the small nut

to lock the angle, then tighten the large hand

nut to lock the rotational position.

ROTATING TWEETER

This component system includes the

I-Mount™feature, an extremely versatile

tweeter-mounting system, which is designed

to allow the tweeter to be aimed toward the

listening position. Since the tweeter’s output

becomes directional at extremely high

frequencies, aiming the tweeter toward the

listening position will improve high-frequency

response and stereo imaging. Refer to

the mounting diagrams.With the tweeter

mounted in the proper location, rock the

tweeter element in the slot and rotate the

entire assembly to aim the tweeter toward

the listening position.Secure the small nut

to lock the angle, then tighten the large hand

nut to lock the rotational position.

ROTATING TWEETER

This component system includes the

I-Mount™feature, an extremely versatile

tweeter-mounting system, which is designed

to allow the tweeter to be aimed toward the

listening position. Since the tweeter’s output

becomes directional at extremely high

frequencies, aiming the tweeter toward the

listening position will improve high-frequency

response and stereo imaging. Refer to

the mounting diagrams.With the tweeter

mounted in the pr oper location, rock the

tweeter element in the slot and rotate the

entire assembly to aim the tweeter toward

the listening position. Secure the small nut

to lock the angle, then tighten the large hand

nut to lock the rotational position.

ROTATING TWEETER

This component system includes the

I-Mount™feature, an extremely versatile

tweeter-mounting system, which is designed

to allow the tweeter to be aimed toward the

listening position. Since the tweeter’s output

becomes directional at extremely high

frequencies, aiming the tweeter toward the

listening position will improve high-frequency

response and stereo imaging. Refer to

the mounting diagrams.With the tweeter

mounted in the pr oper location, rock the

tweeter element in the slot and rotate the

entire assembly to aim the tweeter toward

the listening position.Secure the small nut

to lock the angle, then tighten the large hand

nut to lock the rotational position.

ROTATING TWEETER

This component system includes the

I-Mount™feature, an extremely versatile

tweeter-mounting system, which is designed

to allow the tweeter to be aimed toward the

listening position. Since the tweeter’s output

becomes directional at extremely high

frequencies, aiming the tweeter toward the

listening position will improve high-frequency

response and stereo imaging. Refer to

the mounting diagrams.With the tweeter

mounted in the proper location, rock the

tweeter element in the slot and rotate the

entire assembly to aim the tweeter toward

the listening position. Secure the small nut

to lock the angle, then tighten the large hand

nut to lock the rotational position.

ROTATING TWEETER

This component system includes the

I-Mount™feature, an extremely versatile

tweeter-mounting system, which is designed

to allow the tweeter to be aimed toward the

listening position. Since the tweeter’s output

becomes directional at extremely high

frequencies, aiming the tweeter toward the

listening position will improve high-frequency

response and stereo imaging. Refer to

the mounting diagrams.With the tweeter

mounted in the proper location, rock the

tweeter element in the slot and rotate the

entire assembly to aim the tweeter toward

the listening position.Secure the small nut

to lock the angle, then tighten the large hand

nut to lock the rotational position.

ROTATING TWEETER

This component system includes the

I-Mount™feature, an extremely versatile

tweeter-mounting system, which is designed

to allow the tweeter to be aimed toward the

listening position. Since the tweeter’s output

becomes directional at extremely high

frequencies, aiming the tweeter toward the

listening position will improve high-frequency

response and stereo imaging. Refer to

the mounting diagrams.With the tweeter

mounted in the pr oper location, rock the

tweeter element in the slot and rotate the

entire assembly to aim the tweeter toward

the listening position. Secure the small nut

to lock the angle, then tighten the large hand

nut to lock the rotational position.

ROTATING TWEETER

This component system includes the

I-Mount™feature, an extremely versatile

tweeter-mounting system, which is designed

to allow the tweeter to be aimed toward the

listening position. Since the tweeter’s output

becomes directional at extremely high

frequencies, aiming the tweeter toward the

listening position will improve high-frequency

response and stereo imaging. Refer to

the mounting diagrams.With the tweeter

mounted in the pr oper location, rock the

tweeter element in the slot and rotate the

entire assembly to aim the tweeter toward

the listening position.Secure the small nut

to lock the angle, then tighten the large hand

nut to lock the rotational position.

TWEETER-LEVEL

CONTROL

This speaker system is equipped with a

tweeter-level switch.The normal setting for

this switch is the “0dB”position, which pro-

vides an apparently “flat” response.Tweeter

output may be increased according to the

user’s preference, or to compensate for off-

axis placement (where the speaker does not

directly face the listening position), by set-

ting the switch to the “+3dB” position.

TWEETER-LEVEL

CONTROL

This speaker system is equipped with a

tweeter-level switch.The normal setting for

this switch is the “0dB” position, which pro-

vides an apparently “flat” response.Tweeter

output may be increased according to the

user’s preference, or to compensate for off-

axis placement (where the speaker does not

directly face the listening position), by set-

ting the switch to the “+3dB” position.

TWEETER-LEVEL

CONTROL

This speaker system is equipped with a

tweeter-level switch.The normal setting for

this switch is the “0dB” position, which pro-

vides an apparently “flat” response.Tweeter

output may be increased according to the

user’s preference, or to compensate for off-

axis placement (where the speaker does not

directly face the listening position), by set-

ting the switch to the “+3dB” position.

TWEETER-LEVEL

CONTROL

This speaker system is equipped with a

tweeter-level switch.The normal setting for

this switch is the “0dB” position, which pro-

vides an apparently “flat” response.Tweeter

output may be increased according to the

user’s preference, or to compensate for off-

axis placement (where the speaker does not

directly face the listening position), by set-

ting the switch to the “+3dB” position.

TWEETER-LEVEL

CONTROL

This speaker system is equipped with a

tweeter-level switch.The normal setting for

this switch is the “0dB”position, which pro-

vides an apparently “flat” response.Tweeter

output may be increased according to the

user’s preference, or to compensate for off-

axis placement (where the speaker does not

directly face the listening position), by set-

ting the switch to the “+3dB” position.

TWEETER-LEVEL

CONTROL

This speaker system is equipped with a

tweeter-level switch.The normal setting for

this switch is the “0dB” position, which pro-

vides an apparently “flat” response.Tweeter

output may be increased according to the

user’s preference, or to compensate for off-

axis placement (where the speaker does not

directly face the listening position), by set-

ting the switch to the “+3dB” position.

TWEETER-LEVEL

CONTROL

This speaker system is equipped with a

tweeter-level switch.The normal setting for

this switch is the “0dB” position, which pro-

vides an apparently “flat” response.Tweeter

output may be increased according to the

user’s preference, or to compensate for off-

axis placement (where the speaker does not

directly face the listening position), by set-

ting the switch to the “+3dB” position.

TWEETER-LEVEL

CONTROL

This speaker system is equipped with a

tweeter-level switch.The normal setting for

this switch is the “0dB” position, which pro-

vides an apparently “flat” response.Tweeter

output may be increased according to the

user’s preference, or to compensate for off-

axis placement (where the speaker does not

directly face the listening position), by set-

ting the switch to the “+3dB” position.

TWEETER-LEVEL

CONTROL

This speaker system is equipped with a

tweeter-level switch.The normal setting for

this switch is the “0dB” position, which pro-

vides an apparently “flat” response.Tweeter

output may be increased according to the

user’s preference, or to compensate for off-

axis placement (where the speaker does not

directly face the listening position), by set-

ting the switch to the “+3dB” position.

TWEETER-LEVEL

CONTROL

This speaker system is equipped with a

tweeter-level switch.The normal setting for

this switch is the “0dB” position, which pro-

vides an apparently “flat” response.Tweeter

output may be increased according to the

user’s preference, or to compensate for off-

axis placement (where the speaker does not

directly face the listening position), by set-

ting the switch to the “+3dB” position.

TWEETER-LEVEL

CONTROL

This speaker system is equipped with a

tweeter-level switch.The normal setting for

this switch is the “0dB” position, which pro-

vides an apparently “flat” response.Tweeter

output may be increased according to the

user’s preference,or to compensate for off-

axis placement (where the speaker does not

directly face the listening position), by set-

ting the switch to the “+3dB” position.

TWEETER-LEVEL

CONTROL

This speaker system is equipped with a

tweeter-level switch.The normal setting for

this switch is the “0dB” position, which pro-

vides an apparently “flat” response.Tweeter

output may be increased according to the

user’s preference, or to compensate for off-

axis placement (where the speaker does not

directly face the listening position), by set-

ting the switch to the “+3dB” position.

TWEETER-LEVEL

CONTROL

This speaker system is equipped with a

tweeter-level switch.The normal setting for

this switch is the “0dB” position, which pro-

vides an apparently “flat” response.Tweeter

output may be increased according to the

user’s preference, or to compensate for off-

axis placement (where the speaker does not

directly face the listening position), by set-

ting the switch to the “+3dB” position.

TWEETER-LEVEL

CONTROL

This speaker system is equipped with a

tweeter-level switch.The normal setting for

this switch is the “0dB” position, which pro-

vides an apparently “flat” response.Tweeter

output may be increased according to the

user’s preference, or to compensate for off-

axis placement (where the speaker does not

directly face the listening position), by set-

ting the switch to the “+3dB” position.

ROTATING TWEETER

This component system includes the

I-Mount™(patent no. 5,859,917) feature,

an extremely versatile tweeter-mounting

system, which is designed to allow the

tweeter to be aimed toward the listening

position. Since the tweeter’s output becomes

directional at extremely high frequencies,

aiming the tweeter toward the listening

position will improve high-frequency

response and stereo imaging. Refer to

the mounting diagrams. With the tweeter

mounted in the proper location, rock the

tweeter element in the slot and rotate the

entire assembly to aim the tweeter toward

the listening position. Secure the small nut

to lock the angle, then tighten the large

hand nut to lock the rotational position.

ROTATING TWEETER

This component system includes the

I-Mount™feature, an extremely versatile

tweeter-mounting system, which is designed

to allow the tweeter to be aimed toward the

listening position. Since the tweeter’s output

becomes directional at extremely high

frequencies, aiming the tweeter toward the

listening position will improve high-frequency

response and stereo imaging. Refer to

the mounting diagrams.With the tweeter

mounted in the proper location, rock the

tweeter element in the slot and rotate the

entire assembly to aim the tweeter toward

the listening position. Secure the small nut

to lock the angle, then tighten the large hand

nut to lock the rotational position.

ROTATING TWEETER

This component system includes the

I-Mount™feature, an extremely versatile

tweeter-mounting system, which is designed

to allow the tweeter to be aimed toward the

listening position. Since the tweeter’s output

becomes directional at extremely high

frequencies, aiming the tweeter toward the

listening position will improve high-frequency

response and stereo imaging. Refer to

the mounting diagrams. With the tweeter

mounted in the proper location, rock the

tweeter element in the slot and rotate the

entire assembly to aim the tweeter toward

the listening position. Secure the small nut

to lock the angle, then tighten the large hand

nut to lock the rotational position.

ROTATING TWEETER

This component system includes the

I-Mount™feature, an extremely versatile

tweeter-mounting system, which is designed

to allow the tweeter to be aimed toward the

listening position. Since the tweeter’s output

becomes directional at extremely high

frequencies, aiming the tweeter toward the

listening position will improve high-frequency

response and stereo imaging. Refer to

the mounting diagrams.With the tweeter

mounted in the proper location, rock the

tweeter element in the slot and rotate the

entire assembly to aim the tweeter toward

the listening position. Secure the small nut

to lock the angle, then tighten the large hand

nut to lock the rotational position.

ROTATING TWEETER

This component system includes the

I-Mount™feature, an extremely versatile

tweeter-mounting system, which is designed

to allow the tweeter to be aimed toward the

listening position. Since the tweeter’s output

becomes directional at extremely high

frequencies, aiming the tweeter toward the

listening position will improve high-frequency

response and stereo imaging. Refer to

the mounting diagrams.With the tweeter

mounted in the proper location, rock the

tweeter element in the slot and rotate the

entire assembly to aim the tweeter toward

the listening position. Secure the small nut

to lock the angle, then tighten the large hand

nut to lock the rotational position.

ROTATING TWEETER

This component system includes the

I-Mount™feature,an extremely versatile

tweeter-mounting system, which is designed

to allow the tweeter to be aimed toward the

listening position. Since the tweeter’s output

becomes directional at extremely high

frequencies, aiming the tweeter toward the

listening position will improve high-frequency

response and stereo imaging. Refer to

the mounting diagrams.With the tweeter

mounted in the proper location, rock the

tweeter element in the slot and rotate the

entire assembly to aim the tweeter toward

the listening position. Secure the small nut

to lock the angle, then tighten the large hand

nut to lock the rotational position.

Produktspecifikationer

Varumärke:	Infinity
Kategori:	högtalare
Modell:	6030cs
Vikt:	60 g
Förpackningens vikt:	140 g
Snäll:	AV-zender
Användarmanual:	Ja
LED-indikatorer:	Ja
Ljudformat som stöds:	LPCM
Anslutningsteknik:	Bedraad
Videolägen som stöds:	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Maximal upplösning:	- Pixels
Inkluderar AC-adapter:	Ja
Antal USB-anslutningar:	1
Certifiering:	CE/FCC/UL
HDCP:	Ja
Anslutning för nätadapter:	Ja
3D:	Ja
Material:	Kunststof
HDMI-version:	1.4
Grafikupplösningar som stöds:	640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA)
Fjärrkontroll (IR) ingång:	1
Förvaringstemperatur:	-20 - 60 °C
Videoingång:	1
Extern anpassning:	Ja
Utström:	2.6 A
Fjärrutgång (IR).:	1
HDMI in:	1
RJ-45 utgångsportar:	1
Mått (B x D x H):	55 x 83 x 22 mm
Bandbreedte:	10.2 Gbit/s
Driftspänning:	5 V
Maximal-räckvidd:	60 m
Strömförbrukning (typiskt):	3 W
Drifttemperatur (TT):	0 - 40 °C
Relativ luftfuktighet i drift (VV):	20 - 90 procent
Kabeltyper som stöds:	Cat5e, Cat6, Cat7
Skydd mot elektrostatisk urladdning (ESD).:	8 kV
