OWNER’S MANUAL
OUTDOOR
SPEAKERS
1
UNPACKING
1. Carefully unpack the speakers. If you suspect damage from
transit, report it immediately to your dealer and/or delivery
service. Keep the shipping carton and packing materials for
future use.
2. Verify that the package includes the following items:
– (2) Outrigger jr. Speakers
– (2) Mounting Brackets
– (2) Paint Masks
– (1) Owner’s Manual
PLACEMENT
Although Outrigger jr. Outdoor Speakers are weather-resistant, they
are not weatherproof. We recommending placing or mounting
them in a protected location, such as under the eaves of a roof or
on a porch.
For the best stereo effect, separate your Outrigger jr. speakers
by at least seven to ten feet. Use the built-in pedestal for place-
ment on a table or other surface (see Figure 1). Experiment with
different placement to find the most pleasing effect for your
system. Placing your speakers near a wall or other surface will
increase bass output.
For vertical or horizontal mounting on a wall, use the enclosed
mounting bracket and hardware (see Figures 2 and 3). Locate a
stud for secure mounting. Use heavy-duty screws with long
threads (not included) so there is an adequate number of threads
holding the speaker/bracket to the wall. Test the mounting thor-
oughly before final installation. Rotate the logo (on the grille) to
match the mounting position.
NOTE: After determining placement position, you may wish to
paint each speaker (see next section).
rotate
logo
OUTRIGGER jr.
(Front View)

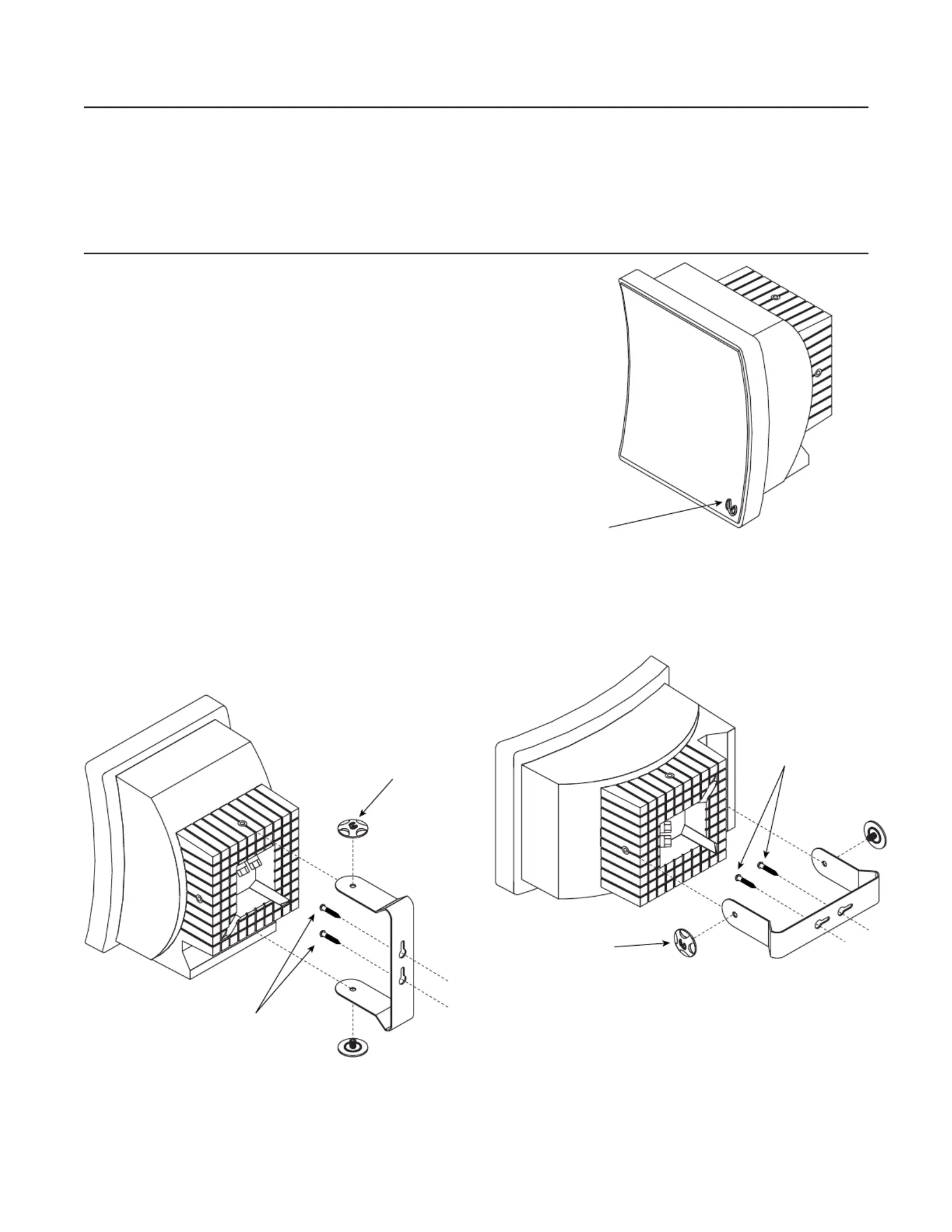

Figure 1. Use the built-in pedestal for placement of an Outrigger jr.
speaker on a table or other surface. Note logo orientation.
OUTRIGGER jr.
(Rear View)
MOUNTING
BRACKET
Wood Screws
(fasten to
wall stud)
KNOB
(1 of 2)
FIGURE 3. Horizontal wall mounting of an Outrigger jr.
speaker. If desired, tilt the speaker up or down before tightening
knobs.
OUTRIGGER jr.
(Rear View)
MOUNTING
BRACKET
Wood Screws
(fasten to
wall stud)
KNOB
(1 of 2)
FIGURE 2. Vertical wall mounting of an Outrigger jr. speaker.
If desired, tilt the speaker left or right before tightening knobs.
2
PAINTING GUIDE (OPTIONAL)
Outrigger jr. speakers have a white finish that blends with most
walls and decor; however, they can be painted to match other
finishes if desired.
REQUIRED TOOLS AND PARTS
• A fast-drying spray-can primer paint, such as Krylon
Sandable Spray Primer #1318
• Oil- or water-based house paint, or spray paint (be sure to
use appropriate exterior house paint for outdoor installa-
tions)
• Masking tape
• A clean, dry cloth
• Pliers and paper clip (optional if you want to paint the grille)
PAINTING THE SPEAKERS
1. Remove the brackets (and the grilles, if you intend to paint
them; see Painting the Grilles). Place paint masks over the
speakers before painting the frames.
2. Apply two thin primer coats to the speaker cabinets and
knobs. (The brackets do not require a primer coat.)
3. After the primer is completely dry, paint the cabinets,
brackets and knobs. Be sure not to paint the red and black
connection terminals or the plastic area behind the grilles.
PAINTING THE GRILLES
Remove and paint the grilles before inserting them onto the
frames.
1. Using a paper clip bent into a “hook” shape, insert it into a
grille near the corner, and pull the grille away from the cabinet.
2. Apply two thin coats of paint (primer is not required). Be
careful not to let the paint clog the holes in the grilles.
3. After the paint is thoroughly dry, reinsert each grille by
placing it in the cabinet and letting it “snap” into place.
