ERS 110II
ERS 110DT
ERS 210II
ERS 310
ERS HV250
Owner’s Guide
TOTAL SPEAKER SOLUTIONS
™
INTRODUCTION
Infinity ERS™Series
The ERS Series of in-wall/ceiling loudspeakers continues
Infinity’s longstanding commitment to accurate sound
reproduction. Our patented Ceramic Metal Matrix Diaphragm
(CMMD™) drivers and precision dividing networks deliver
uncompromised performance in any stereo, multichannel home
theater or whole-house music system.
Unpacking the Speakers
Carefully unpack the speakers. If you suspect damage from transit,
report it immediately to your dealer and/or delivery service. Keep
the shipping carton and packing materials for future use.All
models include a mounting template and paint shield.
2ERS IN-WALL SPEAKERS
P YLANNING OUR SYSTEM
Before deciding where to best place your speakers, survey your
room and study Figures 1–3.
Couch
Left
Front
Channel
Right
Front
Channel
Infinity Subwoofer
(optional)
Couch
Left
Front
Channel
Left
Surround
Channel
Right
Surround
Channel
Right
Front
Channel
Center
Channel
Infinity Subwoofer
(optional)
Figure 2. This overhead view shows a typical home theater
system arrangement.
Figure 1.
Figure 3.This overhead view shows a 6- or 7-channel home
theater system arrangement. Left/right rear channels are for
a 7-channel system. Center rear channel is for a 6-channel
system.
Note: Figures 1, 2 and 3 show recommended speaker locations.
You may also follow these general placement suggestions
when installing the speakers in the ceiling.
Couch
Left
Front
Channel
Left
Surround
Channel
Right
Surround
Channel
Right
Front
Channel
Center
Channel
Left
Rear
Channel
Right
Rear
Channel
Center
Rear
Channel
(above or below TV) Subwoofer
3
ERS IN-WALL SPEAKERS
INSTALLATION
The ERS Series in-wall speakers were designed to be easily
installed. However, if you are unsure of your ability to properly
install these loudspeakers, please contact your dealer or a
qualified installer.
Tools Needed
PLACEMENT
Stereo
Before deciding where to place your ERS Series speakers, survey
your room and think about placement, keeping the following
points in mind, and using Figure 1, on previous page, as a guide:
• For best results, place the speakers 6'–8' apart.
• When installing in the wall, position each speaker so that the
tweeter is as close to ear level as practical.
• Refer to “Home Theater” below if you also plan to use the
speakers in a home theater system.
Home Theater
For front-channel use, place one speaker on the left and another
on the right along either side of the television.
A center channel speaker should go directly above or below the
television and can be an in-wall or freestanding center channel.
For left and right surround channels, place one speaker on the
left and another on the right, to the side of or slightly behind the
listening area.The surround speakers should be mounted at a
height of between 4 feet and 7 feet.
In 6- or 7-channel configurations, place the rear channel(s)
behind the listening position, as shown in Figure 3.
Note: An Infinity powered subwoofer will add impact and
realism to both music and film soundtracks. Contact your
Infinity dealer for recommendations on subwoofer models for
your application.
Proper placement of the speakers is an important step
in obtaining the most realistic soundstage possible.These
recommendations are for the optimal placement of the loud-
speakers. Use these placement recommendations as a guide.
Slight variations will not diminish your listening pleasure.

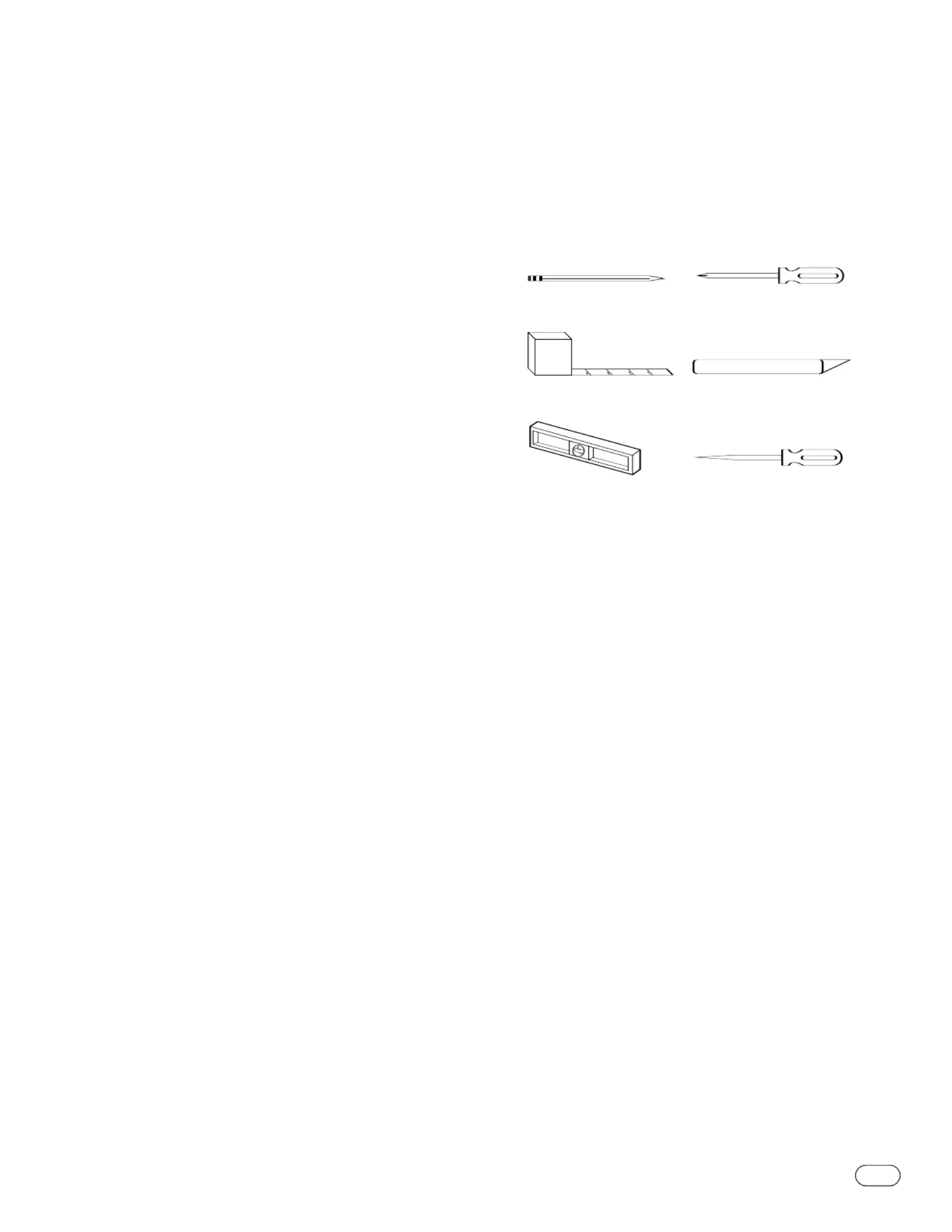

Phillips #2 screwdriver
Measuring tape Utility knife
Pencil
Carpenter’s level Awl
