Sida 1/4
kappa series
50.7cs,60.7cs,65.7cs,680.7cs
i
n
s
t
r
u
c
t
i
o
n
s
THANK YOU for purchasing Infinity’s Kappa®
Series automotive loudspeaker components.
We’ve organized this manual to make their
installation as simple and trouble-free as possible.
Please read it thoroughly before proceeding.
Remember to keep your sales receipt with this
manual in a safe place so both are available for
future reference.
ABOUT THESE INSTRUCTIONS
Installation of automotive stereo components
can require extensive experience with a variety
of mechanical and electrical procedures. Although
these instructions explain how to install Kappa
Series Component Systems in a general sense, they
do not show the exact installation methods for your
particular vehicle. If you do not feel you have the
experience, do not attempt the installation yourself,
but instead ask your authorized Infinity car audio
dealer about professional installation options.
LOUD MUSIC AND HEARING
Playing loud music in an automobile can hinder
your ability to hear traffic, as well as permanently
damage your hearing. The maximum volume lev-
els achievable with Infinity speakers, combined
with high power amplification, may exceed safe
levels for extended listening. We recommend
using low volume levels when driving. Infinity
accepts no liability for hearing loss, bodily injury,
or property damage as a result of use or misuse
of this product.
REAR DECK PRECAUTION
In some cars, fuel tanks may be located directly
beneath the rear deck. Before installation, make
sure there is adequate speaker basket clearance
before considering this location!
ABOUT THE CONTENTS
The Kappa Component System includes:
• 5 -1 ⁄4" or 6 -1 ⁄ 2" or 165mm or 6" x 8" woofer
• Grille and mounting adaptor(s)
• 1" Tweeter with surface/flush I-Mount™
(patent no. 5,859,917) kits
• Crossover network with mounting screws
Note: The supplied crossover network is optimized
for each specific speaker system it is packaged
with. Do not substitute another crossover network
or use other speakers when connecting the system
(see Figure 8A).
INSTALLATION TIPS
• Always wear protective eyewear when using
any tools.
• Turn off all audio components and other
electrical devices before you start. Disconnect
the (–) negative lead from your vehicle’s battery.
• Keep speakers in their package until final
installation. When moving a speaker, always
rest it with the cone or dome facing up. Never
use force to install any speaker.
• Check clearances on both sides of a planned
mounting surface before drilling any holes or
installing any screws. Remember that the
screws can extend behind the surface.
• At the installation sites, locate and make a
note of all fuel lines, hydraulic brake lines,
vacuum lines and electrical wiring. Use
extreme caution when cutting or drilling
in and around these areas.
• Before drilling or cutting holes, use a utility
knife to remove unwanted fabric or vinyl,
to keep material from snagging in a drill
bit or saw.
• For door installations, check the clearance
with the windows throughout the range of the
window’s travel, and verify that a mounted
speaker will not interfere with the window
crank or power window mechanism.
• If mounting speakers elsewhere, check for
clearance around rear deck torsion bars,
glove box or other structural elements.
• Do not mount speakers where they will get wet.
• If possible, select a mounting site for the
crossover network that is near the speakers
and provides easy access for connections.

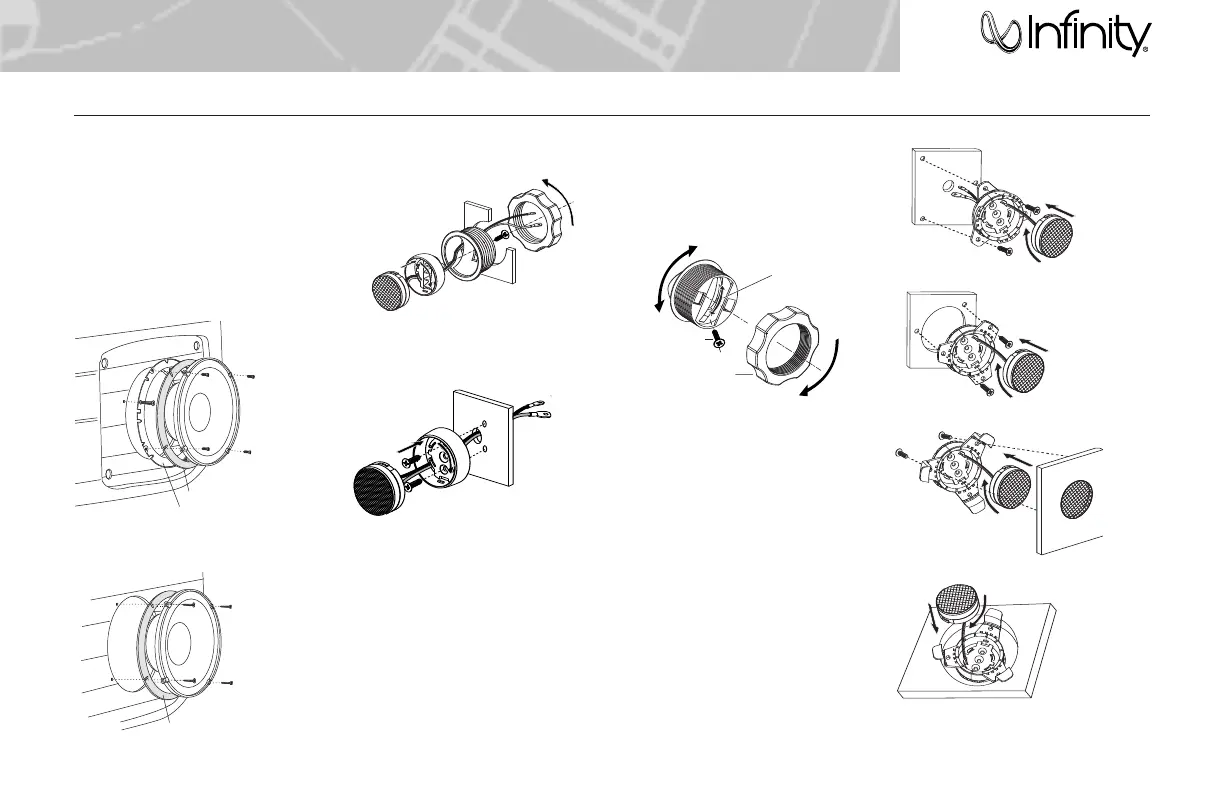

Figure 1. Mounting the 50.7cs woofer with
the grille.
Figure 2. Mounting the 60.7cs woofer with
the grille.
Note: The 680.7cs is designed to replace 5" x 7"
and 6" x 8" speakers installed behind existing
vehicle grilles, and does not include grilles.
INSTALLATION ARNINGS AND IPSW T INSTALLATION
INTERMOUNT III MOUNTING RINGS
The Kappa 60.7cs is packaged with two different
speaker adaptor rings. The rings will allow the
speakers to be installed into various factory 6,"
6-1/2" and 6-3/4" openings. The metal ring can be
mounted in many European vehicles, Japanese
vehicles or vehicles with 6" speaker locations. The
plastic ring can be mounted in many vehicles
using 6-3/4" speaker locations or three-point
mounting frames.
Figure 3. Mounting the 65.7cs in a 165mm
speaker location using the supplied metal ring.
Figure 4. Mounting the 60.7cs woofer in a standard
speaker location.
FLUSH-MOUNT
Figure 5A. Mounting the tweeter using the
I-Mount™ flush-mounting kit.
SURFACE-MOUNT
Figure 5B. Mounting the tweeter using the
I-Mount surface-mounting cup.
2
3
RED (+)
BLACK (—)
1
ATTACH BASE
WITH SCREWS, THEN:
1
2
3
kappa series
INSTALLATION
FOAM GASKET
MOUNTING RING
FOAM GASKET
TWEETER ANGLE
Figure 6. Aim the tweeter at the listening position
by sliding the stud in the groove on the back of
the tweeter cup and rotating the entire assembly
in the mounting surface. Lock the tweeter in
place, using the small retaining screw.
Figures 7A through 7D. The Starfish™ tweeter
mount is intended to be used when the tweeter
will be installed behind a factory grille (e.g.,
replacing the factory tweeter behind a door
panel). The Starfish will allow you to mount the
component tweeter directly to the panel itself or
to the area behind the panel. The six mounting
tabs can be removed easily to create a number
of custom configurations.
Note: Check screw clearance before installing.
Use glue if clearance is an issue.
Note: Not all possible mounting configurations
are shown.
1
SLIDE SCREW UP OR
DOWN TO ADJUST
TWEETER ANGLE.
4
SECURELY TIGHTEN
THE LARGE HAND NUT.
2
TIGHTEN SCREW TO
LOCK ANGLE SETTINGS.
3
ROTATE ENTIRE ASSEMBLY
TO AIM ANGLED TWEET ER
TOWARD LISTENER.
Figure 7A. Behind grille panel.
Figure 7B. Mounted to surface behind grille panel.
Figure 7C. Mounted to grille panel.
Figure 7D. In-dash location (may require gluing).
