TSS-FMK4000
Owner’s Guide
TOTAL SPEAKER SOLUTIONS
TSS-4000
2TSS-FMK4000
INTRODUCTION
The TSS-FMK4000 allows you to recess a TSS-SAT4000 or
TSS-CENTER4000 into the wall. When installed, the speaker
will extend beyond the wall approximately 1."
Unpacking the Components
Finish unpacking the flush-mount kit and check the contents. If
you suspect damage from transit, report it immediately to your
dealer. Keep the shipping carton and packing materials for
future use.
Contents

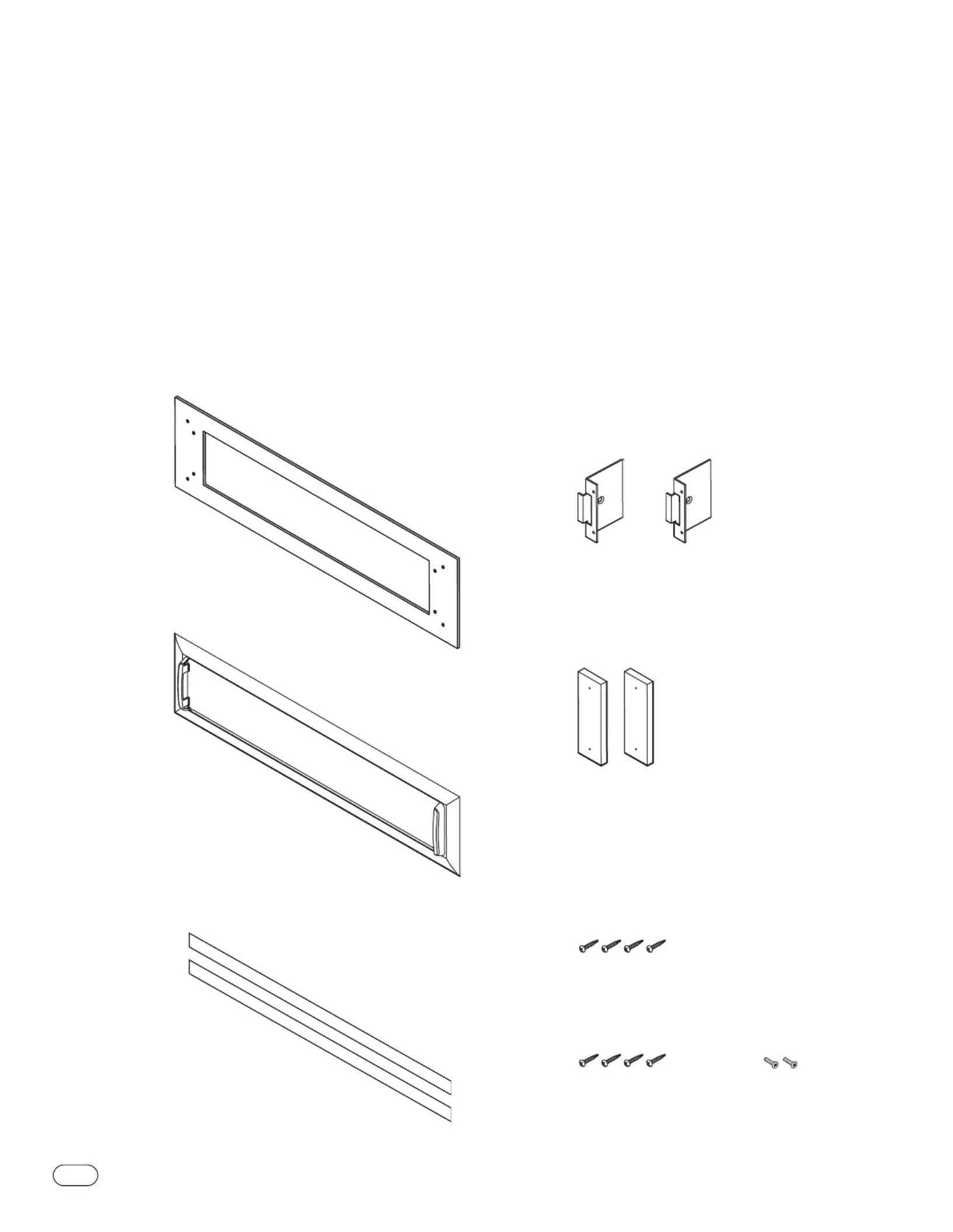

Please verify that the package contains the following items:
(1) 3/16"-Thick Cardboard Template
(1) Speaker Frame
(2) End Brackets
(2) Mounting Blocks
(2) Sealing Strips
(4) #8 x 1" Flat-Head Wood Screws
(4) #8 x 1-1/8" Pan-Head
Wood Screws
(2) 1/4-20 x 3/4" Flat-Head
Machine Screws
3
TSS-FMK4000

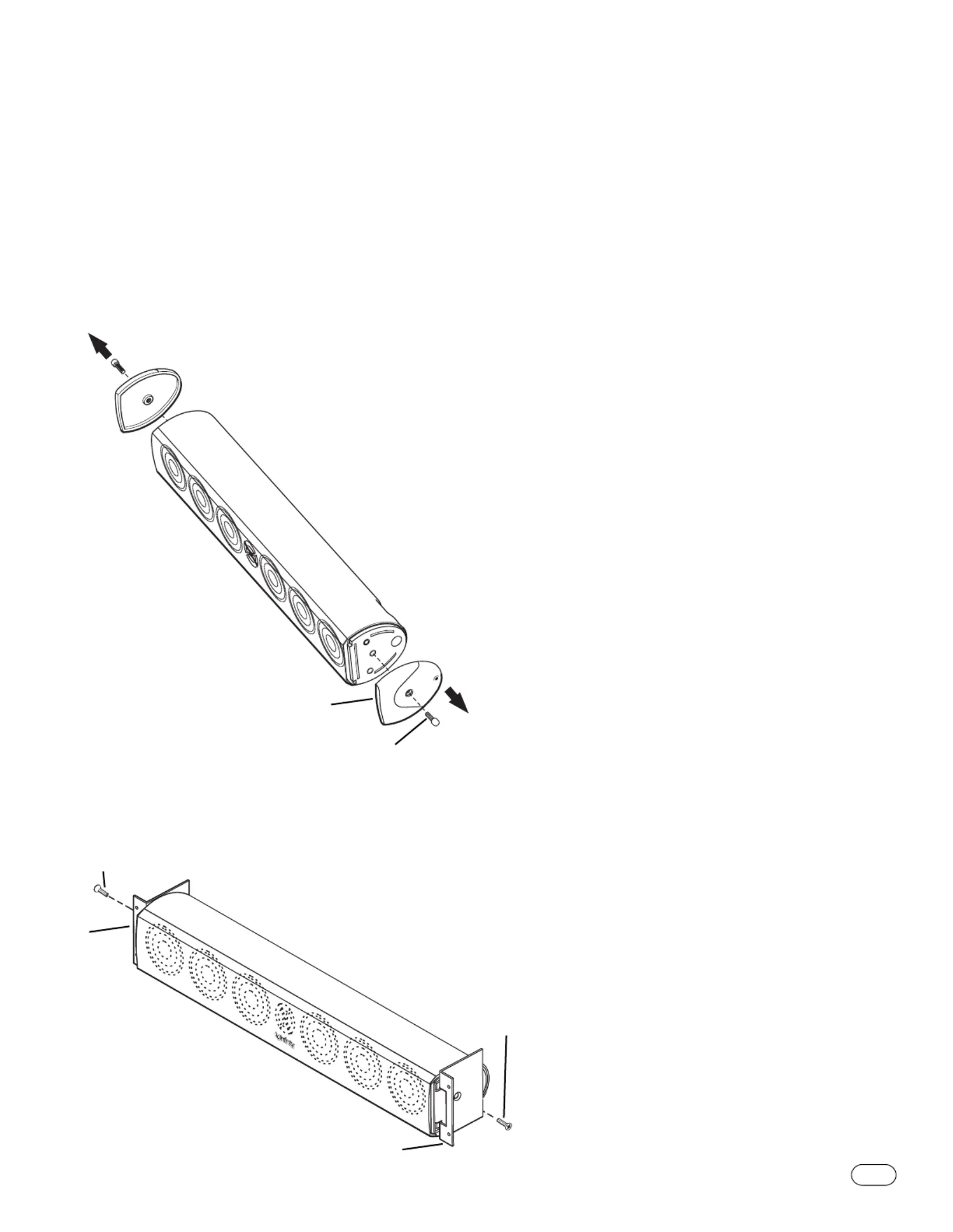

Step One
Remove both end caps of the speaker by unscrewing the single
center screws.
Step Two
Attach both of the end brackets to the speaker ends with the
1/4-20 x 3/4" flat-head machine screw, as shown.
End Bracket
End Bracket
1/4-20 x 3/4"
Flat-Head
Machine Screw
1/4-20 x 3/4"
Flat-Head Machine Screw
Speaker
End Cap
Center Screw
1/4-20 x 3/4" Screw
Important Notes:
1) In order to horizontally flush-mount the TSS-CENTER4000 in a wall
with standard 16" spacing between the studs, some modification to
that area of the wall will be necessary.This type of installation will
require a professional licensed contractor to install horizontal braces
that comply with the customer’s local building codes.
2) For a satellite installation, follow all the steps but cut the hole
in a vertical direction, perpendicular to the floor. See exploded view
on page 7.
