Before using your new product, please read these instructions to prevent any damage.
Full-Motion Wall
Mount for 42-90” TVs
NS-TVLFMB / NS-TVLFMB-C
I N S TA L L AT I O N G U I D E
For VESA patterns:
• 7.9 × 3.9" (200 × 100 mm)
• 7.9 × 7.9" (200 × 200 mm)
• 11.8 × 7.9" (300 × 200 mm)
• 11.8 × 11.8" (300 × 300 mm)
• 15.7 × 7.9" (400 × 200 mm)
• 15.7 × 11.8" (400 × 300 mm)
• 15.7 × 15.7" (400 × 400 mm)
• 19.7 × 15.7" (500 × 400 mm)
• 23.6 × 15.7" (600 × 400 mm)
2www.insigniaproducts.com

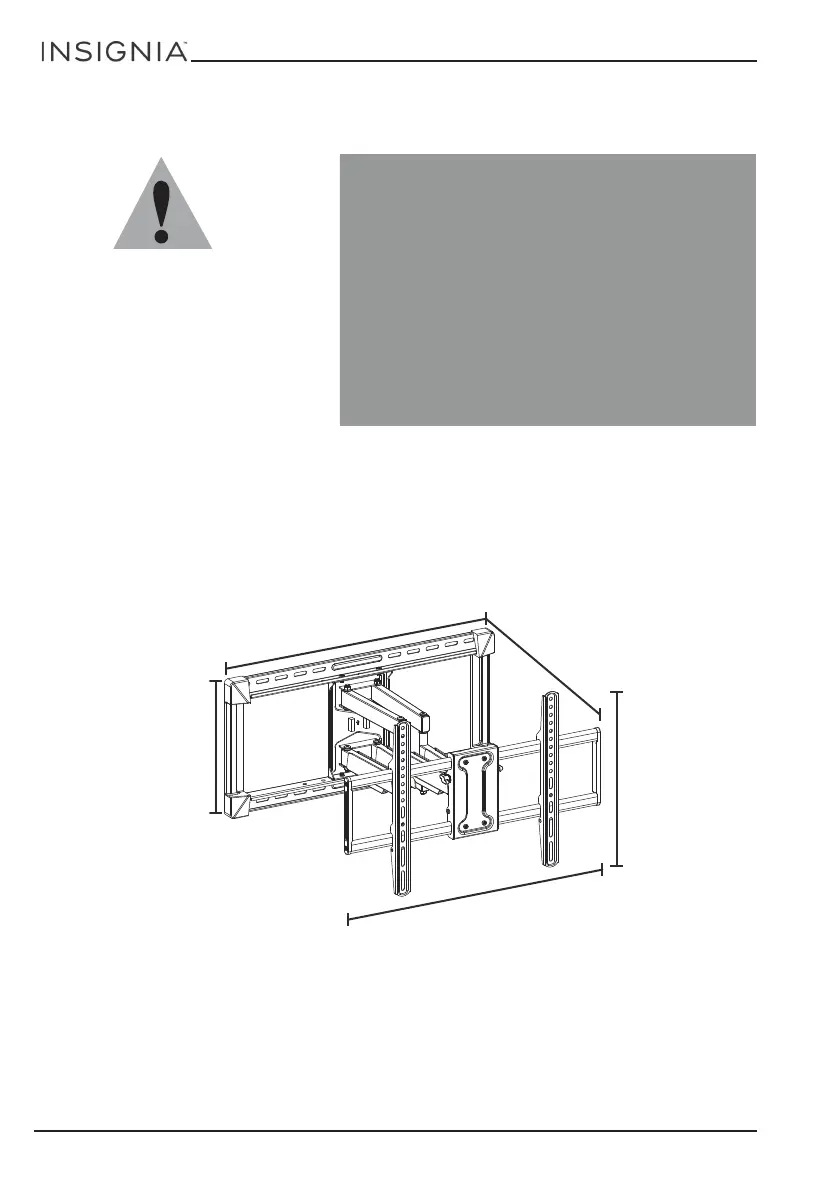

Safety information and specifications
IMPORTANT
SAFETY
INSTRUCTIONS
- SAVE THESE
INSTRUCTIONS
CAUTION: Do
not use this product for any purpose
not explicitly specified by Insignia.
Improper installation may cause
property damage or personal
injury. If you do not understand
these directions, or have doubts
about the safety of the installation,
contact Customer Service or call a
qualified contractor. Insignia is not responsible for damage or injury caused by incorrect installation or use.
The weight of your TV must not exceed 120 lbs. (54.4 kg). The wall must be capable of supporting five
times the weight of your TV and wall mount combined.
This product contains small items that could be a choking hazard if swallowed. Keep these items away
from young children!
Maximum TV weight: 120 lbs. (54.43 kg)
Screen size: 42 in. to 90 in. diagonal
Overall dimensions (H × W ):
17.2 × 28.1 in. (43.6 × 71.4 cm)
Wall-mount weight: 22.15 lbs. (10.05 kg)
We’re here for you
www.insigniaproducts.com
For customer service, call:
1-877-467-4289
28.1 in. (71.4 cm)
13.4 in. (34.0 cm)
22.3 in. (56.6 cm)
17.2 in. (43.6 cm)
26.9 in. (68.3 cm)
3
www.insigniaproducts.com
Full-Motion Wall Mount for 42-90” TVs

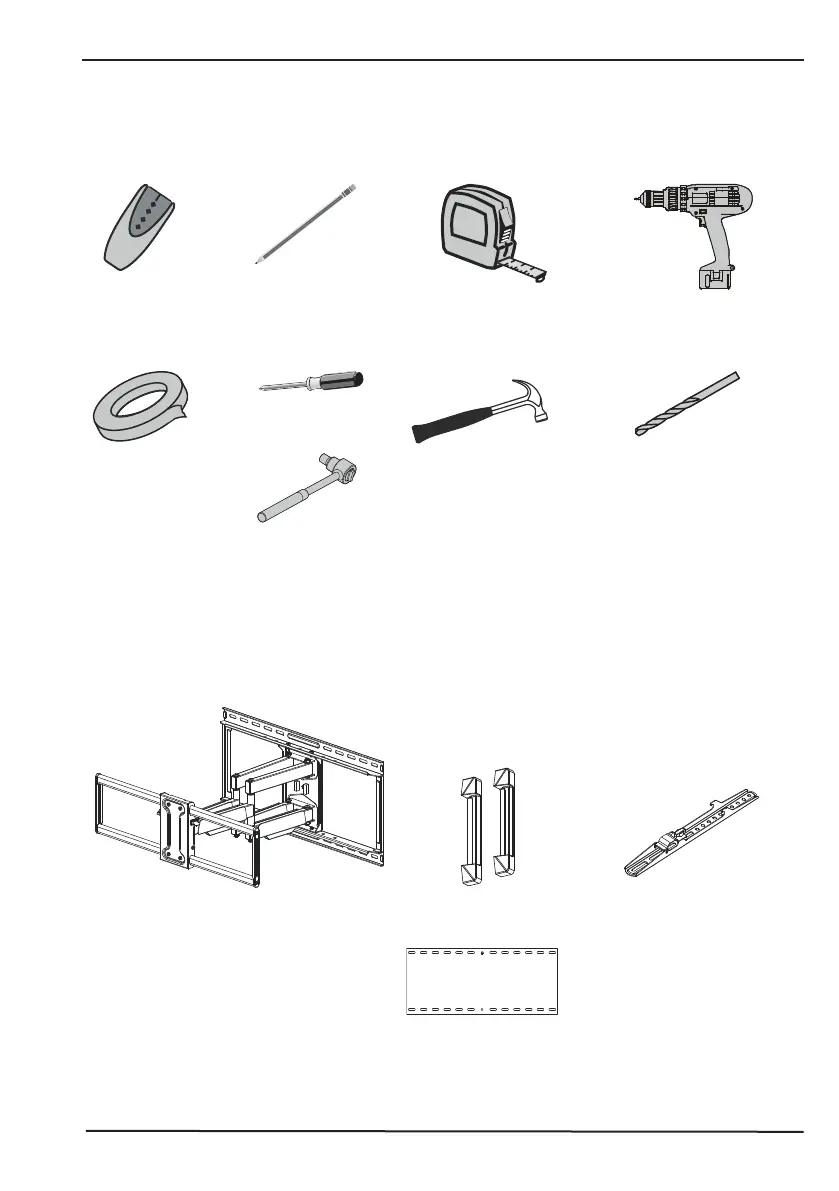

Tools needed
You will need the following tools (not provided) to assemble your new TV wall mount:
ardware
Package contents
Make sure that you have all the hardware necessary to assemble your new TV wall mount:
Edge-to-edge
stud finder
Phillips screwdriver
Measuring tape Drill
7/32 in. (5.5 mm) wood drill
bit (for wood stud wall)
OR
3/8 in. (10 mm) masonry
drill bit (for concrete wall)
Hammer
Masking tape
Pencil
Socket wrench set
1/2 in. (13 mm)
Wall Mount (1)
with cable management
clips (4) preinstalled
Wall Plate Template (1)
TV Brackets (2)Wall Mount End Caps (2)
