Integral LED ILSTWHIA101E Bruksanvisning
Integral LED
Lampa
ILSTWHIA101E
Läs nedan 📖 manual på svenska för Integral LED ILSTWHIA101E (4 sidor) i kategorin Lampa. Denna guide var användbar för 5 personer och betygsatt med 4.5 stjärnor i genomsnitt av 2 användare
Sida 1/4

2±0.2m
350±5mm 16.67±0.2mm
5010±10mm
6±0.2mm
100±1mm
+
-
DC
24V
+
-
DC
24V
+
-+
-
Flexible 24V INTEGRAL LED Bendy Strip IP20
Installation Guide
IMPORTANT NOTICE
• This product should be installed according to the instructions in this guide and by a qualied electrical installer.
• All electrical work must be completed in accordance with the latest IET wiring regulations (formally IEE) for the UK or in accordance with all applicable
regulations and laws in the country in which it is being installed. This product falls under a low voltage Class III circuit category.
• Switch OFF power at the mains before installing the LED strip
• Strip must only be installed indoors, in a dry area
• Avoid looking directly at the strip when turned on, for a long period of time
• Observe the operating temperature of the LED strip: -25C to +60C
To avoid any damage to the LED strip or driver;
• Always disconnect or switch o the power supply before cutting or connecting an LED strip.
Wait at least one minute before connecting to a recently powered driver.
• Always handle the LED strip with care.
• Observe the correct polarity for 24V connections, positive (+ RED) to positive and negative (–BLACK) to negative.
• Safely route and secure all wires so they cannot be pinched or damaged
• Do NOT power the strip whilst in its packaging reel
• Do NOT touch the LEDs on the strip surface
• To avoid damage or malfuction, DO NOT coat the LED strip with pount, varnish or similar.
INTRODUCTION
• This installation guide is for exible, IP20 constant voltage self-adhesive LED strips produced by Integral LED.
• Unlike standard LED strip, Integral LED Bendy Strip can be bent on dierent axis allowing easy installation to non-linear shape such as furniture or
signage letters.
• The LED Strip is dimmable with a suitable driver and dimmable controller.
A) CHOOSING A 24V LED DRIVER
• This LED strip operates with a 24V DC constant-voltage power supply known as a driver. Drivers are sold separately and are available in varying wattage
outputs.
• The specication of the driver required will depend on the total power requirement of the connected strip(s). The power output of the driver (wattage
rating) must be at least 10% higher than the total required wattage of the strip(s) being powered.
For example, if you are installing 2 LED strips of 1M each and the power requirement of each 1M strip is 6.6W/metre – the total power requirement is 13.2W.
The power rating of the driver should be a least 10% above 13.2W i.e. A minimum of 15W
• Recommended cable specication: 2x0.5mm
2, when cables are required between strip and LED driver.
B) STRIP PROFILE
In the bag
1 X 5M IP20 INTEGRAL LED STRIP on reel pre-tted with an
appropriate connector to connect to a suitable power supply.
IP20
Integral Partcode Colour/Temp.
ILSTWHIA0100E 3000K
ILSTWHIA0101E 4000K
ILSTWHIA0102E 6500K
WARNING
DO NOT CONNECT THE LED STRIP DIRECTLY TO A MAINS SUPPLY.
THE LED STRIP MUST ONLY BE CONNECTED TO A SUITABLE 24V LED DRIVER.
Unit: mm

C) PRE-INSTALLATION GUIDE
Integral LED Bendy strips make a great addition to any domestic or commercial environment. The
possibilities are endless so the requirement for each lighting project will be dierent.
It is worth taking some time to plan your project for the desired eect before removing the backing
tape on the LED strip. The specication, length, mounting position and distance from an object
determines the appearance of a lit LED strip. You will also need to consider the placement and
concealment, of the 24V LED driver and wires, and the power switch to turn the LED strip ON and
OFF.
We recommend that you test the strip by temporarily holding the LED strip in place by using a
suitable tape, such as masking tape (do not apply the tape on LED). Safely connect the power supply
- you can then carefully move the strip to try dierent angles and positions to gain the desired
illumination eect and position. Check for light spots, reections and shadows.
Please consider the surface you are applying the LED strip to; the surface should be stable, clean
and smooth. On removal of a xed LED strip - damage to paint, wallpaper or other substrates may
occur. Take care in measuring the length required before cutting the strip, take into account the
space required for the connector. You may also consider using a spirit level, plumb line or other
guide if required.

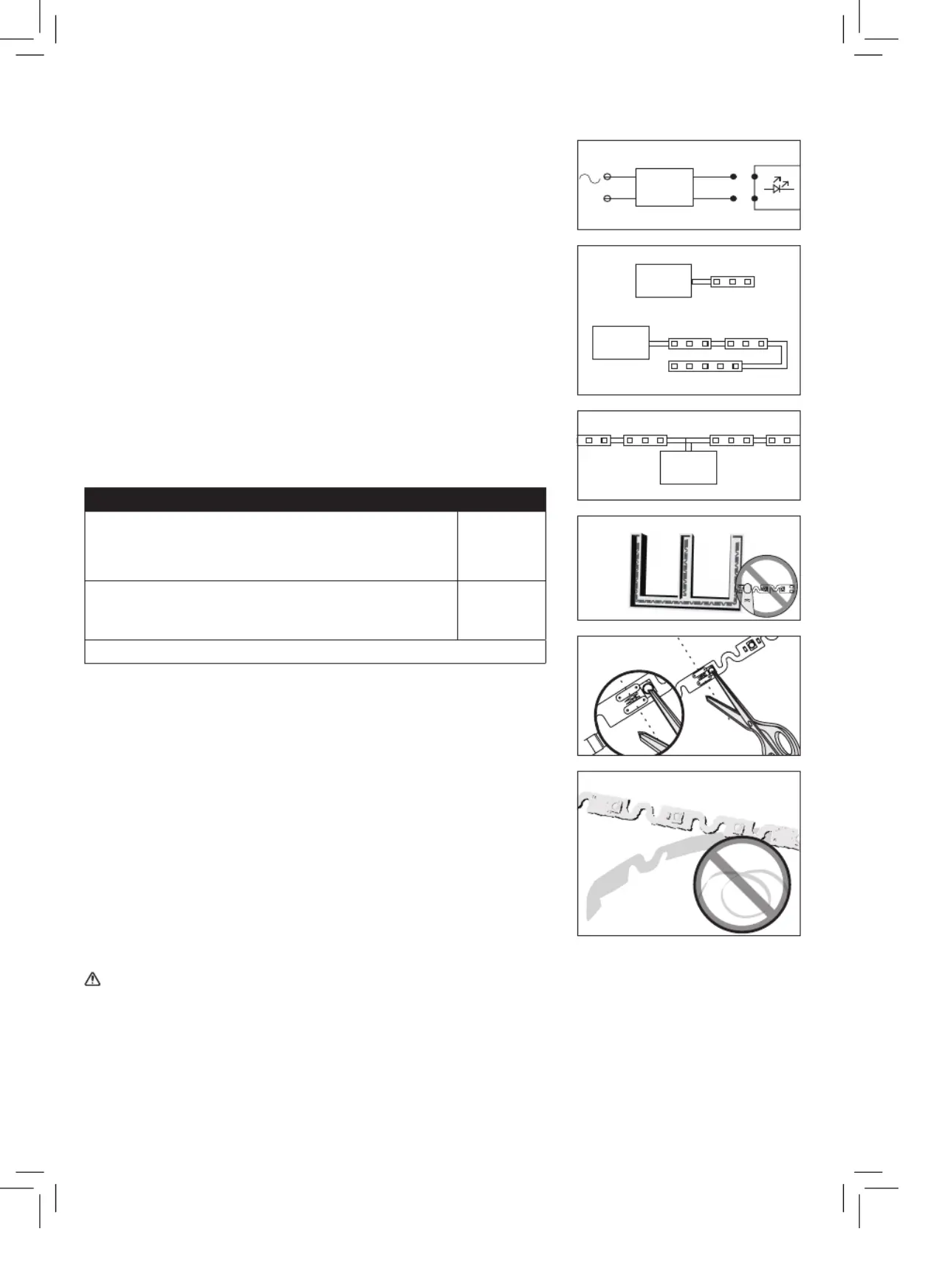

D) POWER SUPPLY CONFIGURATIONS AND WIRING
1) POWERING THE STRIP
The LED strip is powered by a suitable 24V LED driver. Ensure the power is OFF and that the correct
polarity is observed when wiring the LED driver. (Fig 1)
2) VOLTAGE DROP
If the total length of LED strips powered by a single LED driver is too long, you may nd that the LEDs
furthest away from the driver will be unlit or dimmed. To avoid this you will need to use additional
drivers. For instance if you are powering 2 X 5M strips from one driver – you will need to split the run
into separate 5M runs each powered by its own driver.
E) PRECAUTIONS FOR INSTALLING THE INTEGRAL LED STRIP
1. Please check the bag contents before installation.
2. Do not remove the strip from the packaging until ready for installation.
3. Do NOT touch or press the LEDs or other components during installation (g 4).
4. Do not power the strip before completely releasing it from the reel.
5. Do not install the product in an environment, which exposes it to direct sunlight, rain, water,
moisture or other particles.
6. If the product needs to be cut to length; please measure carefully and cut squarely at the
appropriate cut marks only using a sharp pair of scissors (g 5).
7. To x the LED strip to a smooth surface; the strip is pre-tted with 3M adhesive backing tape.
Ensure that the mounting surface is clean, dry and free from any oils, grease or wax.
8. The strip is pre-tted with positive and negative connection wires at one end. Check the
supply voltage and wire connections before switching the power on.
CAUTION – Pressing on LEDs, cutting at non-cut points, incorrectly powering the strip or
exposing a standard strip (IP20) to water, particles or direct sunlight will invalidate the warranty
(your statutory rights remain unaected).
F) INSTALLATION INSTRUCTIONS
1. To ensure a successful installation - please read the precautions and pre-installation
recommendations above.
2. The mounting surface must be clean, dry and free from dust or grease.
3. Release the LED strip from the package and unreel.
4. Measure and cut the LED strip to the required length (only cut at the cut marks with power
OFF).
Typical installation conguration
Straight run
An LED driver powers the rst LED strip. Additional strips can be connected
in series. The installer will need to consider voltage drop. The maximum run
length is 5 metres (see 2).
g 2
Powered from the centre
Power one or two equal lengths of LED strip from the centre.
This conguration will give the best results.
g 3
Additional accessories (sold separately) may be required for complex congurations.
D R I V E R
200-240V AC
N
L
- V
+ V
- V
+ V
L E D 1
D) 1 (g 1)
D R I V E R
D R I V E R
Max Run = 5 Metres
D) 1 (g 2)
D R I V E R
D) 1 (g 3)
E) 6 (g 5)
F) 5 (g 6)
E) 3 (g 4)
24V DC

5. Remove the 3M self-adhesive backing tape from the strip gradually during installation.
Do not remove it all at once to avoid the strip becoming entangled and sticking to itself (g 6).
6. Stick the LED strip to the mounting surface by pressing on the strip in between components
only. Do NOT press on the LEDs or other components on the strip (g 4).
7. Once the strip is axed, it is then ready to be wired. Please see section C1.
G) TROUBLESHOOTING
Symptoms Possible Causes Solutions
None of the LEDs light up
1. No power to the driver. Please check to see if there is power being delivered to the
drivers power supply via the connection to AC power.
2. The power supply driver connection is wired
incorrectly.
Check the polarity for 24V connections, positive (+) to
positive and negative (–) to negative. See power supply
driver wiring diagram (Section C1).
3. There is no output voltage from the power supply
driver.
Check the power supply driver; it may need to be replaced.
4. The strip wires are not connected properly to the
strip or to the driver.
Check the connectors and polarity. Make sure strip is cut
correctly and strip terminals are making a connection within
the connector.
5. Overvoltage may have damaged the LEDs. The working voltage should be within 5% of the rated voltage
(24V). If overvoltage has damaged the product then this is not
covered by the warranty.
Some of the LEDs do
not work
1. LEDs on the strip are powered in series. If some
LEDs in the centre of the strip do not light and LEDs
towards the end of the strip do light then the LEDs
have failed.
Strip may need to be replaced.
2. If the LEDs in the beginning of the strip work but
none are working after the rst non-working LED
then there is a connection issue. This could be caused
by a poor connection or if the connector is not tted
to the strip correctly. This could also be a result of
the strip being bent more than the recommended
bending diameter.
Please check the strip connection from the section of the
strip that is not lit. Check soldering connections. Check
connector joins. Strip may need to be replaced.
The strip when lit is dim or
not evenly lit
1. The power load (total Wattage of all strips
connected) exceeds the rated Wattage of the power
supply driver (total output).
The power supply needed will depend on the total length
of strips in use. The power supply driver will need to have an
output that is at least 10% more than the total wattage needed
to power the strip. See section A.
2. The length of wire between the strip and power
supply or the length of the wire in between each strip
is too long.
1. Use shorter strip supply wires.
2. Use thicker supply wires.
3. Make sure that the input voltage of each LED strip is within 90%
of the rated voltage.
3. Too many LED strips are connected to the power
supply driver.
2. Make sure that the total wattage of all LED strips is within
90% of the total output of the power supply driver. If the total
wattage of all strips exceeds the driver output then please
use a higher wattage driver.
All LEDs are ashing
intermittently
There is an intermittent connection at the power
supply driver.
Please check driver to AC connection and driver to strip
connection.
Some of the LEDs are
ashing intermittently
There is an intermittent connection at each strip
branch connection.
Please check all strip connections and check connector joins.
LEDs blink once when
power is switch on
Please check that the driver is compatible. This is a 24V constant voltage LED strip. You will need to
power the strip using a 24 V constant voltage LED driver.
Limited 3-year warranty
This product is for indoor use in dry locations. Improper installation, abuse or miss-powering of the strip or failure
to use the LED strip for its intended purpose will void the warranty. LED strips cannot be returned or exchanged
once cut (unless the strip is faulty due to parts or workmanship). Proof of purchase is required for all returns.
Your statutory rights remain unaected. Please see www.integral-led/warranty
WASTE ELECTRICAL PRODUCTS SHOULD NOT BE DISPOSED OF WITH
HOUSEHOLD WASTE. PLEASE RECYCLE WHERE FACILITIES EXIST.
CHECK WITH YOUR LOCAL AUTHORITY FOR RECYCLING ADVICE.
Integral LED is a division
of Integral Memory plc:
Unit 6 Iron Bridge Close,
Iron Bridge Business Park,
London, NW10 0UF, UK
