USER MANUAL
2
Cap. 1 – Introduction 3
1.1 Hello! 2
1.2 Warnings 2
1.3 Main specifications 3
1.4 Package contents 3
Cap. 2 – Getting Started 4
2.1 Installation instructions 4
2.2 Main Commands 4
2.3 Battery charging 4
2.4 LED indication 4
2.5 First starting 4
2.6 Voice guide language setting 4
2.7 Audio Source Management 5
2.7.1 Audio sources - Two-way conference mode (Rider and passenger or two riders) 5
2.7.2 Audio sources - Multi-user conference mode (max 8 riders) 5
2.8 Voice Commands 5
2.9 Software 5
2.9.1 Interphone updater 5
2.9.2 Interphone menu 5
2.9.3 APP Interphone for smartphone 5
Cap. 3 – Settings 6
3.1 System settings 6
Cap. 4 – Intercom 6
4.1 Pairing 6
4.1.1 : Automatic pairing (GENIUS PAIRING™) 6
4.1.2: Manual pairing 7
4.1.3: Pairing to a PREVIOUS SERIES INTERCOM or DIFFERENT MODEL device 7
4.1.4: Pairing with a NON-Interphone (ANYCOM™) device 7
4.2 Two-way intercom conversation 7
4.3 Three-way intercom conversation 7
4.4 Multiuser Intercom conversation 7
4.5 Automatic Reconnection 8
4.6 warnings and suggestion 8
Cap. 5 – Phone / GPS / TFT-Multimedia System 8
5.1 Pairing 8
5.2 Telephone use 8
5.3 Phone call sharing
In the case of a multi-user conference, the call will be shared with all intercoms connected
downstream of the unit that starts sharing. 8
5.4 Warnings and tips for using the phone 8
5.5 GPS 8
Cap. 6 – FM RADIO 9
6.1 Listening to FM radio 9
6.2 FM Mix 9
6.3 Warnings and tips for using FM radio 9
Cap. 7 – Music 9
7.1 Music Streaming 9
Music streaming will be in background mode if intercom conversation is active,
at the volume set with the relevant MIX Level parameter (chap. 3.1). 9
7.2 Music Sharing 9
7.3 Warnings and suggestions for MUSIC function 9
Cap. 8 – AUX 10
8.1 AUX Music Streaming 10
Cap. 9 – Audio equalizer 10
3
CAP. 1 – INTRODUCTION
1.1 Hello!
Thank you for choosing our product. Interphone AVANT is a Bluetooth® helmet headset for wireless
entertainment and communication system among multiple bikers.
Interphone AVANT can be installed on most helmets by attachment / detachment quick bracket.
The ergonomic shape of the unit is user-friendly also with motorbike gloves.
InterphoneF5MC is waterproof tested, up to IP67 protection degree.
1.2 Warnings
BATTERY
Fully charge the battery before using the product for the first time.
Do not store the Product without charging it. Failure to do so may cause irreversible damage to the
battery capacity. Charge the battery every TWO months.
IMPERMEABILITY
The external unit (control unit), connected to the audio kit, is classified IP67 according to the IEC60529
standard. The control unit, connected to the audio kit , can therefore be immersed in a meter of fresh
water for a maximum of 30 (thirty) minutes.
Despite this classification, the device is not immune to greater stress, such as prolonged immersions or
high pressure water jets.
Using the product during intense meteorological phenomena, at high speeds, may be equivalent to
subjecting the product to a high pressure jet.
FOLLOW ALL SUGGESTIONS CAREFULLY TO AVOID DAMAGING THE DEVICE:
Do not immerse the product in fresh water which is more than a metre deep for more than 30 minutes.
Do not store the product when still wet: dry it with a clean, soft cloth. Dry any water or moisture present
in the connector of the control and /oraudio kit with hot air for a least 10 minutes, so as to prevent the
oxidation of the contacts.
Do not expose the product to salt water or ionised water, drinks or other liquids.
If the device is exposed to liquids other than fresh water, wash the device with cold fresh water and dry
it carefully with a clean, soft cloth.
Do not expose the product to high pressure water jets.
Make sure that the audio kit connector is completely inserted in the control unit. If not, complete pro-
tection against water and dust is not guaranteed.
1.3 Main specifications
• Intercom: INTERPHONE AVANT allows communication between two motorcyclists of up to a maximum
distance of 1.7 km (in open field). The communication between a maximum of eight motorcyclists in
conference is also possible
• Telephone/GPS: Interphone AVANT can be connected simultaneously to a maximum of two devices (mo-
bile phone/GPS navigators). GPS directions can be heard in background during intercom conversation.
• FM Radio: Interphone AVANT has an integrated FM-RDS receiver for the 88-108 MHz band. It is pos-
sible to store up to 8 stations. The FM radio can be heard in background during intercom conversation.
• Music: Interphone AVANT can play music from Bluetooth® devices, through A2DP and AVRCP profiles
(smartphones, MP3 player etc.). The music can be played in background, during the intercom conver-
sation.
• Voice commands: with Interphone AVANT is possible to use voice commands to operate the main fea-
tures, leaving the hands on handlebar.
• Voice synthesis TTS: Interphone AVANT is equipped with voice synthesis (Text To Speech), a techno-
logy used to read the caller ID for incoming calls and the FM radio station through RDS information.
• Quick touch: Interphone AVANT features a Quick touch™ interface consisting of four keys for direct
access to the functions. The single pressing of a button will activate the corresponding function, quickly
and intuitively, without the need for a menu.
• Fast charge: Interphone AVANT features quick battery charging technology. A full charging cycle takes
90 minutes and after only 60 minutes it is possible to achieve 80% autonomy.

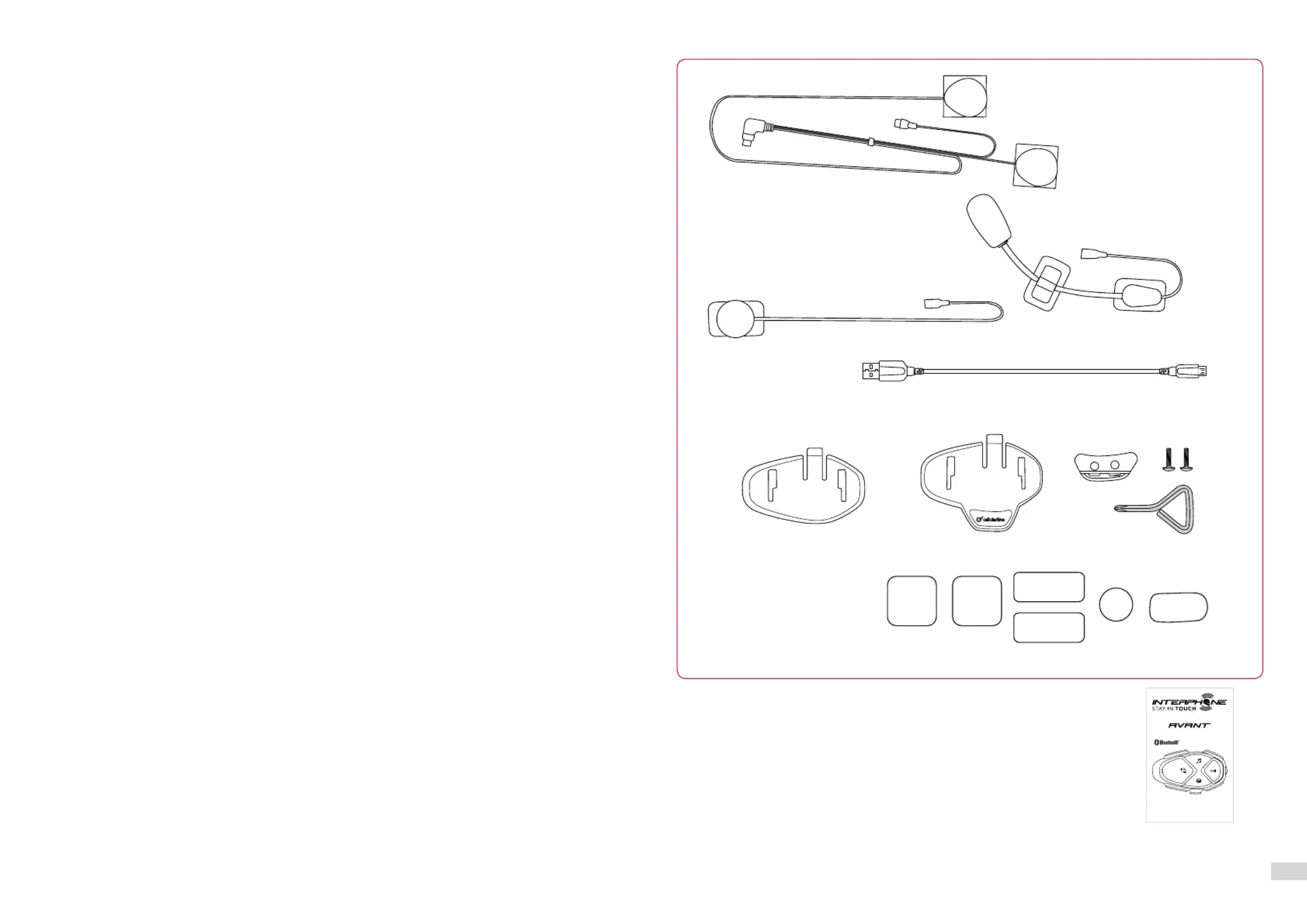

1.4 Package contents
In the twin pack, control unit, audio kit and charging / data cable are provided in quantities of two pie-
ces for each component.
X 2
QUICK GUIDE
CHECK FOR SOFTWARE UPDATES ON WEBSITE
www.interphone.com
Microphone for full face helmet
Speaker kit
Microphone for ip-up/jet helmet
USB cable for charging and data
Velcro and spare sponges
Clamp bracketAdhesive bracket
