ISDT Q8 Max Bruksanvisning

Läs nedan 📖 manual på svenska för ISDT Q8 Max (7 sidor) i kategorin Inte kategoriserad. Denna guide var användbar för 7 personer och betygsatt med 4.5 stjärnor i genomsnitt av 2 användare

Sida 1/7

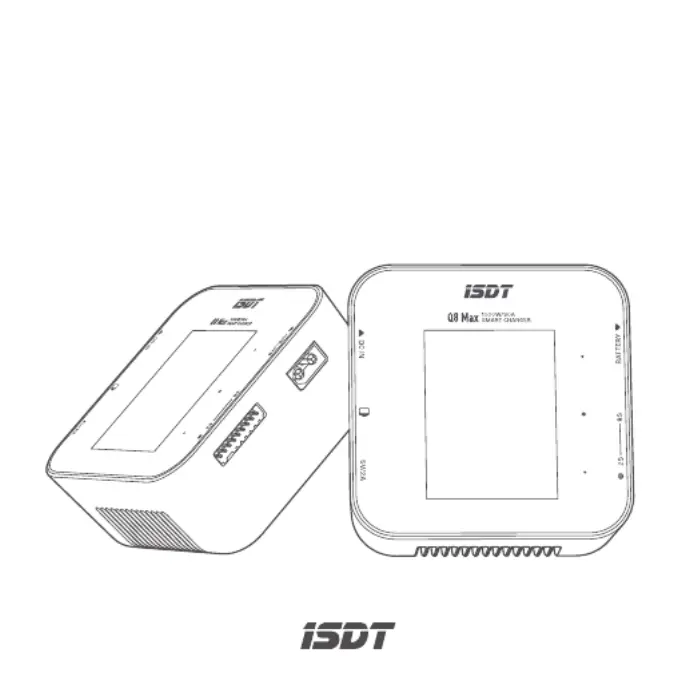

Q8 Max
1000W SMART CHARGER
Never use the charger without supervision, please stop using the charger and refer to the
manual for reasons if any functional abnormity.
Keep the charger away from dust, humidity, rain and high temperature, as well as avoid
direct exposure to the sunlight and intense vibration.
Place the charger on a heat-resisting, non-flammable and insulating surface. Do not use it
on the car’s seats, carpet or other similar places. Keep inflammable and explosive objects
away from operation areas of the charger.
Read the instruction manual carefully to be familiar with the features of the charger, and
set proper charging parameters before operating. Setting the parameters incorrectly will
result in damage to the product, personal property and cause serious injury as well.
For your safety and a better user experience, please read this manual and follow the
instruction before using the new charger.
Please visit: www.isdt.co for more details on the functions of this smart charger, as well as
purchase various accessories. Functions of products will be kept on upgrading,
the manual in your hand may be different from the actual operation,
please refer to the actual functions.
Thanks for purchasing the ISDT Q8 Max Smart Charger.
GJSF!I B[ BSE "
XBSOJOH"!
NEVER USE CHAR RGER UNSUPE VISED
• Never attempt to charge primary (non-rechargeable) batteries.
Batteries pose a sever e risk of fire if not properly handled.
Read entire o peration manual before using charger.
This unit may emit heat during use.
Only oper ate this device in a cool ventilated area away from flammable objects.
Failure to obser ve safety procedures may cause damages to property or injury.
Function Buttons
Model No: Q8 Max
Input voltage: DC 10~34V
Output voltage: DC 1~34V
Max. input current: 33A
Charging current: 0.2~30.0A
Discharging current: 0.2~3.0A
Max. charging power: 1000W
Max. discharging power: 30W
Balance current: 1.5A/Cell Max
Supported battery types and cell count:
LiFe,LiIon,LiPo 1~8S; LiHv 1~7S; Pb 1~12S; NiMH/Cd 1~16S
Product Specifications
Input BattGo: Support
Output BattGo: Support
Abnormal voltage alarm: Support
Incorrect cell count setting alarm: Support
Working temperature: 0℃~40℃
Storage temperature: -20℃~60
Dimension: 95×95×45mm
Weight: 290g
Power
Input
Display
Screen
Touch
Board
Micro USB
Update Port
Power
Output
Balance
Port
Fan
Vent
USB Port
