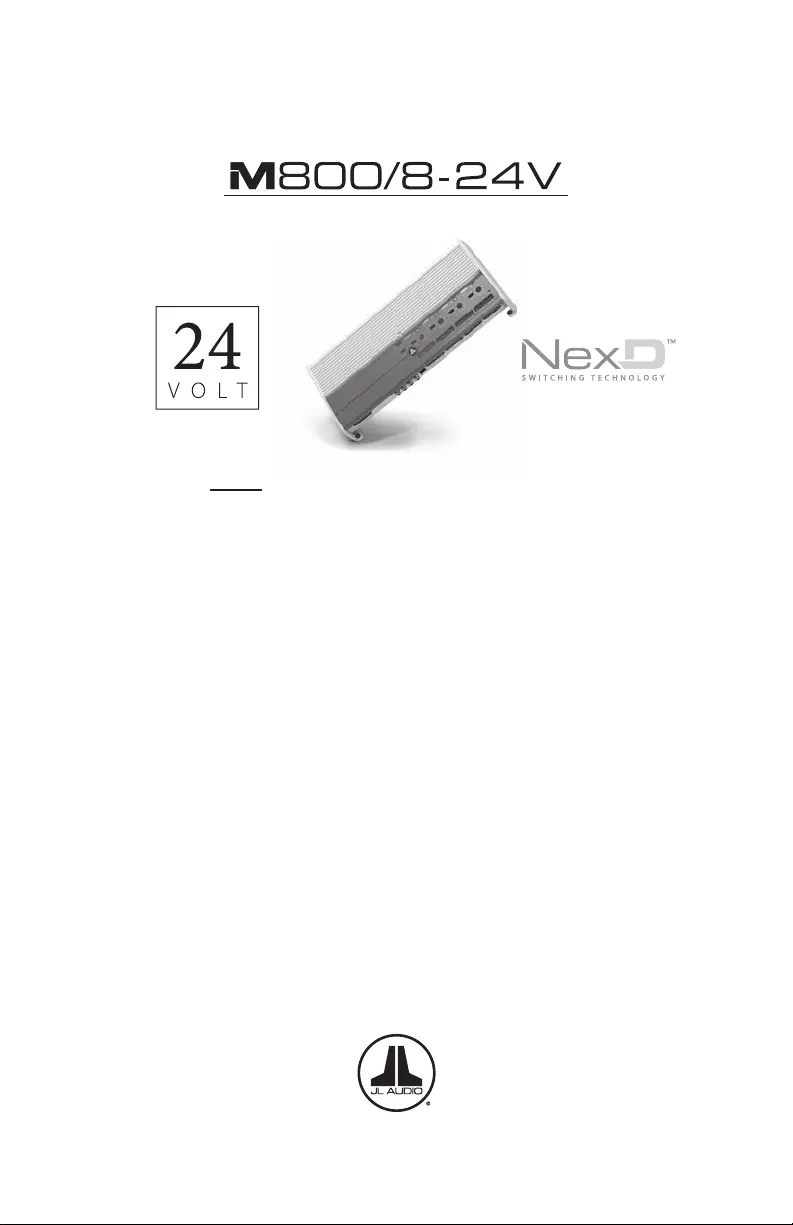

OWNER’S MANUAL
800W Marine 8 Channel Amplier
Thank you for purchasing a JL Audio amplifier for
your marine sound system.
Your amplifier has been designed and manufactured to exacting
standards in order to ensure years of musical enjoyment in your vessel or
vehicle. For maximum performance, we highly recommend that you have
your new amplifier installed by an authorized JL Audio dealer. Your
authorized dealer has the training, expertise and installation equipment
to ensure optimum performance from this product. Should you
decide to install the amplifier yourself, please take the time
to read this manual thoroughly so as to familiarize yourself
with its installation requirements and setup procedures.
If you have any questions regarding the instructions in this
manual or any aspect of your amplifier’s operation, please contact your
authorized JL Audio dealer for assistance. If you need further assistance,
please call the JL Audio Technical Support Department
at (954) 443-1100 during business hours.
NOT FOR USE IN 12 V SYSTEMS!
2 | JL Audio - M800/8-24V Owner’s Manual
PROTECT YOUR HEARING!
We value you as a long-term customer. For
that reason, we urge you to practice restraint in
the operation of this product so as not to damage
your hearing and that of others in your vessel
or vehicle. Studies have shown that continuous
exposure to high sound pressure levels can lead
to permanent (irreparable) hearing loss. This and
all other high-power amplifiers are capable of
producing such high sound pressure levels when
connected to a speaker system. Please limit your
continuous exposure to high volume levels.
While driving, operate your audio system in
a manner that still allows you to hear necessary
noises to operate your vessel or vehicle safely
(horns, sirens, etc.).
SERIAL NUMBER
In the event that your amplifier requires
service or is ever stolen, you will need to have
a record of the product’s serial number. Please
take the time to enter that number in the space
provided below. The serial number can be found
on the bottom panel of the amplifier and on the
amplifier packaging.
Serial Number:
INSTALLATION APPLICATIONS
This amplifier is designed for operation in
vessels or vehicles with 24 volt, negative-ground
electrical systems. Use of this product in vessels
or vehicles with positive ground and/or voltages
other than 24 V may result in damage to the
product and will void the warranty.
This product is not certified or approved for
use in aircraft.
Do not attempt to “bridge” the outputs of this
amplifier with the outputs of a second amplifier,
including an identical one.
PLANNING YOUR INSTALLATION
It is important that you take the time to read
this manual and that you plan out your
installation carefully. The following are some
considerations that you must take into account
when planning your installation.
Cooling Efficiency Considerations:
The outer shell of your JL Audio amplifier is
designed to remove heat from the amplifier
circuitry. For optimum cooling performance, this
outer shell should be exposed to as large a volume
of air as possible. Enclosing the amplifier in a
small, poorly ventilated chamber can lead to
excessive heat build-up and degraded
performance. If an installation calls for an
enclosure around the amplifier, we recommend
that this enclosure be ventilated with the aid
of a fan. In normal applications, fan-cooling
is not necessary.
+24 VDC Ground Remote
2 Ch. I nput 1 feeds CH. 1, CH. 3, CH. 5 & CH. 7
Input 2 feeds CH. 2, CH. 4, C H. 6 & CH. 8
4 Ch. I nput 1 feeds CH. 1 & CH. 3
Input 2 feeds CH. 2 & C H. 4
Input 5 feeds CH. 5 & C H. 7
Input 6 feeds CH. 6 & C H. 8
8 Ch. Each input f eeds its
corr esponding output channel
INPUT MODES:
Marine 8 Channel Ampl ifier
NOT FOR USE I N 12V SYST E MS !
-24V
Remote Turn-On
Connector
(pg. 6)
Chassis Ground
Connector
(pg. 5)
Pr
+24 V Power
Connector
(pg. 5)
+24 VDC Ground Remot e
NOT FOR USE IN 12V SYSTEMS!
3
Mounting the amplifier upside down is
strongly discouraged.
Safety Considerations:
Your amplifier needs to be installed in a dry,
well-ventilated environment and in a manner
which does not interfere with your vehicle or
vessels factory installed electronic devices. You
should also take the time to securely mount the
amplifier using appropriate hardware so that it
does not come loose in the event of a collision or a
sudden jolt to the vehicle or vessel.
Stupid Mistakes to Avoid:
Check before drilling any holes in your vehicle or
vessel to make sure that you will not be drilling
through the hull, a fuel tank, fuel line, wiring
harness or other vital system.
Do not run system wiring outside or underneath
the vehicle or vessel. This is an extremely
dangerous practice which can result in severe
damage and/or injury.
Protect all system wires from sharp edges
(metal, fiberglass, etc.) by carefully routing
them, tying them down and using grommets
and loom where appropriate.
Do not mount the amplifier in the engine
compartment or in any other area that will
expose the amplifier circuitry to the elements.
While this amplifier is designed
for marine applications, it is not waterproof
and it should not be mounted where it is
likely to get wet.
Remote
Level
Mode
All | 5- 8 | 7 &8
Input Mode
2 Ch. | 4 Ch. | 8 Ch.
CH. 7
(L)CH. 8
(R)
CH. 7 & 8
Filter Mode
Filter Freq. (Hz)
Input
Sens.
O | HP | L P
CH. 5
(
L)CH. 6
(
R)
CH. 3
(L)CH. 4
(
R)
CH. 1
(L)
CH. 1 & 2 CH. 3 & 4 CH. 5 & 6
CH. 2
(
R)
Filter Mode
Filter Freq. (Hz)
Input
Sens.
O | HP | L P
Filter Mode
Filter Freq. (Hz)
Input
Sens.
O | HP | LP
Filter Mode
Filter Freq. (Hz)
Input
Sens.
O | HP | LP
CH. 1
CH. 2
CH. 3
CH. 4
CH. 5
CH. 6
( L )
(R)
CH. 7
CH. 8
INP UT SE CT ION
Status
LED
(pg. 11)
Ch. 1 & 2 Filter
Frequency
Selector
(pg. 8)
Ch. 1 & 2
Filter Mode
Selection
(pg. 8)
Ch. 1 & 2 Input
Sensitivity Control
(pg. 7)
Ch. 3 & 4 Filter
Frequency
Selector
(pg. 8)
Ch. 3 & 4
Filter Mode
Selection
(pg. 8)
Ch. 3 & 4 Input
Sensitivity Control
(pg. 7)
Ch. 5 & 6 Filter
Frequency
Selector
(pg. 8)
Ch. 5 & 6
Filter Mode
Selection
(pg. 8)
Ch. 5 & 6 Input
Sensitivity Control
(pg. 7)
Ch. 7 & 8 Filter
Frequency
Selector
(pg. 8)
Ch. 7 & 8
Filter Mode
Selection
(pg. 8)
Ch. 7 & 8 Input
Sensitivity Control
(pg. 7)
Remote
Level Mode
Switch
(pg. 9)
Input
Mode
Switch
(pg. 7)
Remote
Level
Control
CH. 5
(L)CH. 6
(R)
CH. 3
(L)CH. 4
(
R)
CH. 1
(L)CH. 2
(R)
Bridged
CH. 7
(L)CH. 8
(R
)
BridgedBridgedBridged
IN PUT SECTION
(L)
(
R)
CH. 1&2 C H. 3&4 CH. 5&6 CH. 7&8
Channels 1 & 2
reamp Input Jacks
(pg. 7)
Channels 5 & 6
Preamp Input Jacks
(pg. 7)
Channels 5 & 6
Speaker Outputs
(pg. 10)
Channels 7 & 8
Speaker Outputs
(pg. 10)
Channels 3 & 4
Speaker Outputs
(pg. 10)
Channels 1 & 2
Speaker Outputs
(pg. 10)
Jack for
Remote Level
Control Knob
(pg. 9)
Channels 3 & 4
Preamp Input Jacks
(pg. 7)
Channels 7 & 8
Preamp Input Jacks
(pg. 7)
