Stealthbox®®

I N S T A L L A T I O N G U I D E

SB- G M - V E T C6 / 1 0 W3 v 2 , J L AU D I O , In c 2 00 5 Sh e e t SKU # 0 1 1 1 9 8 R e v i s io n 1 1 / 1 6 /2 0 0 5

Pag e 1

for the

SB-GM-VETC6/10W3v2

(fits 2005-Up Chevrolet Corvette C6)

This Stealthbox® is a product which

requires professional installation skills and

tools.

Please read this installation guide thor-

oughly before beginning the project. It

will guide you step by step through the

installation. Several of the steps in this

process may require two people to

accomplish.

It is absolutely vital that the enclosure

be properly mounted to the vehicle

according to these instructions. Failure

to mount the enclosure properly pres-

ents two problems: 1) The sub-bass

performance will suffer due to the

movement of the enclosure caused by

the force exerted by the woofer(s) and

2) A loose enclosure presents a serious

safety hazard in the event of a collision

or sudden deceleration.

Please enjoy your JL Audio Stealthbox®

responsibly.

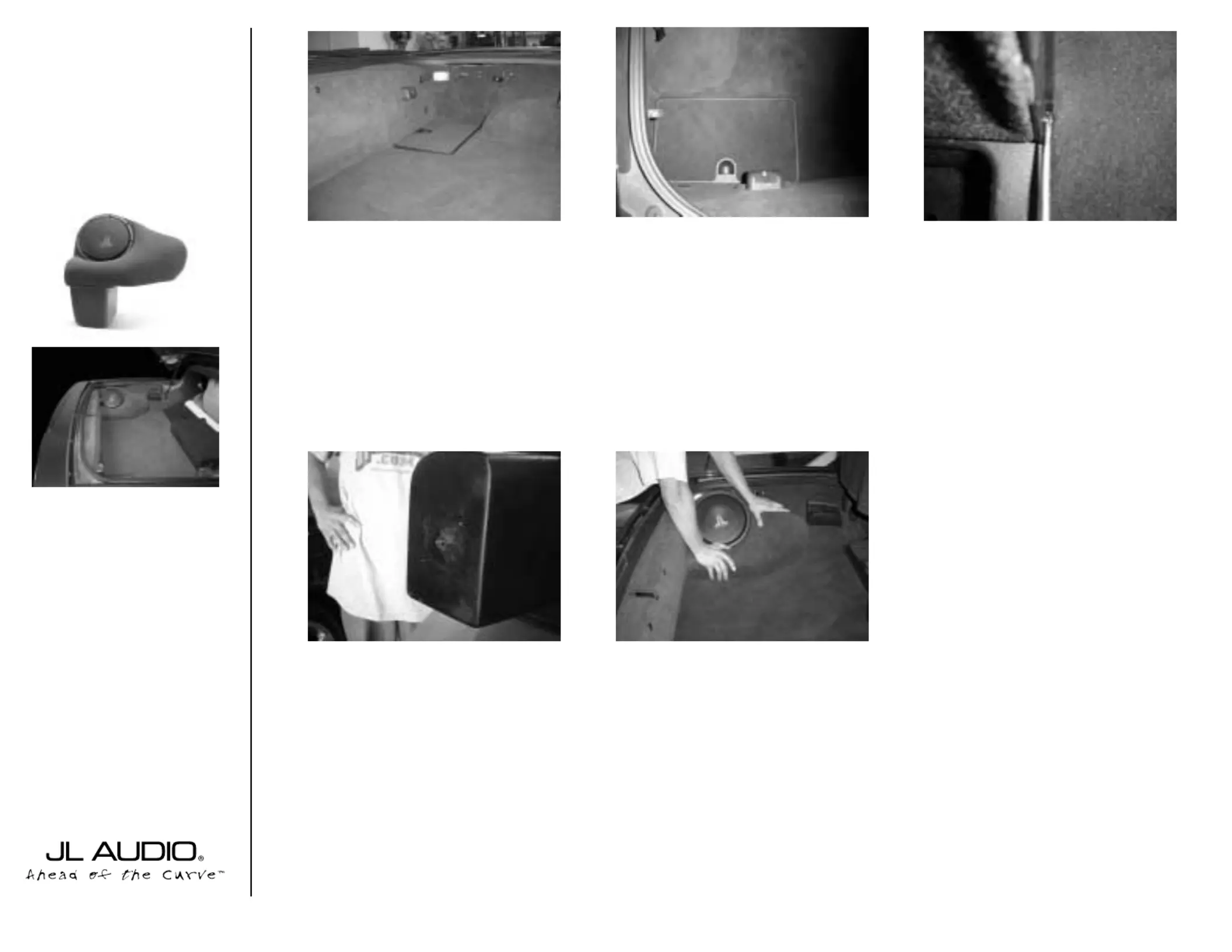

STEP 1:

Remove all contents from rear hatch

area.

STEP 2:

Flip open the driver’s side cargo

compartment door.

STEP 3:

With aid of a flat blade, pop the

door off the hinges. Carful, these are plastic

pieces.

STEP 4:

Place the supplied Socket Cup Set

Screw into the bottom of the Stealthbox®.

Leaving about an 1/2” exposed. Make sure

that the cup side is on the outside of the

enclosure.

STEP 5:

(a)Remove the paper backing off the

supplied wax square.

(b)From inside the right side cargo compart-

ment, place the middle of the wax square 3”

from the front wall and 4-3/4” from the right

side wall.

(c)Place the Stealthbox® into place. Press firm-

ly down onto the enclosure.This is too make

an impression of the Socket Cup Set Screw

onto the wax square. Remove the Stealthbox.

If there is no impression on the wax square,

remove the enclosure, back out the Socket

Cup Set Screw and repeat STEP5: (c).

START

HERE

Continued on Next Page ➔

w w w . j l a u d i o . c o m

➔

STEP 6: *CAUTION*

Before drilling, make sure that you are not going

to be drilling into any gas lines, brake lines, trans-

mission lines, electrical wiring, or anything else that

might cause a reduction in your weekly pay.

Always wear eye protection when drilling.

With the use of a 1/2” drill bit and drill. Drill out

the floor at the impression on the wax square.

Specifications:

Enclosure Type: Sealed

Driver Type: 10W3v2-D2

Nominal Impedance: 4Ω

Cont. Power Handling: 300 Watts

JL Audio recommends using a high quality amplifier such as the JL Audio 250/1. The diagram below shows the recommended

crossover, infrasonic filter and equalizer settings for the 250/1 when being used to power your Stealthbox®.

Included Hardware:

1) 3” x 3” Wax Square

1) 3/8-16 x 2-1/4” Socket Cup Set Screw

1) Mounting Support Plate

1) 3/8” x 1-1/4” Fender Washer

1) 3/8” Flat Washer

1) 3/8” Lock Washer

1) 3/8”-16 Hex Nut

10369 N. Commerce Pkwy, Miramar, Florida 33025-392 Phone: 954.443.1100 Fax: 954.443.1111

JL AUDIO 250/1

monoblock subwoofer amplifier

Amplifier Input Section

Input Sens.Input Voltage

Low/High

Left Ch. Right Ch.

Signal Sensing

Off/On

Output Mode

Full-Range/Low-Pass/High-Pass

Left Ch. Right Ch.

Amp LP Filter

Mode/Slope

Off/12dB/24dB

Filter Freq. (Hz)

Bass Control

LF Boost (dB)

Off/30Hz

Infrasonic Filter

+1 +13

+10

Preamp Output Section

+12VDC Ground Remote

The JL Audio 250/1 is a very versatile audio component. Please consult the owner’s manual for detailed information

about installing and tuning this amplifier.

➔ ➔ ➔

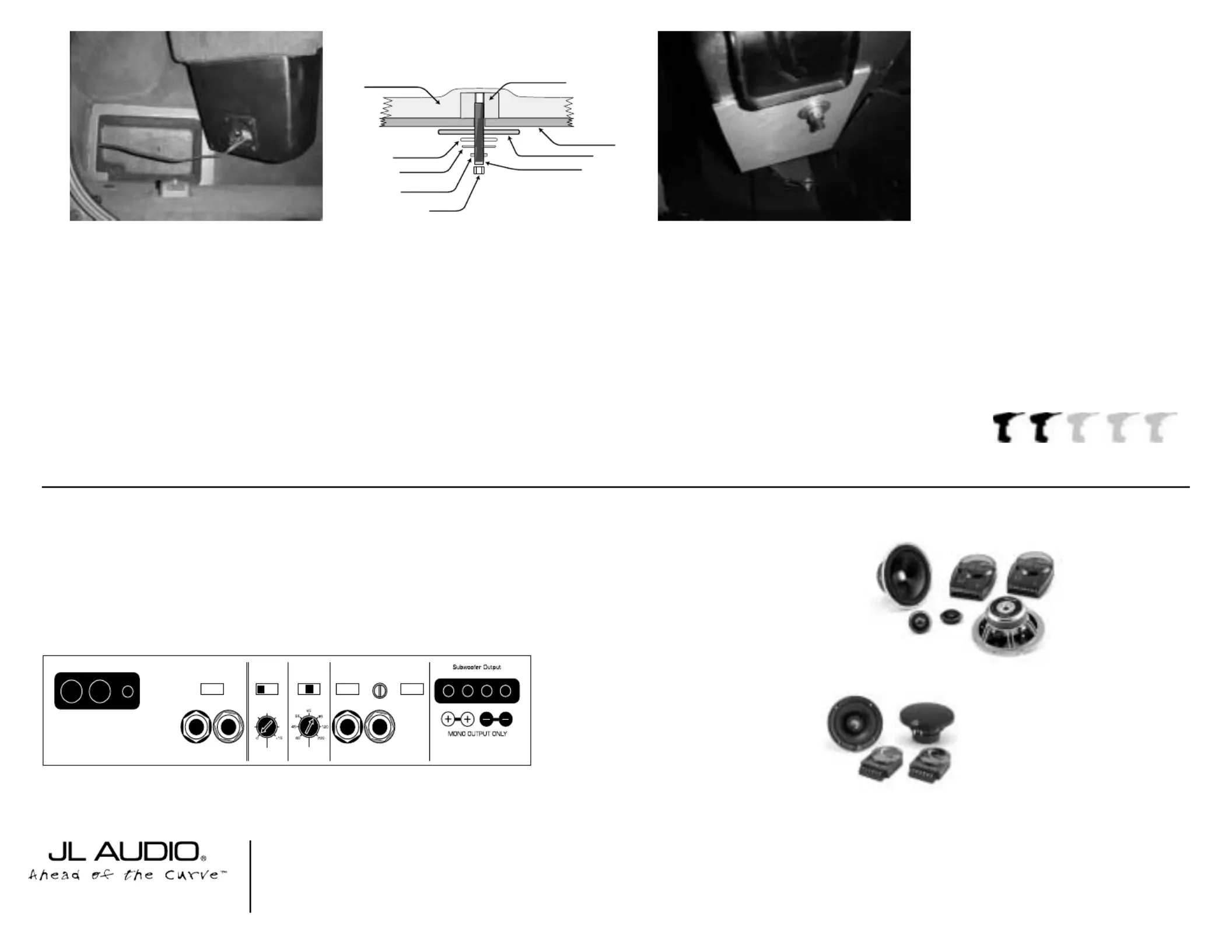

STEP 7: (a)Run speaker wire form the amplifier’s

location to the Stealthbox’s® terminal and connect.

(b)Back out the Socket Cup Set Screw to expose

1-1/2”. Place the Stealthbox® into place and guide

the Socket Cup Set Screw through the drilled hole

from STEP 6.

STEALTHBOX WALL THREADED INSERT

FENDER WASHER

VEHICLE SHEET METAL

FLAT WASHER SOCKET CUP SET SCREW

LOCK WASHER

HEX NUT

MOUNTING SUPPORT PLATE

STEP 8: Once the Stealthbox® is in place, from

the under side of the car. Place the supplied mount-

ing support plate, fender washer, flat washer, lock

washer and hex nut onto the exposed Socket Cup

Set Screw.

STEP 9: Thigthen the bolt assembly, do not over

torque.

➔

SB- G M - V E T C6 / 1 0 W3 v 2 , J L AU DI O , I n c 2 0 0 5 Sh e e t SKU # 0 1 1 1 9 8 R e v i s io n 1 1 / 1 6 /2 0 0 5 Pag e 2

w w w . j l a u d i o . c o m

Mid/High Frequency Driver Information:

CONGRATULATIONS!

INSTALL COMPLETE.

ZR650-CSi

XR525-CXi

Front Location Driver Size:

10”

Applicable JL Audio Products:

TR,VR,XR & ZR650-CSi*

*mounting plate is needed

Rear Location Driver Size):

5.25”

Applicable JL Audio Products:

TR,VR & XR525-CXi

Cont.

From

Page

Difficulty Of Installation:
