Sida 1/6

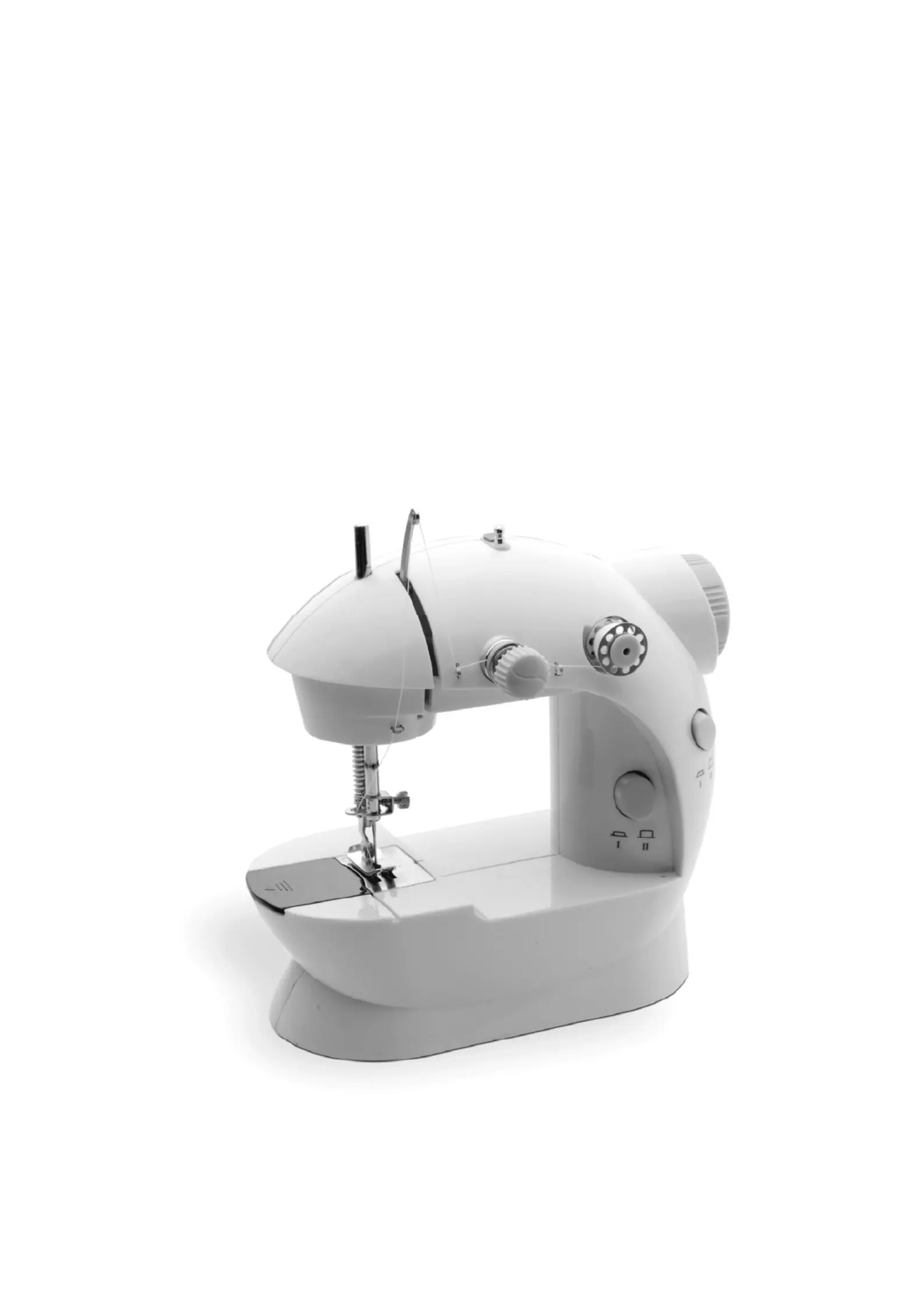

1
MINI ELECTRIC SEWING MACHINE
OPERATION MANUAL
2
ACCESSORIES
Parts & Accessories
Thread
Spindle(C)
Thread
Spool(E)
Bobbin
Holder(V) Bobbin winder
Spool(T)
MAIN UNIT
Hand
Wheel(K)
Bobbin
Spindle(U)
On/Off switch(A)
Speed
Button(L)
Tension Screw(N)
Battery Compartment(B)
(on underside of machine)
Bobbin Holder(J)
Takeup Lever(D)
Needle Clamp Screw(O)
Presser Foot(F)
Adjusting Screw(Q)
Needle
Clamp(P)
Needle(R)
Bobbin
Compartment(I)
Bobbin(S)
Thread Gap(H)
MAIN UNIT
(back view)
Presser Foot Lever(G)
Foot Pedal
Jack(M)
DC Jack 6V
(used by AC Adapter)
Foot
Pedal
Adapter
Four Metal Bobbins
Needle
Threader
Needle
3
GETTING STARTED
(Refer to illustrations for locations and configuration of components).
AFTER REMOVING THE MACHINE FROM THE PACKING BOX
1. Make certain the on/off switch (A) is in serting the batteries. the off position before in
2. Put 4 AA batteries into the battery compartment (B) on the underside of the machine or
insert the power adapter into the DC jack.
3. Press switch (A) to turn on or off.
Be sure that the machine is properly threaded and fabric is positioned for sewing before you turn
on the machine.
THREADING THE MAIN UNIT USING THREAD SPINDLE
1. Raise the thread spindle (C) by grasping the exposed top and pulling upward until the
thread spindle (C)is fully extended.
2. Place the thread spool (E) on the thread spindle (.C.) as shown.
3. Pull the thread from the thread spool (E) on the thread spindle (C)
and put it through the first thread guide (1) in the direction towards
the front of the machine.
4. Bring the thread across to the second thread guide (2). The thread
goes over the tension adjusting screw (Q) and must be positioned
between the two washers.
5. Pull the thread from the tension adjusting screw (Q) and then through
the thread guide (3) in the direction towards the front of the machine.
6. Pull the thread through the thread guide (4) on the take-up level (D),
inserting in the direction towards the front of the machine.
7. Pull the thread down to the thread guide (5) and insert the thread from the top downward.
8. Pull the thread downward through the thread guide (6). If necessary, lower the needle (R)
to reach this thread guide by turning the hand wheel (K) slightly anti-clockwise.
9. Insert the thread through the eye (7) of the needle from the front toward the back of the
machine. If necessary, raise the needle (.R.) to reach the eye by turning the hand wheel
(K) clockwise.
10. Raise the presser foot (F) by lifting the lever on the back of the machine. (G)
11. Pull approximately 25cm of thread through the needle (R) and lay it on the deck under the
presser foot (F) running in the away from you.
①
②
③
④
⑤
⑥
⑦
Pull 10 inches of
thread from needle
Thread
Spool(E)
Thread
Spindle(C)
