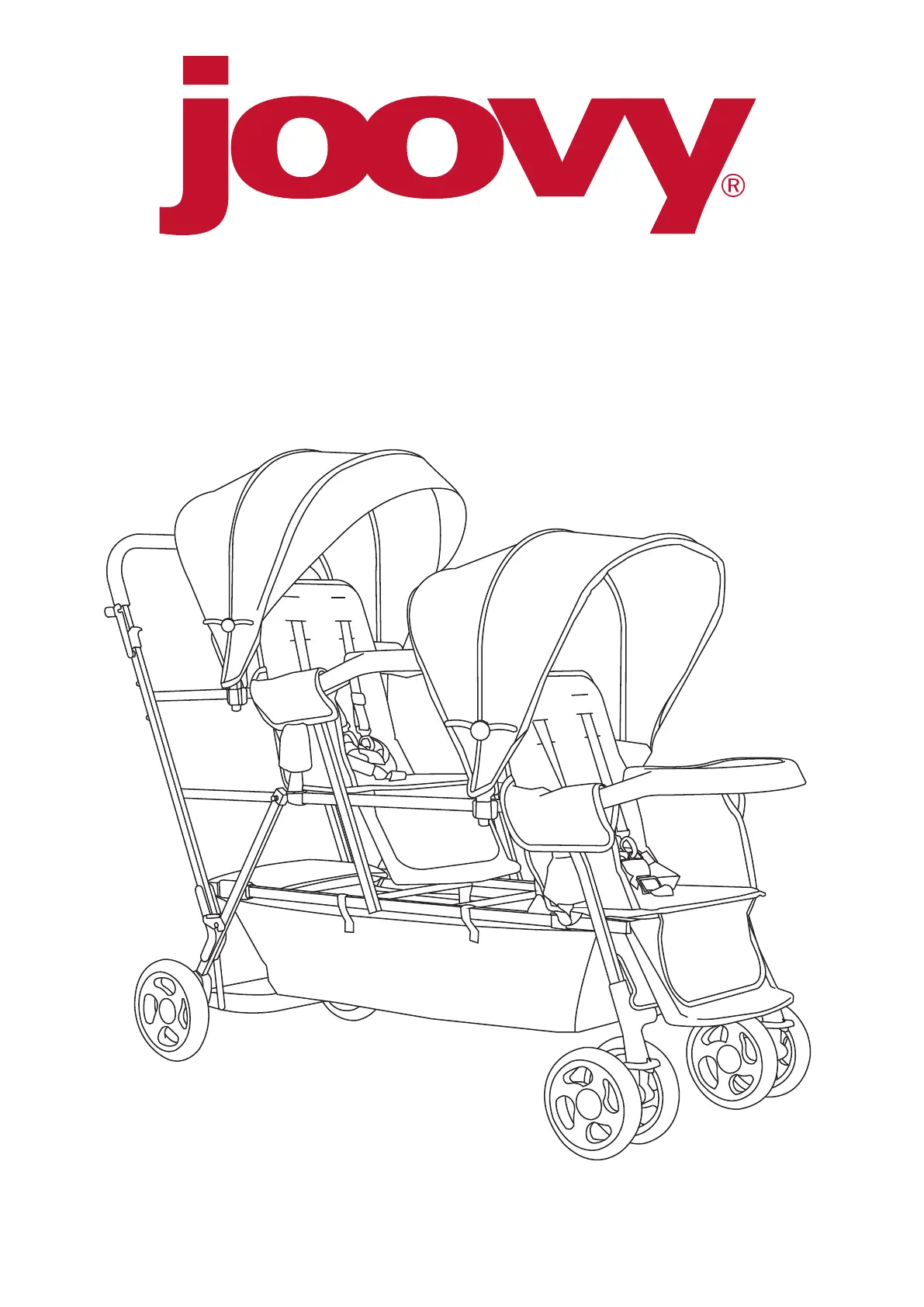

Big Caboose Graphite™
815X
© Joovy 2016 • 160505
EN FR ES
!WARNING
Please read these instructions carefully before use and keep them for future reference.
• Failure to follow these instructions could result in serious injury or death.
• Never leave child unattended.
• Avoid serious injury from falling or sliding out.
• Always use restraint system and ensure that all children are positioned according to these instructions.
• Keep all small parts out of reach of children while assembling the stroller.
• Be certain that the stroller is fully opened, BOTH safety latches are in position, and the wheel brakes are on before
allowing children near the stroller.
• The parking device should always be engaged during the loading and unloading of children.
• The front seats are not suitable for a child under 6 months.
• The maximum weight of the child that can be seated in either forward facing seat is 40 lbs. (18.2 kg).
• The rear stand-on platform and the rear bench seat are designed for a child that is at least 2½ years old but LESS
than 44 inches (111.76 cm) tall and less than 45 lbs. (20.5 kg).
• Use of the stroller with children totaling more than 125 lbs. (56.8 kg) will cause excessive wear and stress on the
stroller and may cause a hazardous unstable condition.
• Never use this stroller to carry more than 3 children at the same time.
• Never allow a child to step on the footrest to get into or out of the stroller.
• Do not use the stroller on stairways or escalators.
• DonotaddanyattachmentnotspecicallyrecommendedbyJoovy.
• Any load attached to the handle affects the stability of the stroller. Hanging purses, shopping bags, parcels,
changing bags or other accessory items from handle bars or any other parts of the stroller may change the balance
of the stroller and cause a hazardous unstable condition.
• The maximum weight that can be carried in the storage basket is 10 lbs. (4.5 kg). Excessive weight may result in a
hazardous unstable condition.
• When installing an infant car seat onto the stroller, ALWAYS use the restraining strap to secure the car seat in place.
• The maximum weight that can be carried in each cup holder or the tray is 2 lbs. (0.9 kg).
• Never allow your stroller to be used as a toy.
• Discard all packaging materials properly. Do not allow children to play with them.
• Check your stroller for loose rivets, snaps, worn parts, and torn material or stitching on a regular basis.
• Discontinue use of the stroller should it malfunction or become damaged.
Please do not return this product to the store
If you experience any difculty with the assembly or use of this product, or if you have a question regarding these
instructions, please contact our Customer Service Department:
UNITED STATES – Joovy: (877) 456-5049, Hours 8:30 am – 5:00 pm Central Time.
CANADA – ISSI Inc.: (800) 667-4111, Hours 8:30 am – 5:00 pm Eastern Time.
Please note: Styles and colors may vary.
1 Unpacking the Product
• Remove everything from the box and identify the parts using (not to scale)Figure 1.1.
stroller, two canopies, rear axle, two rear wheels, two front wheels sets, two trays, plastic cap, two small washers,A: B: C: D: E: F: G: H:
four large washers, two spring washers, two snap pins, two hub caps, two infant car seat adapters (OPTIONAL), and I: J: K: L: M:
documents (not shown). The rear axle is attached to the rear frame. Detach the axle from the frame and remove the yellow foam NOTE:
padding. Extra parts may be included.
• Discard all packaging materials properly including plastic coverings.
• DO NOT allow children to play with any packaging materials.
!WARNING
Adult assembly is required for this product. No tools required.
This package contains small parts. Keep all small parts away from children during assembly.
2 Unfolding
• Keep children away from stroller while unfolding.
• Release the folding lock located on the right side by lifting the lever off of the catch. See Figure 2.1.
• Lift up on the handle of the stroller until the frame snaps into its open locked position.
CAUTION:Whileunfoldingthestroller,becarefultokeepyourngersfrombeingpinchedbymovingparts.
Remove packing foam from rear frame assembly to ensure stroller locks in the open position.NOTE:
EN FR ES
• Lock BOTH the safety latches on both sides of the stroller. See Figure 2.2.
• Ensure that the safety latches are secured before ANY use of the stroller.
!WARNING
ALWAYS secure the safety latches on BOTH sides of the stroller when it is in the unfolded use position.
This will prevent collapse of the stroller should the handle trigger locks be accidentally opened.
Possible pinching hazard – Be careful when unfolding the stroller.
3 Installing Rear Wheels
• Turn stroller upside down.
• Insert the rear axle through both holes under the stand-on platform. See Figure 3.1.
• Install the parts in the following order. See Figure 3.2.
Small washer
Wheel (brake cluster facing inward)
Large washer
Spring washer
Large washer
Push snap pin through the hole in the axle until it snaps in place.
• Push the axle as far as it will go toward the opposite side of the stroller.
• Nextturnthestrollerontoitsside,withthealreadyassembledwheeltowardtheoor.Placetheaxleontothecenterofthesolidsurfaceof
the plastic cap so that the axle is pushing upwards for easier installation. See Figure 3.3.
• Repeat the installation steps for the other wheel.
• Push the hubcaps on until they snap in place. See Figure 3.4.
4 Installing Front Wheels
• Place the front wheel sets onto the front wheel posts until they click in place. See Figure 4.1.
• Pull on the wheel sets to ensure they are installed properly.
5 Front Wheel Locks
The front wheels can be set to swivel or lock.
• To lock the front wheels, rotate each wheel set so that it points forward.
• Pull up on the locking lever to engage the swivel lock. See Figure 5.1.
• To unlock the wheels (swivel mode) push down on the lever.
6 Installing and Operating the Canopies
These steps are for BOTH canopies.
• Position the canopy with the padded edge forward.
• Insert the canopy attachments into the frame mounts on BOTH sides. Ensure they snap into place. See Figure 6.1.
• The canopy can be adjusted forward and back, and locked open using the canopy locks on BOTH sides. See Figures 6.2 and 6.3.
• To close the canopy, unlock the sides, then collapse. See Figure 6.4.
• To remove the canopy, press the lock buttons on BOTH sides of the canopy and pull up. See Figure 6.5.
!WARNING
Possiblepinchinghazard–Becarefulwhenclosingandopeningthesidehingessoasnottopinchyourngers.
7 Attaching/Detaching the Front Tray
These steps are for BOTH trays.
• To attach the front tray, slide the tray onto BOTH mounts until they snap in place. See Figure 7.1.
• To remove tray, press the lock buttons on BOTH mounts and pull forward. See Figure 7.2.
!WARNING
The child tray is not a restraint device. Always secure your child with the restraint system. Never lift the stroller by the
child tray. Use caution when attaching the child tray when there is a child seated in the stroller.
8 Rear Wheel Brakes
• Always engage rear brakes before placing child in or removing a child from the stroller.
• To engage the brakes, push down on either of the brake levers until the brake snaps in place. See Figure 8.1.
• Check that the wheel brakes are properly engaged.
• To release the brakes, lift up on either of the brake levers. See Figure 8.2.
Produktspecifikationer
| Varumärke: | Joovy |
| Kategori: | Barnvagnar |
| Modell: | Big Caboose Graphite |
