JDS2915
Dual-Channel Signal Generator
1. GENERAL INFORMATION
Dear customer,
thank you for purchasing our product. In the following, we have listed what
you should consider during commissioning.
Should you encounter any unexpected problems during use, please do not
hesitate to contact us.

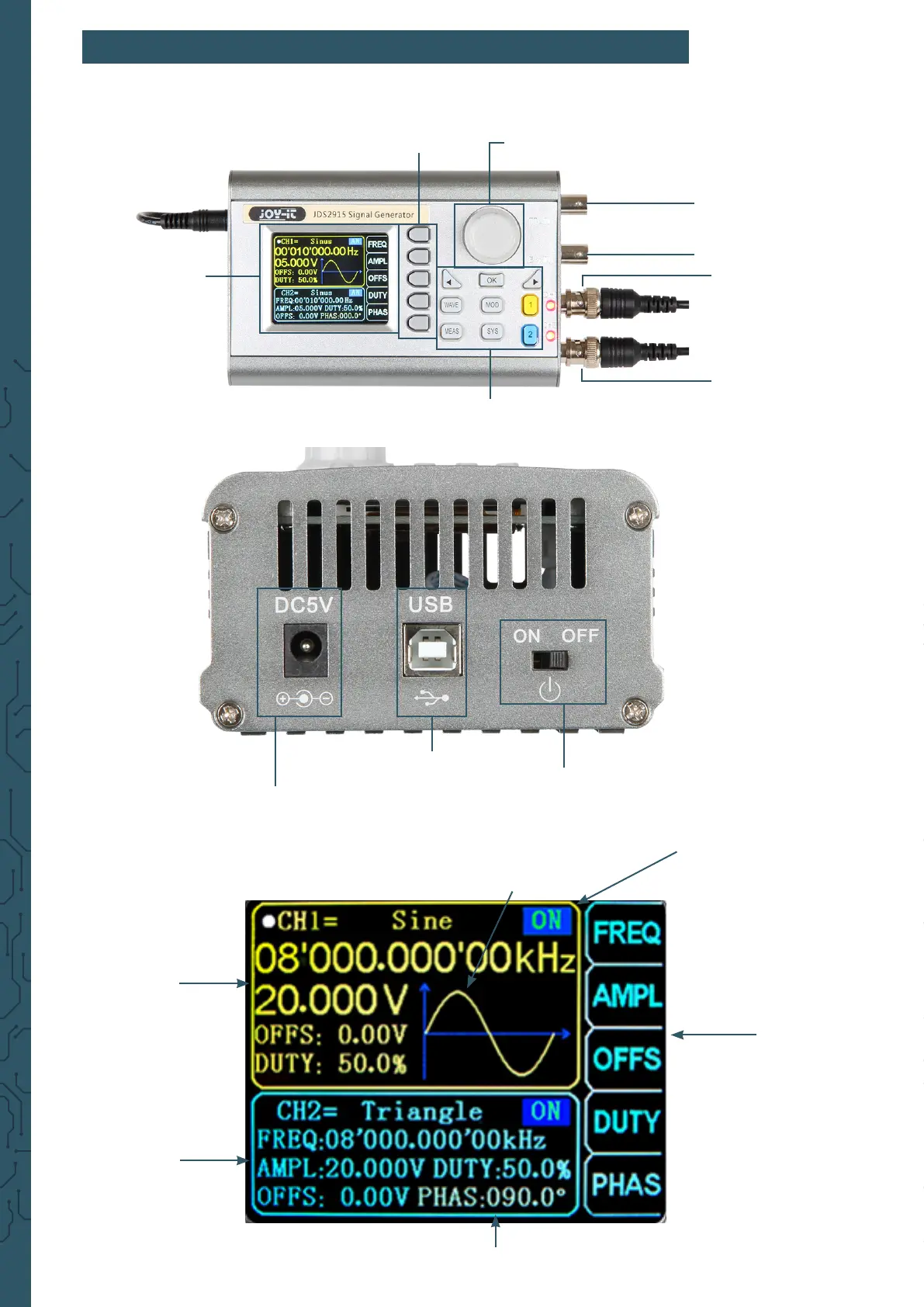

2. DEVICE OVERVIEW
TTL input
ext. input
CH1 output
CH2 output
short cuts
2,4“ TFT LCD
function
keys rotary button
power supply 5 V DC
USB interface
on / o switch
CH1 parameter
CH2 parameter
waveform
display
status of
output channel
menu bar
dierence of phase between CH1 and CH2
3. SHORTCUT-OVERVIEW
4. PARAMETER SETTINGS IN THE MAIN INTERFACE
Press to enable or disable simultaneously the output of both
channels.
Use the buttons and to switch between each channel.
By pressing it again while you are in one channel, you activate or deactivate
the according output. Hold down the according channel button to place the
channel in the main interface.
Press the button to activate the waveform. While the waveform
is active, the form can be changed quickly with the rotary button. The arrows
keys can be used to switch between the waveforms and the
presettings.
Use the multifunctional button 1 ( ) to highlight the frequency para-
meter. Then use the arrow keys to move the cursor to the value which should
be edited. Press the rotary button to edit the according value. Hold down the
multifunctional button to change the unit (µHz, mHz, Hz, KHz, MHz).
conguration of wave form
conguration of measuring mode
activation of the modulation mode
system settings
Moving the position of the crusor
control of the output from CH1 and CH2
- It is used in other menus as
control and conrmation (on / o)
selection of channel 1
- Hold down to set channel 1 as the main channel.
selection of channel 2
- Hold down to set channel 2 as the main channel.
WAVE
MEAS
MOD
SYS
OK
CH1
CH2
OK
CH1 CH2
WAVE
FREQ
