Sida 1/16
www.joy it.net-
Pascalstr. 8 47506 Neukirchen Vluyn-

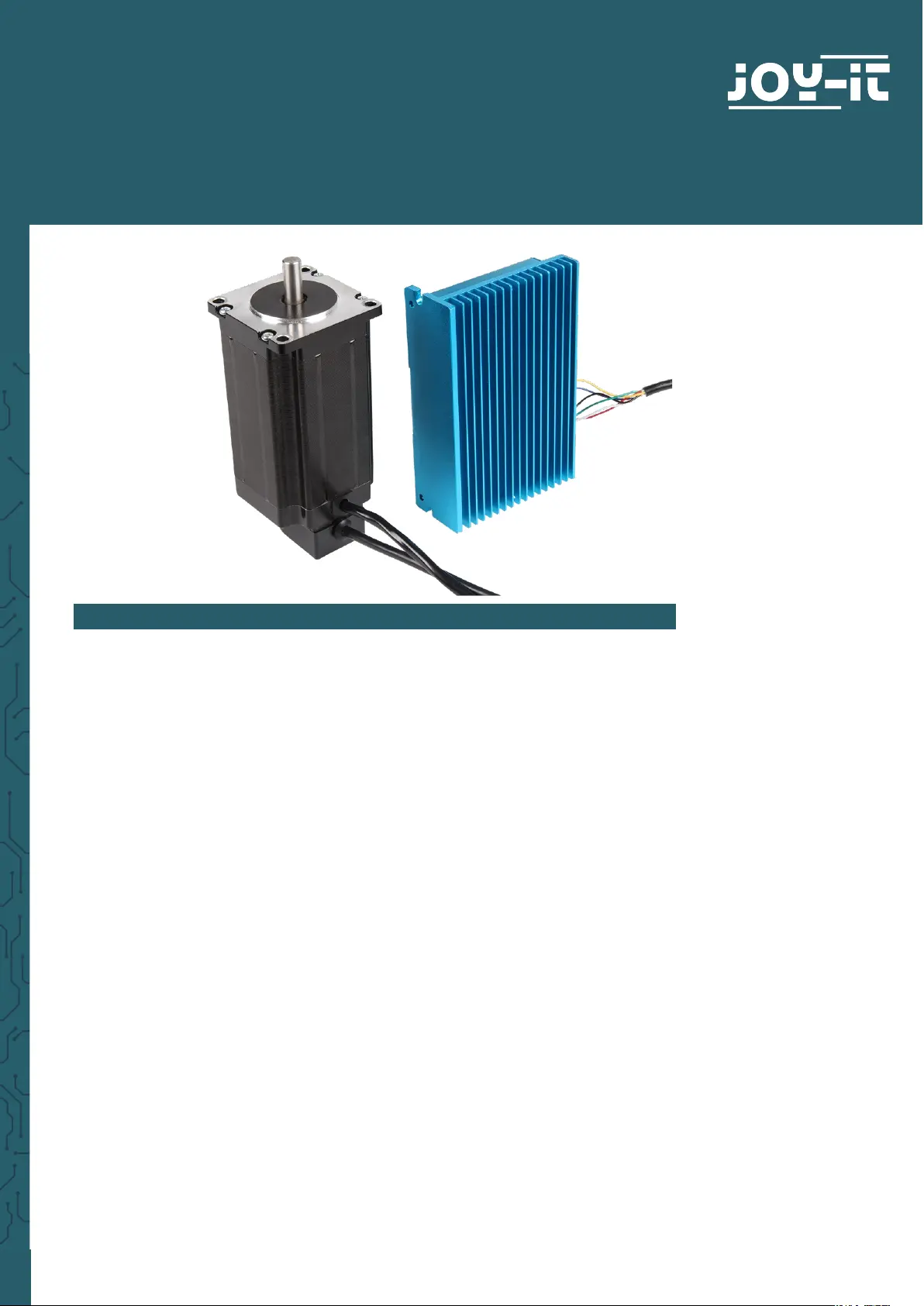

NEMA CLOSED LOOP STEP MOTOR-
NEMA 04CL-23-
1. GENERAL INFORMATION
Dear customer,
Thank you very much for choosing our product. In the following, we will
show you what you need to consider during commissioning and use.
Should you unexpectedly encounter any problems during use, please feel
free to contact us.
www.joy it.net-
Pascalstr. 8 47506 Neukirchen Vluyn-
2. CONNECTIONS
2 multi core cables lead out of the stepper motor.-
The 4 core cable belongs to the motor, the cable assignment is as follows:-
If your motor was delivered with a blue marking on the side of the encoder
housing, as shown in the following picture, the following pin assignment
must be used:
In addition, an 18 70 V DC power supply for the motor must be connected to -
the motor driver at V+ / V-.
In addition, a protective grounding can be connected to .
The 6 core cable belongs to the encoder, the cable assignment is as follows-
There is another terminal block on the motor driver, this is for the control
signal. The connections have the following functions:
Connection Colour
A+ Black
A Green-
B+ Blue
B- Red
Connection Function Remarks
PUL+ PUL+ and PUL are the positive and negative termi--
nals of the control pulse signal.
3,3 V ~24 V
PUL-
DIR+ DIR+ and DIR are the positive and negative terminals -
of the directional signal.
DIR-
ENA+ ENA+ and ENA the positive and negative terminals of -
the enable signal.
ENA-
ALM+ ALM+ and ALM are the positive and negative termi--
nals of the alarm output signal. < 24 V, 40 mA
ALM-
Connection Colour
EB+ White
EB- Yellow
EA+ Green
EA- Blue
VCC Red
GND Black
Connection Colour
A+ Green
A Black-
B+ Blue
B- Red
www.joy it.net-
Pascalstr. 8 47506 Neukirchen Vluyn-
The pin assignment of the RS 232 connection is as follows:-
DIP switches 1 to 4 are used to configure the microsteps of the following dimen-
sions:
Pin Funktion
1 NC
2 5V
3 TXD
4 GND
5 RXD
6 NC
3. DIP SWITCHES-
Mikrosteps SW1 SW2 SW3 SW4
3600 ON ON ON ON
800 OFF ON ON ON
1600 ON ON OFF ON
3200 OFF OFF ON ON
6400 ON ON ON OFF
12800 OFF OFF ON ON
25600 OFF OFF ON ON
7200 OFF OFF OFF ON
1000 ON ON ON OFF
2000 OFF ON ON OFF
4000 ON OFF ON OFF
5000 OFF OFF ON OFF
8000 ON ON OFF OFF
10000 OFF OFF OFF ON
20000 OFF OFF OFF ON
40000 OFF OFF OFF OFF
