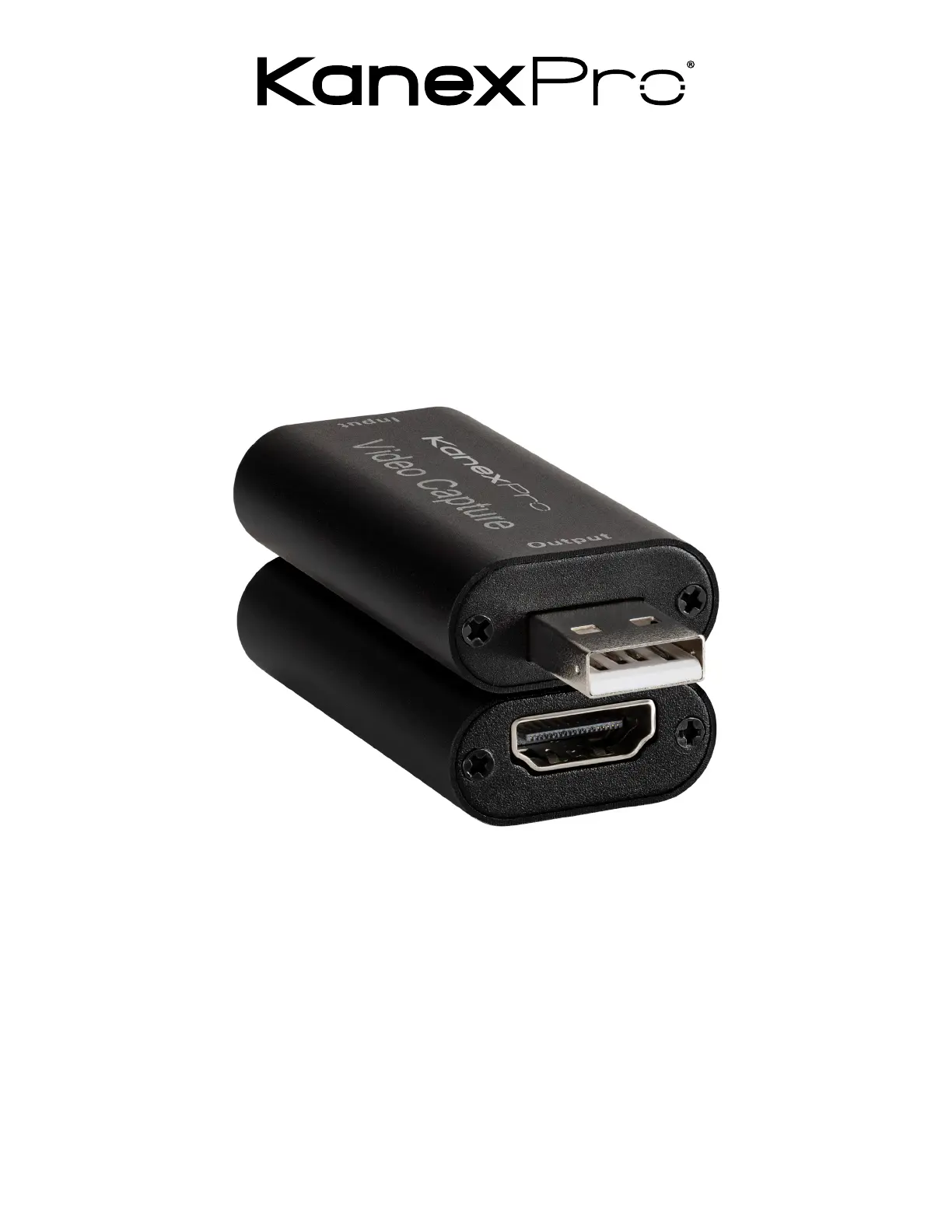

Sida 1/3
1080p USB 2.0
Gaming Capture Dongle
Quick Installation Guide
VER. 1.0
All brand names and trademarks are properties of their respective owners
2
INTRODUCTION:
The KanexPro CON-GAMECAP is a video capture device that can capture both HDMI vi-
deo and HDMI audio, sending audio and video signals to a computer in order to preview
or record video content. Suitable for video game console capture, educational recordings,
medical imaging, or streaming with the use of an action camera.
FEATURES:
● Support input max resolution 3840x2160@30Hz;
● Support output max resolution 1920x1080@30Hz;
● Support 8/10/12bit deep color;
● Support AWG26 HDMI standard cable: input up to 15 meters,
(1080P and below resolution);
● Supports most video recording and streaming software, such as VLC, OBS, Debut, etc;
● Support Windows, Android and MacOS;
● Conform to USB Video and UVC standard;
● Conform to USB Audio UAC standard;
● Without external power supply, compact and portable.
PACKAGE CONTENTS:
1x CON-GAMECAP
1x User Manual
1x AM/AF Cable (L=100MM)
1x Type-C USB3.1 Male to USB 2.0 Female Connector
APPLICATION OPTIONS:
4
2. Select either Recording or Streaming Mode
a. Follow the on-screen prompts
3. Choose “Studio Mode” (double window).
4. Click “Start Recording”
SPECIFICATIONS:
HDMI resolution: Max input can be 3840x2160@30Hz
Support video for: 8/10/12bit Deep color
Video output format: YUV, JPEG
Video output resolution: Max output can be 1920x1080@30Hz
Support audio format: L-PCM
Input cable distance: 15m,AWG26 HDMI standard cable≤
Max working current: 0.4A/5VDC
Operating Temperature range: (-10 to +55 )℃
Dimension (L x W x H): 64x28x13 (mm)
Weight: 21.4g
