Sida 1/8

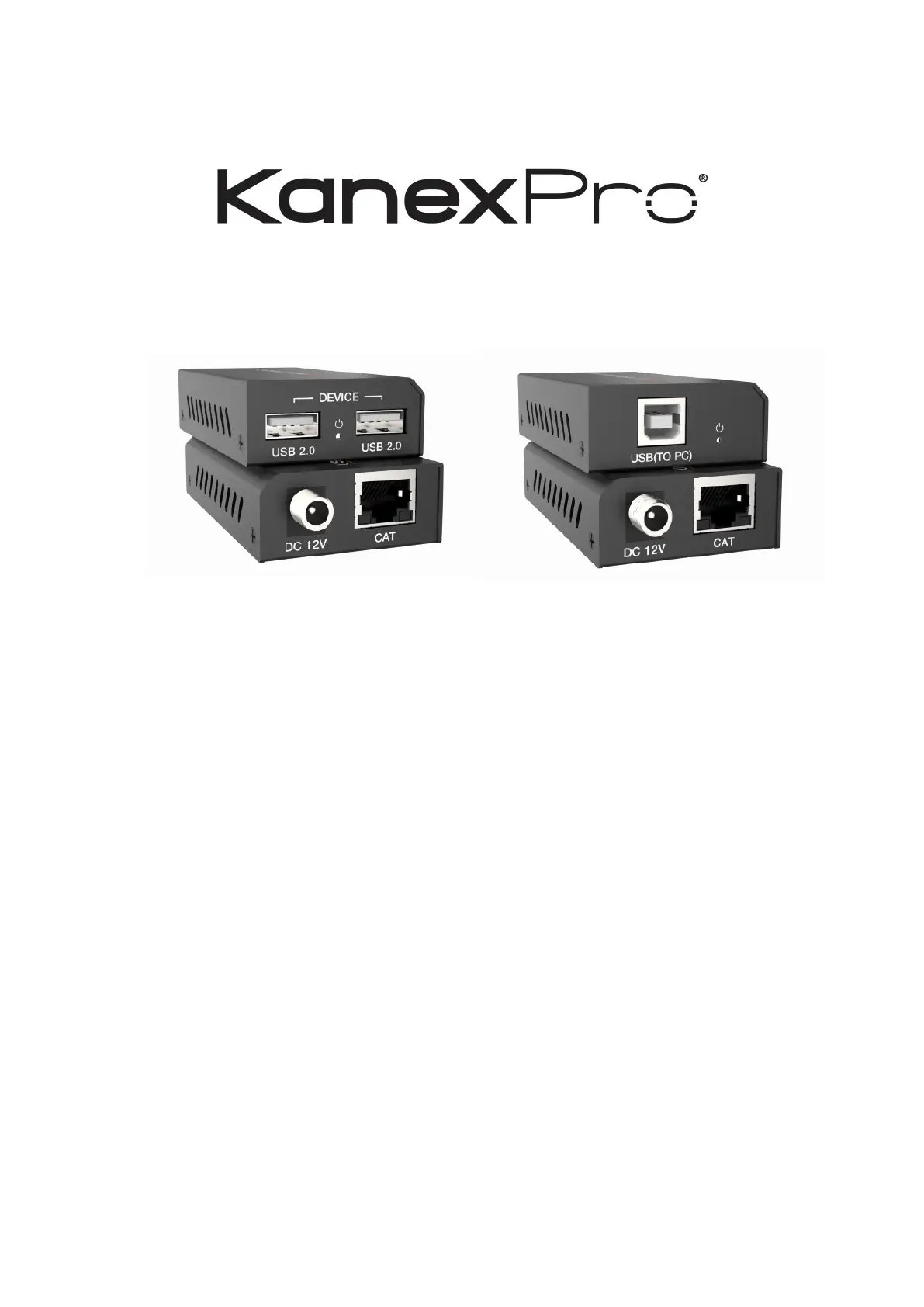

USB 2.0 Extender over Cat6 100 Meters
All Right Reserved
MPN: EXT-USB2100M
VER 1.0
2
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate this equipment and before
connecting the power supply. Please keep the following in mind as you unpack and install this
equipment:
Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury
to persons.
To prevent fire or shock hazard, do not expose the unit to rain, moisture or install this
product near water.
Never spill liquid of any kind on or into this product.
Never push an object of any kind into this product through any openings or empty slots in
the unit, as you may damage parts inside the unit.
Do not attach the power supply cabling to building surfaces.
Use only the supplied power supply unit (PSU). Do not use the PSU if it is damaged.
Do not allow anything to rest on the power cabling or allow any weight to be placed upon it
or any person walk on it.
To protect the unit from overheating, do not block any vents or openings in the unit housing
that provide ventilation and allow for sufficient space for air to circulate around the unit.
Table of Contents
1. Introduction................................................................................................................ 3
2. Features.......................................................................................................................3
3. Package Contents........................................................................................................3
4. Specifications..............................................................................................................4
5. Operation Controls and Functions
.............................................................................5
5.1 Front Panel.........................................................................................................5
5.2 Rear Panel.......................................................................................................... 6
6. Connection diagram................................................................................................... 7
3
1. Introduction
The KanexPro EXT-USB2100M extender is a compact USB 2.0 transmitter - receiver
set designed to extend USB 2.0 (480Mbps) signals from a Printer, touch screen, USB
hub, USB camera or Human Interface Device (HID) to a Host PC remotely located 328
feet away. The system is simple, plug and play and it s ready to go. No drive and
setting installation required.
2. Features
Supports USB 2.0 protocol, transmission rate up to 480Mbps
Supports extend distance up to 100 meters / 328ft via CAT 5e/6 cable
Supports one USB-B port input in transmitter
Supports two USB 2.0 ports output in receiver
Supports PoC function, it means that either transmitter or receiver is
connected powered supply by 12V/1A power adapter, the other doesn t
need power supply.
Simple plug and play, no drive and setting installation required
Compact design for easy and flexible installation
3. Package Contents
1×USB 2.0 Extender (Transmitter)
1×USB 2.0 Extender (Receiver)
1×USB cable (USB-B male head to USB-A male head, one meter )
1×12V/1A Locking Power Adapter
