Sida 1/18

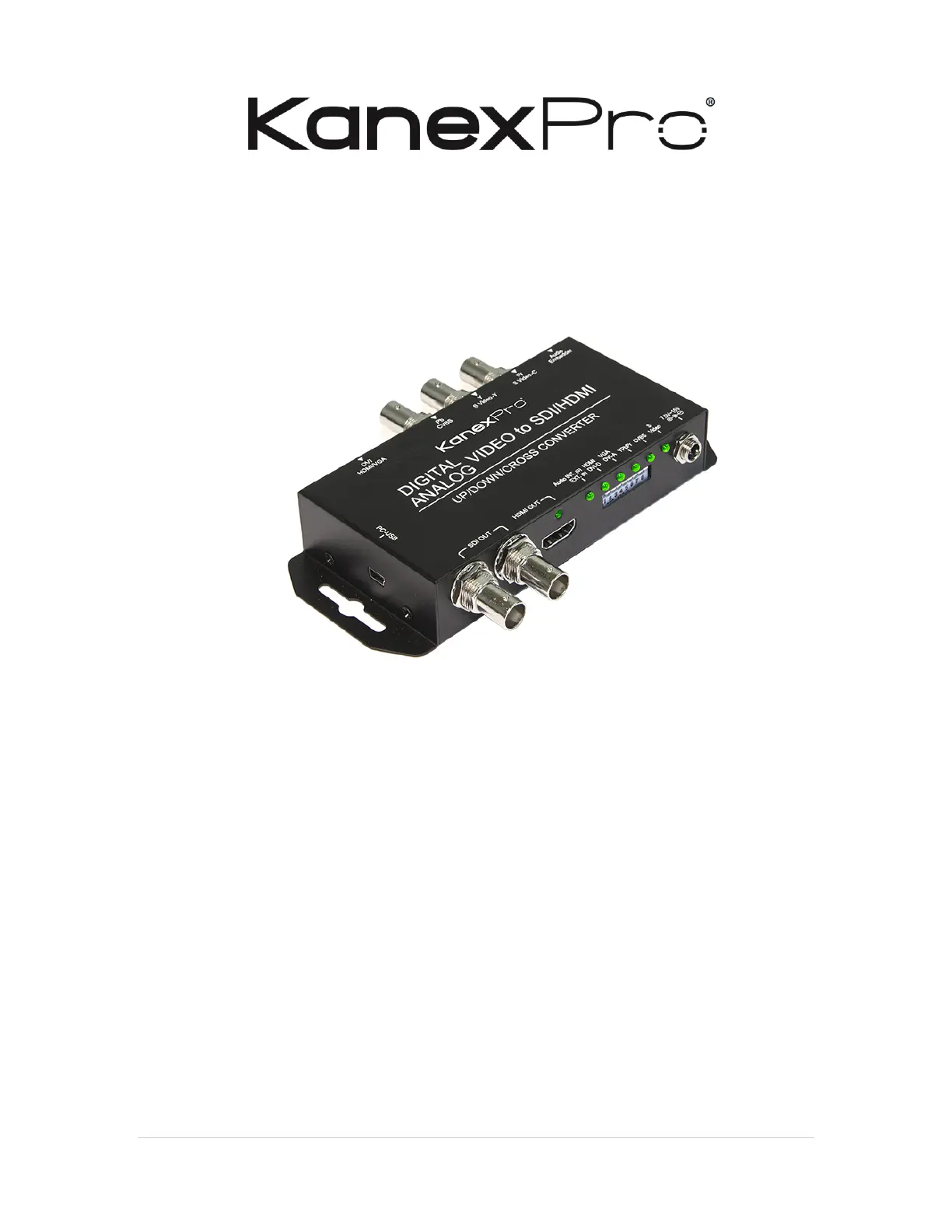

1 | P a g e
SDI-MULTI2SDIPRO
Convert DVI- -I, VGA, Component, S video or Composite to 3G/HD/SD-SDI & HDMI
User manual
Rev1.0
KANEXPRO - SDI MULTI2SDIPRO
2 | P a g e
Content
Introduction ............................................................................... 3!
Feature 3................................................................................... !
Front Panel ............................................................................... 4!
Rear Panel ............................................................................... 5!
Side Panel ................................................................................ 5!
DipSwitch/LED Control ................................................................. 6!
Installation ............................................................................... 12!
Package Contents ...................................................................... 12!
Specifications ........................................................................... 13!
Firmware Upload ....................................................................... 14!
Appendix Table A ......................................................................16!
Update List .............................................................................. 17!
Warranty ................................................................................. 17!
KANEXPRO - SDI MULTI2SDIPRO
3 | P a g e
Introduction
The KanexPro multi-cast cross converter provides multiple input conversions from
HDMI, DVI-I, VGA, Component, to 3G/HD/SD-SDI & HDMI. It packs a powerful up
and down video scaler supporting a bank of resolutions up to 1080p60/59.94Hz
and 1080p/29.97Hz.
Feature
• Convert Digital / Analog video to SDI & HDMI
• Powerful up/ down converter scaler
• B - – aliasing & 3D De-interlace uilt in anti
• Built-in test pattern generator
• Added DIP switch settings for various video resolutions
• Allows region of interest (ROI) – for annotation & quantitative information
• Simultaneous output to 2 x SDI & 1x HDMI
• Audio embedder supports output up to 8Ch/24Bit@48KHz
• –USB port for firmware update Mini
• Locking power supply & mounting ears
• Compact & ruggedized design makes perfect mobile broadcasting hardware
