User Manual
P301 Projector Ceiling Mount
90° TILTING
EXTENSION
PROJECTOR
CEILING MOUNT
English
22 lb
(10 kg)
15”-18”
(38 - 46cm)
360°
±20°
±90°
Supporting your digital lifestyle™
2
Introduction
Table of Contents
Table of Contents / Introduction . . . . . . . . . . . . . 2
Supplied Parts & Hardware . . . . . . . . . . . . . . . . . . 3
Setup - Step 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Setup - Steps 2 to 3 . . . . . . . . . . . . . . . . . . . . . . . 5
Setup - Steps 4 to 6 . . . . . . . . . . . . . . . . . . . . . . . 6
Setup - Step 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Thank you for choosing a Kanto universal tilting extension projector ceiling mount. The P301 is designed to mount TV
projectors weighing up to 22 lbs (10 kg). This mount kit allows for installations 15” to 18” (37 to 45cm) from the ceiling,
and can tilt ±90° to allow mounting to sloped ceilings and on the side of beams. The P301 provides a 360° swivel and
±20° tilt to level your projector.
Read these instructions fully before installation of this mount. If you do not understand these directions, or have any
doubts about the safety of the installation, please consult a qualified installation contractor to install this mount. Make
sure there are no defective or missing parts. Do not use defective parts. If you are uncertain whether the part is defective
contact Kanto directly at 1-888-848-2643 or support@kantoliving.com. Kanto can not be liable for property damage or
injury caused by incorrect mounting, incorrect assembly, lifting or incorrect use of this product.
CAUTION
The maximum loading weight is 22 lbs (10 kg). This projector mount is intended for use up to the maximum
weight restrictions indicated. Use with products heavier than the maximum weights indicated may result in instability
causing possible injury.
CAUTION
The ceiling you plan to affix the Kanto mount to must be able to support more than 4 times the weight of
the projector and the ceiling mount combined. Do not use this product for any purpose other than to mount a
projector as outlined in this manual. Improper installation may cause damage to your projector or serious injury. This
product should not be mounted to drop ceilings, cinder block or old concrete ceilings. Consult a qualified installation
contractor if you are unsure about the type of ceiling you may have.
See installation video online at:
www.kantoliving.com
Visit our website at www.kantoliving.com for the most recent version of this manual
M2.5 x 15mm (with washers)
M3 x 20mm (with washers)
M4 x 15mm
M4 x 20mm
M4 x 25mm
M5 x 15mm
M5 x 20mm
M5 x 25mm
M6 x 15mm
M6 x 20mm
M6 x 25mm
x4
each
A:
B:
C:
D:
E:
F:
G:
H:
I:
J:
K:
Screws:
Supporting your digital lifestyle™

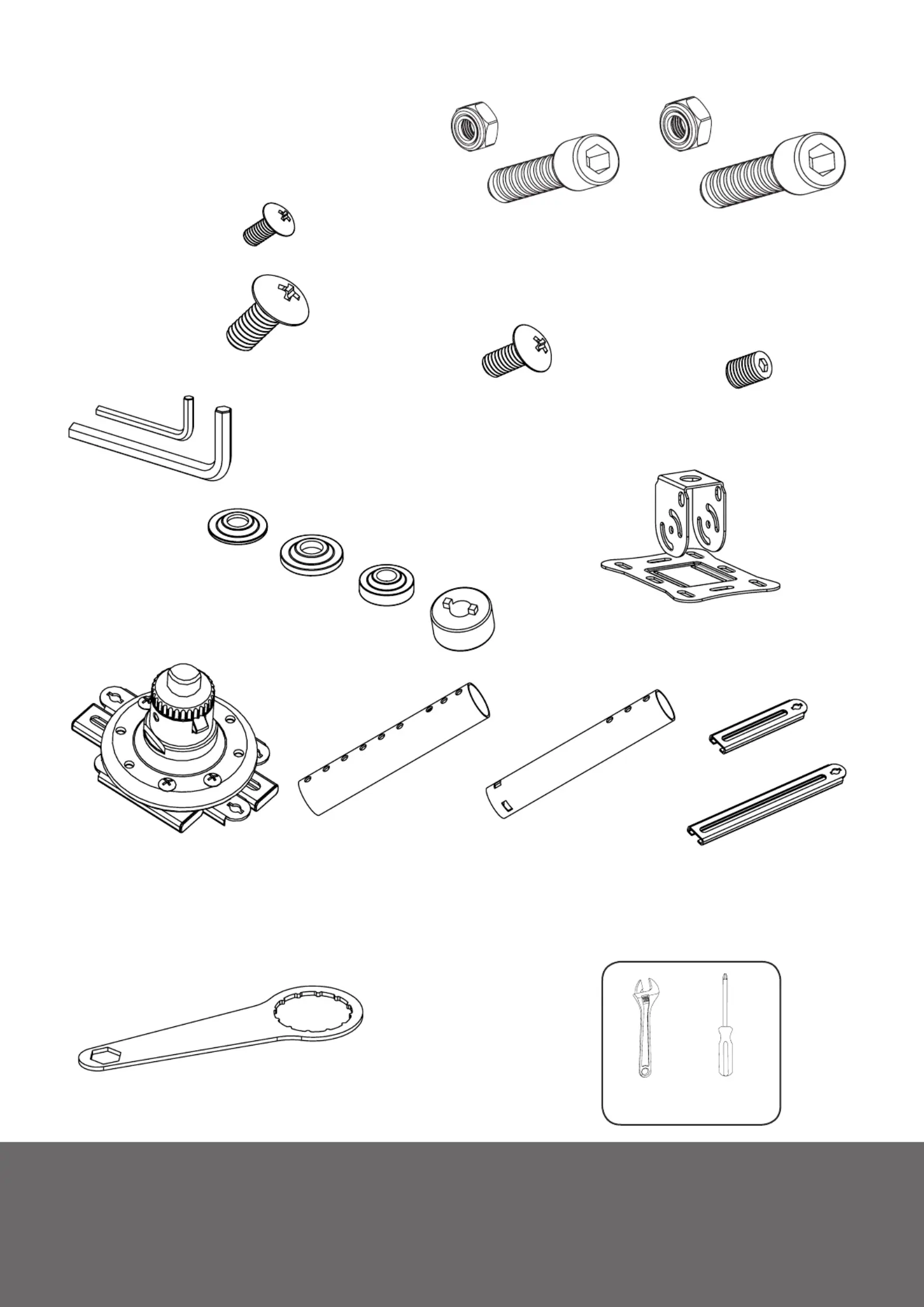

Supplied Parts and Hardware
3
L: Allen Keys
x3
N: M8 x 60mm
Screw (with nut)
O: Safety screw
M5 x 10mm
P: Tightening screw
M5 x 5mm
x2x2
Q:
R:
S:
T:
x4
each U: Ceiling Plate
Assembly
V: Projector Adapter W: Outer Extension
Tube
X: Inner Extension
Tube
Y: Extension Brackets
75mm / 150mm
x2
1mm thick
2mm thick
4mm thick
Base
Spacers:
x4
x3
M: M8 x 55mm
Screw (with nut)
Required Tools:
Z: Wrench Crescent
Wrench
Phillips
Screwdriver
