CONTENT S
1 Technical data 1 .................................................................................................
2 Description .....................................................................................................2
3 General information 3 .......................................................................................
3.1 Intended use 3 ...................................................................................................
3.2 Intended use 3 ...................................................................................................
4 Basic safety information 4 ................................................................................
4.1 Follow the instructions in the operating manual 4 ..........................................
4.2 Warranty ..................................................................................................... 4-5
5 Supplied items 5 ................................................................................................
6 Before the first use 6 .........................................................................................
7 Use/measurement .........................................................................................7
7.1 Additional advice 8 ............................................................................................
7.2 Measuring procedure 8-9 .................................................................................
8 Cleaning and maintenance 10 ..........................................................................
9 Storage ......................................................................................................... 10
10 Service ......................................................................................................... 11
11 Disposal ....................................................................................................... 11
12 Additional information................................................................................. 12
13 Brix to refractive index (nD) conversion table 12-13 .......................................
14 Annex ........................................................................................................... 14
1. Technische Daten
Models
KERN
Measuring range
and Scales
Scale gradua-
tions Accuracy
Dimensions
Product
Net weight
ORA 90BE
Brix: 0-42%
Brix: 42-71%
Brix: 71-90%
0,2 % Brix
0,2 % Brix
0,2 % Brix
200x40x40mm 0,600kg
ORA 1RE RI: 1,333-
1,5200 nD 0,005 nD 200x40x40mm 0,600kg

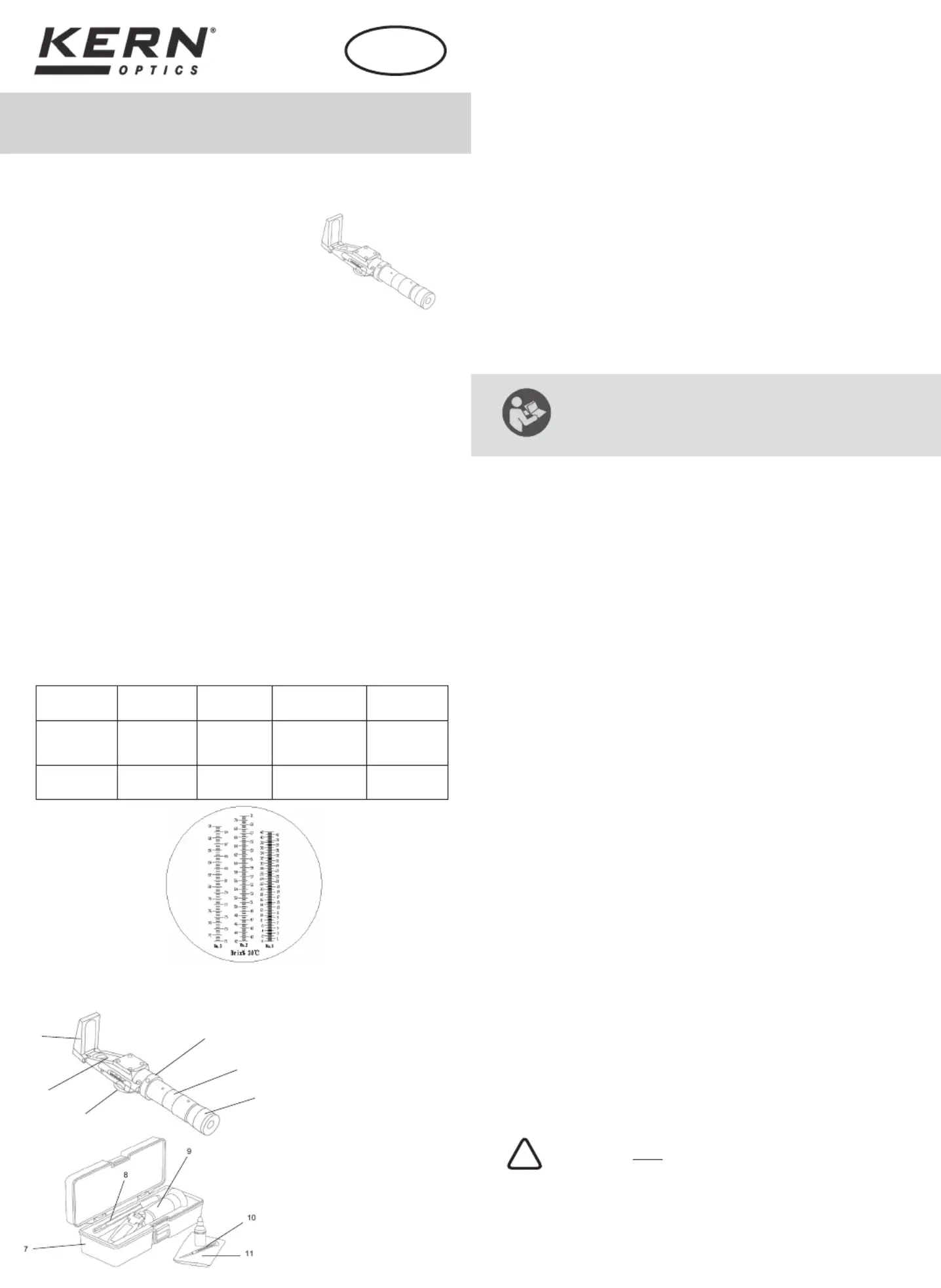

Operating manual
Analogue refractometer
KERN & Sohn GmbH
KERN ORA 90 BE
Analogue Expert 3x Brix scale
ORA 1 RE
Analogue Expert 3x nD scale
Ziegelei 1
D-72336 Balingen
E-Mail: info@kern-sohn.com
Tel: +49-[
0]7433 -9933-0
Fax: +49-[
0]7433-9933-149
Internet: www.kern-sohn.com
3. General information
3.1 Intended use
The refractometer is a measuring instrument for determining the refractive index of
transparent substances in liquid or in some cases also in the solid state. It is used
to observe the behaviour of light as it passes from a prism with known properties
to the substance being tested.
Use of the refractometer for other purposes is contrary to its intended use and
may be hazardous. The manufacturer shall not be liable for any damages caused by
improper use.
3.2 Warranty
The warranty shall be void in the event of:
▸ Failure to observe the instructions in the operating manual
▸ Use for purposes other than those described
▸ Modifications or opening the device housing
▸ Mechanical damage and/or damage resulting from media, liquids,
natural wear and tear
2. Description
1. Prism cover
2. Prism surface
3. Adjusting wheel measuring range
4. Dispersion adjusting ring
5. Optical tubes
6. Eyepiece with diopter
adjustment ring
Version 1. 0 /2012 4 9
4. Basic safety information
4.1 Follow the instructions in the operating manual
▸ Carefully read through the operating manual even if you have prior
experience with KERN refractometers.
▸ Every language version includes a non-authoritative translation.
The original German document is the definitive version.
4.2 Warning
▸ Do not let acids come into contact with skin or eyes. If acid comes into contact
with skin, flush with copious amounts of water. Shower if larger areas of skin are
affected.
▸ If acid comes into contact with eyes, keep the eyelid open and flush the eye with
running lukewarm water from the outer corner to the inner corner. Flush eyes for
at least 15 minutes. Then consult a doctor or ophthalmologist immetdiately.
▸ Thoroughly clean the refractometer aer each use.
▸ The refractometer must not be exposed to extreme temperatures, high
mechanical stresses, strong direct sunlight or high humidity.
▸ This refractometer is not a toy. Keep out of reach of children.
▸ Make sure that you will not be hit by anything else while you are using the re-
fractometer, as this could cause serious eye injuries
▸ The rubber eyeshade may cause irritation when in prolonged contact with the
skin. If this happens, consult your doctor.
▸ Do not touch the lenses with your fingers.
5. Supplied items
Aer unpacking and before using the device for the first time, check that all
listed parts have been supplied. Replace damaged or faulty parts immediately
and do not put them into operation.
▸ Refractometer
▸ Storage box
▸ Pipette
▸ Tools
▸ Cleaning cloth
6. Before the first use
Remove the protective film (if present) from the prism surface [2] and move the
measuring range adjusting wheel
[3] to position 1.
Example scale on
ORA 90 BE
7. Storage box
8. Pipette
9. Refractometer
10.
11.
Tools
Cleaning cloth
GB
!The refractometer cannot be used for the measurement of oil-based fluids.

14
8
9
10
12
11
13
7. Use/measurement
▸ The refractometer can be used to quickly and accurately determine the refractive
index of transparent substances, liquid or solid ones. Please make sure your hands
are dry before handling the measuring device.
▸ The measuring instrument has three measuring ranges. Please use the measuring
range adjusting wheel on the underside of the casing to switch measuring ranges.
▸ The light falling on the prism can be changed using a rotating flap on the underside
of the prism.
▸ In addition, the refractometer is provided with an adjusting ring
[4], which can
reduce chromating, primarily with low liquid concentrations.
▸ The light/dark transition is clearly visible.
Important!
The ambient/room temperature and the sample temperature influence
the refractometer measuring result.
The scales are designed for an ambient temperature of +20 °C!
If the measurements are carried out at a temperature other than +20 °C,
the results must be correspondingly corrected.
A correction table can be found in the annex, Point 1 .4
7.1 Additional advice
It is important that the samples being measured are representative samples.
Measurements should be carried out quickly on samples that evaporate easily. The
samples should be at the same temperature as the measuring instrument in order
to achieve an accurate result.
7.2 Measuring procedure
▸ Make sure your hands are dry before handling the refractometer.
▸ Open the prism cover
[1] and use the supplied pipette [8] to apply a few drops of
the sample liquid [8] onto the prism surface [2], then close the prism cover [1].
Spread the liquid evenly by pressing down on the prism cover
[1
].
▸ Hold the device horizontally and wait about 30 seconds (
for optimal temperature
equalisation between the sample and device).
▸ View the measurement scale through the eyepiece [6]. Point the prism surface [2]
of the refractometer at a bright light source while doing this.
▸ The light falling on the prism can be changed using a rotating flap on the
underside of the prism.
▸ Rotate the adjustment ring [6] on the eyepiece [6] to adjust the focus.
▸ The boundary line will move on the measurement scale depending on the concen-
tration. This bright/dark boundary line shows the result directly on the scale.
▸ The measuring instrument has three measuring ranges. Please use the measuring
range adjusting wheel on the underside of the casing to switch measuring ranges.
▸ The light/dark boundary can be brought into sharp focus using the dispersion
adjusting ring [6]. This is useful for low liquid concentrations.
▸ If the temperature deviates from +20 °C, correct the measured result using the
corresponding value from the temperature correction table
(Point 14).
▸ Carefully clean the supplied pipette
[8] and the refractometer aer carrying out
the measurement.
Important!
Aer every measurement, use a lint-free, absorbent cloth to remove
the fluids from the prism surface [2] and prism cover [1]. Then
carefully clean the prism and prism cover using a cloth moistened
with water or if necessary alcohol, and dry both parts using a so,
dry and lint-free cloth. Avoid rubbing the prism
[2].
8. Cleaning and maintenance
Clean the refractometer using a so, lint-free cloth moistened with water, or if
necessary alcohol. Do not use any aggressive or abrasive cleaning agents. Never
immerse the device in water or hold it under running water. Never handle the device
with wet or damp hands.
Never touch the measuring prism [2] with hard tools made from plastic, wood,
rubber, metal, glass etc. Hard objects can quickly damage the relatively so prism
glass, resulting in measurement errors.
The refractometer is maintenance-free.
Cleaning should be carried out immediately before and aer each use of the
refractometer to maximise its life and optimise measurement results.
9. Storage
Store the refractometer in a dry, non-corrosive environment, preferably between
10°C and 30 °C.
9
10. Service
Aer reading this operating manual, if you have any questions about setting up or
using the refractometer, or if any unexpected problem occurs, please contact your
dealer. The device housing may only be opened by trained service technicians
authorised by KERN.
11. Disposal
The packaging consists of environmentally friendly materials which can be disposed
of via local recycling facilities.
The device and storage box should be disposed of by the operator in accordance
with applicable national or regional regulations at the place of use.
12. Additional information
The product may differ slightly from the illustrations.
Avoid exposing the refractometer to direct sunlight!
Never bring the refractometer into contact with solvents.
!
!
14. Annex
Table 1: International Temperature Correction Table for °Brix
(% sugar gradient)
Correct the result by the following values
(refractometer must be correctly
calibrated at 20 °C).
BRIX
Refractive
index BRIX
Refractive
index BRIX
Refractive
index
% % % nD nD nD
0 1.33299 30 1.38115 60 1.44193
1 1.33442 31 1.38296 61 1.44420
2 1.33586 32 1.38478 62 1.44650
3 1.33732 33 1.38661 63 1.44881
4 1.33879 34 1.38846 64 1.45113
5 1.34026 35 1.39032 65 1.45348
6 1.34175 36 1.39220 66 1.45584
7 1.34325 37 1.39409 67 1.45822
8 1.34476 38 1.39600 68 1.46061
9 1.34629 39 1.39792 69 1.46303
10 1.34782 40 1.39986 70 1.46546
11 1.34937 41 1.40181 71 1.46792
12 42 1.40378 72 1.47037 1.35093
13 43 73 1.47285 1.35250 1.40576
14
1.35408
44
1.40776
74
1.47535
15 45 1.40978 75 1.47787 1.35568
16
1.35729
46
1.41181
76
1.48040
17 47 1.41385 77 1.48295 1.35891
18 48 78 1.36054 1.41592 1.48552
19 1.36218 49 1.41799 79 1.4881
20 1.36384 1.42009 80 1.49071 50
21 1.42220 81 1.49333 1.36551 51
22 1.36720 1.42432 82 52 1.49597
23 1.36889 1.42647 83 1.49862 53
24 1.37060 1.42862 84 54 1.50129
25 1.37233 1.43080 85 55 1.50398
26 1.37406 1.43299 56
27 1.37582 57 1.43520
28 1.43743 1.37758 58
29 1.37936 1.43967 59
% Brix
reading
0.0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0 50.0 55.0 60.0 65.0 70.0 75.0 80.0 85.0
Temperature °C
10.0 - - - - - - - - - - - - - - - - - -0.53 0.56 0.59 0.62 0.65 0.67 0.69 0.71 0.72 0.73 0.74 0.75 0.75 0.75 0.75 0.75 0.74 0.73
11.0 - - - - - - - - - - - - - - - - - -0.49 0.52 0.54 0.57 0.59 0.61 0.63 0.64 0.65 0.66 0.67 0.68 0.68 0.68 0.68 0.67 0.67 0.66
12.0
- 0.44
- 0.47
- 0.49
- 0.51
- 0.53
- 0.55
- 0.56
- 0.57
- 0.58
- 0.59
- 0.60
- 0.60
- 0.61
- 0.61
- 0.60
- 0.60
- 0.60
-0.59
13.0
- - - - - - - - - - - - - - - - - -0.40 0.41 0.43 0.45 0.47 0.48 0.50 0.51 0.52 0.52 0.53 0.53 0.53 0.53 0.53 0.53 0.52 0.52
14.0 - - - - - - - - - - - - - - - - - -0.34 0.36 0.38 0.39 0.40 0.42 0.43 0.44 0.44 0.45 0.45 0.46 0.46 0.46 0.46 0.45 0.45 0.44
15.0
- - - - - - - - - - - - - - - - - -0.29 0.31 0.32 0.33 0.34 0.35 0.36 0.37 0.37 0.38 0.38 0.38 0.38 0.38 0.38 0.38 0.37 0.37
16.0
- 0.24
- 0.25
- 0.26
- 0.27
- 0.28
- 0.28
- 0.29
- 0.30
- 0.30
- 0.30
- 0.31
- 0.31
- 0.31
- 0.31
- 0.31
- 0.30
- 0.30
-0.30
17.0
- - - - - - - - - - - - - - - - - -0.18 0.19 0.20 0.20 0.21 0.21 0.22 0.22 0.23 0.23 0.23 0.23 0.23 0.23 0.23 0.23 0.23 0.22
18.0 - - - - - - - - - - - - - - - - - -0.12 0.13 0.13 0.14 0.14 0.14 0.15 0.15 0.15 0.15 0.15 0.15 0.15 0.15 0.15 0.15 0.15 0.15
19.0
- - - - - - - - - - - - - - - - - -0.06 0.06 0.07 0.07 0.07 0.07 0.07 0.08 0.08 0.08 0.08 0.08 0.08 0.08 0.08 0.08 0.08 0.07
20.0
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
21.0
0.06 0.07 0.07 0.07 0.07 0.07 0.08 0.08 0.08 0.08 0.08 0.08 0.08 0.08 0.08 0.08 0.08 0.07
22.0 0.13 0.14 0.14 0.14 0.15 0.15 0.15 0.15 0.16 0.16 0.16 0.16 0.16 0.16 0.15 0.15 0.15 0.15
23.0
0.20 0.21 0.21 0.22 0.22 0.23 0.23 0.23 0.23 0.24 0.24 0.24 0.24 0.23 0.23 0.23 0.23 0.22
24.0
0.27
0.28
0.29
0.29
0.30
0.30
0.31
0.31
0.31
0.32
0.32
0.32
0.32
0.31
0.31
0.31
0.30
0.30
25.0 0.34 0.35 0.36 0.37 0.38 0.38 0.39 0.39 0.40 0.40 0.40 0.40 0.40 0.39 0.39 0.39 0.38 0.37
26.0 0.42 0.43 0.44 0.45 0.46 0.46 0.47 0.47 0.48 0.48 0.48 0.48 0.48 0.47 0.47 0.46 0.46 0.46
27.0
0.50 0.51 0.52 0.53 0.54 0.55 0.55 0.56 0.56 0.56 0.56 0.56 0.56 0.55 0.55 0.54 0.53 0.52
28.0
0.58
0.59
0.60
0.61
0.62
0.63
0.64
0.64
0.64
0.65
0.65
0.64
0.64
0.64
0.63
0.62
0.61
0.60
29.0
0.66 0.67 0.68 0.69 0.70 0.71 0.72 0.73 0.73 0.73 0.73 0.73 0.72 0.72 0.71 0.70 0.69 0.68
30.0 0.74 0.75 0.77 0.78 0.79 0.80 0.81 0.81 0.81 0.82 0.81 0.81 0.81 0.80 0.79 0.78 0.77 0.75
13. Brix to refractive index (nD) conversion table
Data from „ICUMSA“ International Commission for Uniform Methods
of Sugar Analysis, at 20 °C and 589 nm wavelength.
Produktspecifikationer
Varumärke: | Kern |
Kategori: | Mätutrustning |
Modell: | ORA 90BE |
Behöver du hjälp?
Om du behöver hjälp med Kern ORA 90BE ställ en fråga nedan och andra användare kommer att svara dig
Mätutrustning Kern Manualer

1 April 2025

1 April 2025

1 April 2025

1 April 2025

1 April 2025

1 April 2025

1 April 2025

1 April 2025

1 April 2025

1 April 2025
Mätutrustning Manualer
- Mätutrustning Bosch
- Mätutrustning IKEA
- Mätutrustning Panasonic
- Mätutrustning DeWalt
- Mätutrustning Fysic
- Mätutrustning Honeywell
- Mätutrustning Pioneer
- Mätutrustning Topcom
- Mätutrustning Albrecht
- Mätutrustning Alecto
- Mätutrustning Ansmann
- Mätutrustning Amprobe
- Mätutrustning Toolland
- Mätutrustning Nedis
- Mätutrustning Black And Decker
- Mätutrustning Pyle
- Mätutrustning Yato
- Mätutrustning VirtuFit
- Mätutrustning Lanaform
- Mätutrustning Megasat
- Mätutrustning Meec Tools
- Mätutrustning Milwaukee
- Mätutrustning Extech
- Mätutrustning Victron Energy
- Mätutrustning ABB
- Mätutrustning Hazet
- Mätutrustning Schneider
- Mätutrustning Metrix
- Mätutrustning Benning
- Mätutrustning Einhell
- Mätutrustning Hama
- Mätutrustning Voltcraft
- Mätutrustning Midland
- Mätutrustning Mitsubishi
- Mätutrustning Velleman
- Mätutrustning Vemer
- Mätutrustning Technics
- Mätutrustning Perel
- Mätutrustning Burg-Wachter
- Mätutrustning Kyoritsu
- Mätutrustning IFM
- Mätutrustning Ideal
- Mätutrustning Flir
- Mätutrustning Homedics
- Mätutrustning Soehnle
- Mätutrustning Grohe
- Mätutrustning Technoline
- Mätutrustning Digitus
- Mätutrustning Soler And Palau
- Mätutrustning Proficare
- Mätutrustning Continental Edison
- Mätutrustning Dahua Technology
- Mätutrustning Rossmax
- Mätutrustning Microlife
- Mätutrustning Carrier
- Mätutrustning Testboy
- Mätutrustning Goclever
- Mätutrustning Trotec
- Mätutrustning LaCie
- Mätutrustning Laica
- Mätutrustning Danfoss
- Mätutrustning AS - Schwabe
- Mätutrustning Shimano
- Mätutrustning Goobay
- Mätutrustning Hager
- Mätutrustning Bresser
- Mätutrustning Festo
- Mätutrustning TFA
- Mätutrustning Owon
- Mätutrustning IHealth
- Mätutrustning Flex
- Mätutrustning Finder
- Mätutrustning Fluke
- Mätutrustning Fantini Cosmi
- Mätutrustning Eltako
- Mätutrustning EBERLE
- Mätutrustning Omnitronic
- Mätutrustning Basetech
- Mätutrustning Stabila
- Mätutrustning Eizo
- Mätutrustning Cablexpert
- Mätutrustning Steinberg
- Mätutrustning Be Cool
- Mätutrustning Laserliner
- Mätutrustning Eurolite
- Mätutrustning Wentronic
- Mätutrustning Wago
- Mätutrustning Comark
- Mätutrustning REV
- Mätutrustning Testo
- Mätutrustning Sauter
- Mätutrustning Clean Air Optima
- Mätutrustning Bruder Mannesmann
- Mätutrustning Cocraft
- Mätutrustning VDO
- Mätutrustning Livington
- Mätutrustning Truelife
- Mätutrustning Eastron
- Mätutrustning ORNO
- Mätutrustning RIDGID
- Mätutrustning Maximum
- Mätutrustning Westfalia
- Mätutrustning Monacor
- Mätutrustning Metrel
- Mätutrustning Multimetrix
- Mätutrustning PCE
- Mätutrustning GW Instek
- Mätutrustning Logilink
- Mätutrustning Holzmann
- Mätutrustning SIIG
- Mätutrustning Oregon Scientific
- Mätutrustning Etymotic
- Mätutrustning Reely
- Mätutrustning Muller
- Mätutrustning TFA Dostmann
- Mätutrustning Werma
- Mätutrustning Greisinger
- Mätutrustning Testec
- Mätutrustning Beha-Amprobe
- Mätutrustning Kopp
- Mätutrustning YSI
- Mätutrustning Vimar
- Mätutrustning Kogan
- Mätutrustning Kreg
- Mätutrustning Kemo
- Mätutrustning Pancontrol
- Mätutrustning SRS
- Mätutrustning Peak
- Mätutrustning Uni-T
- Mätutrustning H-Tronic
- Mätutrustning X-Rite
- Mätutrustning Elgato
- Mätutrustning Ebro
- Mätutrustning Tempest
- Mätutrustning Arya
- Mätutrustning Hikmicro
- Mätutrustning RK Technology
- Mätutrustning PeakTech
- Mätutrustning Sonel
- Mätutrustning Tru Components
- Mätutrustning Emko
- Mätutrustning Aktobis
- Mätutrustning Entes
- Mätutrustning KS Tools
- Mätutrustning Lund
- Mätutrustning Phoenix Contact
- Mätutrustning Trumeter
- Mätutrustning Aeros
- Mätutrustning Delta Ohm
- Mätutrustning Aqua Master Tools
- Mätutrustning Hanna
- Mätutrustning Atmel
- Mätutrustning Qualita
- Mätutrustning MGL Avionics
- Mätutrustning Adwa
- Mätutrustning Chauvin Arnoux
- Mätutrustning Megger
- Mätutrustning AREXX
- Mätutrustning Gossen Metrawatt
- Mätutrustning Rigol
- Mätutrustning PCE Instruments
- Mätutrustning UHoo
- Mätutrustning CEM
- Mätutrustning NEO Tools
- Mätutrustning SHX
- Mätutrustning Hameg
- Mätutrustning TDE Instruments
- Mätutrustning CESYS
- Mätutrustning Joy-it
- Mätutrustning Angler
- Mätutrustning Techno Line
- Mätutrustning Circutor
- Mätutrustning Wachendorff
- Mätutrustning Klein Tools
- Mätutrustning Jonard Tools
- Mätutrustning Aim TTi
- Mätutrustning Duro Pro
- Mätutrustning Aerospace Logic
- Mätutrustning Grundfos
- Mätutrustning Zircon
- Mätutrustning BJZ
- Mätutrustning Johnson Level
- Mätutrustning GMW
- Mätutrustning SOEKS
- Mätutrustning Rotronic
- Mätutrustning Apollo Ultrasonic
- Mätutrustning Softing
- Mätutrustning Weltron
- Mätutrustning Oscium
- Mätutrustning Janitza
- Mätutrustning Sanwa
- Mätutrustning Condtrol
- Mätutrustning J.P. Instruments
- Mätutrustning MSW
- Mätutrustning Weidmüller
- Mätutrustning Qubino
- Mätutrustning Lascar Electronics
- Mätutrustning HT Instruments
- Mätutrustning BAXTER
- Mätutrustning P3 International
- Mätutrustning Beckmann & Egle
- Mätutrustning Seek Thermal
- Mätutrustning INFICON
- Mätutrustning Motrona
- Mätutrustning Tempo
- Mätutrustning Camille Bauer
- Mätutrustning Blebox
- Mätutrustning Seaward
- Mätutrustning HOZO Design
- Mätutrustning Corentium
- Mätutrustning GQ
- Mätutrustning Tektronix
- Mätutrustning Dostmann Electronic
- Mätutrustning Murideo
- Mätutrustning SecuTech
- Mätutrustning NetPeppers
- Mätutrustning SensoProtect
- Mätutrustning Water-i.d.
- Mätutrustning ZKETECH
- Mätutrustning LabNation
- Mätutrustning Electronics International
- Mätutrustning Cliff
- Mätutrustning ClimeMET
- Mätutrustning Fixpoint
- Mätutrustning Kübler
- Mätutrustning AkYtec
- Mätutrustning Stahlwille
- Mätutrustning MASIMO
- Mätutrustning Milesight
- Mätutrustning Enda
- Mätutrustning CSL
- Mätutrustning Ermenrich
- Mätutrustning PICO
- Mätutrustning Siglent
- Mätutrustning Noyafa
- Mätutrustning Topex
- Mätutrustning Stamos
- Mätutrustning Brookhuis
- Mätutrustning Senseca
- Mätutrustning PQ Plus
- Mätutrustning Intact
- Mätutrustning Crowcon
- Mätutrustning Aeroqual
- Mätutrustning DriveTest
- Mätutrustning Helvi
- Mätutrustning Mitutoyo
Nyaste Mätutrustning Manualer

1 April 2025

30 Mars 2025

30 Mars 2025

30 Mars 2025

30 Mars 2025

30 Mars 2025

30 Mars 2025

30 Mars 2025

30 Mars 2025

29 Mars 2025
