Sida 1/12
521 East 3rd Street Mt. Vernon, NY 10553 • www.keydigital.com
1

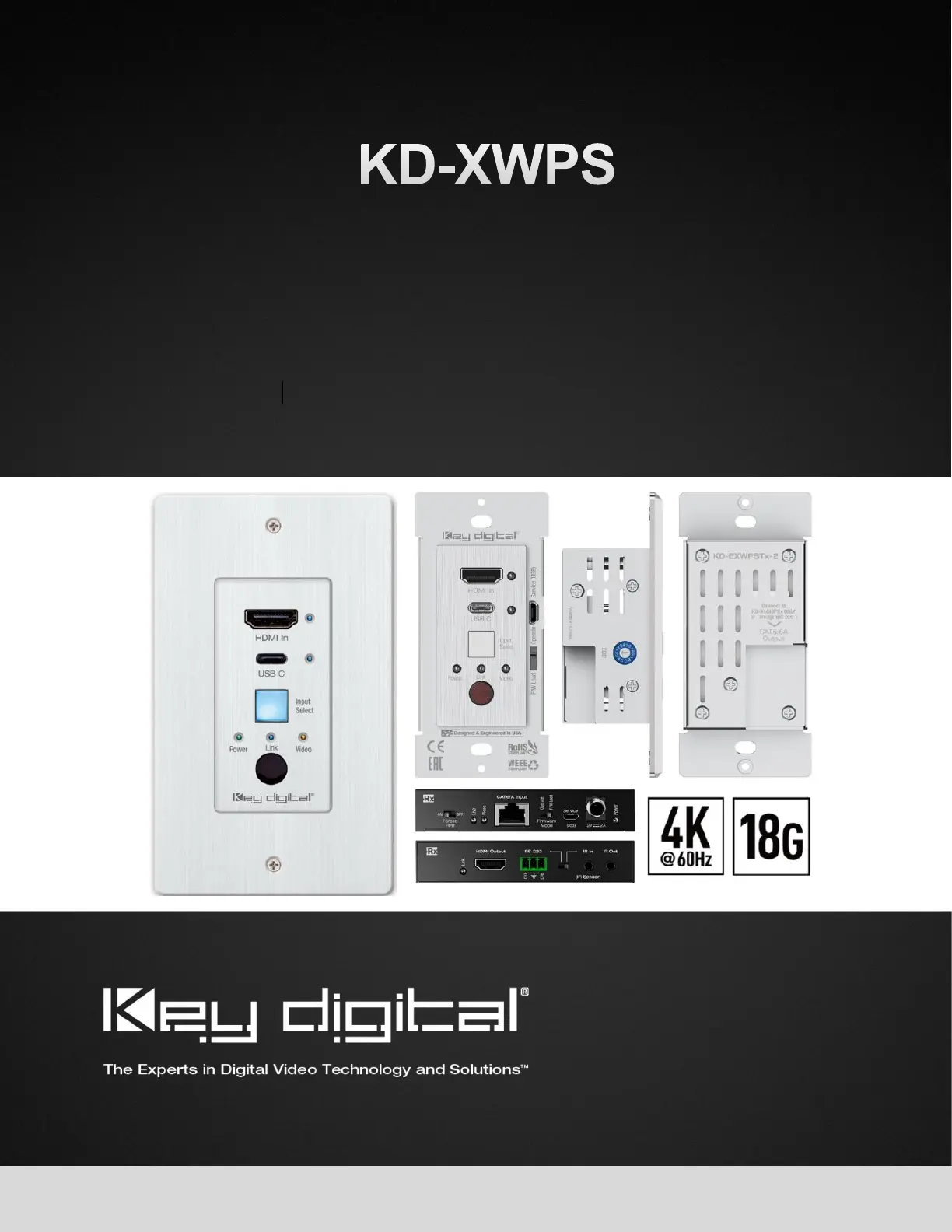

Single Gang HDMI USB-C over 164ft / 50m CAT6/6A Auto
Switching Wall Plate Switcher Transmitter with Receiver Kit.
4K UHD, 18G, Power over CAT.
521 East 3rd Street Mt. Vernon, NY 10553 • www.keydigital.com
Rev 1.0 Oct, 2022 –
2
Table of Contents
About KD-XWPS 3
Quick Setup Guide 4
Application Example 5
Connections and Adjustments 5
LED Indicators 8
Rack Mounting 9
Specications 10
Warranty Information 11
Product Warnings & Safety Instructions 11
521 East 3rd Street Mt. Vernon, NY 10553 • www.keydigital.com
Rev 1.0 Oct, 2022 –
3
About KD-XWPS
Key Digital® -XWPS is a single-gang wall-plate switcher transmitter + receiver kit with one HDMI and one KD
USB-C input ideal for professional AV systems installations in conference rooms, huddle spaces, classrooms,
and more. -XWPS supports 4K/UHD resolution with bandwidth up to 18Gbps and HDCP2.2 compliancy KD and
extends video resolutions up to 4096x2160 at 60hz with 4:4:4 chroma sub-sampling over a single CAT6/6A
cable up to 1 ft ( m). In addition to HDMI video and audio signals, -XWPS features an IR sensor on the 64 50 KD
faceplate to control remotely located equipment. KD-XWPS features EDID handshake control and hot plug
detection for overcoming common systems integration obstacles. The wall-plate unit ts in a standard US
single-gang box and is powered by the Rx unit for convenient installation.
Key Features
• Presentation Switching: 1 HDMI and 1 USB-C selected by push button auto switching or
• Auto-Switching: Automatic selection of newly detected source and switching from newly disconnected
source when enabled
• Complete Kit: Includes Tx (model KD-EXWPSTx) and Rx (model KD-X444SPRx) units.
• Ultra HD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps
bandwidth)
• Visually Lossless Compression: 18G enabling technology applied to all video formats exceeding
10.2Gbps to accommodate CAT6/6A transmission channel
• Power over CAT: Wall plate Tx unit powered by Rx
• HDCP Licensing: Fully licensed and compatible with HDCP 2.2
• HDR10 (High Dynamic Range): More life-like images through a greater range of luminance levels
• Signal Extension: For resolution and cable quality
o 4K/UHD (up to 18G) & 1080p: Up to m / ft 50 164
• Deep Color Support: Up to 4K/UHD 30Hz 4:4:4/12 bits or 60Hz 4:2:2/ bit 12
• Full Buer System™: Manages TMDS re-clocking / signal re-generation, HDCP authentication to
source & display, EDID Control handshake, and Hot Plug Detection Voltage
• EDID Management: Internal library with 15 internal EDID handshakes including 4K with HDR in addition
to native EDID data copied from the Rx display/device
• IR Sensor: Wall-plate collects line- -sight IR from remote(s) without external IR wiring of
• Surround Audio Support: Dolby ®, DTS (formats up to 5.1 / 6.1) ™
