Sida 1/13
521 East 3rd Street, Mount Vernon, NY 10553
Phone :: 914.667.9700 Fax :: 914.668.8666
Web :: www.keydigital.com
Key Digital
®
, led by digital video pioneer Mike Tsinberg, develops
and manufactures high quality, cutting-edge technology solutions
for virtually all applications where high quality video imaging and
control are important. Key Digital
®
is at the forefront of the video
industry for Home Theater Retailers, Custom Installers, System
Integrators,
Broadcasters, Consultants, Builders, Designers,
Architects and Consumers.

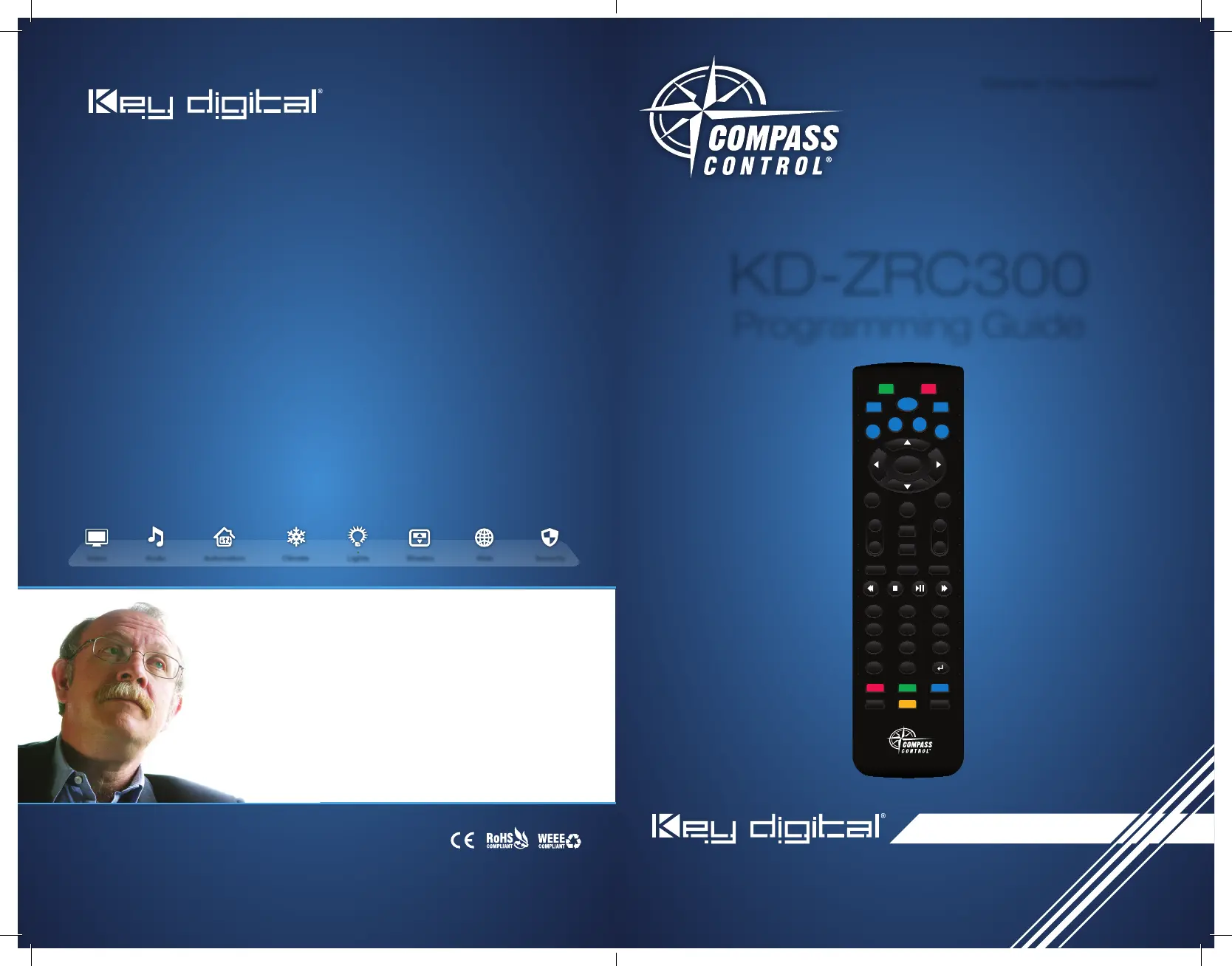

Rev 0 – Aug 2014
KD-ZRC300
Programming Guide
Discover The Possibilities®
The Experts in Digital Video Technology and Solutions™
www.keydigital.com/compass
Video Audio Automation SecurityLights adesShClimate Web
TV ATV
CBX
BRP
L/S/H
ON OFF
AVR SEC
SELECT
DVR
GUIDE
EXIT
VOL
+
–
+
–
CH
MUTE
PREV CH
LIGHT
SHADES
HVAC
1 2 3
4 5 6
7 8 9
0
–
HEAT COOL
ZOOM AV PC
D
AM/FM INT RADIO SURR
MENU
A B C
AUTO
KD-ZRC300_Manual.indd 2-3 8/20/14 2:43 PM
Table of Contents
About KD-ZRC300 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connectivity 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
How It Works 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
KD-ZRC300 Remote Overviiew and Connections 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Default Button Assignment 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setup Master Controller IP address 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Programming 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Instructions 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
How to Contact Key Digital
®
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Warranty Information 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
© 2014 Key Digital, Inc. All rights reserved. ZigBee is a registered trademark of ZigBee Alliance.

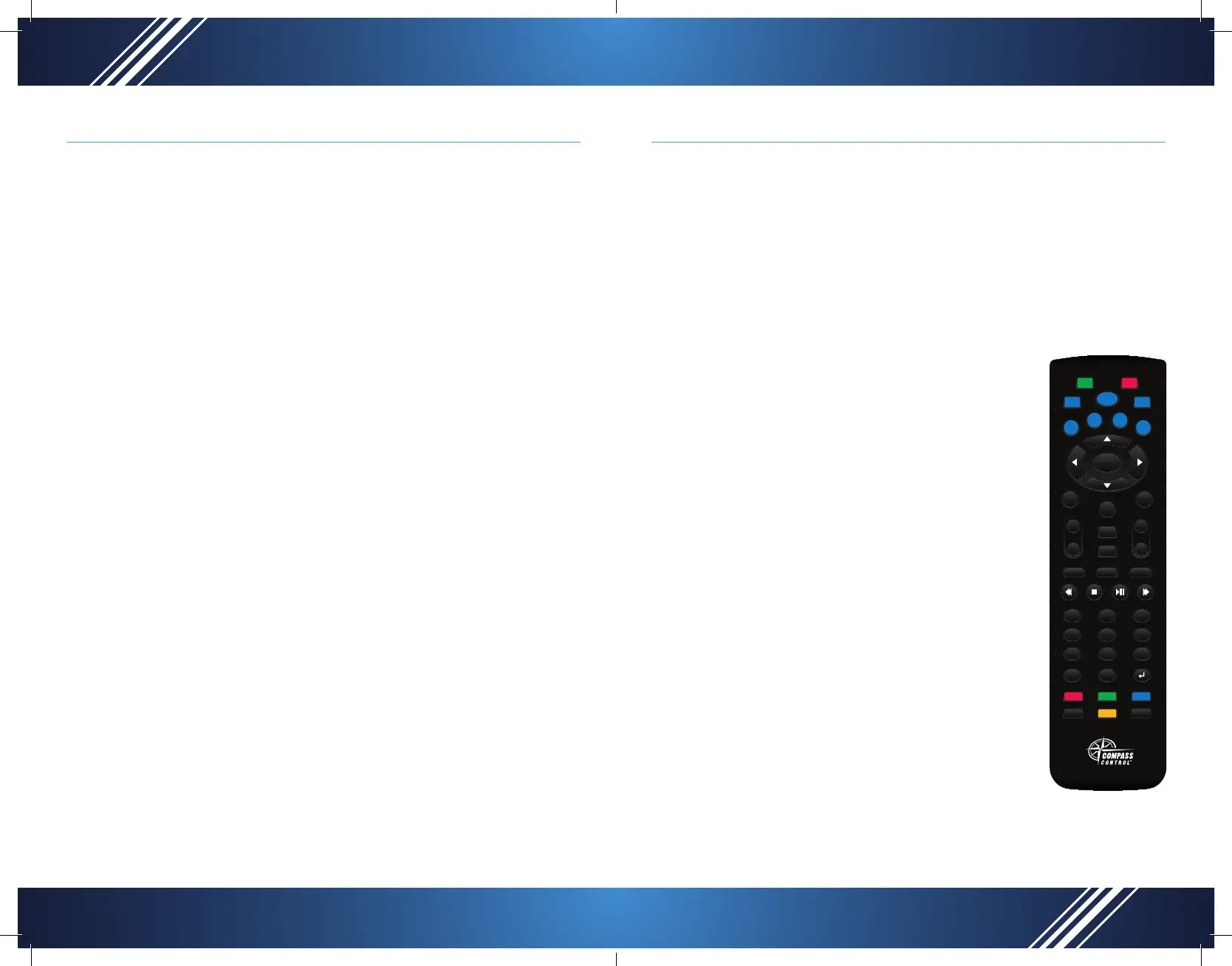

About KD-ZRC300
KD-ZRC300 features ZigBee wireless communication, as well as line-of-sight IR support,
and is the first universal remote control from Key Digital’s Compass Control
®
series.
Key Features
48 Programmable Hard Buttons:
For IR and/or RF ZigBee
®
commands programmable
with Compass Navigator
™
PC Software
Programming Support:
Unlimited macro and variable actions
ZigBee
®
Signal Transmission:
Up to 100’ through walls, doors and floors
Device Control:
Up to 7 devices with line-of-sight IR control or up to 9 devices with
RF Wireless 2.4 GHz ZigBee
®
control
Backlight:
Motion detected automatic backlighting. The backlight
will turn on when movement is detected and will stay on for five
seconds after movement has stopped.
USB:
Recharging Batteries
RS-232:
Programming
Multiple System Modes:
»Idle Mode: Power Saving mode while remote is not in use
»Active Mode: Device switches to Active Mode after a button
is pressed or motion is detected. Stays in Active Mode for
5 seconds.
»Low Battery Mode: Activated when the battery has dropped
below 2.4V. Backlighting and Configuration Mode are
unavailable.
»Configuration Mode: To setup and configure the remote
Indication Keys (On/Off):
»Low Battery indicator: Power OFF LED blinks every one second
while in active mode
»Battery Charging indicator: Power ON LED blinks every one
second while in active mode
»Full Charge indicator: Both Power ON and OFF LEDs blink every
one second while in active mode
»Configuration Mode indicator: Both Power ON and OFF LEDs
are steadily illuminated
7 Device Keys:
The selected Device Key LED will remain illuminated
to indicate which device is selected
For more information regarding KD-ZRC300’s key features, visit:
http://keydigital.com/items.asp?itemCode=KDZRC300&Company=Key
1
TV ATV
CBX
BRP
L/S/H
ON OFF
AVR SEC
SELECT
DVR
GUIDE
EXIT
VOL
+
–
+
–
CH
MUTE
PREV CH
LIGHT
SHADES
HVAC
1 2 3
4 5 6
7 8 9
0
–
HEAT COOL
ZOOM AV PC
D
AM/FM INT RADIO SURR
MENU
A B C
AUTO
KD-ZRC300_Manual.indd 4-1 8/20/14 2:43 PM

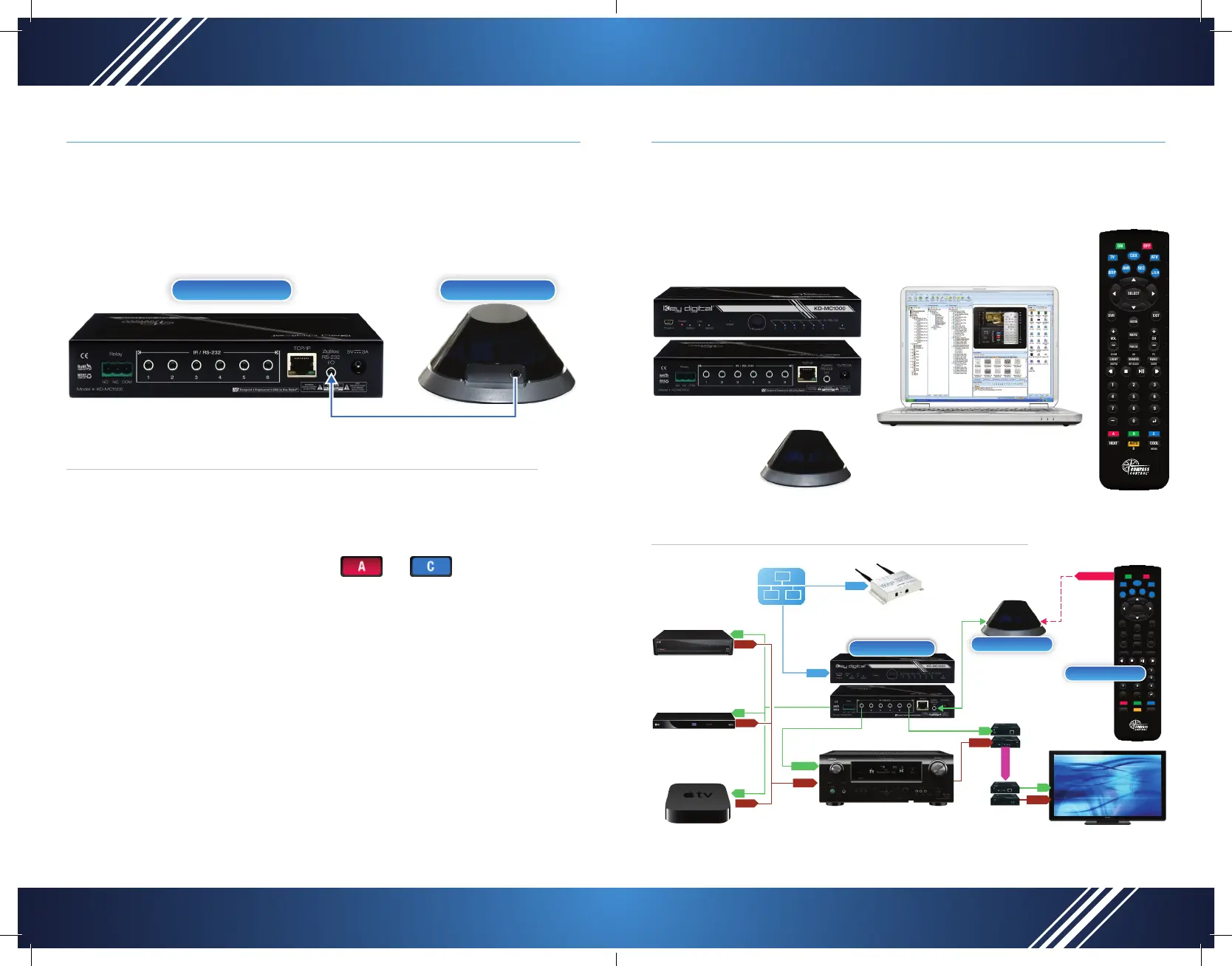

Connectivity
The KD-ZRC300 remote communicates with the KD-ZRX200 transceiver via wireless ZigBee
signals. The KD-ZRX200 transceiver allows for communication from up to 100 feet away with
signals extending through most walls, floors and doors. The KD-MC1000 Master Controller
must also be connected in the system. Connect the KD-ZRX200 to the KD-MC1000’s ZigBee
RS-232 I/O port using the supplied 3.5mm 4 conductor stereo male to male cable or using a
fabricated wire that may be up to 100 ft. long.
3.5mm 4 conductor cable
KD-ZRX200KD-MC1000
Pair KD-ZRC300 ZigBee remote with KD-ZRX200 transceive antenna.
1. Connect The KD-ZRX200 ZigBee port to the RS-232 ZigBee port on the KD-MC1000
(make sure KD-MC1000 is powered on)
2. Hold down the Pair button located underneath the KD-ZRX200 ZigBee transceiver.
Blue lights will begin to flash.
3. As the KD-ZRX200 lights flash, hold down the and buttons on the
KD-ZRC300 remote until the blue lights stop flashing.
4. The KD-ZRC300 and KD-ZRX200 connected to KD-MC1000 are now paired.
How It Works
KD-CCKIT1000 Master Controller Kit: Includes KD-MC1000 Master
Controller, KD-ZRC300 ZigBee® Wireless 2.4 Ghz & IR Universal Handheld
Remote & KD-ZRX200 ZigBee® Wireless 2.4 Ghz to RS-232 Tx & Rx
TV ATV
CBX
BRP
L/S/H
ON OFF
AVR SEC
SELECT
DVR
GUIDE
EXIT
VOL
+
–
+
–
CH
MUT E
PRE V CH
LIGHT
SHADES
HVAC
1 2 3
4 5 6
7 8 9
0
–
HEAT COOL
ZO OM AV PC
D
AM/FM INT RADIO SURR
MENU
A B C
AUT O
KD-ZRC300:
Zigbee Wireless 2.4 Ghz
IR
Universal Handheld Remote
KD-ZRX200: Zigbee
Wireless 2.4 Ghz to
RS-232 TX & RX
Compass Navigator
™
PC Software:
Visual Design & Programming of the
Compass Control
®
System
KD-MC1000: Master Controller
(Wired/LAN, Supports up to 8 Ports)
Single Zone Demo System that Utilizes KD-CCKIT1000:
Ethernet
AVR
Satellite
Apple TV
KD-MC1000
WiFi Router
(Only Necessary
for iOS Control)
Blu-Ray
KD-ZRX200
HDMI
IR
HDMI
HDMI
HDMI
IR
RJ45
RJ45
RS-232
IR
T V AT V
CBX
BRP
L/S/H
ON OF F
AVR SE C
SELECT
DVR
GU IDE
EXIT
VO L
+
–
+
–
CH
MU TE
PREV CH
LIG HT
SH ADES
HVAC
1 2 3
4 5 6
7 8 9
0
–
HE AT CO OL
ZOOM AV PC
D
AM/FM INT RADIO SURR
MENU
A B C
AUT O
KD-ZRC300
ZigBee RF
HDMI
IR
KD-CATHD300Lite
Rx
KD-CATHD300Lite
Tx
HDMI
CAT5e/6
IR
2 3
KD-ZRC300_Manual.indd 2-3 8/20/14 2:43 PM
