Sida 1/8

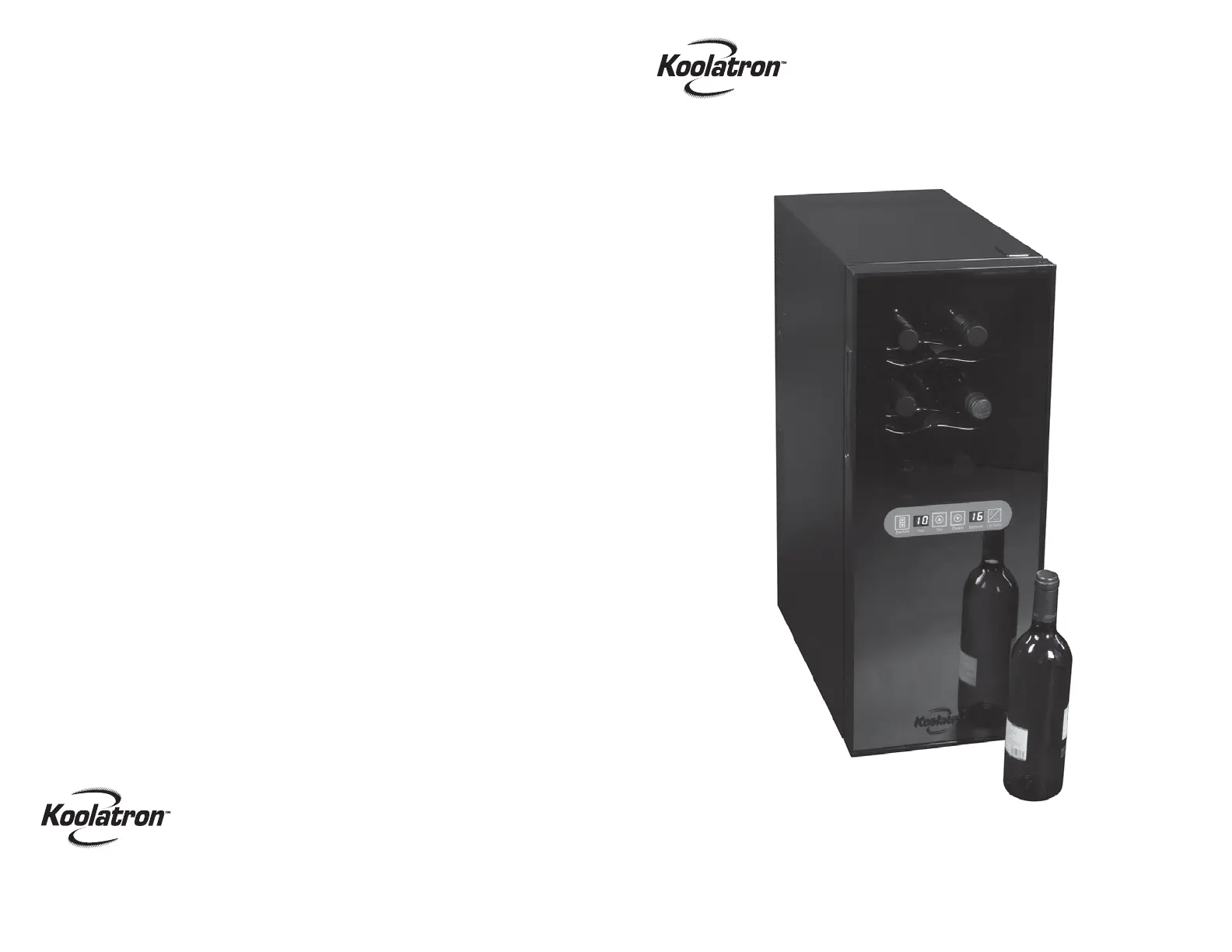

H1S222 Please Read These Instructions Carefully Before Use!
User Manual
DUAL ZONE
WINE CELLAR
12-bottle
WC12-DZ
Warranty
This product is warranted to the retail consumer for 90 days from date of retail purchase,
against defects in material and workmanship.
WHAT IS COVERED
- Replacement parts and labor.
- Transportation charges to customer for the repaired product.
WHAT IS NOT COVERED
- Commercial or industrial use of this product.
- Damage caused by abuse, accident, misuse, or neglect.
- Transportation of the unit or component from the customer to Koolatron.
IMPLIED WARRANTIES
Any implied warranties, including the implied warranty of merchantability are also
limited to duration of 90 days from the date of retail purchase.
WARRANTY AND SERVICE PROCEDURE
Keep the original, dated, sales receipt with this manual. If you have a problem with your unit, or you require
replacement parts, please telephone the following number for assistance: 1-800-265-8456
A Koolatron Master Service Centre must perform all warranty work. Service after warranty
may be obtained at a Master Service Centre or at an authorized service dealer. Purchase
Receipt is required to establish warranty eligibility.
Koolatron has Master Service Centres at these locations:
U.S.A. - 4330 Commerce Dr., Batavia, NY 14020-4102
Canada - 139 Copernicus Blvd., Brantford, ON N3P1N4
www.koolatron.com
©2020 Koolatron, Inc. All rights reserved.
All specification are subject to change without notice.
Assembled in North America 6/2020 - v3
2
FEATURES IMPORTANT SAFEGUARDS

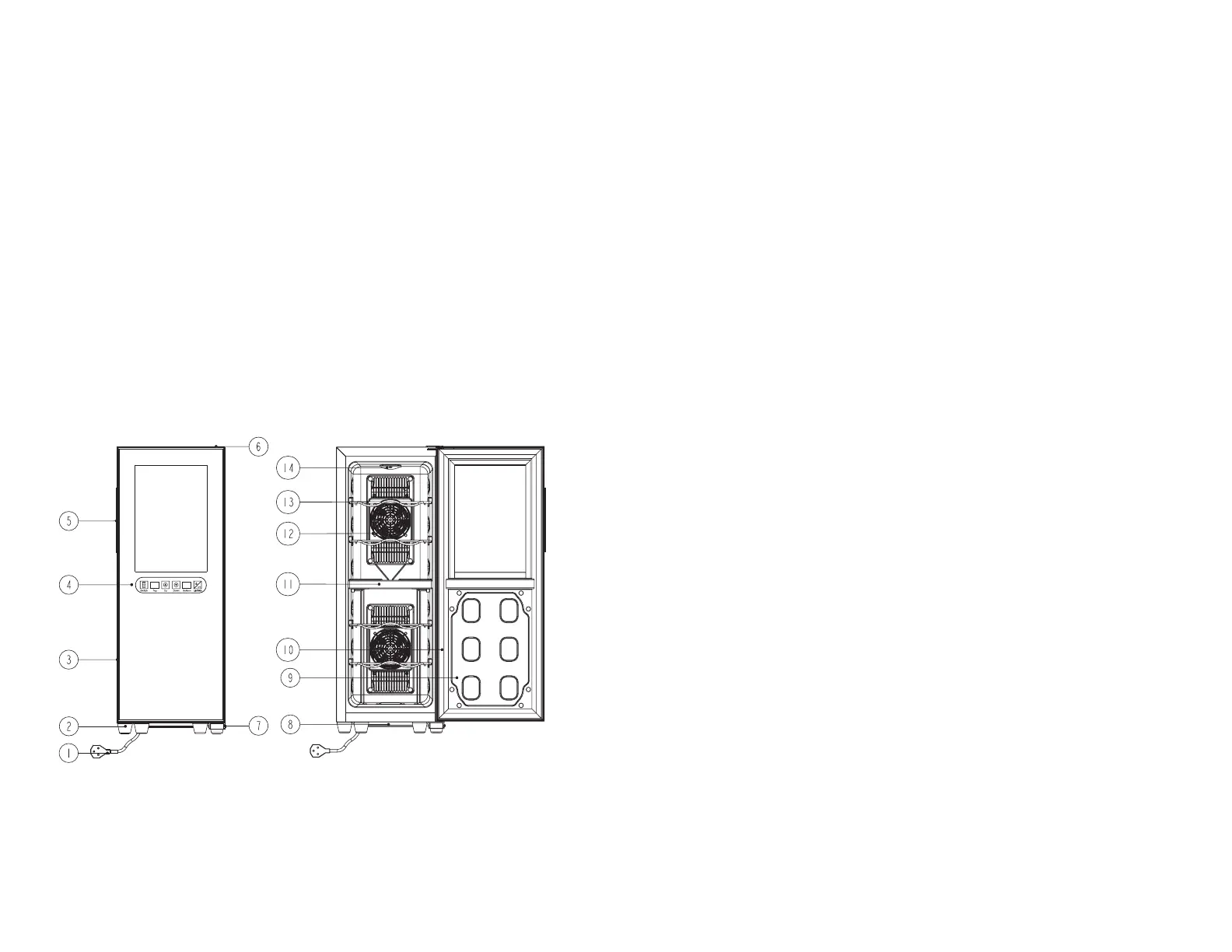

PARTS
3
• free-standing
• capacity: 12 bottles x 750 mL (25 fl. oz.)
• thermoelectric cooling
• digital temperature controls in °C or °F
• temperature range
- upper zone 12°C to 18°C (54°F to 66°F)
- lower zone 6°C to 18°C (42°F to 66°F)
• mirror glass door
• removable shelves
• dark interior
• soft interior light
• adjustable legs
• vibration free
Before the appliance is used, it must be properly positioned and installed as per the instruction
in the section. To reduce the risk of fire, electric shock or injury, follow basicInstallation
precautions including the following:
1. Read all instructions before using the appliance.
2. Plug into a grounded 3-prong outlet, do not remove grounding prong, do not use an adapter, and
do not use an extension cord.
3. Do not place any other household appliances on top of the unit.
4. It is recommended that a separate circuit, serving only your appliance be provided. Use receptacles
that cannot be turned off by a switch or pull chain.
5. Never clean appliance parts with flammable fluids. Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or
explosion.
6. Failure to unplug the appliance during cleaning could result in electrical shock or personal injury.
7. Do not connect or disconnect the plug when your hands are wet.
8. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or
has been damaged in any manner. Return appliance for examination, repair or replacement of any part
of the unit. See the section.Warranty
9. To ensure proper ventilation for your appliance, follow the instructions in the Installation section
for proper clearances. Choose a well-ventilated area with temperatures above 55°F (13°C) and below
90°F (32°C).
10. Do not use outdoors.
11. The appliance should not be located next to ovens, grills or other sources of high heat.
12. It is important for the appliance to be leveled to work properly.
13. Never allow children to operate, play with or crawl inside the unit.
14. Do not use this appliance for other than its intended use.
DANGER - Risk of child entrapment
Before disposing of your appliance, ensure that the door(s) are removed. Shelves should also be left
in place to help avoid children climbing inside. Never allow a child to operate, play with or climb inside
the appliance.
GROUNDED PLUG
To reduce the risk of electric shock this appliance has a grounded plug (2 blades and 1 pin). If the plug
does not fit fully into the electrical outlet contact a qualified electrician. Do not modify the plug in any
way or use an adaptor.
Use an exclusive wall outlet. Do not connect your unit to extension cords or together with any other
appliance in the same wall outlet. If the power cord is too short, have a qualified electrician or service
technician install an outlet near the appliance.
SPECIFICATIONS
Power Requirements: AC 120V 60Hz 100 Watts
Capacity: 12 x 750 ml (25.4 oz) bottles
Max. Temp.: 18°C +/- 3°C (66°F +/- 5°F) at 22°C (72°F) ambient air temp.
Min. Temp.: 6°C +/- 3°C (42°F +/- 5°F) at 22°C (72°F) ambient air temp.
Weight: 13.7 kg (30.2 lbs)
1. Power cord
2. Foot
3. Door frame
4. Glass door
5. Recessed handle
6. Top door hinge cover
7. Bottom door hinge
8. Water tray
9. Door liner
10. Door seal
11. Isolated board
12. Cold fan mask
13. Shelf
14. Lamp cover
4 5
INSTALLATION OPERATING INSTRUCTIONS
BEFORE USING YOUR WINE CELLAR
• Remove the exterior and interior packing.
• Before connecting the Wine Cellar to the power source, let it stand upright for approximately
2 hours. This will reduce the possibility of a malfunction in the cooling system from handling
during transportation.
• Clean the interior surface with lukewarm water using a soft cloth.
INSTALLATION OF YOUR WINE CELLAR
• This appliance is designed for free standing installation. Allow 2” (50 mm” of space between the
unit's side and 4” (100 mm) between back and the wall.
• Place your Wine Cellar on a floor that is strong enough to support it when it is fully loaded. To
level your Wine Cellar, adjust the front leveling leg at the bottom of the Wine Cellar.
• Locate the Wine Cellar away from direct sunlight and sources of heat (stove, heater, radiator,
etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical
consumption. Extreme cold ambient temperatures may also cause the unit not to perform
properly.
• Avoid locating the unit in moist areas.
• Plug the Wine Cellar into an exclusive, properly installed-grounded wall outlet. Do not under any
circumstances cut or remove the third (ground) prong from the power cord. Any questions
concerning about power and/or grounding should be directed toward a certified electrician or an
authorized products service center.
1. Insert the power plug into the power socket. Make sure the power socket is 110-120V AC/60Hz.
2. Set the desired cooling temperature by pressing the buttons or to set your desired
temperature. Each depression of the buttons will scroll through the available temperature
settings. Numbers will flash while setting. Solid numbers indicate the current internal
temperature in Fahrenheit degrees.
3. Allow the empty Wine Cellar to operate for approx. 3 hours. This will allow it to reach
the desired temperature.
4. Fill the wine cooler with your choice of wine bottles. Allow 24 hours of operation before
the bottles reach the desired temperature.
5. The centre touch control button operates both the interior light and switches the temp.
display from Celcius to Fahrenheit. Touch once to turn the interior light on or off. To
switch between Celcius and Fahrenheit, hold button for 4 seconds.
The Wine Cellar should be placed where the ambient temperature is between 59°F to 77°F (15°C
to 25°C). If the ambient temperature is above or below this range, the performance of the unit
may be affected. For example, placing your unit in extreme cold or hot conditions may cause
interior temperatures to fluctuate.
RECOMMENDED TEMPERATURES FOR CHILLING WINE
Red Wines: 58-65°F (15-18°C)
White Wines 46-57°F (8-15°C)
The above temperatures may fluctuate depending on whether the interior light is ON or OFF or
the bottles are located on the upper/middle/lower section
100 mm
4 in
50 mm
2 in
50 mm
2 in
zone
switch
upper zone
temp. display temp. control bottom zone
temp. display interior light
and °C or °F switch
