Generic instructions, (To be used in conjunction with User Instructions).
l Please read this Installation Manual to ensure safe fitting and use of the appliance.
l The appliance should be fitted by a suitably competent and qualified person.
l Please keep these instructions in a safe place for future reference.
l Danger of suffocation keep packaging material away from children.
Installation Instructions
LAM6202 / LAM6252

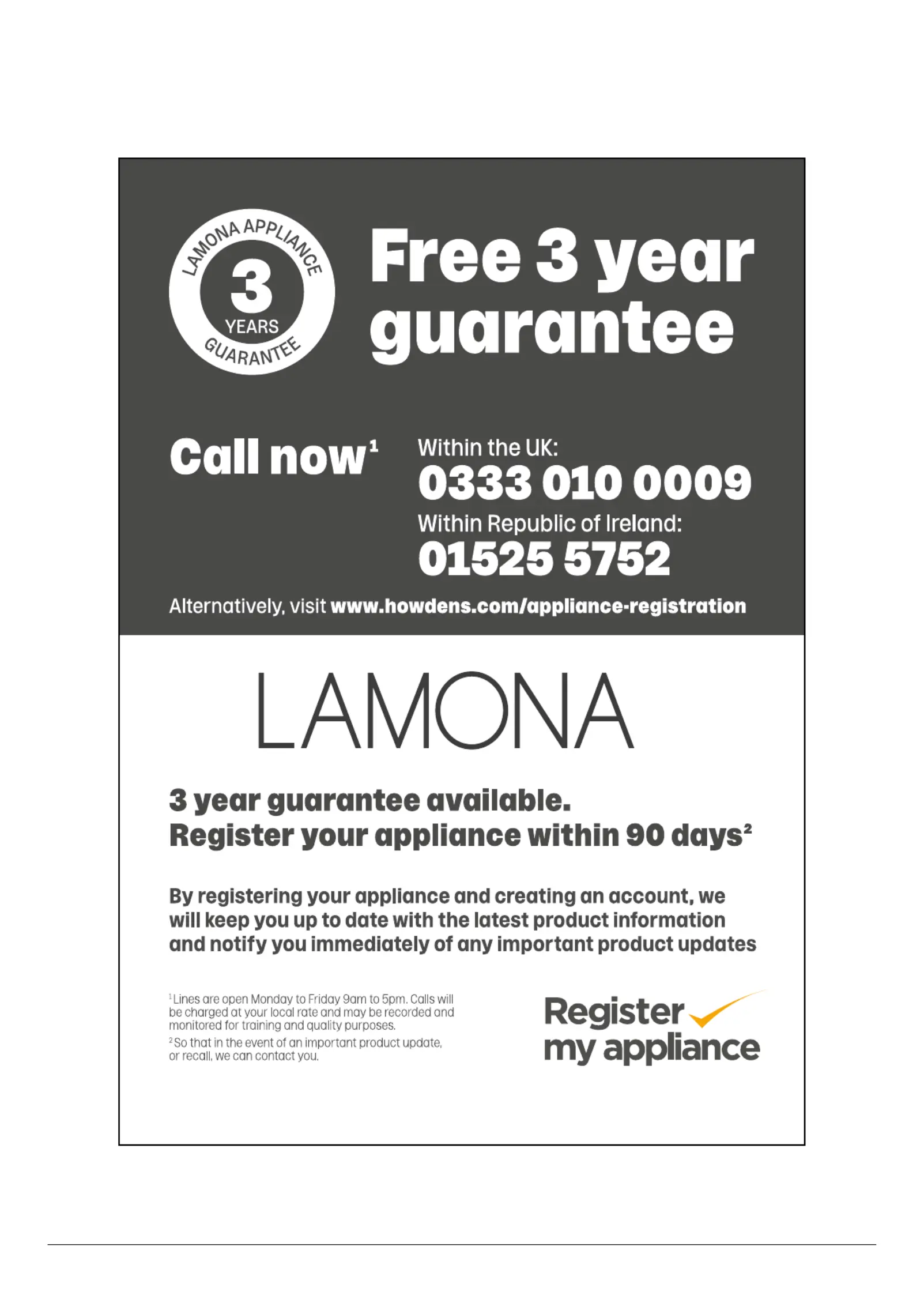

www.howdens.com/appliance-registration
50:50 Integrated Fridge Freezer
ISSUE v1.2 091123
42mm
42mm
Please use brackets with tabs to ensure fridge freezer
install depth is 42mm. (Use front feet adjustment to assist)
If installed deeper than 42mm (at either side) the fridge freezer
doors may not close fully causing issues such as:-
THE LIGHT WILL STAY ON
THE ALARM WILL SOUND (*Frost free models)
THE FRIDGE FREEZER WILL NOT WORK CORRECTLY
(Not cooling, icing-up, water leaking etc.)
1. Establish power socket location,
(must be accessible after installation)
2. Prepare cabinet,
(remove back panels, fit upper fascia infill, fit plinth vent). . . . . . . . . p.5
3. Fit and adjust décor doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . p.5
4. Reverse fridge freezer doors if necessary . . . . . . . . . . . . . . . . . . . . . . . . p.14-15
5. Fit tall feet to fridge freezer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . p.6
6. Fit top trim to fridge freezer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . p.7
7. Fit side seal trim to fridge freezer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . p.8
8. Protect cabinet edges with masking tape . . . . . . . . . . . . . . . . . . . . . . . . p.9
9. Lift fridge freezer into cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . p.9
10. Level and align fridge freezer using front adjustable feet and
spacer brackets ................................................. p.9
11. Fix spacer brackets to fridge freezer and when in
correct position screw to cabinet sides, (mid brackets then
upper brackets).................................................. p.10-11
12. Make any final feet adjustments to align fridge freezer to
brackets and ensure correct spacing depths . . . . . . . . . . . . . . . . . . . . . p.12-13
13. Tighten brackets to fridge freezer, (DO NOT overtighten) . . . . . . . . . . p.12-13
14. Attach door sliders .............................................. p.12
15. Remove bracket spacer tabs, install screw cover caps, fix grille . . . p.12-13
Installation overview guide
3
Exclusive to Howdens
TORX25
and
cross head
screw driver
DO NOT use high
speed impact
power tools.
2mm drill bit
Fridge freezer must
be fixed securely
and level.
Do not install a
damaged appliance.
Two person lift.
Risk of injury:
Beware of metal
edges. Use gloves
when handling.
NOTE: If the electricity
cable is damaged it
must be replaced by a
competent person.
WARNING!
Do not use extension
cables / adapters.
WARNING!
This appliance must
be earthed.
The electric socket
must be accessible
after fitting.
Safety Information
Installation
Tools required
Warning for injury or
property damage risk.
Warning for electric shock. Warning for risk of
fire / flammable materials.
Throughout this manual the following symbols are used.
